DG304ABA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG304ABA

DG304ABA: DescriptionAnalog Switch ICs CMOS Analog Switches; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，9 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DG304ABA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG304ABA	-	-	View	Buy Now

DG304ABA Overview

Analog Switch ICs CMOS Analog Switches

DG304ABA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	BCY
package instruction	METAL CAN-10
Contacts	10
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	O-MBCY-W10
JESD-609 code	e0
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	1
Number of functions	2
Number of terminals	10
Nominal off-state isolation	62 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
output	SEPARATE OUTPUT
Package body material	METAL
Encapsulate equivalent code	CAN10,.23
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	240
power supply	+-15 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	150 ns
Maximum connection time	250 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	20

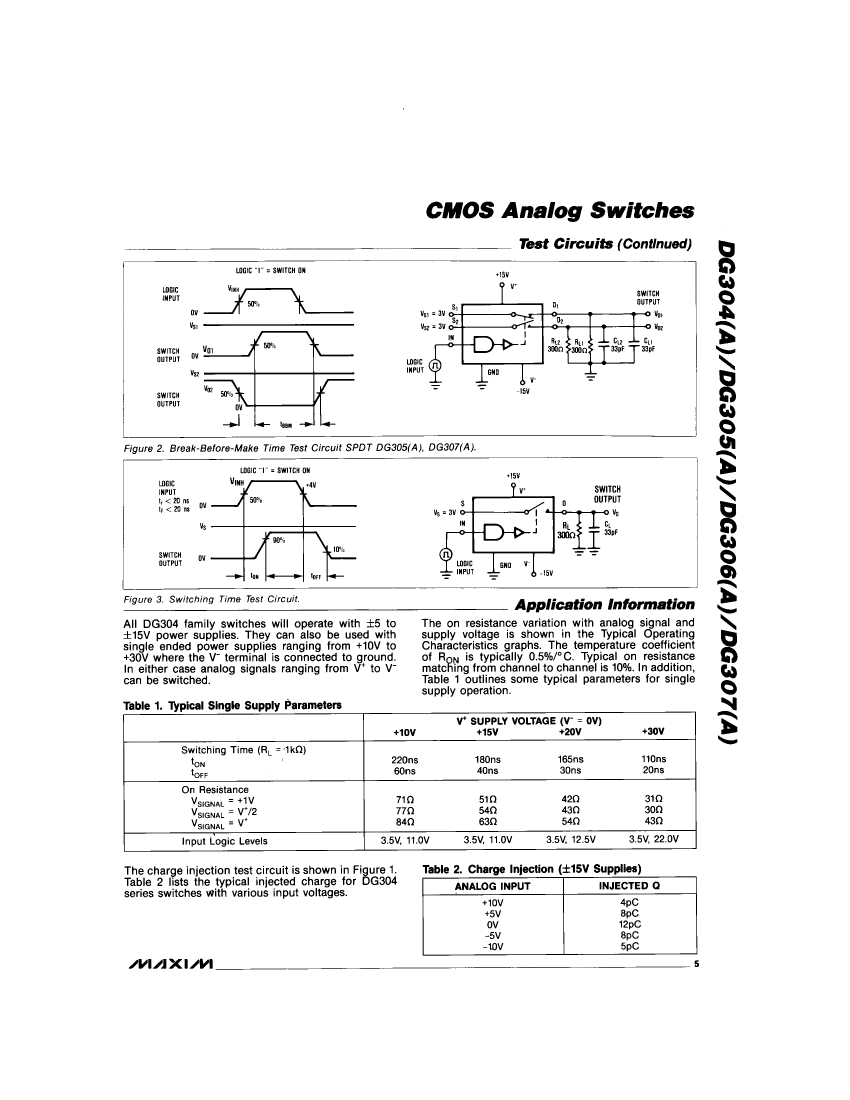

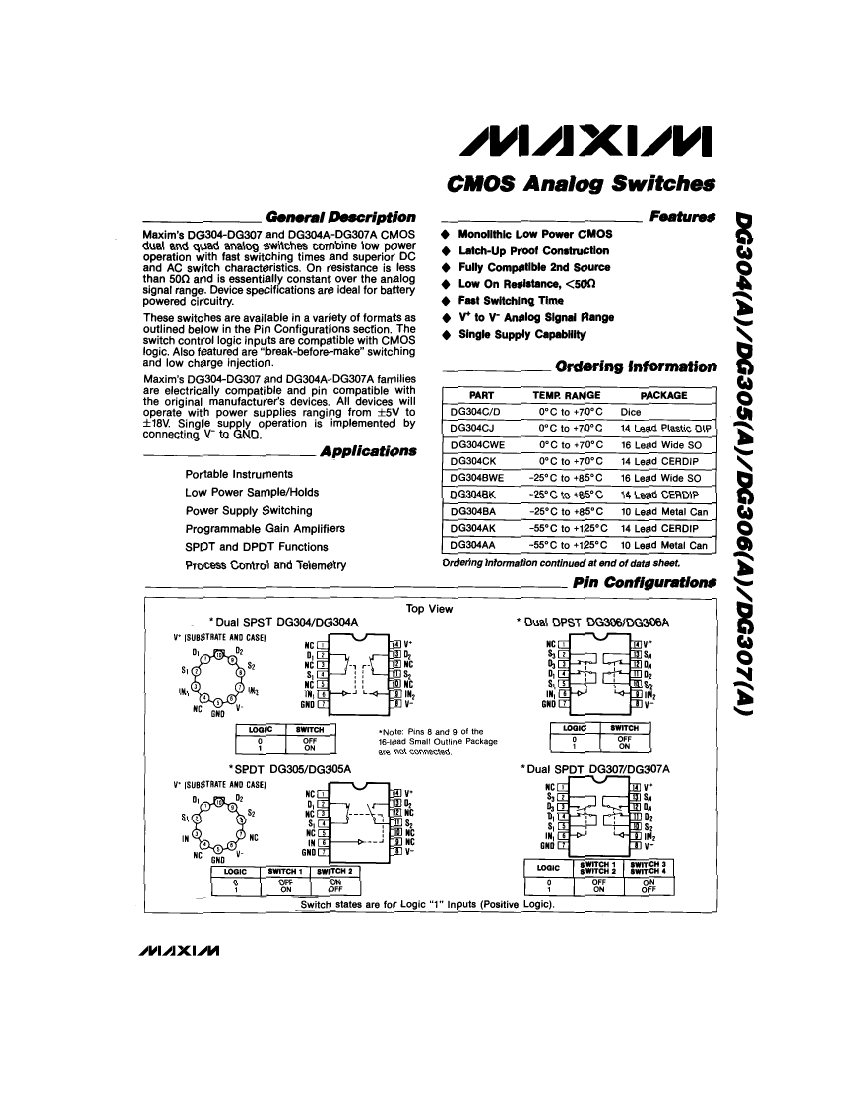

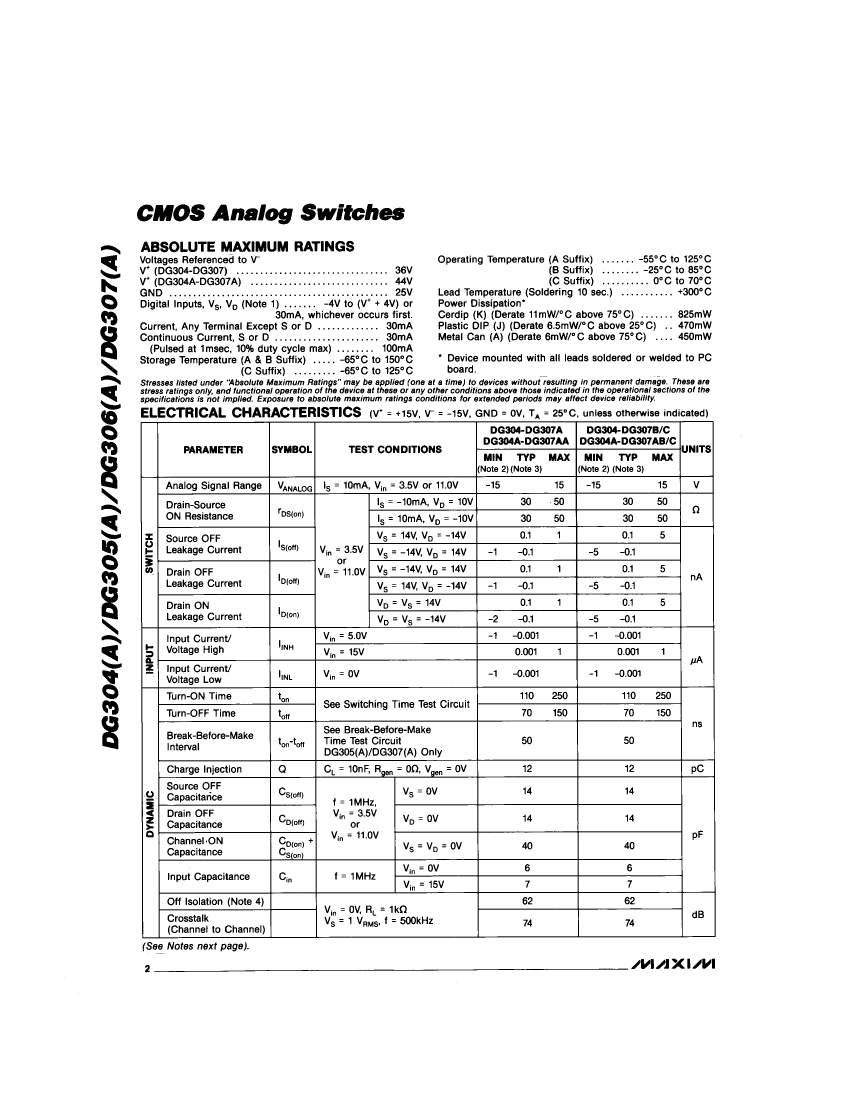

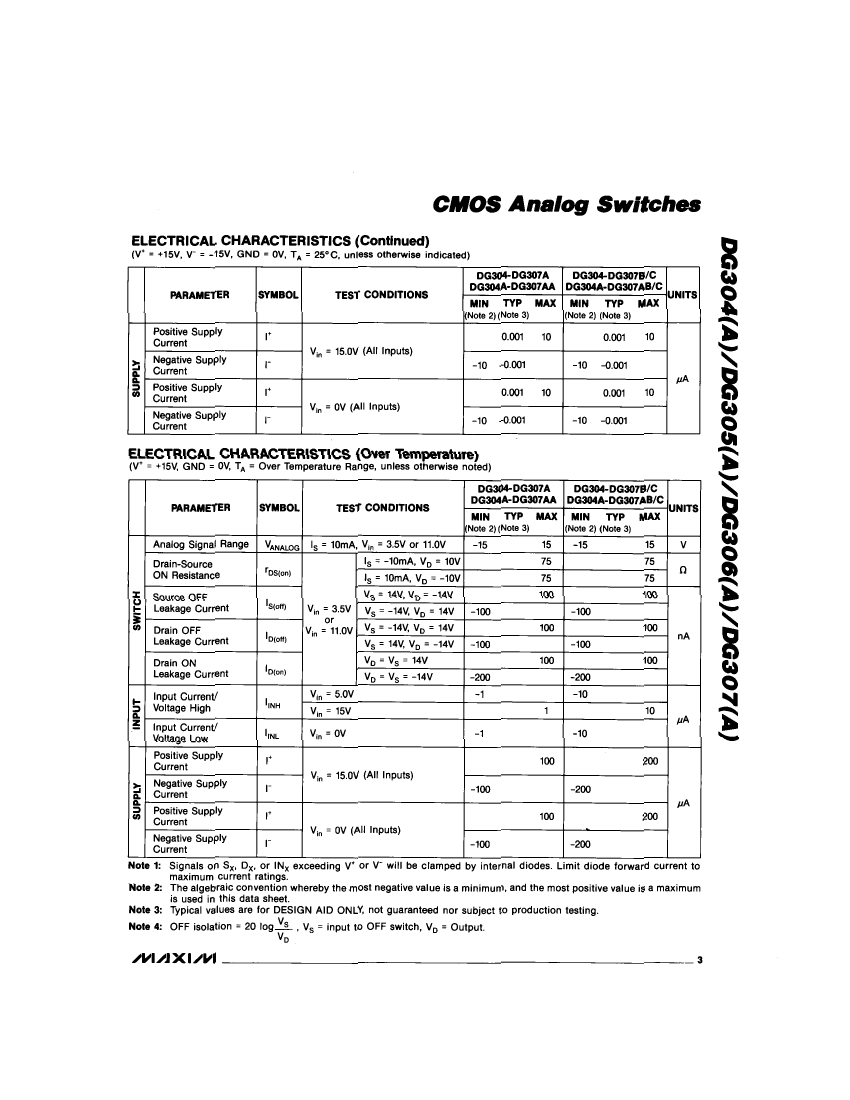

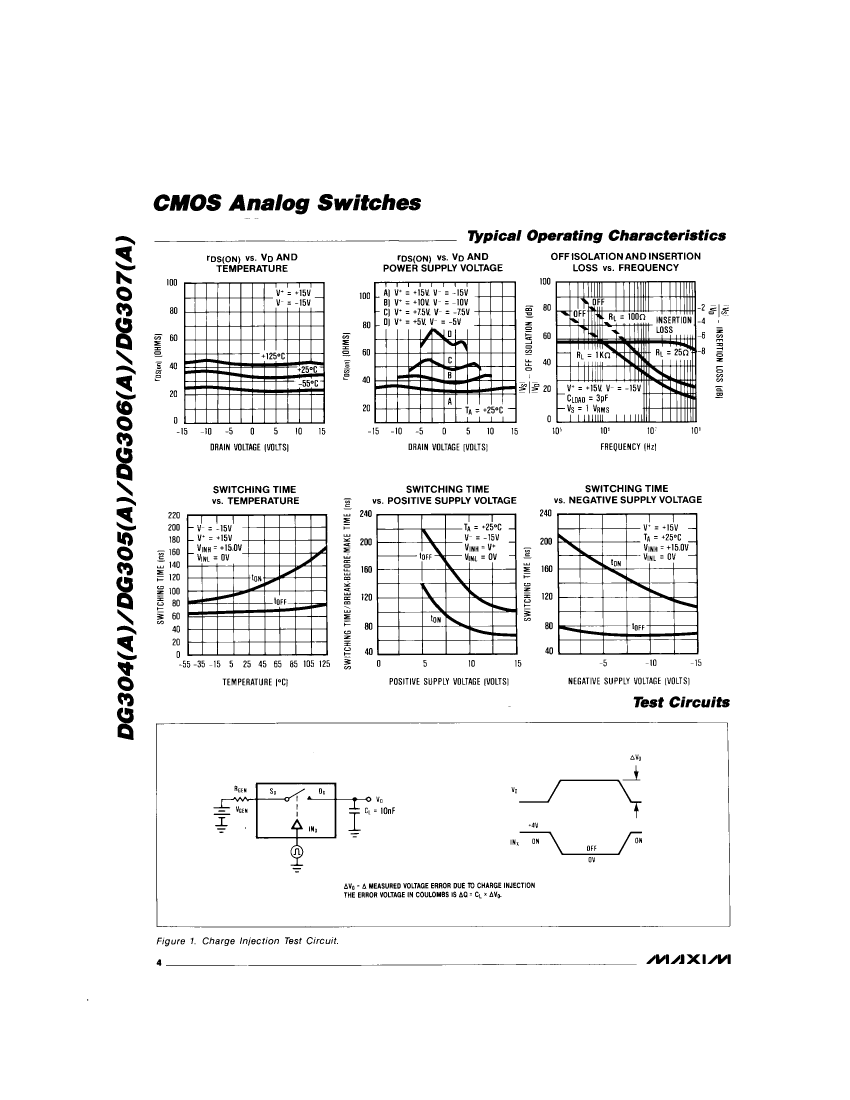

Preview

Download Datasheet

View All

19-0310; Rev 1; 5/04

________________________________________________________________

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

DG304ABA Related Products

	DG304ABA	DG304ABK	DG304AAK	DG304ACK	DG307AC/D	DG304ACWE-T
Description	Analog Switch ICs CMOS Analog Switches	Analog Switch ICs CMOS Analog Switch	Analog Switch ICs CMOS Analog Switch	Analog Switch ICs CMOS Analog Switch	Analog Switch ICs	Analog Switch ICs CMOS Analog Switch
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	-	Maxim
Parts packaging code	BCY	DIP	DIP	DIP	-	SOIC
package instruction	METAL CAN-10	0.300 INCH, CERDIP-14	0.300 INCH, CERDIP-14	0.300 INCH, CERDIP-14	-	0.300 INCH, SOP-16
Contacts	10	14	14	14	-	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	-	not_compliant
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	-	SPST
JESD-30 code	O-MBCY-W10	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	-	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	-	e0
Humidity sensitivity level	1	1	1	1	-	1
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V	-18 V	-	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-5 V	-5 V	-5 V	-	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-	-15 V
normal position	NO	NO	NO	NO	-	-
Number of channels	1	1	1	1	-	1
Number of functions	2	2	2	2	-	2
Number of terminals	10	14	14	14	-	16
Nominal off-state isolation	62 dB	62 dB	62 dB	62 dB	-	62 dB
Maximum on-state resistance (Ron)	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω
Maximum operating temperature	85 °C	85 °C	125 °C	70 °C	-	70 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	-	-
Package body material	METAL	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	PLASTIC/EPOXY
Encapsulate equivalent code	CAN10,.23	DIP16,.3	DIP14,.3	DIP14,.3	-	-
Package shape	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240	-	240
power supply	+-15 V	+-15 V	+-15 V	+-15 V	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	-	18 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	-	15 V
surface mount	NO	NO	NO	NO	-	YES
Maximum disconnect time	150 ns	150 ns	150 ns	150 ns	-	150 ns
Maximum connection time	250 ns	250 ns	250 ns	250 ns	-	250 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	-
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	OTHER	OTHER	MILITARY	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	TIN LEAD
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING
Terminal location	BOTTOM	DUAL	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	20	20	20	20	-	NOT SPECIFIED
encapsulated code	-	DIP	DIP	DIP	-	SOP
Maximum seat height	-	5.08 mm	5.08 mm	5.08 mm	-	2.65 mm
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm
width	-	7.62 mm	7.62 mm	7.62 mm	-	7.5 mm
