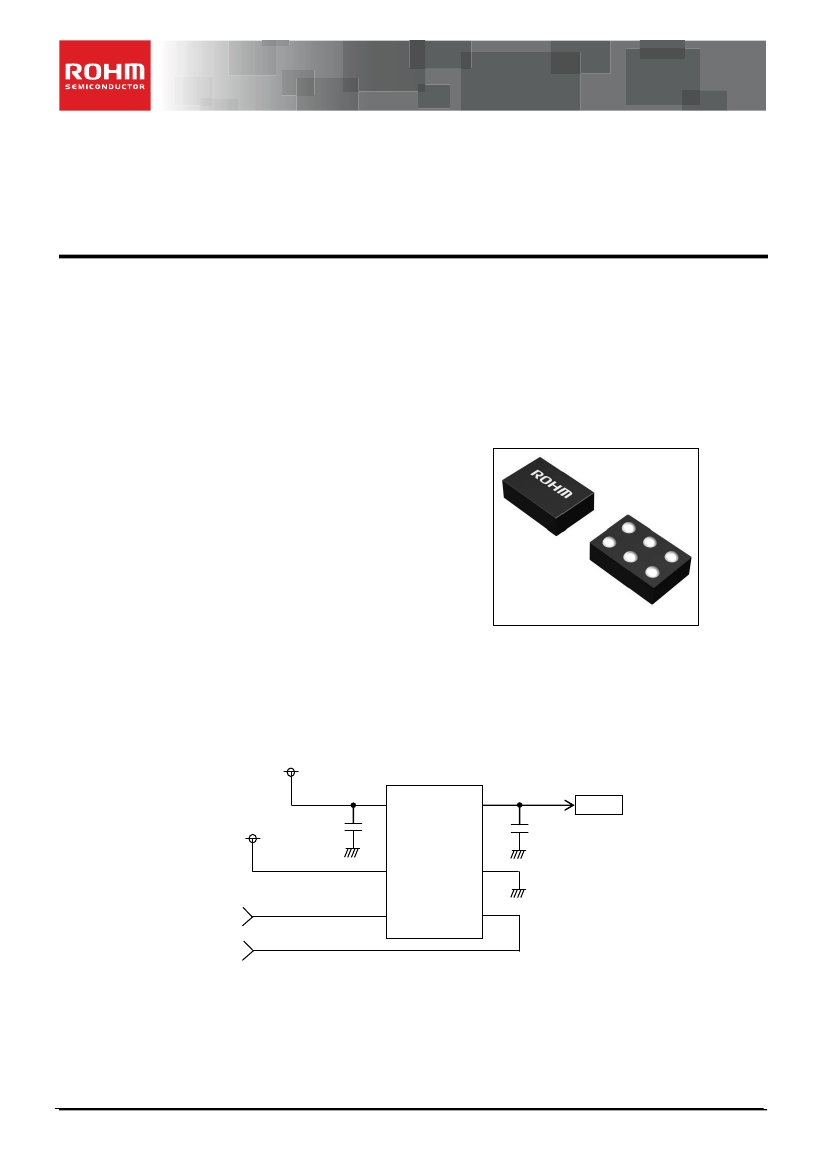

product has no designed protection against radioactive rays
1/23
TSZ02201-0GDG0H300050-1-2
25.Sep.2015 Rev.003
BD2204GUL
Block Diagram
VIN1
EN
SEL
LOGIC
Charge
Pump
VOUT
EN
VIN2
TSD
GND
+
-
Figure 2. Block Diagram
Pin Configuration
A
B
1
2
Top View
Figure 3. Pin Configuration
3
B
A
1
2
Bottom View
3
Pin Description
Pin No.
A1
A2
A3
B1
B2
B3
Symbol
VIN1
VIN2
EN
VOUT
GND
SEL
I/O
I
I
I
O
-
I
Switch2 input
Active-high enable input with pull-down resistance (Typ 700kΩ)
Switch output
Ground
Output selector input with pull-down resistance (Typ 700kΩ)
As SEL=L, VOUT=3.3V output, as SEL=H, VOUT=1.8V output
Pin function
Switch1 input and supply voltage for IC
Absolute Maximum Ratings (Ta = 25°C)
Parameter
Switch1 input voltage
Switch2 input voltage
EN voltage
SEL voltage
VOUT voltage
Output current
Storage temperature
Power dissipation
Symbol
V
IN1
V
IN2
V
EN
V
SEL
V
OUT
I
OUT
T
STG
Pd
-55
Ratings
-0.3
-0.3
-0.3
-0.3
-0.3
to 6.0
to 6.0
to 6.0
to 6.0
to 6.0
1.0
to
150
0.57
(Note 1)
Unit
V
V
V
V
V
A
°C
W
(Note 1)
In the case of exceeding Ta > 25°C, 4.6mW should be reduced per 1°C (Mount on 50mm x 58mm x 1.75mm Glass Epoxy Board)
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
