BAT54S-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54S-7

BAT54S-7: DescriptionSchottky Diodes & Rectifiers 30V 350mW; CategoryDiscrete semiconductor diode; File Size82KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

BAT54S-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54S-7	-	-	View	Buy Now

BAT54S-7 Overview

Schottky Diodes & Rectifiers 30V 350mW

BAT54S-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.6 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

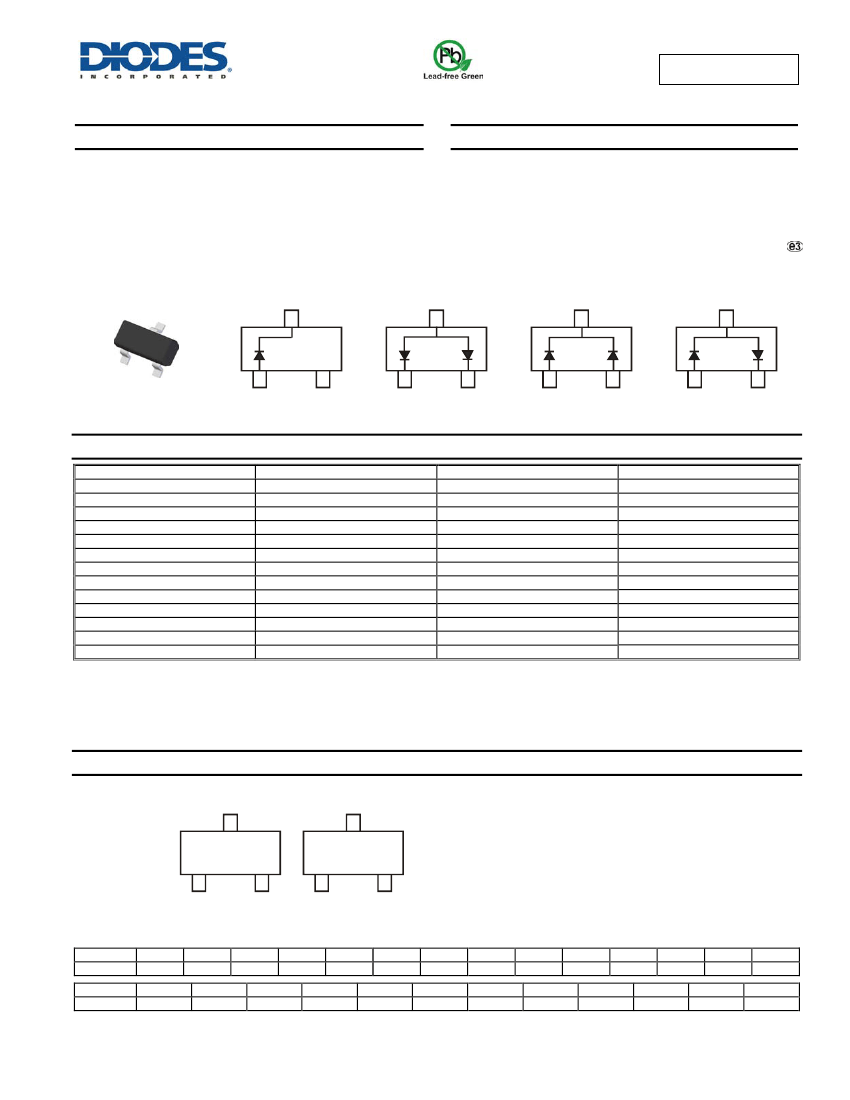

BAT54 /A /C /S

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features



Low Turn-on Voltage

Fast Switching

PN Junction Guard Ring for Transient and ESD Protection

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagrams Below

Weight: 0.008 grams (approximate)

Top View

BAT54

BAT54A

BAT54C

BAT54S

Ordering Information

(Note 4)

Part Number

BAT54-7-F

BAT54A-7-F

BAT54C-7-F

BAT54S-7-F

BAT54Q-7-F

BAT54AQ-7-F

BAT54CQ-7-F

BAT54SQ-7-F

BAT54-13-F

BAT54A-13-F

BAT54Q-13

BAT54AQ-13

BAT54SQ-13

Notes:

Compliance

Standard

Automotive

Standard

Automotive

Case

SOT23

Packaging

3000/Tape & Reel

10,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

Marking Information

K = SAT (Shanghai Assembly / Test site)

C = CAT (ChengDu Assembly / Test site)

xx = Product Type Marking Code

L1 = BAT54

L2 = BAT54A

L3 = BAT54C

L4 = BAT54S

YM = Date Code Marking

Y = Year (ex: A = 2013)

M = Month (ex: 9 = September)

Kxx

Cxx

Date Code Key

Year

1998

Code

Month

Code

Jan

…

Feb

2002

Mar

2003

Apr

…

2009

May

2010

Jun

2011

Jul

2012

Aug

2013

Sep

2014

2015

Oct

2016

Nov

2017

Dec

BAT54 /A /C /S

Document number: DS11005 Rev. 30 - 2

1 of 4

www.diodes.com

April 2013

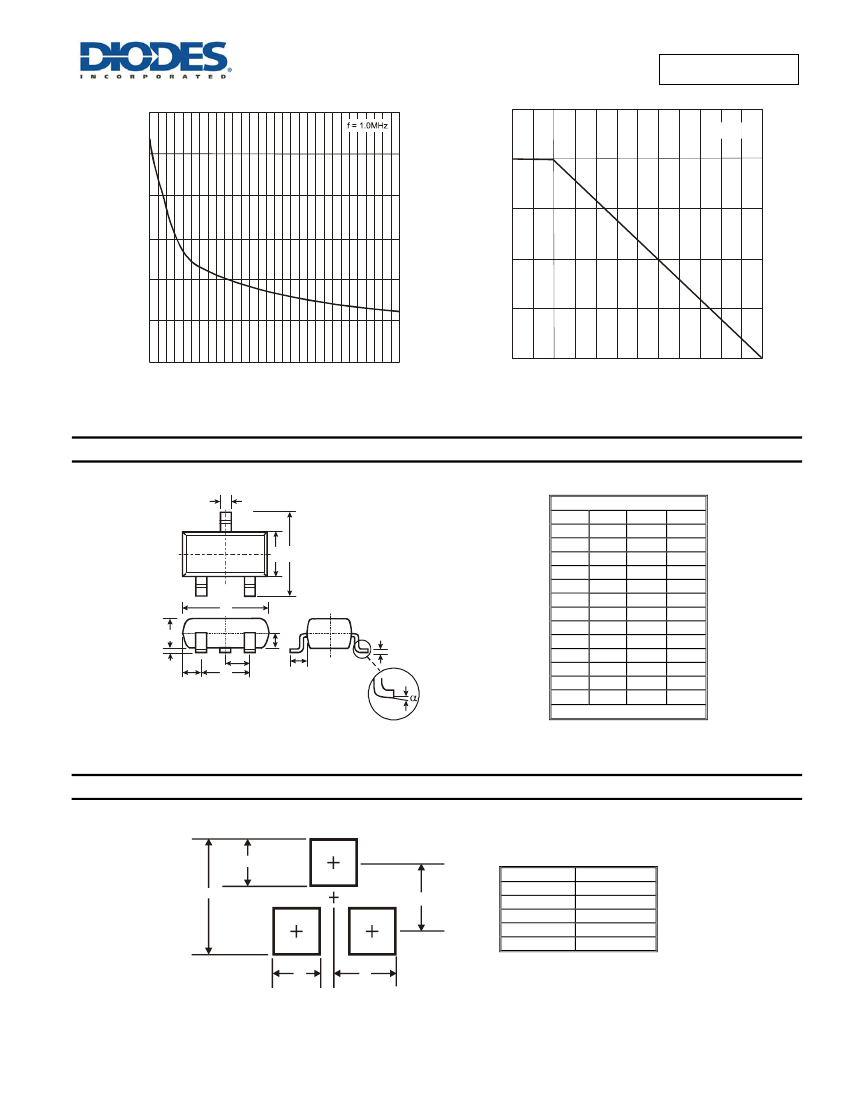

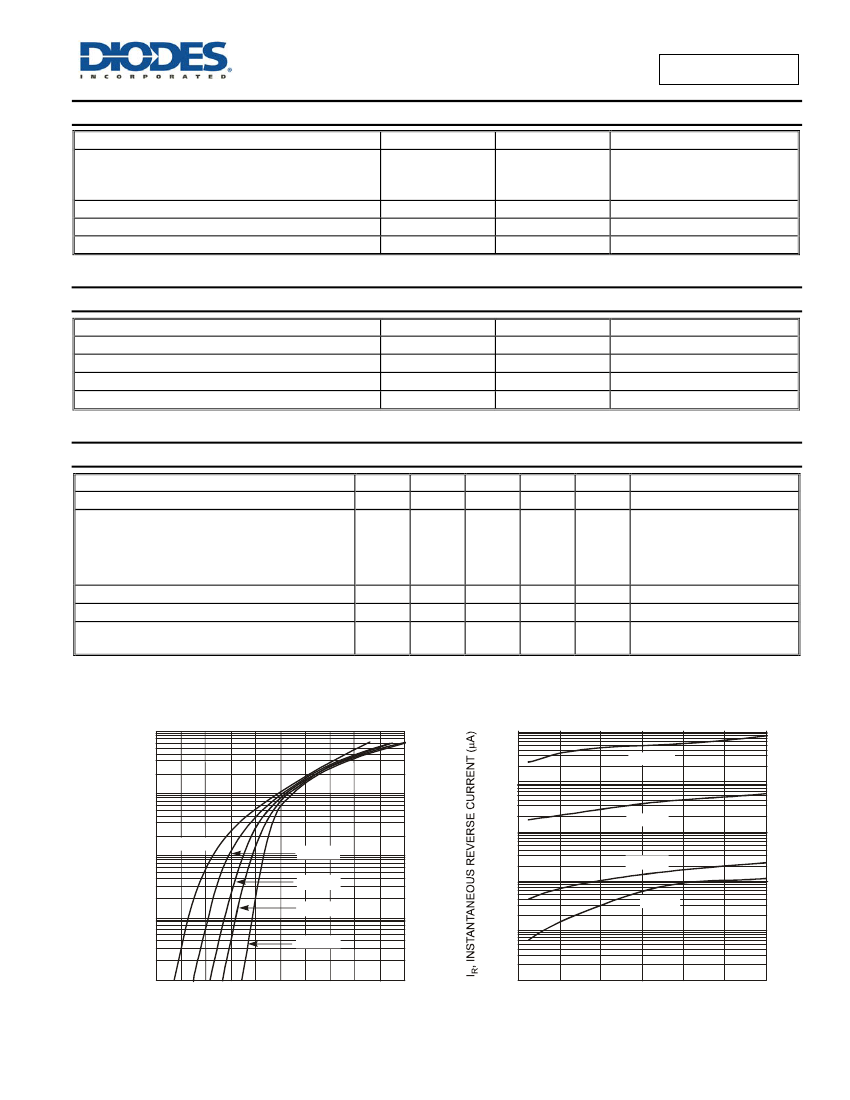

BAT54 /A /C /S
