MBRF16H45
Taiwan Semiconductor
CREAT BY ART

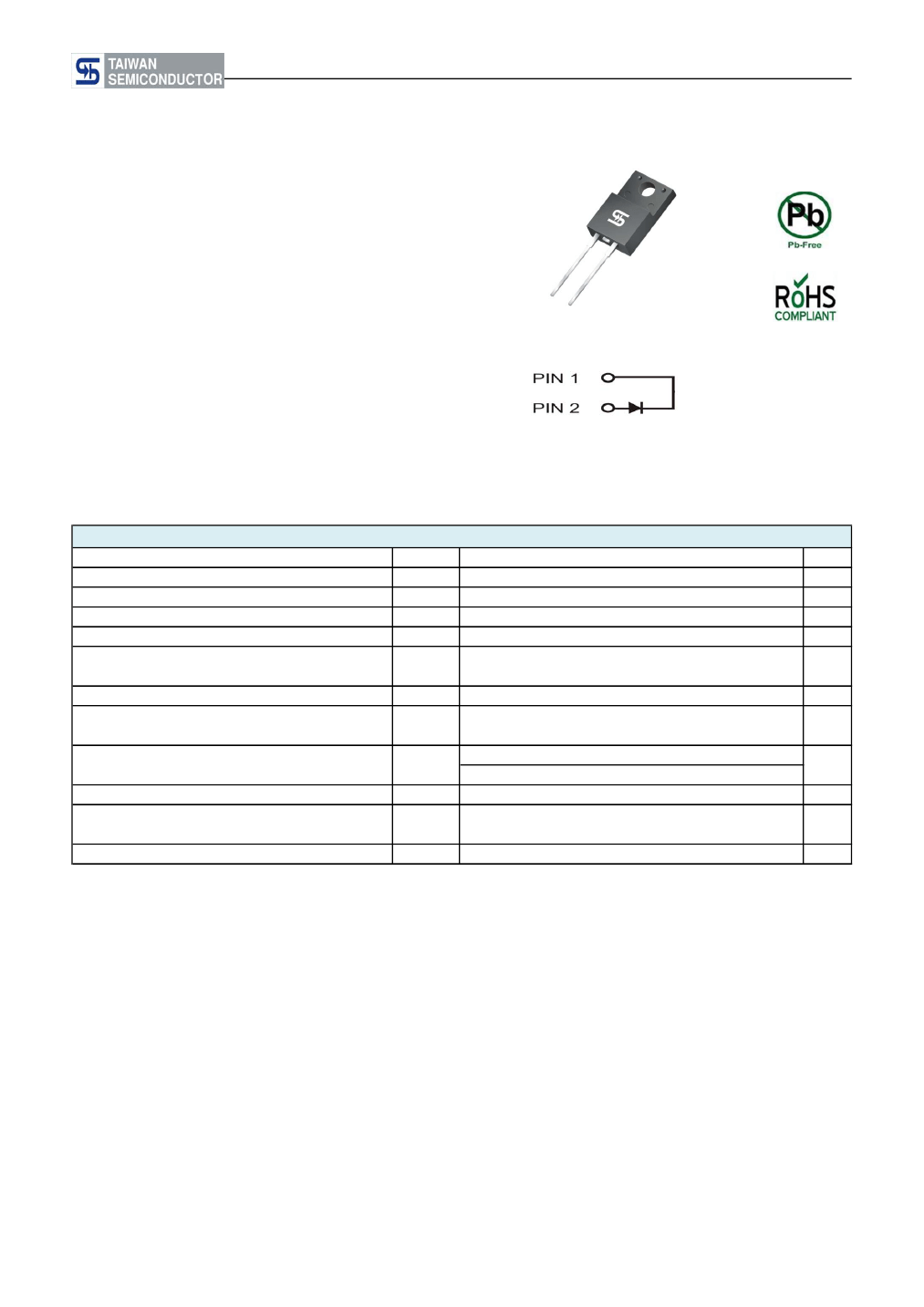

16A, 45V Isolated Schottky Barrier Rectifier
FEATURES
- Low power loss, high efficiency
- Guard ring for over-voltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
1
2
MECHANICAL DATA
Case:
ITO-220AC
Molding compound: UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
= 16 A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating temperature range
In DC forward mode
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
RRM
V
F
I
R
R
θJC
T
J
T
STG
MBRF16H45
45
31
45
16
275
1.0
0.63
0.5
50
3.2
- 55 to +150
- 55 to +200
- 55 to +150
UNIT
V
V
V
A
A
A
V
mA
°C/W
°C
°C
Version: E1512
MBRF16H45
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
MBRF16H45
*: Optional available
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AC
PACKING
50 / Tube
EXAMPLE
EXAMPLE P/N
MBRF16H45 C0G
PART NO.
MBRF16H45
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

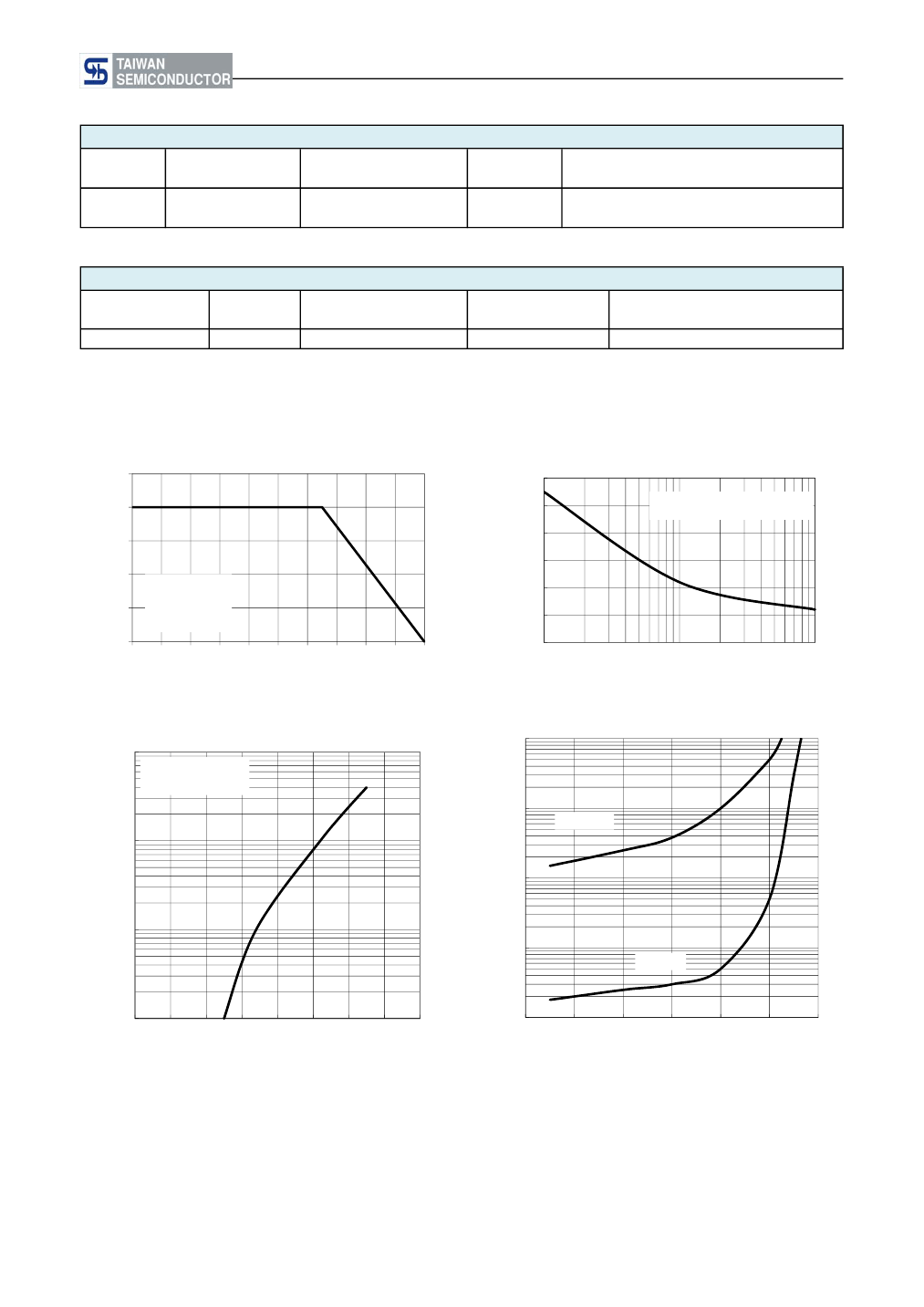

FIG.1 FORWARD CURRENT DERATING CURVE
20
16
12
8
4
0
50
60
70
80
90
100
110
120
130
140
150
CASE TEMPERATURE (
o
C)
Resistive or
inductive load
with heat sink
PEAK FORWARD SURGE CURRENT (A)
300
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms single half sine wave
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
AVERAGE FORWARD CURRENT (A)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
Pulse width=300μs
1% duty cycle
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (mA)
10
T
J
=125°C
10
1
1
0.1
T
J
=25°C
0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
FORWARD VOLTAGE (V)
0.01
0
20
40
60
80
100
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: E1512
MBRF16H45
Taiwan Semiconductor
CREAT BY ART

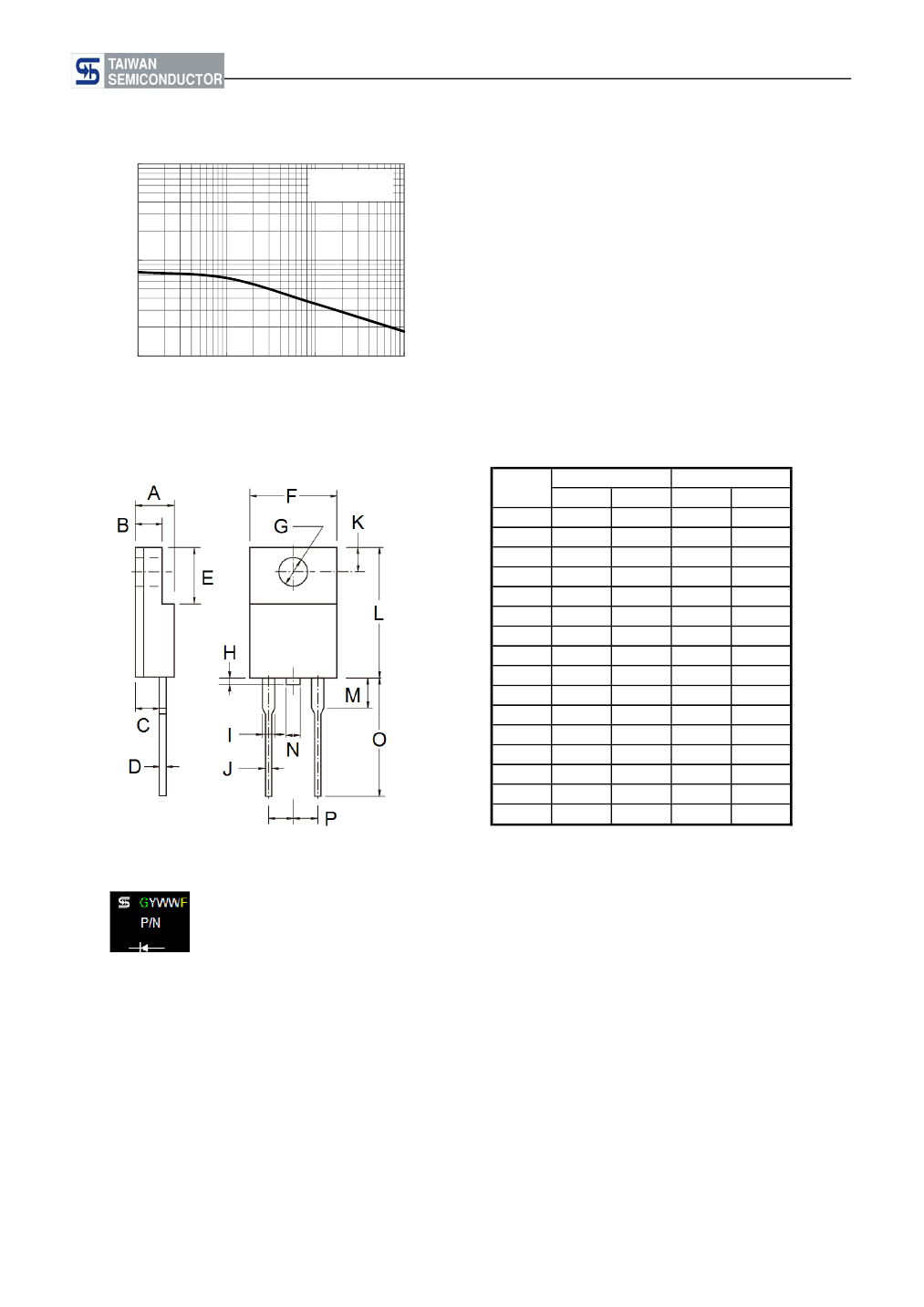

FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
JUNCTION CAPACITANCE (pF)
A
f=1.0MHz
Vsig=50mVp-p
1000
100
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
ITO-220AC
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: E1512
MBRF16H45
Taiwan Semiconductor
CREAT BY ART
