Datasheet
Operational Amplifiers Series
Ground Sense
Operational Amplifiers
BA3404xxx
●General
Description
BA3404 is a dual operational amplifier with input and
output ground sense. Especially, BA3404 have wide
operating voltage range +4V to +36V (single supply).
BA3404 have a good performance of slew rate and
cross over distortion compare with BA2904.
●Features
Operable with a single power supply
Wide operating supply voltage
Input and output are operable GND sense
Low supply current
High open loop voltage gain
Internal ESD protection circuit
●Application
Current sense application
Buffer application amplifier
Active filter
Consumer electronics
●Block
Diagrams
●Packages
SOP8
SOP-J8
MSOP8
W(Typ.)xD(Typ.) xH(Max.)
5.00mm x 6.20mm x 1.71mm
4.90mm x 6.00mm x 1.65mm
2.90mm x 4.00mm x 0.90mm
●Key
Specification
Wide Operating Supply Voltage
(single supply): +4.0V to +36.0V
(split supply): ±2.0V to ±18.0V
Slew Rate:
1.2V/µs(Typ.)
Wide Temperature Range:
-40°C to +85°C
Input Offset Current:
5nA (Typ.)
Input Offset Voltage:
5mV (Max.)
VCC
-IN
+IN
OUT
VEE

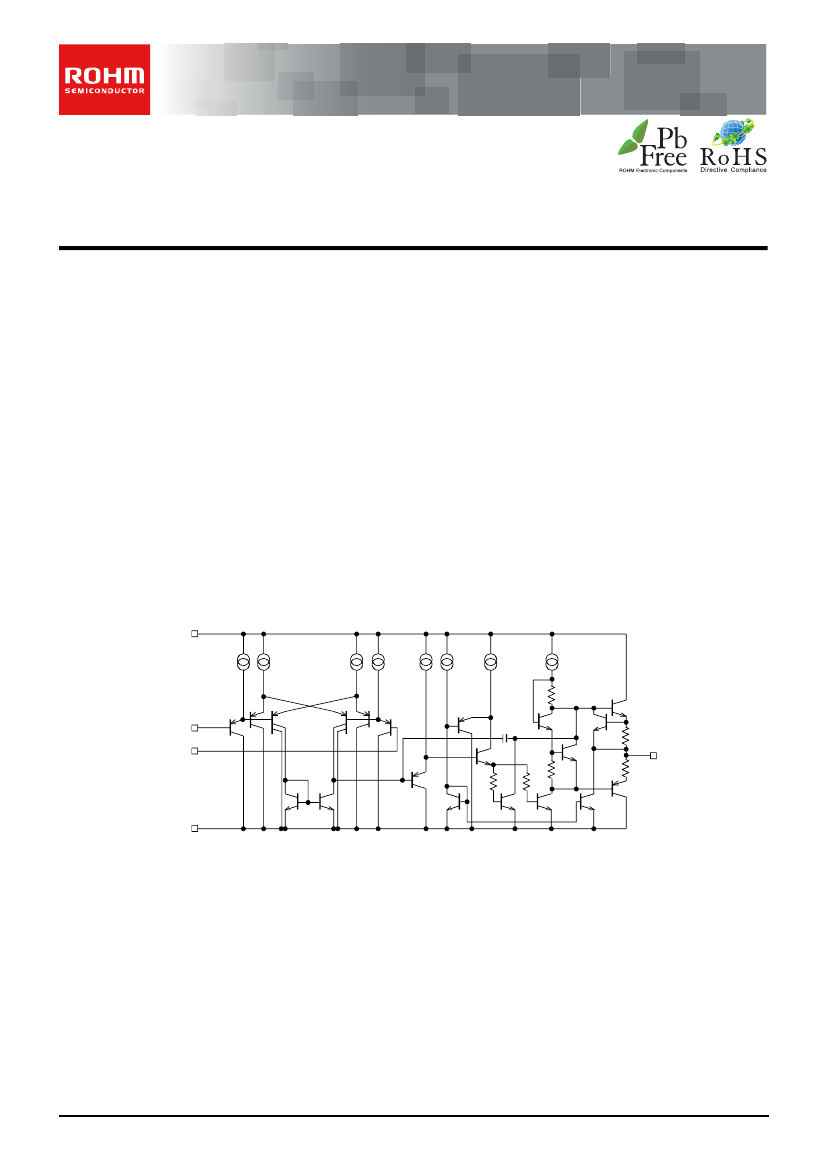

Figure 1. Simplified schematic
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed protection against radioactive rays.
1/19
TSZ02201-0RAR1G200140-1-2
26.OCT.2012 Rev.001
BA3404xxx
●Pin
Configuration(TOP VIEW)
Pin No.
Symbol
OUT1
-IN1
+IN1
VEE
+IN2
-IN2
OUT2
VCC
Datasheet
OUT1
1
-IN1
+IN1
VEE
8
VCC
CH1
- +
CH2
+ -
1
2
3
4
5
6
7
8
Package
SOP-J8
BA3404FJ
2
3
4
7
OUT2
6
-IN2
5
+IN2
SOP8
BA3404F
●Ordering
Information
MSOP8
BA3404FVM
B
A
3
4
0
4
x
x
x
-
xx
Packaging and forming specification
E2: Embossed tape and reel
(SOP8/SOP-J8)
TR: Embossed tape and reel
(MSOP8)
Part Number.
BA3404xxx
Package
F
: SOP8
FJ : SOP-J8
FVM : MSOP8
●Line-up
Topr
Supply
Current
(Typ.)
2.0mA
Slew Rate
(Typ.)
SOP8
-40°C to +85°C
1.2V/µs
SOP-J8
MSOP8
●Absolute
Maximum Ratings
(Ta=25℃)
Parameter
Supply Voltage
Power dissipation
Differential Input Voltage
*5
Input Common-mode Voltage Range
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Pd
Symbol
VCC-VEE
SOP8
SOP-J8
MSOP8
Vid
Vicm
Topr
Tstg
Tjmax
Ratings
+36
780
*1*4
675
*2*4
590
*3*4
+36
(VEE-0.3) to (VEE+36)
-40 to +85
-55 to +150
+150
V
V
℃
℃
℃
mW
Unit
V
Package
Reel of 2500
Reel of 2500
Reel of 3000
Orderable
Part Number
BA3404F-E2
BA3404FJ-E2
BA3404FVM-TR
Note: Absolute maximum rating item indicates the condition which must not be exceeded.
Application if voltage in excess of absolute maximum rating or use out of absolute maximum rated temperature environment may cause
deterioration of characteristics.
*1
To use at temperature above Ta＝25℃ reduce 6.2mW/℃
*2
To use at temperature above Ta＝25℃ reduce 5.4mW/℃
*3
To use at temperature above Ta＝25℃ reduce 4.8mW/℃
*4
Mounted on a FR4 glass epoxy PCB(70mm×70mm×1.6mm).
*5
The voltage difference between inverting input and non-inverting input is the differential input voltage.
Then input terminal voltage is set to more than VEE.
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
2/19
TSZ02201-0RAR1G200140-1-2
26.OCT.2012 Rev.001
BA3404xxx
●Electrical
Characteristics
○BA3404
(Unless otherwise specified VCC=+15V, VEE=-15V, Ta=25℃)
Limits
Parameter
Symbol
Unit
Min.
Typ.
Max.
Input Offset Voltage
*6
Input Offset Current
*6
Input Bias Current
*6
Large Signal Voltage Gain
Maximum Output Voltage
Input Common-mode Voltage Range
Common-mode Rejection Ratio
Power Supply Rejection Ratio
Supply Current
Output Source Current
Vio
Iio
Ib
Av
VOM
Vicm
CMRR
PSRR
ICC
Isource
-
-
-
88
±13
-15
70
80
-
20
2
5
70
100
±14
-
90
94
2.0
30
5
50
200
-
-
13
-
-
3.5
-
mV
nA
nA
dB
V
V
dB
dB
mA
mA
Datasheet
Condition
VOUT=0V, Vicm=0V
VOUT=0V, Vicm=0V
VOUT=0V, Vicm=0V
RL≧2kΩ
VOUT=±10V, Vicm=0V
RL≧2kΩ
VOUT=0V
VOUT=0V
Vicm=-15V to +13V
Ri≦10kΩ
VCC=+4V to +30V
RL=∞, All Op-Amps
VIN+=0V
VIN+=1V, VIN-=0V
VOUT=+12V
Output of one channel only
VIN+=0V, VIN-=1V
VOUT= -12V
Output of one channel only
Av=0dB, RL=2kΩ
CL=100pF
RL=2kΩ
f=100kHz
VOUT=10V
P-P
, f=20kHz
Av=0dB, RL=2kΩ
f=1kHz, input referred
Output Sink Current
Slew rate
Unity Gain Frequency
Gain Band Width
Total Harmonic Distortion
Channel Separation
*6
Absolute value
Isink
SR
f
T
GBW
THD+N
CS
10
-
-
-
-
-
20
1.2
1.2
1.2
0.1
100
-
-
-
-
-
-
mA
V/μs
MHz
MHz
%
dB
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
3/19
TSZ02201-0RAR1G200140-1-2
26.OCT.2012 Rev.001
BA3404xxx
Datasheet
Description of Electrical Characteristics
Described here are the terms of electric characteristics used in this datasheet. Items and symbols used are also shown.
Note that item name and symbol and their meaning may differ from those on another manufacture’s document or general
document.
1. Absolute maximum ratings
Absolute maximum rating item indicates the condition which must not be exceeded. Application of voltage in excess of absolute
maximum rating or use out of absolute maximum rated temperature environment may cause deterioration of characteristics.
1.1 Power supply voltage (VCC-VEE)
Indicates the maximum voltage that can be applied between the positive power supply terminal and negative power
supply terminal without deterioration or destruction of characteristics of internal circuit.
1.2 Differential input voltage (Vid)
Indicates the maximum voltage that can be supplied between the non-inverting and inverting terminals without
damaging the IC.
1.3 Input common-mode voltage range (Vicm)
Indicates the maximum voltage that can be applied to non-inverting terminal and inverting terminal without
deterioration or destruction of characteristics. Input common-mode voltage range of the maximum ratings not assures
normal operation of IC. When normal Operation of IC is desired, the input common-mode voltage of characteristics
item must be followed.
1.4 Power dissipation (Pd)
Indicates the power that can be consumed by specified mounted board at the ambient temperature 25℃(normal temperature).
As for package product, Pd is determined by the temperature that can be permitted by IC chip in the package
(maximum junction temperature) and thermal resistance of the package.
2. Electrical characteristics
2.1 Input offset voltage (Vio)
Indicates the voltage difference between non-inverting terminal and inverting terminal. It can be translated into the
input voltage difference required for setting the output voltage at 0 V.
2.2 Input offset current (Iio)
Indicates the difference of input bias current between the non-inverting and inverting terminals.
2.3 Input bias current (Ib)
Indicates the current that flows into or out of the input terminal. It is defined by the average of input bias current at
non-inverting terminal and input bias current at inverting terminal.
2.4 Large signal voltage gain (Av)
Indicates the amplifying rate (gain) of output voltage against the voltage difference between non-inverting terminal
and inverting terminal. It is normally the amplifying rate (gain) with reference to DC voltage.
Av = (Output voltage fluctuation) / (Input offset fluctuation)
2.5 Maximum Output Voltage (VOM)
Signifies the voltage range that can be output under specific output conditions.
2.6 Input common-mode voltage range (Vicm)
Indicates the input voltage range under which the IC operates normally.
2.7 Common-mode rejection ratio (CMRR)
Indicates the ratio of fluctuation of input offset voltage when in-phase input voltage is changed. It is normally the
fluctuation of DC.
CMRR = (Change of Input common-mode voltage)/(Input offset fluctuation)
2.8 Power supply rejection ratio (PSRR)
Indicates the ratio of fluctuation of input offset voltage when supply voltage is changed. It is normally the fluctuation of
DC. PSRR= (Change of power supply voltage)/(Input offset fluctuation)
2.9 Circuit current (ICC)
Indicates the IC current that flows under specified conditions and no-load steady status.
2.10 Output source current/ output sink current (Isource/Isink)
The maximum current that can be output under specific output conditions, it is divided into output source current and
output sink current. The output source current indicates the current flowing out of the IC, and the output sink current
the current flowing into the IC.
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
4/19
TSZ02201-0RAR1G200140-1-2
26.OCT.2012 Rev.001
BA3404xxx
Datasheet
2.11 Slew Rate (SR)
SR is a parameter that shows movement speed of operational amplifier. It indicates rate of variable output voltage
as unit time.
2.12 Unity gain frequency (f
T
)
Indicates a frequency where the voltage gain of operational amplifier is 1.
2.13 Total harmonic distortion + Noise (THD+N)
Indicates the fluctuation of input offset voltage or that of output voltage with reference to the change of output voltage
of driven channel.
2.14 Gain Band Width (GBW)
Indicates to multiply by the frequency and the gain where the voltage gain decreases 6dB/octave.
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
5/19
TSZ02201-0RAR1G200140-1-2
26.OCT.2012 Rev.001
