Datasheet
Sound Processor
with Built-in 3-band Equalizer
BD37531FV
General Description
BD37531FV is a sound processor with built-in 3-band
equalizer for car audio. A stereo input selector is
available that functions to switch single end input and
ground isolation input, input-gain control, main volume,
loudness and 5ch fader volume. Moreover, “Advanced
switch circuit”, which is an original ROHM technology,
can reduce various switching noise (ex. No-signal, low
frequency like 20Hz & large signal inputs). Also,
“Advanced switch” makes microcomputer control
easier and constructs a high quality car audio system.
Key Specifications
Power Supply Voltage Range:
Circuit Current (No signal) :
Total Harmonic Distortion 1:
(FRONT,REAR)
Total Harmonic Distortion 2:
(SUBWOOFER)
Maximum Input voltage:
Cross-talk Between Selectors:
Volume Control Range:
Output Noise Voltage 1:
(FRONT,REAR)
Output Noise Voltage 2:
(SUBWOOFER)
Residual Output Noise Voltage:
Operating Temperature Range:
7.0V to 9.5V
38mA(Typ)
0.001%(Typ)
0.002%(Typ)
2.3Vrms (Typ)
-100dB (Typ)
+15dB to -79dB
3.8µVrms(Typ)
4.8µVrms(Typ)
1.8µVrms(Typ)
-40°C to +85°C
Features
Reduced switching noise of input gain control,
mute, main volume, fader volume, bass, middle,
treble, loudness by using advanced switch circuit
Built-in differential input selector that can make
various combination of single-ended / differential
input.
Built-in ground isolation amplifier inputs, which is
ideal for external stereo input.
Built-in input gain controller reduces volume
switching noise of a portable audio input.
Decreased number of external components due to
built-in 3-band equalizer filter and loudness filter. It
is possible to freely control the Q, Gv, fo of the
3-band equalizer,
and Gv of the loudness
2
C BUS control
through the I
A gain adjustment quantity of ±20dB with a 1 dB
step gain adjustment is possible for the bass,
middle and treble.
Equipped with terminals for the subwoofer outputs.
Also, the audio signal outputs of the front, rear and
subwoofer can be chosen using the I
2
C BUS
control.
Energy-saving design resulting in low current
consumption is achieved utilizing the BiCMOS
process. It has the advantage in quality over
scaling down the power heat control of the internal
regulators.
Input pins and output pins are organized and
separately laid out to keep the signal flow in one
direction which consequently, simplify pattern
layout of the set board and decrease the board
dimensions.
It is possible to control I
2
C BUS with 3.3V / 5V.
Package
W(Typ) x D(Typ) x H(Max)
SSOP-B28
10.0mm x 7.60mm x 1.35mm
Applications
It is optimal for car audio systems. It can also be used
for audio equipment of mini Compo, micro Compo, TV,
etc.
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product has no designed protection against radioactive rays
1/30
TSZ02201-0C2C0E100520-1-2
16.Dec.2015 Rev.001
BD37531FV

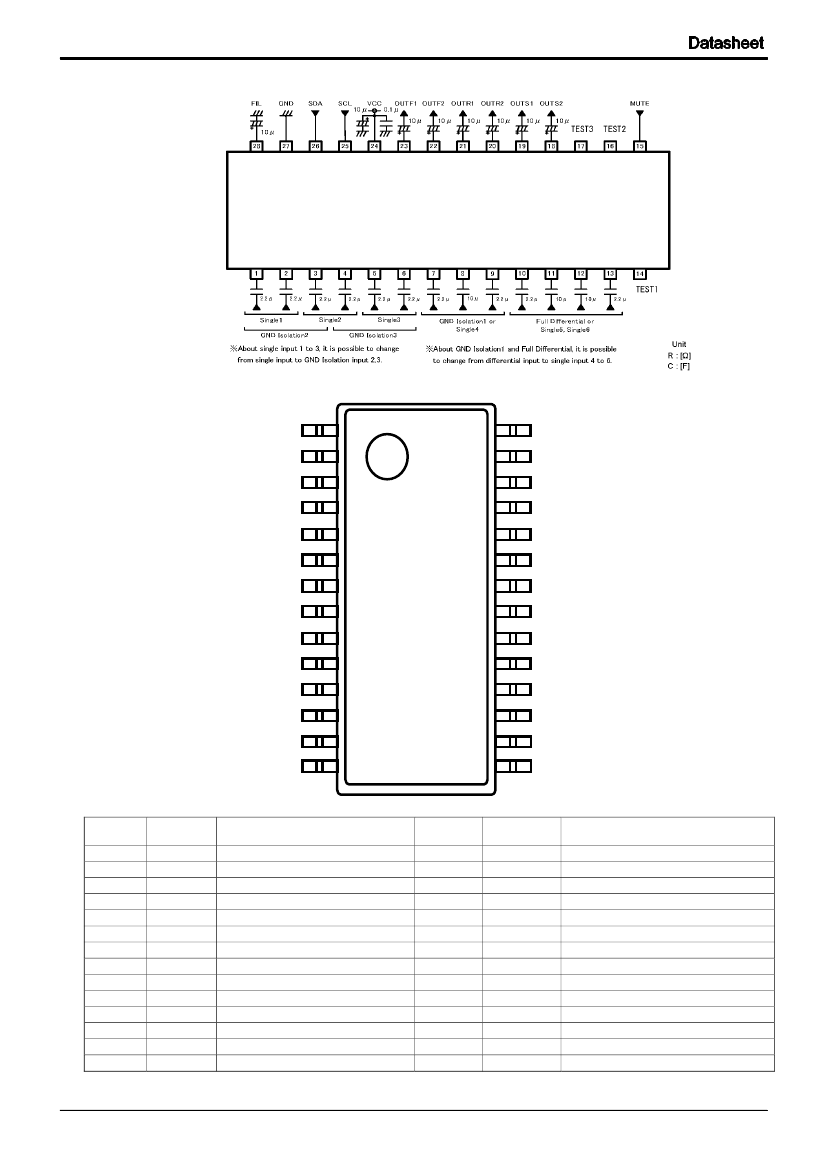

Typical Application Circuit
BD37531FV
Pin Configuration
A1
A2
B1
B2
C1
C2
DP1
DN
DP2
1
2
3
4
5
6
7
8
9
TOP VIEW
28
27
26
25
24
23
22
21
20
19
18
17
16
15
FIL
GND
SDA
SCL
VCC
OUTF1
OUTF2
OUTR1
OUTR2
OUTS1
OUTS2
TEST3
TEST2
MUTE
EP1 10
EN1
EN2
EP2
11
12
13
TEST1 14
Pin Descriptions
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
A1
A2
B1
B2
C1
C2
DP1
DN
DP2
EP1
EN1
EN2
EP2
TEST1
Description
A input terminal of 1ch
A input terminal of 2ch
B input terminal of 1ch
B input terminal of 2ch
C input terminal of 1ch
C input terminal of 2ch
D positive input terminal of 1ch
D negative input terminal
D positive input terminal of 2ch
E positive input terminal of 1ch
E negative input terminal of 1ch
E negative input terminal of 2ch
E positive input terminal of 2ch
Test Pin
Pin No.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Pin
Name
MUTE
TEST2
TEST3
OUTS2
OUTS1
OUTR2
OUTR1
OUTF2
OUTF1
VCC
SCL
SDA
GND
FIL
Description
External compulsory mute terminal
Test Pin
Test Pin
Subwoofer output terminal of 2ch
Subwoofer output terminal of 1ch
Rear output terminal of 2ch
Rear output terminal of 1ch
Front output terminal of 2ch
Front output terminal of 1ch
Power supply terminal
I
2
C Communication clock terminal
I
2
C Communication data terminal
GND terminal
VCC/2 terminal
