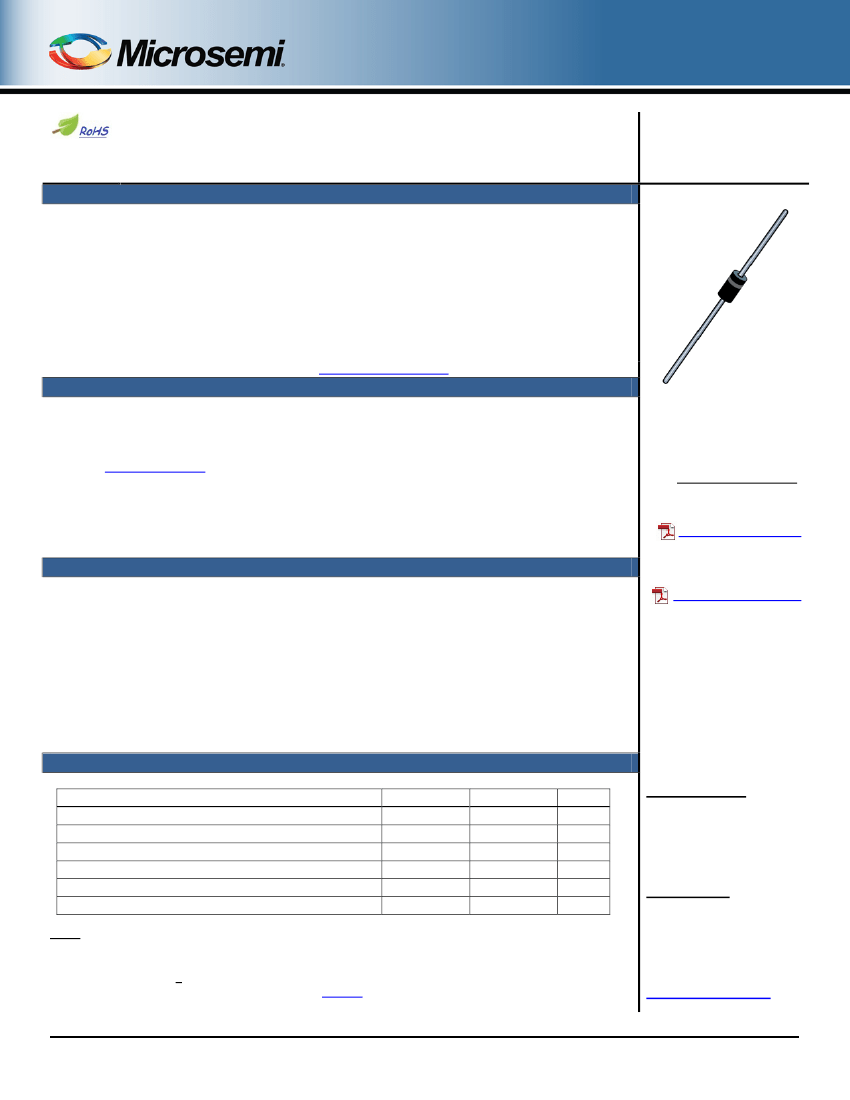

1N5333B thru 1N5388B
Available
Silicon 5 Watt Zener Diodes
DESCRIPTION
The 1N5333B through 1N5388B JEDEC registered series of axial-leaded 5.0 watt Zeners
provides a selection from 3.3 to 200 volts with different tolerances as identified by specific
suffix letter on the part number. These plastic encapsulated Zeners have a moisture
classification of “Level 1” with no dry pack required. They may be operated at high maximum
dc currents with adequate heat sinking due to their comparatively low thermal resistance
design. Microsemi also offers numerous other Zener products to meet higher and lower
power applications.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
JEDEC registered 1N5333 thru 1N5388 series.
Zener voltage available 3.3 V to 200 V.
Plus/minus 10%, 5% and 2% voltage tolerances are available.
(See
part nomenclature
block.)
RoHS compliant versions available.
T-18 Package
Also available in:
G-bend Package
(surface mount)
SMBJ5333 – SMBJ5388
APPLICATIONS / BENEFITS
•
•
•
•
•
•
•
•
Regulates voltage over broad operating current and temperature ranges.
Wide selection from 3.3 to 200 V.
Flexible axial-lead mounting terminals.
Non-sensitive to ESD per MIL-STD-750 method 1020.
Withstands high surge stresses.
Minimal changes of voltage versus current.
High specified maximum current (I
ZM
) with adequate heat sinking.
Moisture classification is “Level 1” per IPC/JEDEC J-STD-020B with no dry pack required.
Gull wing Package
(surface mount)
SMBG5333 – SMBG5388
MAXIMUM RATINGS
Parameters/Test Conditions
Junction and Storage Temperature
(1)
Thermal Resistance Junction-to-Lead
(2)
Thermal Resistance Junction-to-Ambient
o (3)
Off-State Power Dissipation @ 25 C
Forward Voltage @ 1.0 A
Solder Temperature @ 10 s
Symbol
T
J
and T
STG
R
ӨJL
R
ӨJA
P
D
V
F
T
SP
Value
-65 to +150
25
85
5.0
1.2
260
Unit
C
C/W
o
C/W
W
V
o
C
o
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Notes:
1. At 3/8 (10 mm) lead length from body.
2. When mounted on FR4 PC board (1oz Cu) with 4 mm
2
copper pads and track width 1 mm, length 25
mm.
o
º
3. 5 watts at T
L
< 25 C 3/8 inch (10 mm) from body, or 1.47 watts at T
A
= 25 C when mounted on FR4 PC
described for thermal resistance (also see
Figure 1).
T4-LDS-0246, Rev. 1 (120180)
©2012 Microsemi Corporation
Page 1 of 5
1N5333B thru 1N5388B
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
CASE: Void-free transfer molded thermosetting epoxy body meeting UL94V-0.
TERMINALS: Tin-lead or RoHS compliant annealed matte-tin plating solderable per MIL-STD-750, method 2026.
MARKING: Part number.
POLARITY: Cathode indicated by band. Diode to be operated with the banded end positive with respect to the opposite end.
TAPE & REEL option: Standard per EIA-296 (add “TR” suffix to part number). Consult factory for quantities.
WEIGHT: 0.7 grams.
See
Package Dimensions
on last page.
PART NOMENCLATURE
1N5334
JEDEC type number
(See
Electrical Characteristics
table)
B
(e3)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Zener Voltage Tolerance
A = +/-10%
B = +/-5%
C = +/-2%
Symbol
I
R
I
Z
, I
ZT
, I
ZK
I
ZM
I
ZSM
V
R
V
Z
Z
ZT
or Z
ZK
SYMBOLS & DEFINITIONS
Definition
Reverse Current: The maximum reverse (leakage) current that will flow at the specified voltage and temperature.
Regulator Current: The dc regulator current (I
Z
), at a specified test point (I
ZT
), near breakdown knee (I
ZK
).
Maximum Regulator (Zener) Current: The maximum rated dc current for the specified power rating.
Maximum Zener Surge Current: The non-repetitive peak value of Zener surge current at a specified wave form.
Reverse Voltage: The reverse voltage dc value, no alternating component.
Zener Voltage: The Zener voltage the device will exhibit at a specified current (I
Z
) in its breakdown region.
Dynamic Impedance: The small signal impedance of the diode when biased to operate in its breakdown region at a
specified rms current modulation (typically 10% of I
ZT
or I
ZK
) and superimposed on I
ZT
or I
ZK
respectively.
T4-LDS-0246, Rev. 1 (120180)
©2012 Microsemi Corporation
Page 2 of 5
1N5333B thru 1N5388B
ELECTRICAL CHARACTERISTICS
@ 25
o
C
REGULATOR
VOLTAGE
(V
Z
)
TEST
CURRENT
(I
ZT
)
MAXIMUM
DYNAMIC
IMPEDANCE
(Z
Z
)
(A & B suffix
only)
Ohms
3.0
2.5
2.0
2.0
2.0
1.5
1.0
1.0
1.0
1.0
1.5
1.5
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.0
3.5
3.5
4.0
5.0
6.0
8.0
10
11
14
20
25
27
35
40
42
44
45
65
75
75
90
125
170
190
230
330
350
380
430
450
480
MAXIMUM
REVERSE
CURRENT
(I
R
)
I
R
TEST
VOLTAGE
(V
R
)
(A suffix
only)
V
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
3.0
4.9
5.4
5.9
6.25
6.6
7.2
8.0
8.6
9.4
10.1
10.8
11.5
12.2
13
13.7
14.4
15.8
17.3
18
19.4
20.1
21.6
23.8
25.9
28.1
31
33.8
36.7
40.3
43
44.6
49
54
59
63
65.5
72
79.2
86.4
93.6
101
108
115
122
130
137
144
I
R
TEST
VOLTAGE
(V
R
)
(B & C
suffix
only)
V
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
3.0
5.2
5.7
6.2
6.6
6.9
7.6
8.4
9.1
9.9
10.6
11.5
12.2
12.9
13.7
14.4
15.2
16.7
18.2
19
20.6
21.2
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.5
47.1
51.7
56
62.2
66
69.2
76
83.6
91.2
98.8
106
114
122
129
137
144
152
MAXIMUM
REGULATOR
CURRENT
(I
ZM
)
(B & C suffix
only)
mA
1440
1320
1220
1100
1010
930
865
790
765
700
630
580
545
520
475
430
395
365
340
315
295
280
264
250
237
216
198
190
176
170
158
144
132
122
110
100
93
86
79
76
70
63
58
54.5
52.5
47.5
43
39.5
36.6
34
31.6
29.4
28
26.4
25
23.6
MAXIMUM
DYNAMIC
KNEE
IMPEDANCE
Z
ZK
@ 1.0 mA
Ohms
400
500
500
500
450
400
400
300
200
200
200
200
200
150
125
125
125
100
75
75
75
75
75
75
75
75
100
110
120
130
140
150
160
170
190
210
230
280
350
400
500
620
720
760
760
800
1000
1150
1250
1500
1500
1650
1750
1750
1850
1850
MAXIMUM
SURGE
CURRENT
(I
ZSM
)
TYPE
NUMBER
V
1N5333B
1N5334B
1N5335B
1N5336B
1N5337B
1N5338B
1N5339B
1N5340B
1N5341B
1N5342B
1N5343B
1N5344B
1N5345B
1N5346B
1N5347B
1N5348B
1N5349B
1N5350B
1N5351B
1N5352B
1N5353B
1N5354B
1N5355B
1N5356B
1N5357B
1N5358B
1N5359B
1N5360B
1N5361B
1N5362B
1N5363B
1N5364B
1N5365B
1N5366B
1N5367B
1N5368B
1N5369B
1N5370B
1N5371B
1N5372B
1N5373B
1N5374B
1N5375B
1N5376B
1N5377B
1N5378B
1N5379B
1N5380B
1N5381B
1N5382B
1N5383B
1N5384B
1N5385B
1N5386B
1N5387B
1N5388B
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
82
87
91
100
110
120
130
140
150
160
170
180
190
200
mA
380
350
320
290
260
240
220
200
200
175
175
150
150
150
125
125
100
100
100
75
75
70
65
65
65
50
50
50
50
50
40
40
30
30
30
25
25
20
20
20
20
20
15
15
15
12
12
10
10
8.0
8.0
8.0
8.0
5.0
5.0
5.0
µ
A
300
150
50
10
5.0
1.0
1.0
1.0
1.0
10
10
10
10
7.5
5.0
5.0
2.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Amps
20
18.7
17.6
16.4
15.3
14.4
13.4
12.7
12.4
11.5
10.7
10
9.5
9.2
8.6
8.0
7.5
7.0
6.7
6.3
6.0
5.8
5.5
5.3
5.1
4.7
4.4
4.3
4.1
3.9
3.7
3.5
3.3
3.1
2.8
2.7
2.5
2.3
2.2
2.1
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.2
1.1
1.1
1.0
1.0
0.9
0.9
JEDEC Registered Data.
NOTE 1:
Zener voltage (Vz) is measured at T
L
= 25
o
C (+8, -2
o
C). Voltage measurement performed at 40 ±10 milliseconds after application of
dc current.
NOTE 2:
The Zener impedance is derived from 1 kHz ac voltage resulting from an ac current modulation having an rms value equal to 10% of the
dc Zener current (I
ZT
or I
ZK
) superimposed on I
ZT
or I
ZK
. See
MicroNote 202
for Zener impedance variation with different operating
currents.
NOTE 3:
The maximum current (I
ZM
) shown is for a ± 5% tolerance devices. The I
ZM
for other tolerances can be calculated using the formula:
I
ZM
= P/V
ZM
where V
ZM
is the V
Z
at the high end of the voltage tolerance specified and P is the rated power for the method of
mounting.
NOTE 4:
The surge current (I
ZSM
) is specified as the maximum peak of a non-recurrent half-sine wave of 8.3 ms duration.
T4-LDS-0246, Rev. 1 (120180)
©2012 Microsemi Corporation
Page 3 of 5
1N5333B thru 1N5388B

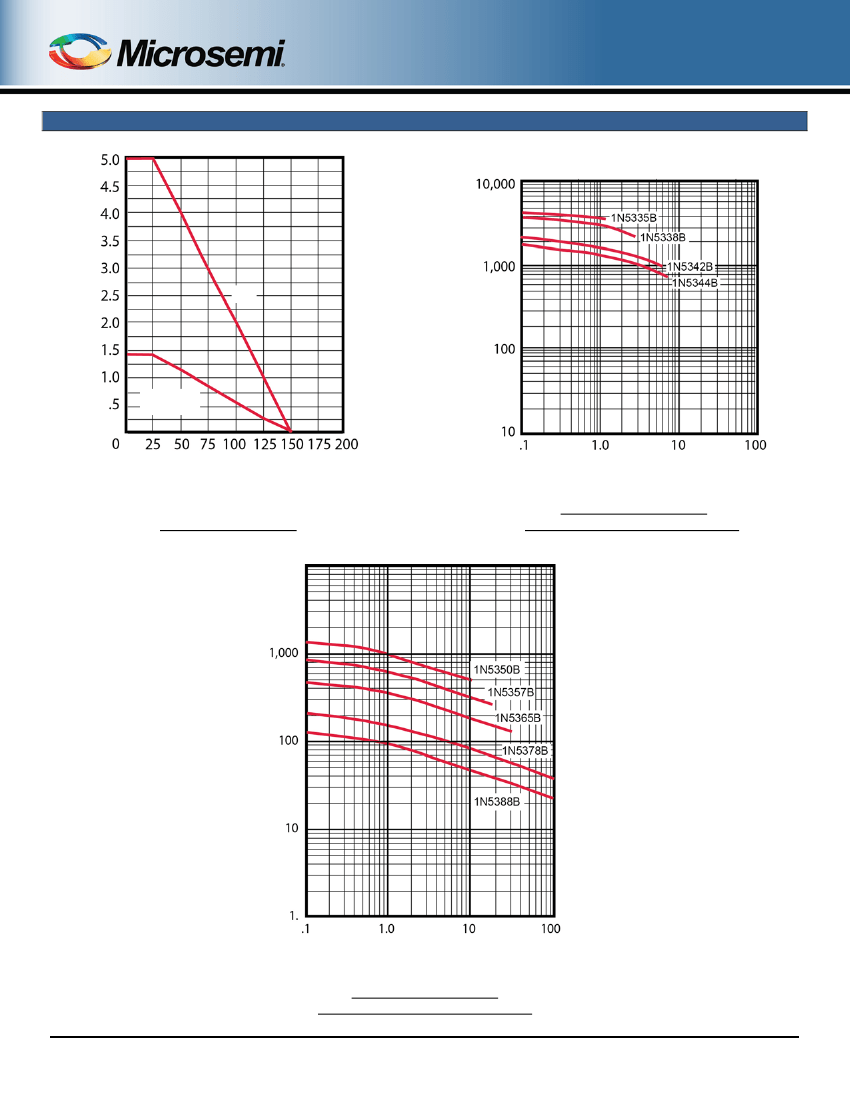

GRAPHS
Pd, Maximum Power Dissipation (Watts)
T
L
T
A
on FR4
PC board
T
L
, Lead temperature (
o
C) 3/8” from body. or
T
A
ambient temperature on FR4 PC Board
FIGURE 1
Power Derating Curve
Capacitance (pF)
V
R
(Volts)
FIGURE 2
Typical Capacitance vs.
Reverse Voltage for 5 Watt Zeners
Capacitance (pF)
V
R
(Volts)
FIGURE 3
Typical Capacitance vs.
Reverse Voltage for 5 Watt Zeners
T4-LDS-0246, Rev. 1 (120180)
©2012 Microsemi Corporation
Page 4 of 5
1N5333B thru 1N5388B
PACKAGE DIMENSIONS
NOTES:
Cathode indicated by band.
Dim
LL
BL
BD
LD
Dimensions
Inches
Millimeters
Min
Max
Min
Max
1.00
25.4
0.330 0.350
8.39
8.89
0.130 0.145
3.31
3.68
0.038 0.042
0.97
1.06
T4-LDS-0246, Rev. 1 (120180)
©2012 Microsemi Corporation
Page 5 of 5
