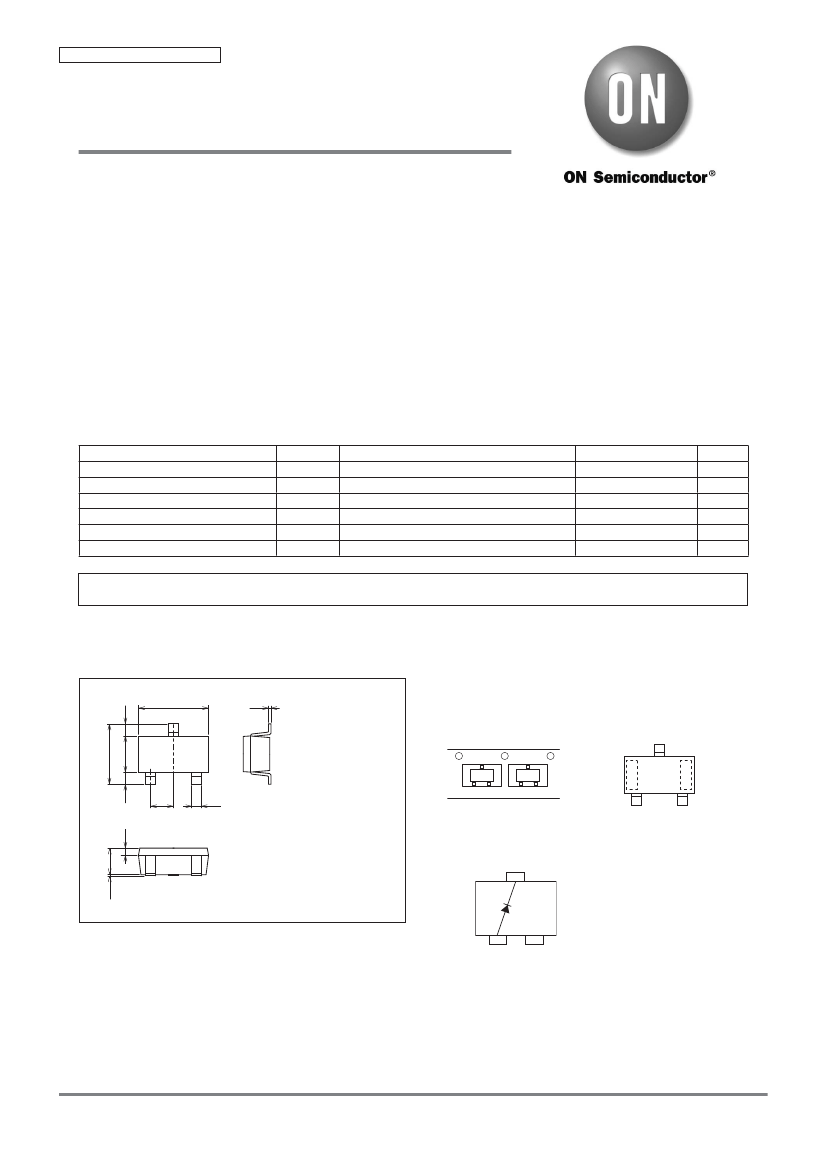

Ordering number : ENA0405B
SB007-03C
Schottky Barrier Diode
30V, 70mA, Low IR, Single CP
Applications
•
http://onsemi.com
High frequency rectification (switching regulators, converters, choppers)
Features
•
•
•
•
Fast reverse recovery time (trr max=10ns)
Low forward voltage (VF max=0.55V)
Low switching noise
Low leakage current and high reliability due to highly reliable planar structure
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
I
O
I
FSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
Ratings
30
35
70
2
-
-55 to +125
-
-55 to +125
Unit
V
V
mA
A
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7013A-004
2.9
3
0.1
Product & Package Information
• Package
: CP
• JEITA, JEDEC
: SC-59, TO-236, SOT-23, TO-236AB
• Minimum Packing Quantity : 3,000 pcs./reel
SB007-03C-TB-E
0.5
Packing Type: TB
Marking
2.5
1.5
LOT No.
LOT No.
0.5
1
0.95
2
G
0.4
TB
1 : Anode
2 : No Contact
3 : Cathode
CP
0.3
Electrical Connection
3
0.05
1.1
1
2
Semiconductor Components Industries, LLC, 2013
September, 2013
71112 TKIM/13107 TIIM TC-00000490 / 71206 / 42506SB MSIM TA-100466 No.A0405-1/5
SB007-03C
Electrical Characteristics
at Ta=25°C
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
C
trr
Rth(j-a)1
Rth(j-a)2
Conditions
IR=20μA, Tj=25°C
IF=70mA, Tj=25°C
VR=15V, Tj=25°C
VR=10V, f-1MHz
IF=IR=10mA, Tj=25°C, See specified Test Circuit.
620
Mounted in Cu-foiled area of 16mm
×0.2mm
on glass epoxy board
2
Ratings
min
30
0.55
5
3.0
10
typ
max
Unit
V
V
μA
pF
ns
°C / W
°C / W
430
trr Test Circuit
Duty
≤
10%
1.0mA
trr
10mA
50Ω
10μs
5V
100Ω
10Ω
10mA
Device
SB007-03C-TB-E
Package
CP
Ordering Information
Shipping
3,000pcs./reel
memo
Pb Free
2
100
IF -- VF
1000
5
IR -- VR
Ta=125
°
C
Forward Current, IF -- mA
Reverse Current, IR --
μA
7
5
3
2
2
100
5
2
10
5
2
1.0
5
2
0.1
5
2
0.01
100
°
C
5
°
C
7
5
3
2
1.0
7
5
0
Ta=
12
10
25
°
C
75
°
C
50
°
C
25
°
C
0.2
0.4
0.6
0.8
1.0
1.2
ID00240
2.8
0
5
10
15
20
25
30
35
ID00241
Forward Voltage, VF -- V
3
2
C -- VR
Reverse Voltage, VR -- V
IFSM -- t
Current waveform 50Hz sine wave
I
S
20ms
t
Surge Forward Current, IFSM(Peak) -- A
f=1MHz
Interterminal Capacitance, C -- pF
2.4
10
7
5
2.0
1.6
1.2
3
2
0.8
0.4
0
0.01
1.0
1.0
2
3
5
7
10
2
3
5
ID00242
2
3
5
7
0.1
2
3
5
7 1.0
2
3
Reverse Voltage, VR -- V
Time, t -- s
ID00243
No.A0405-2/5

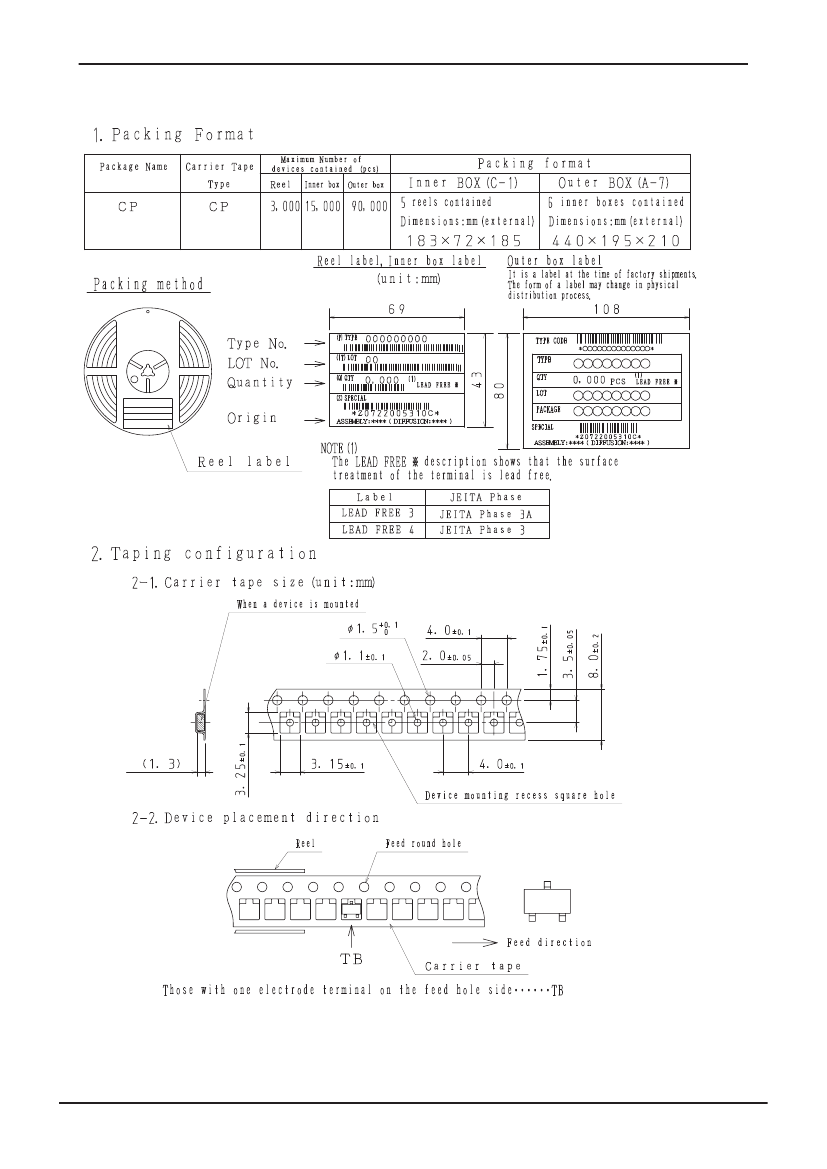

SB007-03C
