MX7226BQ: DescriptionDigital to Analog Converters - DAC CMOS, Quad, 8-Bit DAC with Voltage-Output Amplifier Latches; CategoryAnalog mixed-signal IC converter; File Size8MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MX7226BQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX7226BQ	-	-	View	Buy Now

MX7226BQ Overview

Digital to Analog Converters - DAC CMOS, Quad, 8-Bit DAC with Voltage-Output Amplifier Latches

MX7226BQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERDIP-20
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum linear error (EL)	0.3906%
Humidity sensitivity level	1
Nominal negative supply voltage	-5 V
Number of digits	8
Number of functions	4
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
power supply	12/15, GND/-5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum stabilization time	4 µs
Maximum slew rate	13 mA
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

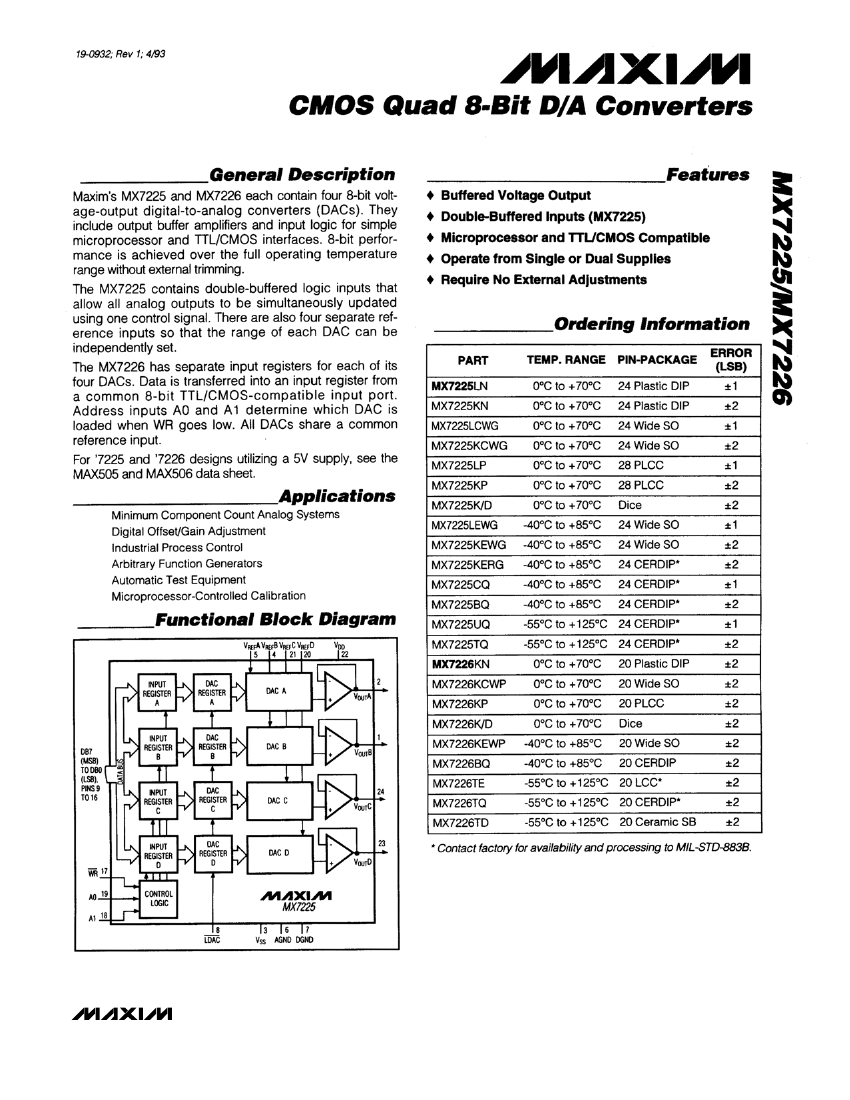

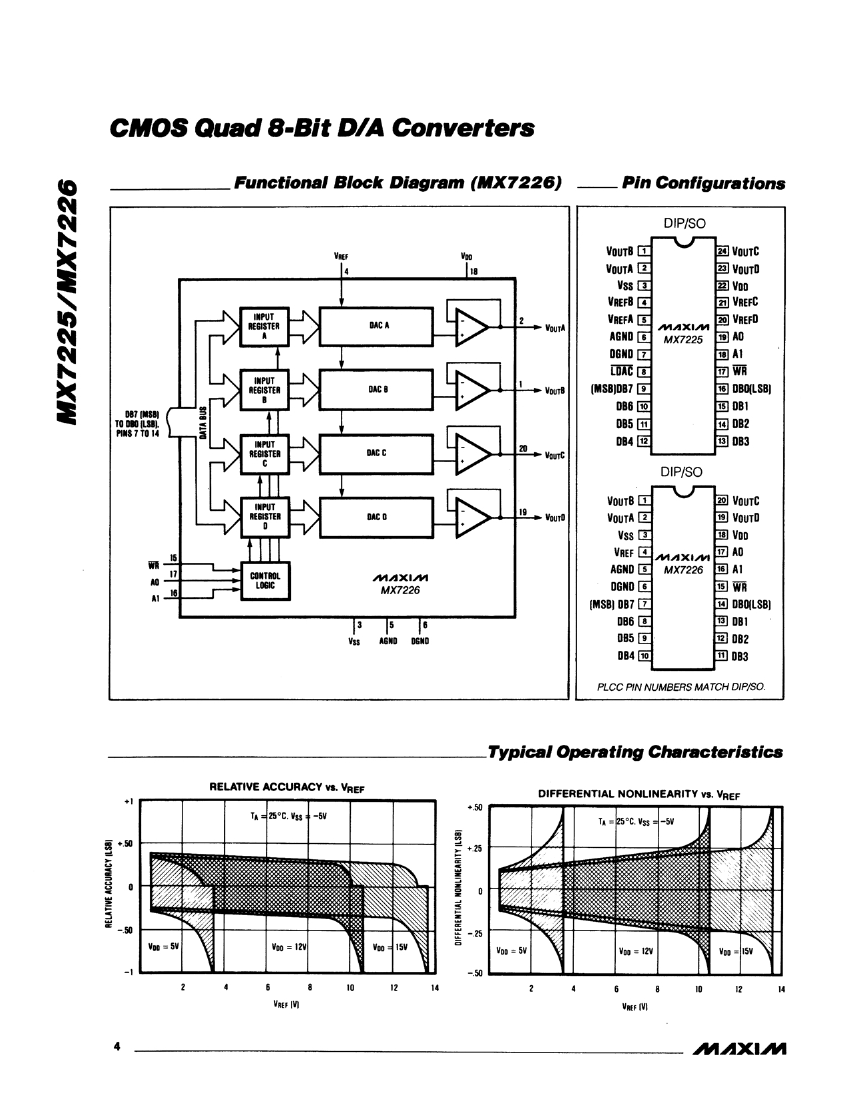

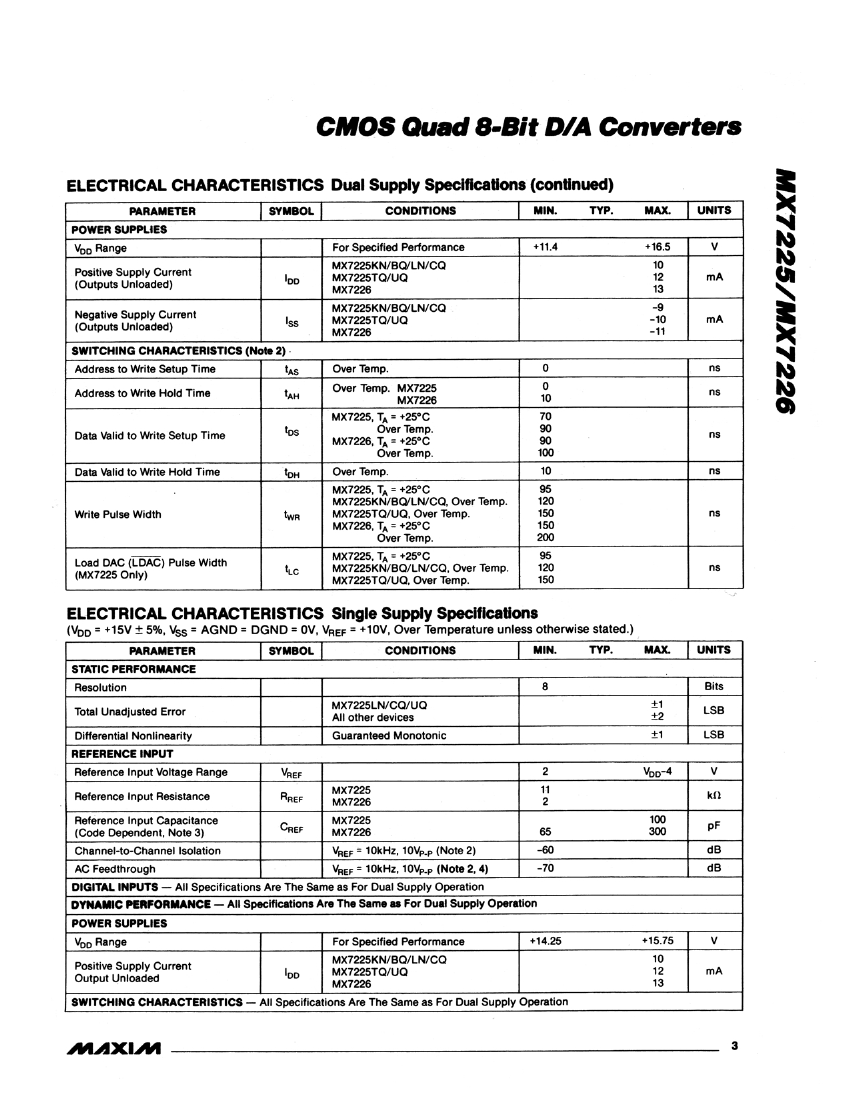

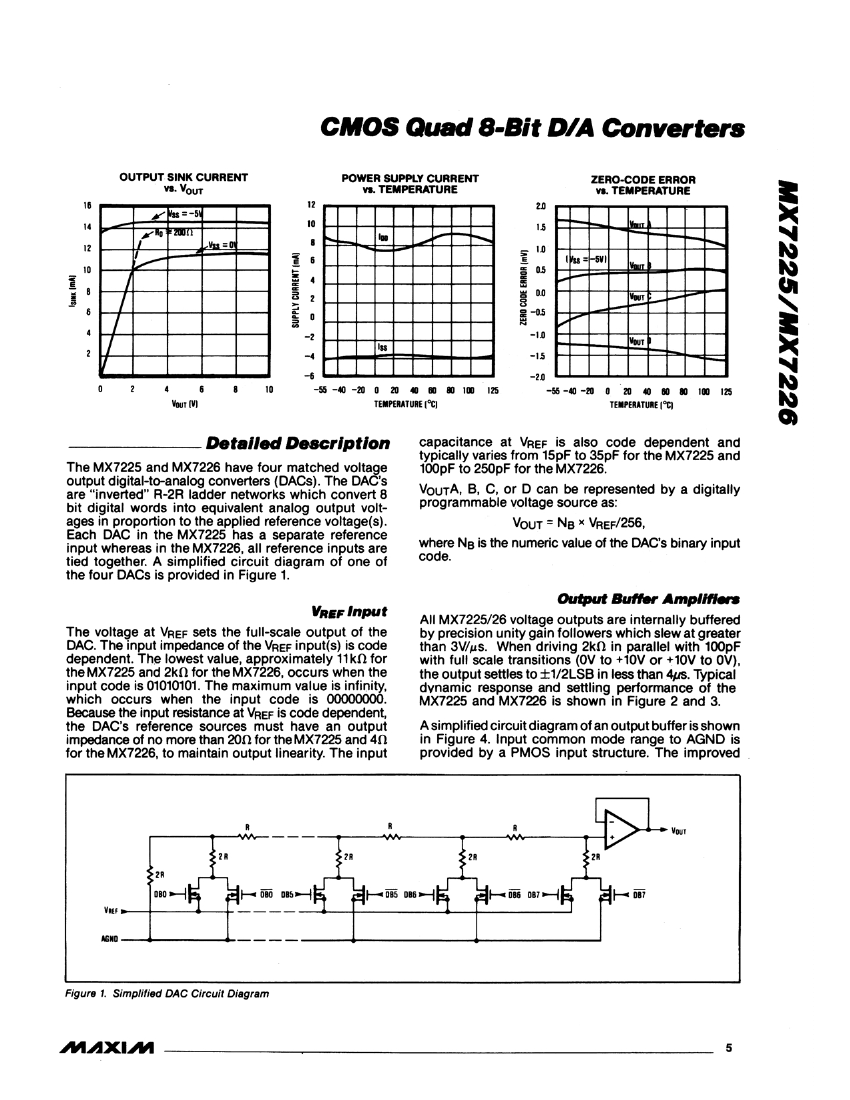

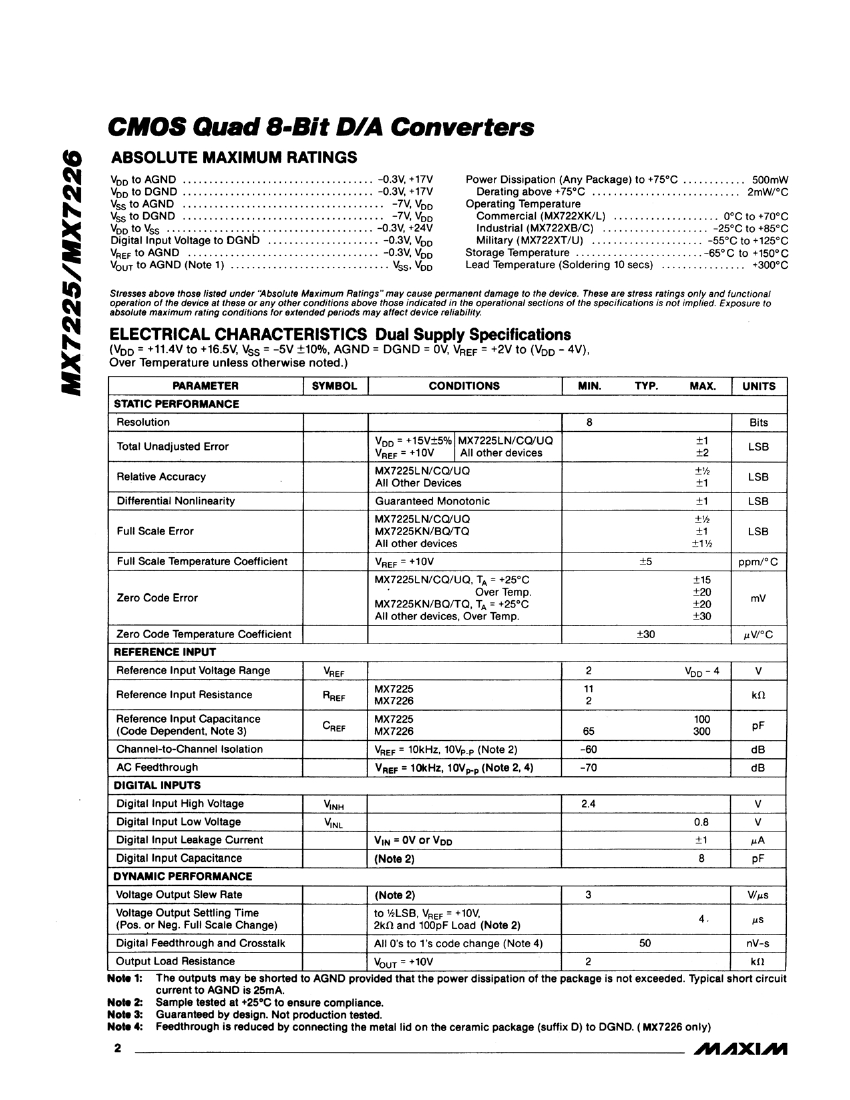

Preview

Download Datasheet

View All

___________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MX7226BQ Related Products

	MX7226BQ	MX7225TQ	MX7226TQ/883B
Description	Digital to Analog Converters - DAC CMOS, Quad, 8-Bit DAC with Voltage-Output Amplifier Latches	Digital to Analog Converters - DAC CMOS, Quad, 8-Bit DAC with Voltage-Output Amplifier Latches	Digital to Analog Converters - DAC CMOS, Quad, 8-Bit DAC with Voltage-Output Amplifier Latches
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	3A001.A.2.C	3A001.A.2.C
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY
JESD-30 code	R-GDIP-T20	R-GDIP-T24	R-XDIP-T20
Maximum linear error (EL)	0.3906%	0.3906%	0.39%
Number of digits	8	8	8
Number of functions	4	4	4
Number of terminals	20	24	20
Maximum operating temperature	85 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP24,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	245	245	NOT SPECIFIED
power supply	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	4 µs	4 µs	4 µs
Maximum slew rate	13 mA	12 mA	13 mA
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Parts packaging code	DIP	DIP	-
package instruction	CERDIP-20	CERDIP-24	-
Contacts	20	24	-
Input format	PARALLEL, WORD	PARALLEL, WORD	-
JESD-609 code	e0	e0	-
Humidity sensitivity level	1	1	-
Nominal negative supply voltage	-5 V	-5 V	-
Nominal supply voltage	15 V	15 V	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
