OP90GS-T: DescriptionPrecision Amplifiers; CategoryAnalog mixed-signal IC Amplifier circuit; File Size283KB，9 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

OP90GS-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OP90GS-T	-	-	View	Buy Now

OP90GS-T Overview

Precision Amplifiers

OP90GS-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.03 µA
Maximum bias current (IIB) at 25C	0.025 µA
Nominal Common Mode Rejection Ratio	110 dB
frequency compensation	YES
Maximum input offset voltage	675 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
low-dissonance	YES
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	245
power supply	+-1.5/+-15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
minimum slew rate	0.005 V/us
Nominal slew rate	12000 V/us
Maximum slew rate	0.03 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	40000
width	3.9 mm

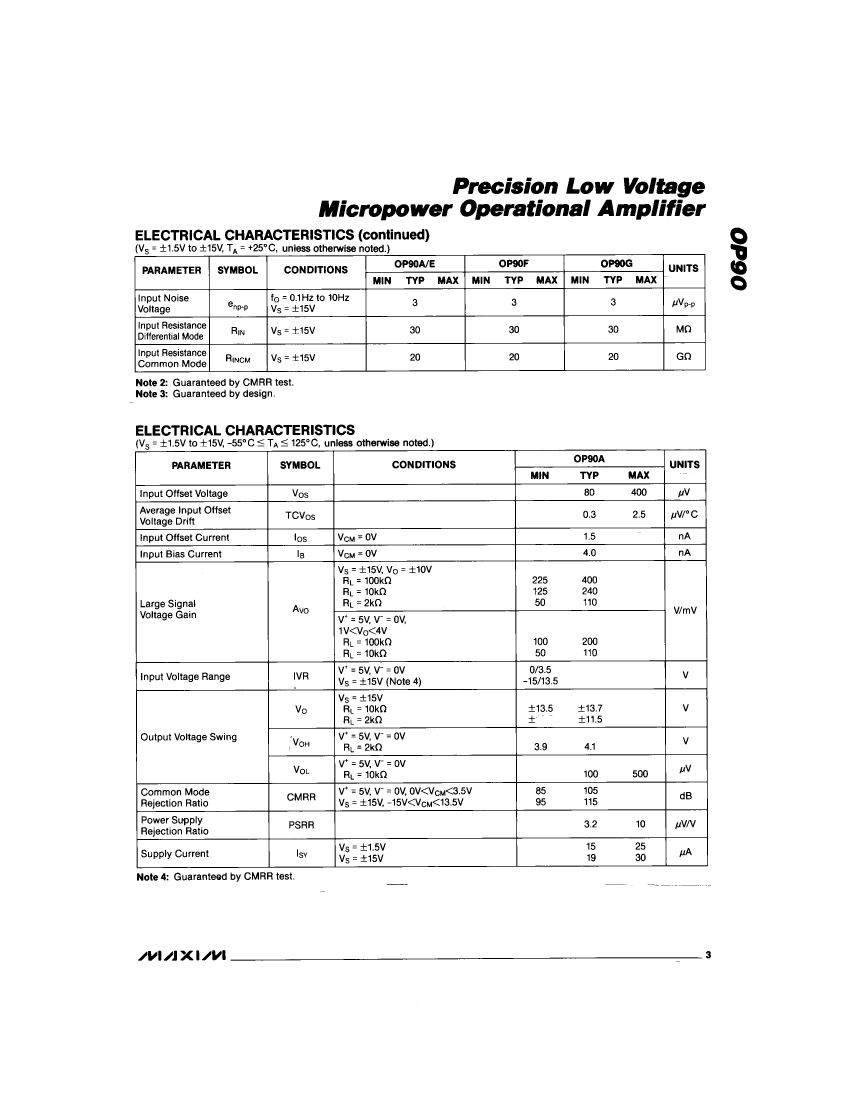

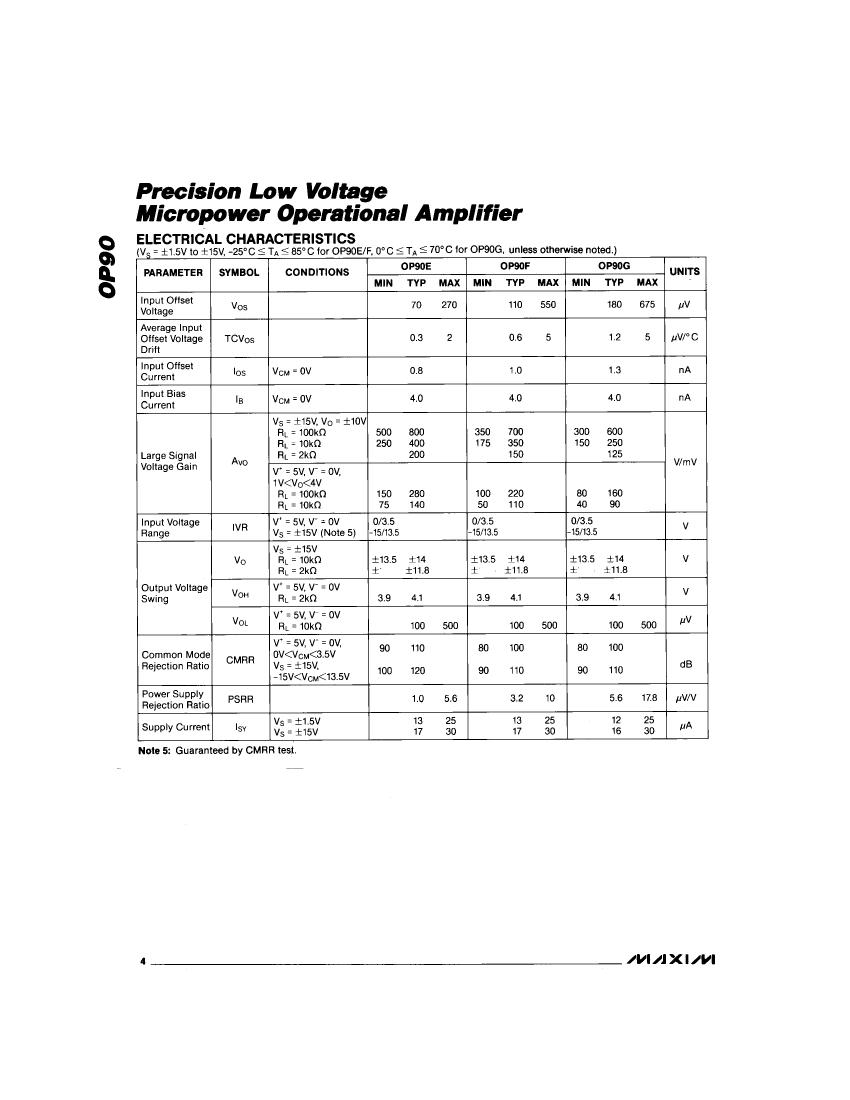

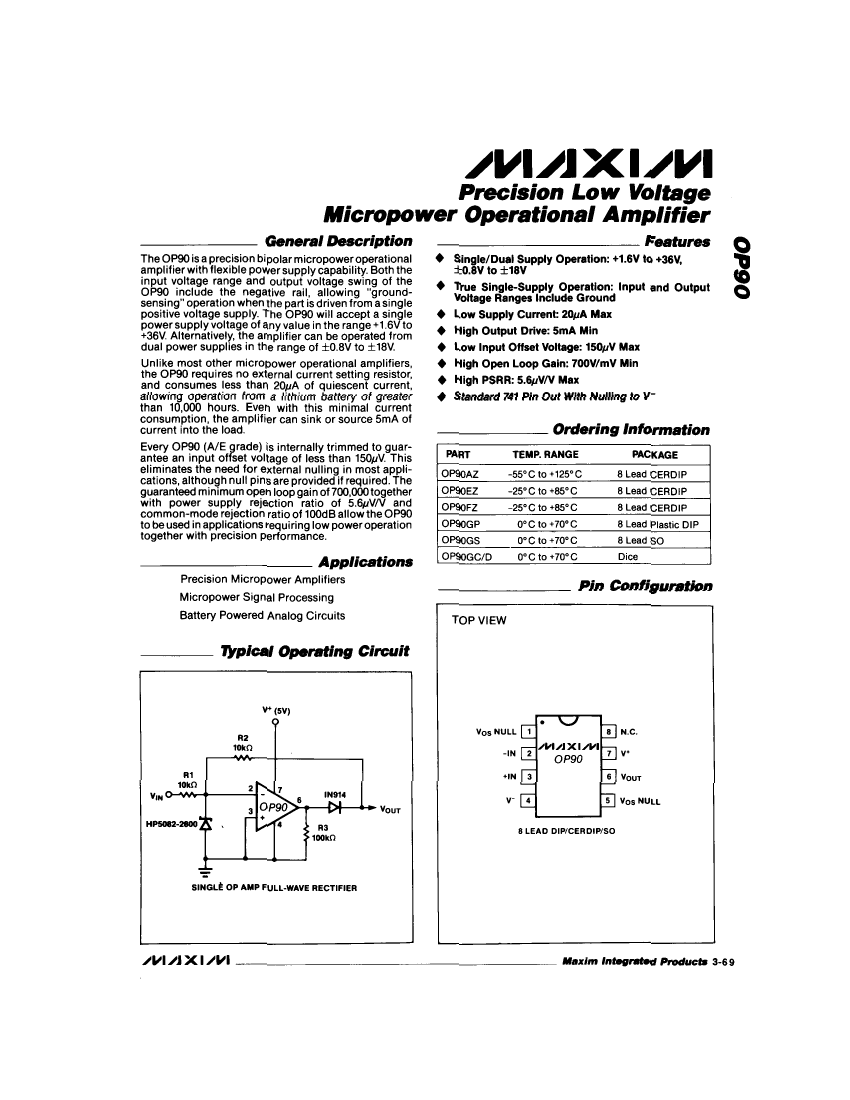

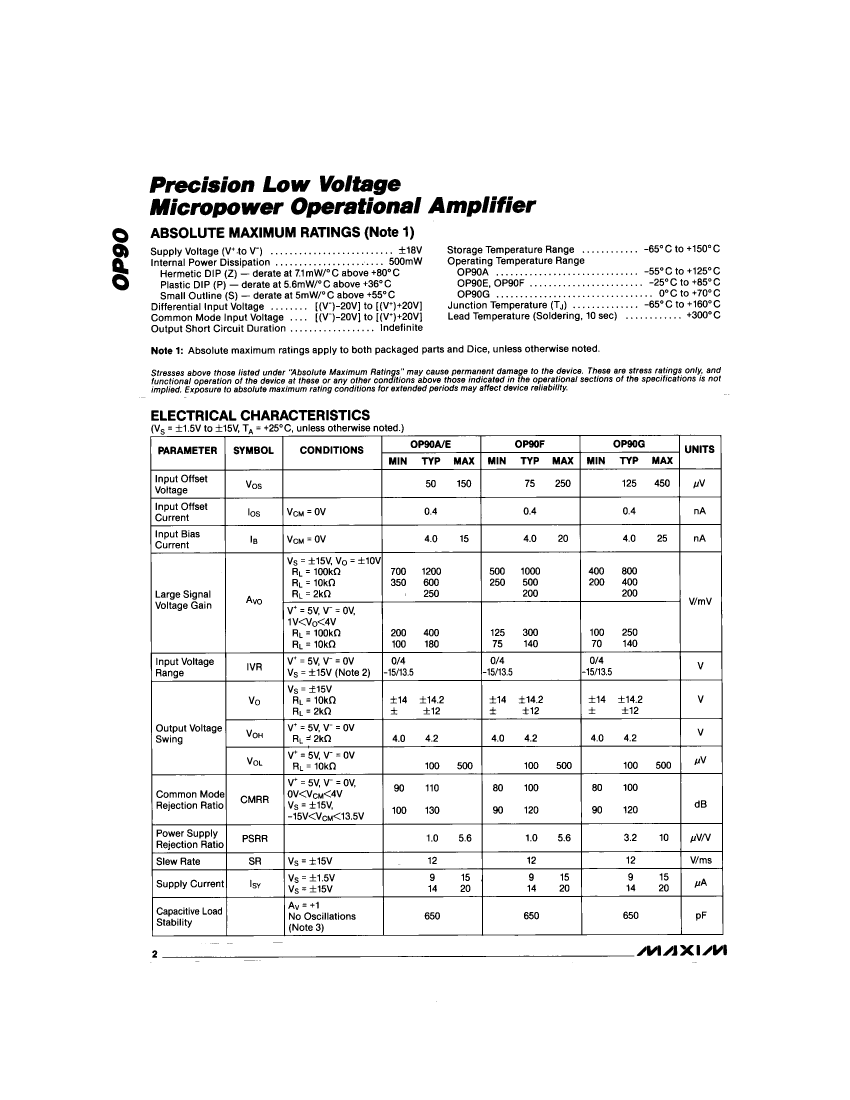

Preview

Download Datasheet

View All

Not Recommended for New Designs

This product was manufactured for Maxim by an outside wafer foundry

using a process that is no longer available. It is not recommended for

new designs. The data sheet remains available for existing users.

A Maxim replacement or an industry second-source may be available.

Please see the QuickView data sheet for this part or contact technical

support for assistance.

For further information,

contact Maxim’s Applications Tech Support.

OP90GS-T Related Products

	OP90GS-T	OP90GP+	OP90GS	OP90GC/D
Description	Precision Amplifiers	Precision Amplifiers	Precision Amplifiers	Precision Amplifiers
Is it Rohs certified?	incompatible	conform to	incompatible	-
Maker	Maxim	Maxim	Maxim	-
Parts packaging code	SOIC	DIP	SOIC	-
package instruction	SOP, SOP8,.25	PLASTIC, DIP-8	SOP-8	-
Contacts	8	8	8	-
Reach Compliance Code	not_compliant	unknown	not_compliant	-
ECCN code	EAR99	EAR99	EAR99	-
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-
Maximum average bias current (IIB)	0.03 µA	0.03 µA	0.03 µA	-
Maximum bias current (IIB) at 25C	0.025 µA	0.025 µA	0.025 µA	-
Nominal Common Mode Rejection Ratio	110 dB	110 dB	110 dB	-
frequency compensation	YES	YES	YES	-
Maximum input offset voltage	675 µV	675 µV	675 µV	-
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	-
JESD-609 code	e0	e3	e0	-
length	4.9 mm	9.375 mm	4.9 mm	-
low-dissonance	YES	YES	YES	-
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-
Number of functions	1	1	1	-
Number of terminals	8	8	8	-
Maximum operating temperature	70 °C	70 °C	70 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	DIP	SOP	-
Encapsulate equivalent code	SOP8,.25	DIP8,.3	SOP8,.25	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	245	260	245	-
power supply	+-1.5/+-15 V	+-1.5/+-15 V	+-1.5/+-15 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.75 mm	4.572 mm	1.75 mm	-
minimum slew rate	0.005 V/us	0.005 V/us	0.005 V/us	-
Nominal slew rate	12000 V/us	12000 V/us	12000 V/us	-
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA	-
Supply voltage upper limit	18 V	18 V	18 V	-
Nominal supply voltage (Vsup)	15 V	15 V	15 V	-
surface mount	YES	NO	YES	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	-
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Minimum voltage gain	40000	40000	40000	-
width	3.9 mm	7.62 mm	3.9 mm	-
