BYV29FX-600
Enhanced ultrafast power diode
Rev. 5 — 16 April 2012
Product data sheet
1. Product profile
1.1 General description
Enhanced ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package.
1.2 Features and benefits
High thermal cycling performance
Isolated package
Low on-state losses
Low thermal resistance
Soft recovery characteristic
1.3 Applications
Dual Mode (DCM and CCM) PFC
Power Factor Correction (PFC) for
Interleaved Topology
1.4 Quick reference data
Table 1.
Symbol
V
RRM
I
F(AV)
Quick reference data
Parameter
repetitive peak reverse voltage
average forward current
square-wave pulse;
δ
= 0.5 ;
T
h
≤
72 °C; see
Figure 1;
see
Figure 2
I
F
= 8 A; T
j
= 25 °C; see
Figure 5
I
F
= 8 A; T
j
= 150 °C; see
Figure 5
Conditions
Min
-
-
Typ
-
-
Max
600
9
Unit
V
A
Static characteristics
V
F
forward voltage
-
-
1.45
1.25
1.9
1.7
V
V
NXP Semiconductors
BYV29FX-600
Enhanced ultrafast power diode
2. Pinning information
Table 2.
Pin
1
2
mb
Pinning information
Symbol Description
K
A
n.c.
cathode
anode
mounting base; isolated
mb
K
A
001aaa020
Simplified outline
Graphic symbol
1
2
SOD113 (TO-220F)
3. Ordering information
Table 3.
Ordering information
Package
Name
BYV29FX-600
TO-220F
Description
plastic single-ended package; isolated heatsink mounted;
1 mounting hole; 2-lead TO-220 "full pack"
Version
SOD113
Type number
4. Limiting values
Table 4.
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FRM
I
FSM
Limiting values
Parameter
repetitive peak reverse voltage
crest working reverse voltage
reverse voltage
average forward current
repetitive peak forward current
non-repetitive peak forward current
DC
square-wave pulse;
δ
= 0.5 ; T
h
≤
72 °C;
see
Figure 1;
see
Figure 2
square-wave pulse;
δ
= 0.5 ; t
p
= 25 µs;
T
h
≤
72 °C
sine-wave pulse; t
p
= 10 ms;
T
j(init)
= 25 °C; see
Figure 3
sine-wave pulse; t
p
= 8.3 ms;
T
j(init)
= 25 °C; see
Figure 3
T
stg
T
j
storage temperature
junction temperature
Conditions
Min
-
-
-
-
-
-
-
-40
-
Max
600
600
600
9
18
91
100
150
150
Unit
V
V
V
A
A
A
A
°C
°C
In accordance with the Absolute Maximum Rating System (IEC 60134).
BYV29FX-600
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 5 — 16 April 2012
2 of 11
NXP Semiconductors
BYV29FX-600
Enhanced ultrafast power diode
20
P
tot
(W)
16
0.5
0.2
003aae718
16
P
tot
(W)
1.9
12
2.8
4.0
8
2.2
003aae719
δ
=1
a = 1.57
12
0.1
8
4
4
0
0
5
10
I
F(AV)
(A)
15
0
0
3
6
I
F(AV)
(A)
9

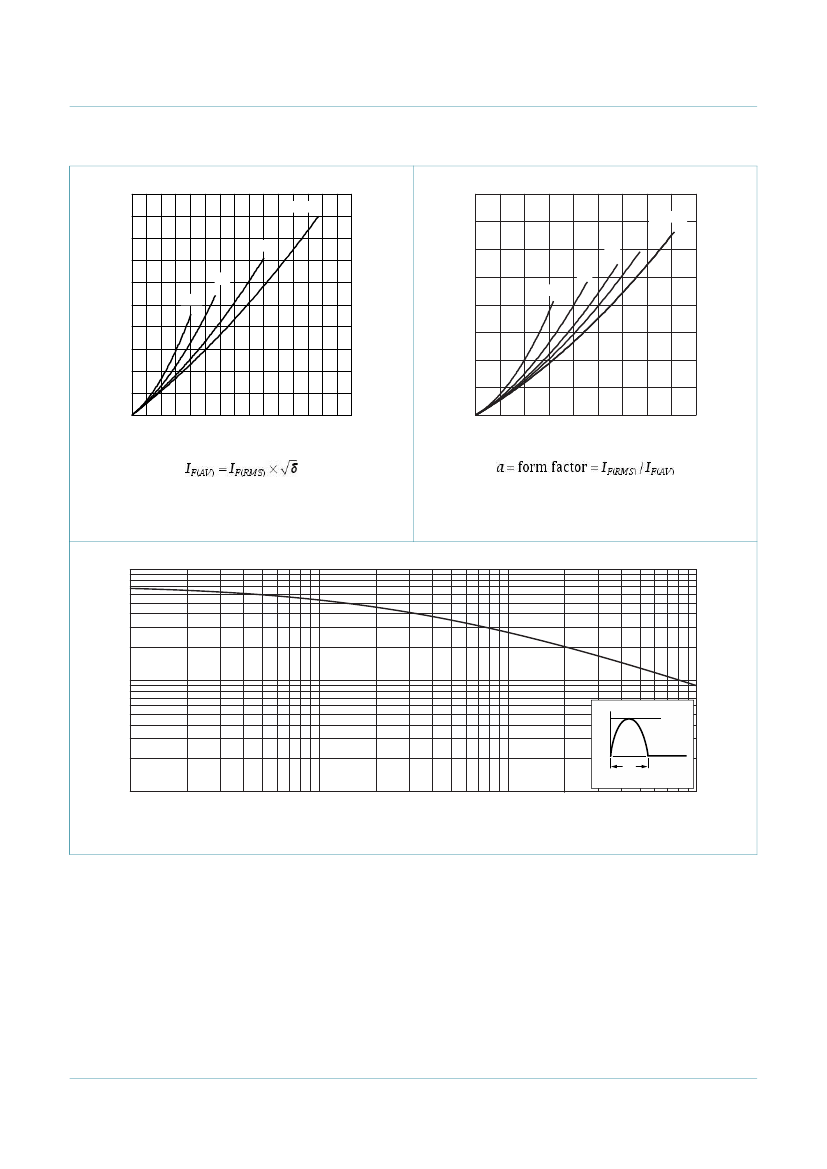

Fig 1.
Forward power dissipation as a function of
average forward current; square waveform;
maximum values
Fig 2.
Forward power dissipation as a function of
average forward current; sinusoidal waveform;
maximum values
003aae705
10
3
I
FSM
(A)
10
2
I
F
I
FSM
10
1
10
-5
t
t
p
T
j(init)
= 25 °C max
10
-4
10
-3
t
p
(s)
10
-2
Fig 3.
Non-repetitive peak forward current as a function of pulse width; square waveform; maximum values
BYV29FX-600
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 5 — 16 April 2012
3 of 11
NXP Semiconductors
BYV29FX-600
Enhanced ultrafast power diode
5. Thermal characteristics
Table 5.
Symbol
R
th(j-h)
R
th(j-a)
Thermal characteristics
Parameter
thermal resistance from
junction to heatsink
thermal resistance from
junction to ambient free air
Conditions
with heatsink compound ; see
Figure 4
Min
-
-
Typ
-
55
Max
5.5
-
Unit
K/W
K/W
10
Z
th(j-h)
(K/W)
1
001aaf257
10
−1
P
δ
=
t
p
T
10
−2
t
p
t
T
10
−3
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
1
t
p
(s)
10
Fig 4.
Transient thermal impedance from junction to heatsink as a function of pulse width
6. Isolation characteristics
Table 6.
Symbol
V
isol(RMS)
Isolation characteristics
Parameter
RMS isolation voltage
Conditions
50 Hz
≤
f
≤
60 Hz; RH
≤
65 %; from all pins to
external heatsink; sinusoidal waveform; clean
and dust free
f = 1 MHz ; from cathode to external heatsink
Min
-
Typ
-
Max
2500
Unit
V
C
isol
isolation capacitance
-
10
-
pF
BYV29FX-600
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 5 — 16 April 2012
4 of 11
