SS3H9, SS3H10
www.vishay.com
Vishay General Semiconductor
High Voltage Surface Mount Schottky Rectifier
High Barrier Technology for Improved High Temperature Performance
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• Low leakage current
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DO-214AB (SMC)
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
I
R
T
J
max.
Package
Diode variations
3.0 A
90 V, 100 V
100 A
0.65 V
20 μA
175 °C
DO-214AB (SMC)
Single
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current at: T
L
= 115 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Peak repetitive reverse surge current at t
p
= 2.0 μs, 1 kHz
Critical rate of rise of reverse voltage
Operating junction and storage temperature range
V
RRM
V
RWM
V
DC
I
F(AV)
I
FSM
I
RRM
dV/dt
T
J
, T
STG
SYMBOL
SS3H9
MS9
90
90
90
3.0
100
1.0
10 000
-65 to +175
SS3H10
MS10
100
100
100
V
V
V
A
A
A
V/μs
°C
UNIT
Revision: 18-Dec-14
Document Number: 88752
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS3H9, SS3H10
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
I
F
= 3.0 A
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
SYMBOL
V
F
I
R
SS3H9
0.8
0.65
20
4
SS3H10
UNIT
V
μA
mA
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward voltage
(1)
Maximum reverse current at rated V
R (2)
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to lead at T
L
= 25 °C
Typical thermal resistance, junction to ambient
(1)
SYMBOL
R
JL
R
JA
SS3H9
20
50
SS3H10
UNIT
°C/W
Note
(1)
Units mounted on PCB with 0.55" x 0.55" (14 mm x 14 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS3H9-E3/57T
SS3H9-E3/9AT
SS3H9HE3_A/H
(1)
SS3H9HE3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.235
0.235
0.235
0.235
0.235
0.235
PREFERRED PACKAGE CODE
57T
9AT
H
I
H
I
BASE QUANTITY
850
3500
850
3500
850
3500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
SS3H9HE3_B/H
SS3H9HE3_B/I
(1)
(1)
Note
AEC-Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
C
unless otherwise noted)
4.0
125
Average Forward Current (A)
Average Forward Current (A)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
25
50
75
100
125
150
175
100
75
50
25
0
1
10
100
Case Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 18-Dec-14
Document Number: 88752
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS3H9, SS3H10
www.vishay.com
Vishay General Semiconductor
1000
100
Instantaneous Forward Current (A)
T
J
= 175 °C
10
T
J
= 150 °C
1
T
J
= 125 °C
0.1
T
J
= 25 °C
Junction Capacitance (pF)
1.2
1.4
100
0.01
0
0.2
0.4
0.6
0.8
1.0
10
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)

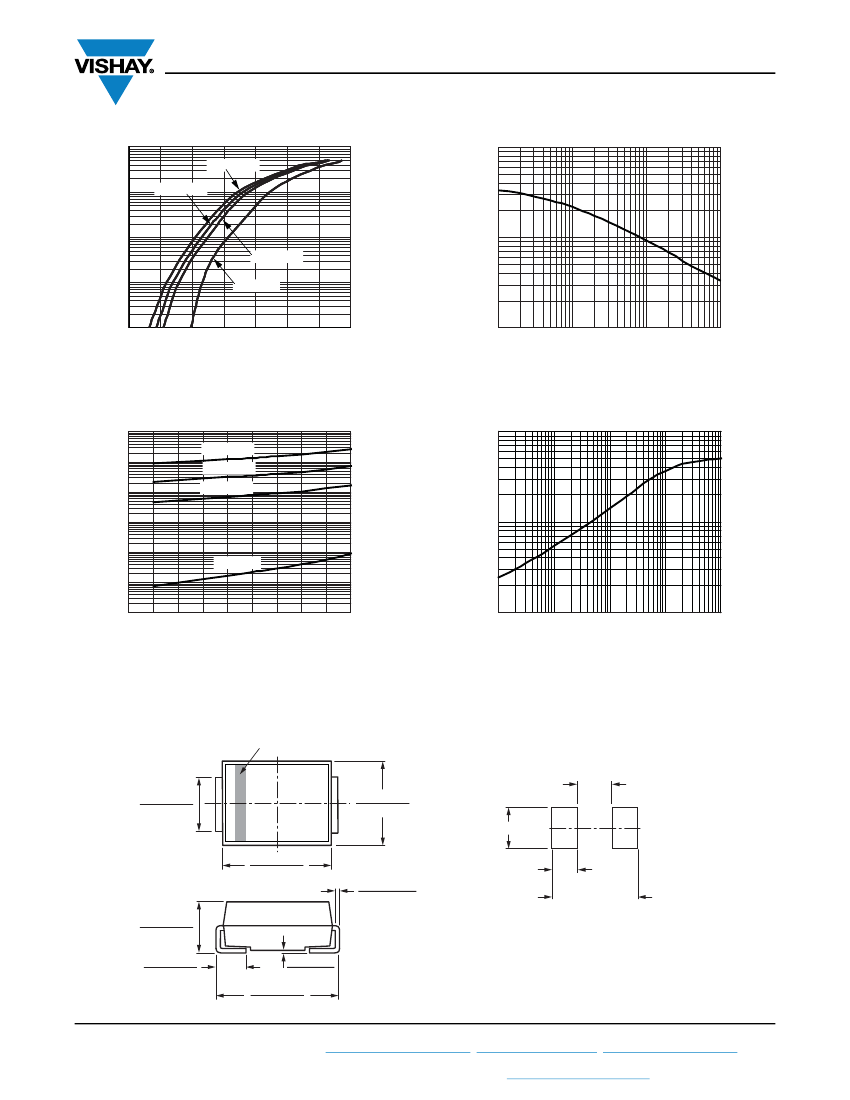

Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
10 000
100
T
J
= 175 °C
Instantaneous Reverse Current (µA)
1000
T
J
= 150 °C
T
J
= 125 °C
100
10
Transient Impedance (°C/W)
10
1
T
J
= 25 °C
0.1
0.01
10
20
30
40
50
60
70
80
90
100
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AB (SMC)
Cathode Band
Mounting Pad Layout
0.185 (4.69) MAX.
0.126 (3.20)
0.114 (2.90)
0.246 (6.22)
0.220 (5.59)
0.126 (3.20) MIN.
0.280 (7.11)
0.260 (6.60)
0.012 (0.305)
0.006 (0.152)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.008 (0.2)
0 (0)
0.320 (8.13)
0.305 (7.75)
0.060 (1.52) MIN.
0.320 (8.13) REF.
Revision: 18-Dec-14
Document Number: 88752
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
