Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratlng conditions
for extended periods may affect device reliability.
The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.
Due to the limited drive capability use for input of the same package only.
Package thermal resistance assumes exposed pad is soldered (or equivalent) to the devices most negative potential (GND) on the PCB.
Max. limit only applicable for short durations, not for continuous operation!
Note 2.
Note 3.
Note 4.
Note 5.
M9999-060208
hbwhelp@micrel.com or (408) 955-1690
3
Micrel, Inc.
Precision Edge
®
SY89321L
AC ELECTRICAL CHARACTERISTICS
V
CC
= +3.3V
±10%;
C
L
= 20pF, T
A
= –40°C to +85°C unless otherwise noted.
Symbol
f
MAX
t
pd
t
skpp
V
CMR
V
PP
t
r
t
f
t
JITTER
Parameter
Maximum Input Frequency
Propagation Delay
Part-to-Part Skew
Common Mode Range
Minimum Peak-to-Peak Input
Output Rise/Fall Time
(1.0V to 2.0V)
Cycle-to-cycle (rms)
Total jitter (pk-pk)
Note 6.
Note 7.
Note 8.
Note 9.
Condition
Note 6
V
IN
≥
100mV,
Note 7
Note 8
Min
275
1.5
—
1.2
100
0.5
Typ
—
1.9
—
—
—
—
Max
—
2.5
0.5
V
CC
—
1.0
2
15
Units
MHz
ns
ns
V
mV
ns
ps
RMS
ps
PP
Note 9
Note 10
The f
MAX
value is specified as the minimum guaranteed maximum frequency (While maintaining TTL swing of 0.8V to 2.0V). Actual opera-
tional maximum frequency may be greater.
Part-to-Part Skew considering HIGH-to-HIGH transitions at common V
CC
level.
V
PP
(min) is the minimum input swing for which AC parameters are guaranteed.
Cycle-to-cycle jitter definition: The variation of periods between adjacent cycles, T
n
– T
n–1
,where T is the time between rising edges of the
output signal.
Note 10.
Total jitter definition: with an ideal clock input of frequency
≤
f
MAX
, no more than one output edge in 10
12
output edge will deviate by more than
the specified peak-to-peak jitter value.
INPUT INTERFACE APPLICATIONS
3.3V
SY89321L
IN
IN
LVDS
SY89321L
IN
V
CC
/IN
0.01µF
VBB
V
CC
SY89321L
100Ω
/IN
CML
100Ω
/IN
Single-Ended Input
(Terminating unused input)
CML Input
LVDS Input
M9999-060208
hbwhelp@micrel.com or (408) 955-1690
4
Micrel, Inc.
Precision Edge
®
SY89321L

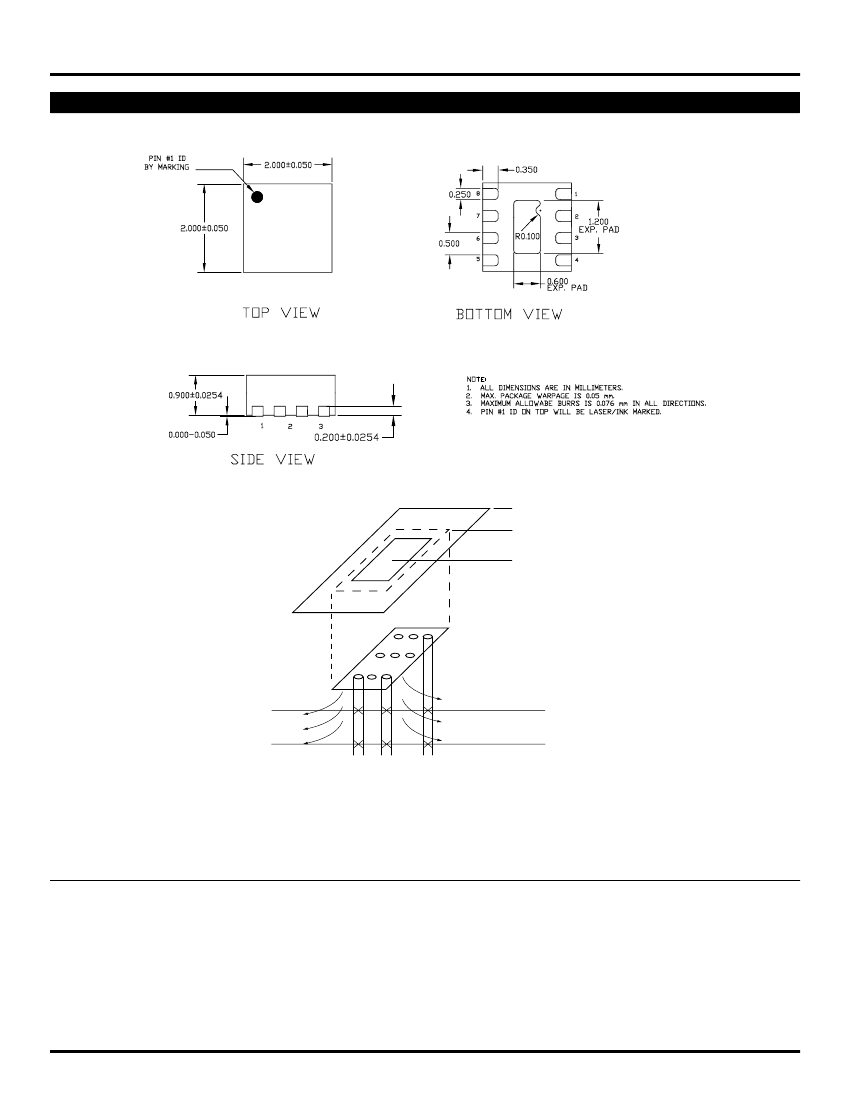

8 LEAD ULTRA-SMALL EPAD-MicroLeadFrame
®
(MLF-8)
Package
EP- Exposed Pad
Die
CompSide Island
Heat Dissipation
Heat Dissipation
V
EE
Heavy Copper Plane
V
EE
Heavy Copper Plane
PCB Thermal Consideration for 8-Pin MLF
®
Package
Package Notes:
Note 1.
Package meets Level 2 qualification.
Note 2.
All parts are dry-packaged before shipment.
Note 3.
Exposed pads must be soldered to a ground for proper thermal management.
