C&K ES Series
Sealed Tiny Slide Switches
Features/Benefits
•
Process compatible—internal
o-ring and epoxy base seal
•
Thru-hole & surface mount models
•
Reliable contact design ensures
long electrical life
Typical Applications
•
Computer peripherals &
network products
•
Test & measurement equipment
•
Telephone & cable modems
•
Robust actuator for easy actuation
•
RoHS compliant
Patent No. 6,008,458
Specifications
CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max.
MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break
cycles at full load.
CONTACT RESISTANCE: 50 m
Ω
max. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 500 Vrms min.
OPERATING TEMPERATURE: –30ºC to 85ºC.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9.
DEGREE OF PROTECTION: IP57; Protection against harmful dust
deposit, full-scale voltage protection, temporary immersion.
ESD ENDURANCE: 8kv min. (EIA 545).
PACKAGING: Thru-hole switches supplied in anti-static trays.
Surface mount switches available in tape and reel packaging.
Materials
HOUSING & BASE: Nylon (UL 94V-0).
ACTUATOR: LCP (UL 94V-0) black, standard.
SURFACE PLATE: Stainless steel with tin plate.
MOVABLE CONTACT: Bronze with gold plate over nickel plate.
STATIONARY CONTACTS: Copper alloy, with gold plate over
nickel plate.
TERMINALS: Copper alloy, with gold over nickel plate. All terminals
insert molded.
BASE & TERMINAL SEAL: Epoxy.
NOTE:
All models RoHS compliant and compatible with all options. For the latest informa-
tion regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
J
Slide

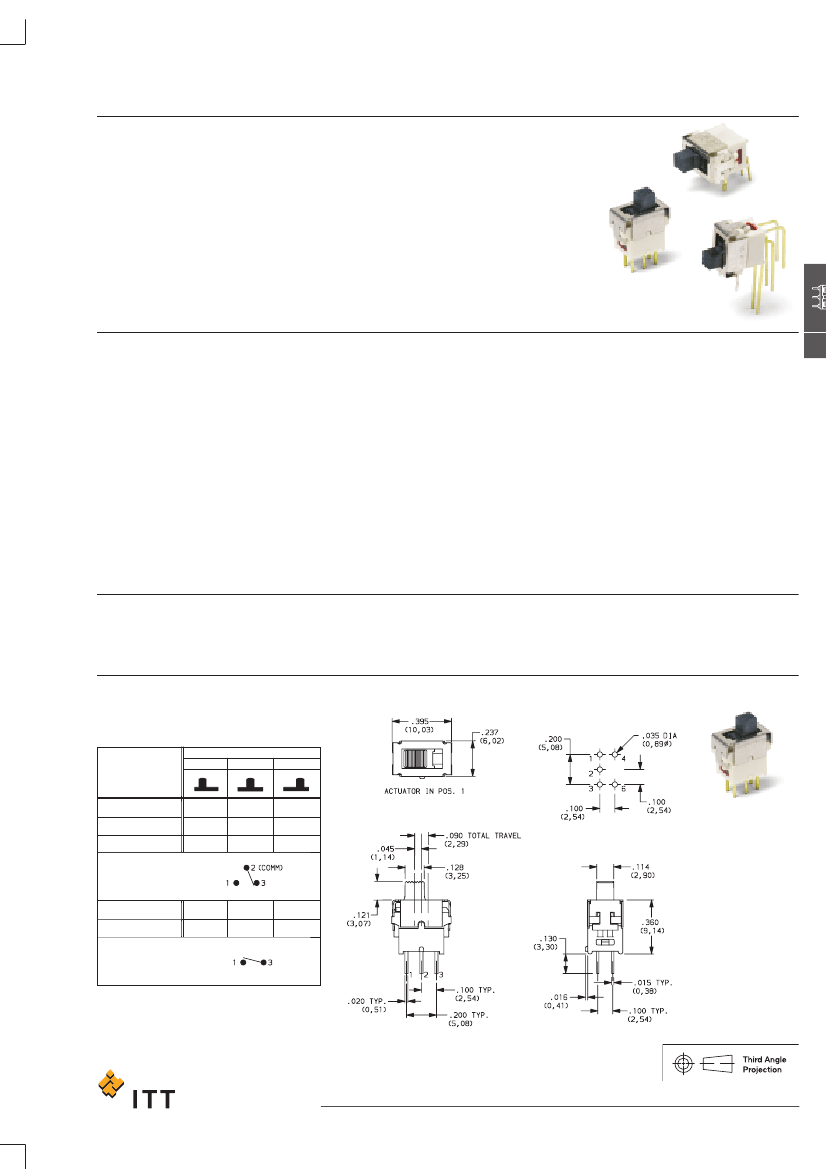

How To Order

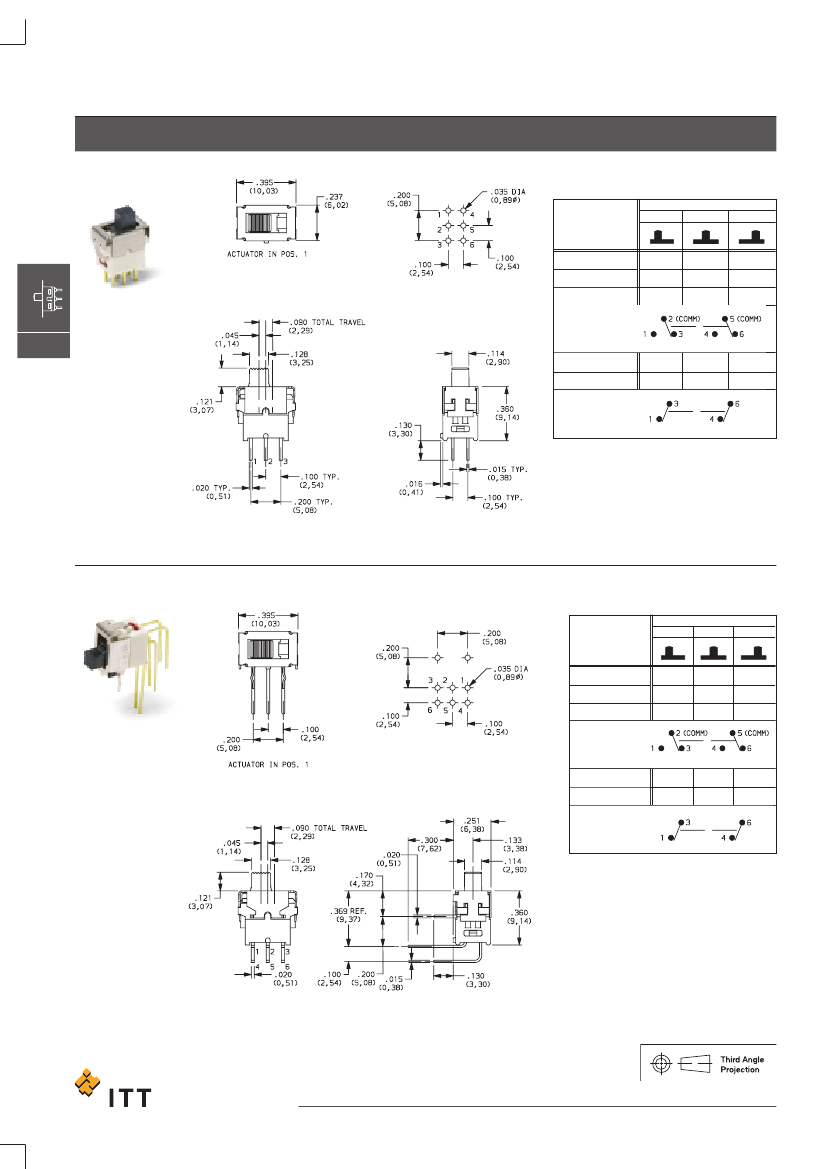

Complete part numbers for ES Series Sealed Tiny Slide Switches are shown on pages J-4 through J-6. These unique tiny slide
switches are process compatible. An internal o-ring and epoxy base seal protects the switch from wave and reflow soldering,
as well as cleaning processes.

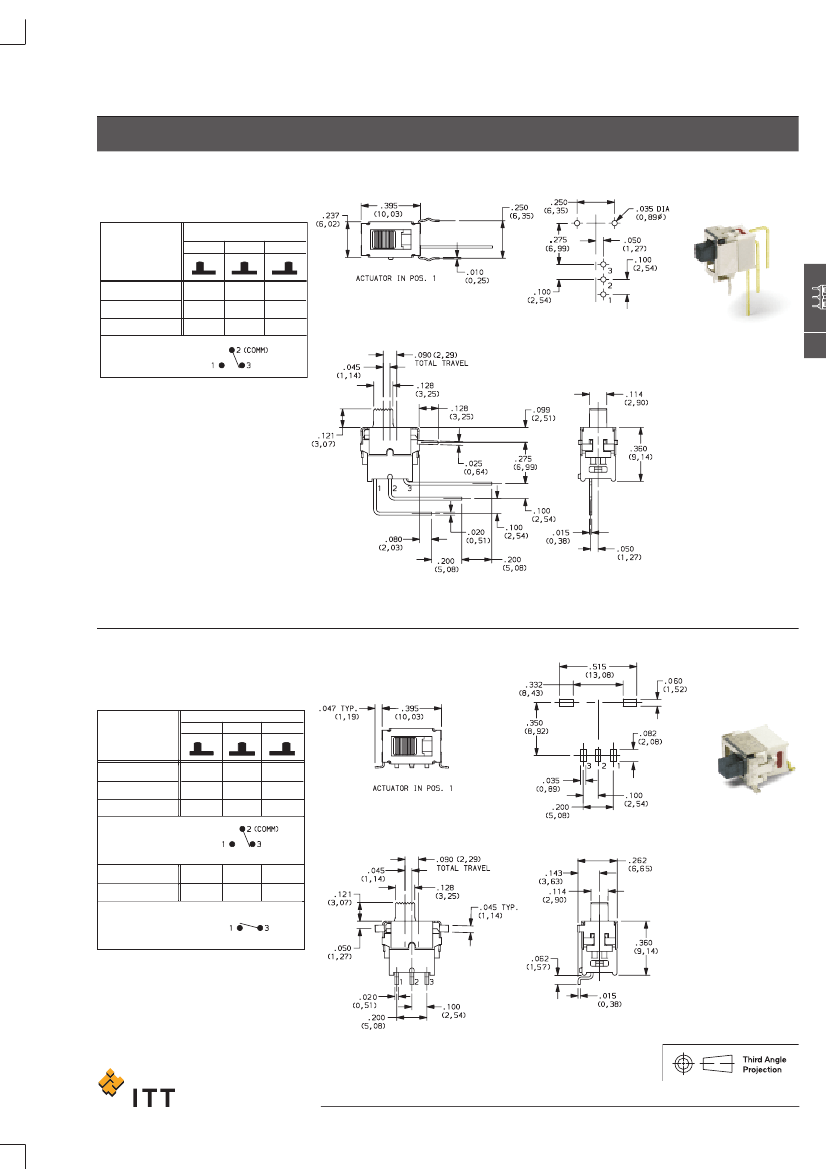

PC MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
PART NUMBER
ES01MCBE
ES03MCBE
CONN. TERMINALS
SCHEMATIC
ON
ON
2-3
NONE
OFF
OPEN
ON
ON
2-1
ES01MCBE
ES02 Models:
omit hole 2.
SPDT
SPDT
ES02MCBE
CONN. TERMINALS
SCHEMATIC
OFF
OPEN
NONE
N/A
ON
3-1
ES02 Models:
omit terminal 2.
SPST
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
J–3
www.ittcannon.com
