RV24A02-10-15S1-BF5 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> RV24A02-10-15S1-BF5

Preview

RV24A02-10-15S1-BF5: DescriptionPotentiometers Linear SPDT 250K Screwdrvr Solder Lug; CategoryPassive components; File Size15KB，1 Pages; ManufacturerAlpha (Taiwan)

Download Datasheet Parametric Compare View All

RV24A02-10-15S1-BF5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RV24A02-10-15S1-BF5	-	-	View	Buy Now

RV24A02-10-15S1-BF5 Overview

Potentiometers Linear SPDT 250K Screwdrvr Solder Lug

RV24A02-10-15S1-BF5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Alpha (Taiwan)
Product Category	Potentiometers
RoHS	No -; RoHS Version Available
Termination Style	Solder Lug
Product	Potentiometer
Number of Gangs	1 Gang
Resistance	250 kOhms
Taper	Linear
Mounting Style	Panel Mount
Power Rating	500 mW (1/2 W)
Element Type	Carbon
Number of Turns	1 Turn
Shaft Type	Smooth / Slotted
Shaft Diameter	0.25 in
Type	Rotary Metal
Switch Type	Switch
Factory Pack Quantity	50

Preview

Download Datasheet

View All

MOUSER STOCK NO.

MOUSER

E L E CT R O N I C S

315-2415-Value

Potentiometers

315-2415-Value

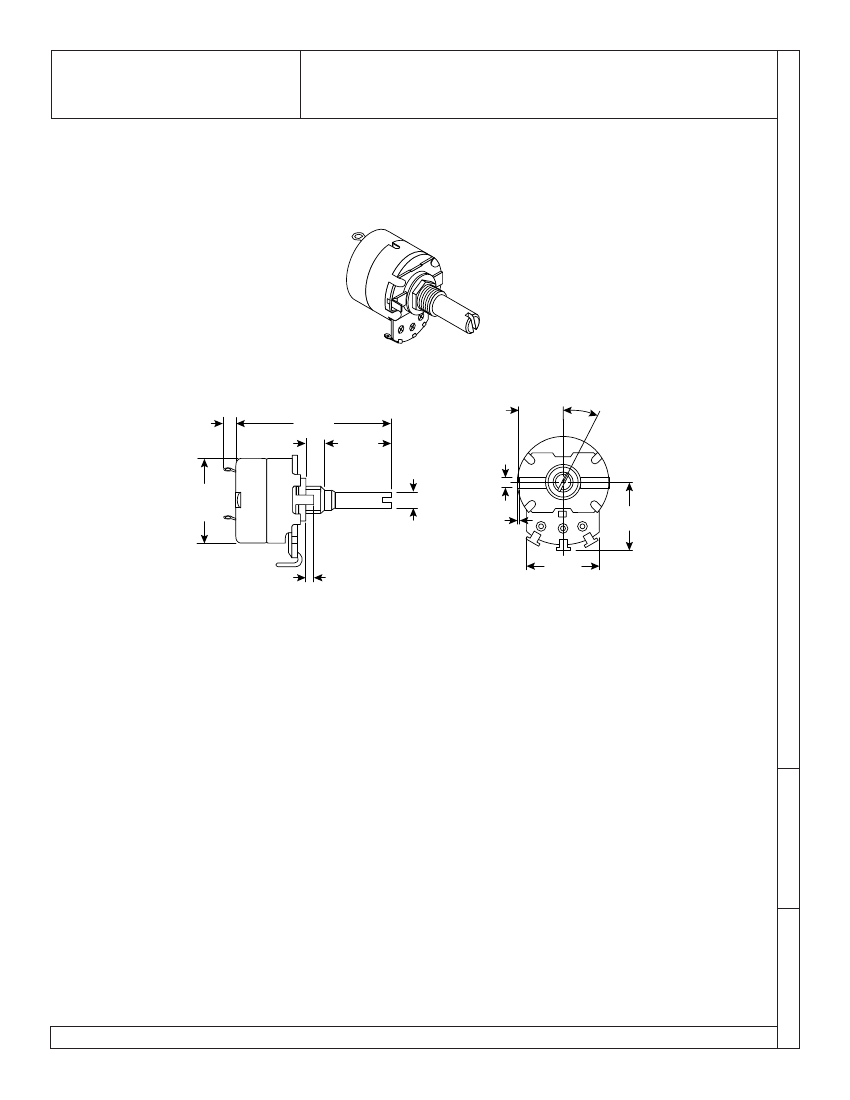

30°

.472

.177

.256

.799

.335

.110

.940

.250

.047

.740

Potentiometers

.787

.098

Shaft Shown In

Full C.C.W. Position

Dimensions (In.)

Specifications:

•

Type: linear taper W/SPDT switch

•

Breakdown voltage: 500VAC for 1 minute

•

Insulation resistance: >100MΩ min. @ 500VDC

•

Rated wattage: 0.5W

•

Rated voltage: 500VDC

•

Switch rating: 125VAC 1 amp

•

Rotation angle: 300° ± 5°

•

Rotation torque: 20 ~ 200g/cm

•

Rotational life: 15,000 cycles

•

Switch working angle: 50° ± 10°

•

Switch working torque: 150 ~ 450g/cm

•

Value (Ω): 1K, 5K, 10K, 25K, 50K, 100K, 250K, 500K, & 1M

8-

143119

Date:

8-5-98

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com
