TAWD226K020S0500 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TAWD226K020S0500

TAWD226K020S0500: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size106KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

TAWD226K020S0500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TAWD226K020S0500	-	-	View	Buy Now

TAWD226K020S0500 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT

TAWD226K020S0500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1155223818
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	500 mΩ
high	2.9 mm
JESD-609 code	e3
leakage current	0.0044 mA
length	7.3 mm
Manufacturer's serial number	TAW
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
ripple current	493 mA
series	TAW
size code	2917
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

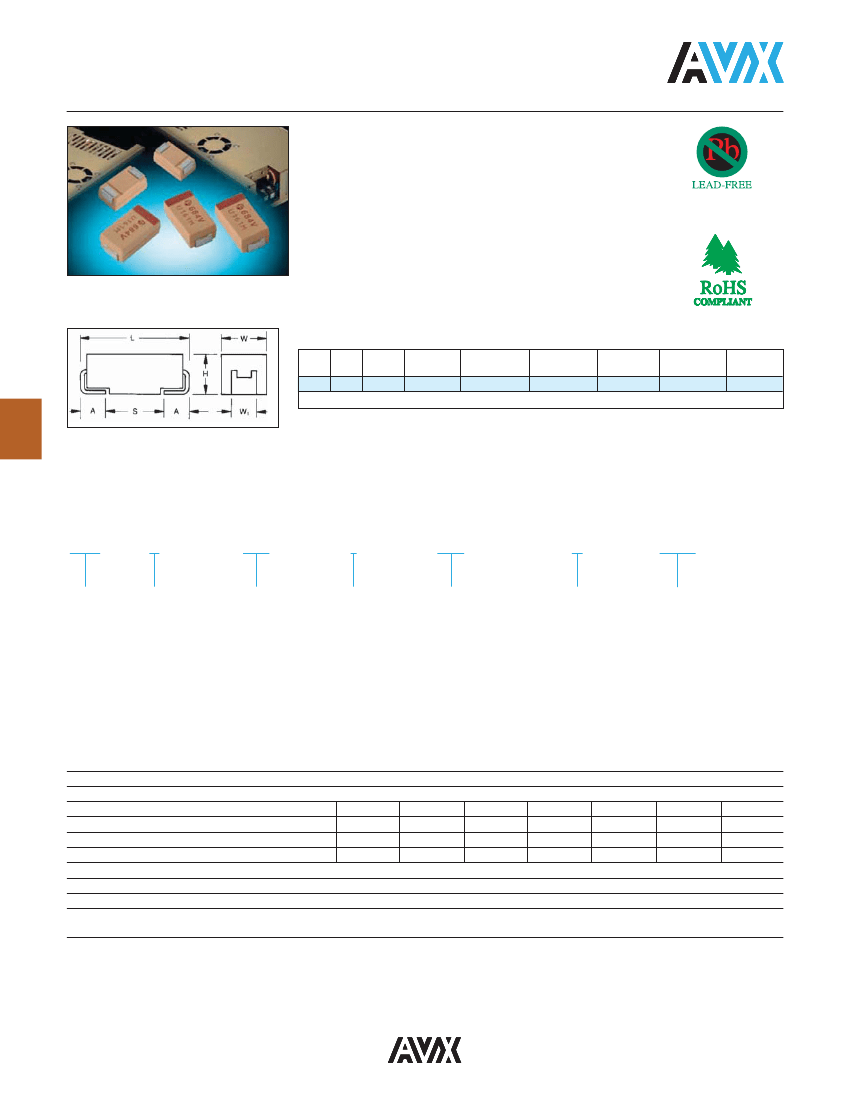

TAW Series

Tantalum Solid Electrolytic Fused Capacitors

• Thin film fuse connected in series with capacitor

• Protection from possible damaging from high DC

leakage current (short circuit failure)

• CV range: 6.8-100μF / 10-50V

• Application: servers

LEAD-FREE COMPATIBLE

COMPONENT

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

EIA

Metric

L±0.20

(0.008)

W+0.20 (0.008) H+0.20 (0.008)

-0.10 (0.004)

–0.10 (0.004)

4.30 (0.169)

2.90 (0.114)

±0.20

(0.008)

2.40 (0.094)

A+0.30 (0.012)

-0.20 (0.008)

1.30 (0.051)

S Min.

4.40 (0.173)

2917 7343-31 7.30 (0.287)

dimension applies to the termination width for A dimensional area only.

For part marking see page 130

HOW TO ORDER

TAW

Type

Case Size

See table

above

476

Tolerance

K=±10%

M=±20%

010

0500

Capacitance Code

pF code: 1st two

digits represent

significant figures

3rd digit represents

multiplier (number of

zeros to follow)

Rated DC Voltage

010=10Vdc

016=16Vdc

020=20Vdc

025=25Vdc

035=35Vdc

050=50Vdc

Packaging

R = Pure Tin 7" Reel

S = Pure Tin 13" Reel

ESR in mΩ

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Fuse Off

Fuse Continuous Current Capability

Temperature Range:

Reliability:

All technical data relate to an ambient temperature of +25°C

6.8 μF to 100 μF

±10%; ±20%

I > 4A in 1s, insulating resistance > 10MΩ

0.75A

-55°C to +125°C

1% per 1000 hours at 85°C, Vr with 0.1Ω/V series impedance,

60% confidence level

+85°C:

+125°C:

+85°C:

+125°C:

TAWD226K020S0500 Related Products

	TAWD226K020S0500	TAWD226M020R0500	TAWD685M035R0600	TAWD106K035S0600	TAWD106M035R0600	TAWD685K035S0600	TAWD476M016R0800	TAWD226M025R0600
Description	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 20% +Tol, 20% -Tol, 6.8uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitors - Solid SMD 16v 47uF 20% Tol ESR = 800mOhms	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to
Objectid	1155223818	1155223819	1155223823	1155223814	1155223815	1155223822	-	2090859016
package instruction	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917	-	, 2917
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
capacitance	22 µF	22 µF	6.8 µF	10 µF	10 µF	6.8 µF	-	22 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	-	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	-	TANTALUM (DRY/SOLID)
ESR	500 mΩ	500 mΩ	600 mΩ	600 mΩ	600 mΩ	600 mΩ	-	600 mΩ
high	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	-	2.9 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	-	e3
leakage current	0.0044 mA	0.0044 mA	0.0024 mA	0.0035 mA	0.0035 mA	0.0024 mA	-	0.0055 mA
length	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	-	7.3 mm
Manufacturer's serial number	TAW	TAW	TAW	TAW	TAW	TAW	-	TAW
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
negative tolerance	10%	20%	20%	10%	20%	10%	-	20%
Number of terminals	2	2	2	2	2	2	-	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT	SMT	-	SMT
method of packing	TR, 13 INCH	TR, 7 INCH	TR, 7 INCH	TR, 13 INCH	TR, 7 INCH	TR, 13 INCH	-	TR, 7 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED
positive tolerance	10%	20%	20%	10%	20%	10%	-	20%
Rated (DC) voltage (URdc)	20 V	20 V	35 V	35 V	35 V	35 V	-	25 V
ripple current	493 mA	493 mA	450 mA	450 mA	450 mA	450 mA	-	450 mA
series	TAW	TAW	TAW	TAW	TAW	TAW	-	TAW
size code	2917	2917	2917	2917	2917	2917	-	2917
surface mount	YES	YES	YES	YES	YES	YES	-	YES
Delta tangent	0.06	0.06	0.06	0.06	0.06	0.06	-	0.06
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	-	J BEND
width	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	-	4.3 mm
