#A1313AN-0002GRG=P3

Description
Variable Inductors 11.4pF Q= 61 Winding = B
CategoryPassive components
File Size243KB,1 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric Compare View All

#A1313AN-0002GRG=P3 Overview

Variable Inductors 11.4pF Q= 61 Winding = B

#A1313AN-0002GRG=P3 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMurata
Product CategoryVariable Inductors
RoHSDetails
Inductance-
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Termination StyleSMD/SMT
Length5.6 mm
Width5.6 mm
Height5.7 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Core Material-
Maximum DC Current-
Operating Temperature Range- 40 C to + 85 C
Type-
Factory Pack Quantity750

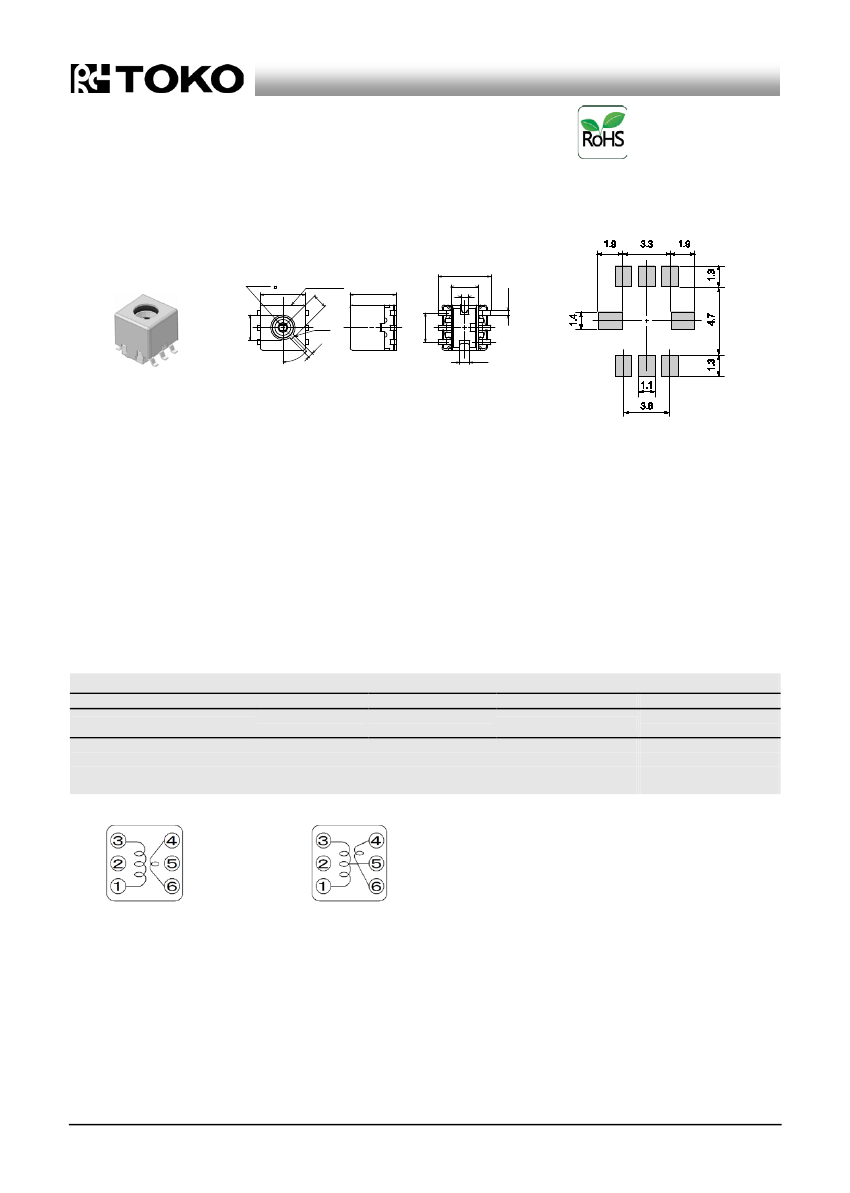

Variable Coils for Surface Mounting
面実装用可変コイル
TYPE 5CCEG
For Reflow Soldering
Frequency Range:
Inductance Range:
Q Approx:
20
½
120 MHz
0.05
½
2.7 uH
70 (at 100MHz)
Recommended patterns
推奨パターン図
*1
6.2
0.6×1.1
5.6
R1
.8
3.4
5.7
0.9
φ3.1
+0.05
-0.1
R0.1
0.
6
3.6
max.
45゚ ±
0.15
max.
1.2
0.15
(Unit: mm)
*2
±0.15
0.6
(Unit: mm)
Features
High reliability conforms to automotive applications.
AEC-Q200 compliant.
車載基準に適合する高信頼性
AEC-Q200準拠
Applications
Suitable as a RF matching transformer for car tuner.
Wide operating temperature range (− 40~+85°C)
カーチューナー用RFマッチングトランスに最適
½用温度範囲:-40 ½ +85°C
SELECTION GUIDE FOR STANDARD TRANSFORMERS
TYPE 5CCEG
品番
Part Number
#A1313AN-0001GGH=P3
#A1313AN-0002GRG=P3
#A1313AN-0003GRG=P3
#A1313AN-0004GGH=P3
測定周波数
Test Frequency
(MHz)
100
100
100
100
C可変範囲
C Range
(pF)
11.4 +3/-3%
11.4 +5/-2%
11.4 +2/-4%
11.7 +3/-3%
Q
Unloaded Q
72 +/-20%
61 +/-20%
54 +/-20%
72 +/-20%
内部接続
*
Winding
Connection *
A
B
B
A
*Connection A (Bottom View)
* Connection B (Bottom View)
5CCEG type is custamized item. Please feel free to contact us for details.
5CCEGはカスタム仕様品です。詳細についてはお問い合わせ下さい。

#A1313AN-0002GRG=P3 Related Products

#A1313AN-0002GRG=P3 A1313AN-0001GGH=P3 A1313AN-0003GRG=P3 #A1313AN-0004GGH=P3
Description Variable Inductors 11.4pF Q= 61 Winding = B Variable Inductors 11.4pF Q= 54 Winding = B Variable inductor 11.7pF Q= 72 Winding = A
Product Category Variable Inductors Variable Inductors Variable Inductors variable inductor
Manufacturer Murata Murata Murata -
RoHS Details Details Details -
Termination Style SMD/SMT SMD/SMT SMD/SMT -
Length 5.6 mm 5.6 mm 5.6 mm -
Width 5.6 mm 5.6 mm 5.6 mm -
Height 5.7 mm 5.7 mm 5.7 mm -
Packaging Reel Cut Tape Reel -
Operating Temperature Range - 40 C to + 85 C - 40 C to + 85 C - 40 C to + 85 C -
Factory Pack Quantity 750 750 750 -
