KP1830
www.vishay.com
Vishay Roederstein
AC and Pulse Film Foil Capacitors
KP Radial Potted Type
L max.
FEATURES
W max.
Marking
• 5 mm lead pitch
• Supplied loose in box taped in ammopack
or reel
0.5
H
max.
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
6.0
-1
pcm
5.0 ± 0.4
Ø 0.5
± 0.4
ENCAPSULATION
Plastic case, epoxy resin sealed, flame retardant UL-class
94 V-0
Dimensions in millimeters
CLIMATIC TESTING CLASS ACCORDING TO
IEC 60068-1
55/100/56
MAIN APPLICATIONS
Oscillator, timing and LC/RC filter circuits, high frequency
coupling of fast digital and analog IC’s.
CAPACITANCE RANGE
100 pF to 0.022 μF
REFERENCE STANDARDS
IEC 60384-13
CAPACITANCE TOLERANCE
± 10 % , ± 5 %, ± 2.5 %, ± 2 %, ± 1 %
MARKING
C-value; tolerance; rated voltage; sub-class; manufacturer’s
type; code for dielectric material; manufacturer’s location;
manufacturer’s logo; year and week
LEADS
Tinned wire
MAXIMUM APPLICATION TEMPERATURE
100 °C
DIELECTRIC
Polypropylene film
DETAIL SPECIFICATION
For more detailed data and test requirements contact:
dc-film@vishay.com
ELECTRODES
Tin foil
CONSTRUCTION
Mono construction
RATED DC VOLTAGES
63 V, 250 V, 630 V
RATED AC VOLTAGES
40 V, 160 V, 250 V
Revision: 03-Feb-17
Document Number: 26016
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1830
www.vishay.com
COMPOSITION OF CATALOG NUMBER
Vishay Roederstein
MULTIPLIER
(nF)
0.01
0.1
1
1
2
3
110
210
310
CAPACITANCE
(numerically)
Example:
0.1 nF
1.0 nF
10 nF
100 pF
1.0 nF
10 nF
KP 1830
TYPE CONSTRUCTION
2
10
06 = 63 Vdc
25 = 250 Vdc
63 = 630 Vdc
63
4
G
PACKAGING CODE
Bulk
VOLTAGE CODE
TOLERANCE CODE
1
2
3
4
5
±1%
±2%
± 2.5 %
±5%
± 10 %
G
W
Ammo (H = 18.5)
Reel (H = 18.5)
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
1000 pF
1000 pF < C
5000 pF
5000 pF < C
20 000 pF
20 000 pF < C < 33 000 pF
Pitch (mm)
5
R between leads, for C
0.33 μF at 100 V, 1 min
R between leads and case, 100 V, 1 min
Withstanding (DC) voltage (cut off current 10 mA), rise time 100 V/s
Withstanding (DC) voltage between leads and case
Maximum application temperature
at 1 kHz
-
-
-
-
at 10 kHz
5 x 10
-4
5 x 10
-4
10 x 10
-4
15 x 10
-4
VALUE
at 100 kHz
-
10 x 10
-4
15 x 10
-4
25 x 10
-4
at 1 MHz
10 x 10
-4
-
-
-
Maximum pulse rise time (dU/dt)
R
[V/μs]
> 10 000
> 500 000 M
> 30 000 M
1.6 x U
RDC
, 1 min
2 x U
RDC
, 1 min
100 °C
Revision: 03-Feb-17
Document Number: 26016
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1830
www.vishay.com
Vishay Roederstein
VOLTAGE CODE 06
63 V
DC
/ 40 V
AC
W (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
9.0
9.0
9.0
7.5
H (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
10.0
10.0
10.0
9.0
L (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
VOLTAGE CODE 25
250 V
DC
/ 160 V
AC
W (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
4.5
4.5
4.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
9.0
9.0
9.0
9.0
-
-
-
-
H (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
6.0
6.0
6.0
6.0
7.0
7.0
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
10.0
10.0
10.0
10.0
-
-
-
-
L (mm)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
-
-
-
-
VOLTAGE CODE 63
630 V
DC
/ 250 V
AC
W (mm)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
9.0
9.0
9.0
9.0
-
-
-
-
-
-
-
-
H (mm)
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
10.0
10.0
10.0
10.0
-
-
-
-
-
-
-
-
L (mm)
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
-
-
-
-
-
-
-
-
CAPACITANCE
100 pF
110 pF
120 pF
130 pF
150 pF
160 pF
180 pF
200 pF
220 pF
240 pF
270 pF
300 pF
330 pF
360 pF
390 pF
430 pF
470 pF
510 pF
560 pF
620 pF
680 pF
750 pF
820 pF
910 pF
1000 pF
1100 pF
1200 pF
1300 pF
1500 pF
1600 pF
1800 pF
2000 pF
2200 pF
2400 pF
2700 pF
3000 pF
3300 pF
3600 pF
3900 pF
4300 pF
4700 pF
5100 pF
5600 pF
6200 pF
6800 pF
7500 pF
8200 pF
9100 pF
0.010 μF
0.011 μF
0.012 μF
0.013 μF
0.015 μF
0.016 μF
0.018 μF
0.020 μF
0.022 μF
CAPACITANCE
CODE
-110
-111
-112
-113
-115
-116
-118
-120
-122
-124
-127
-130
-133
-136
-139
-143
-147
-151
-156
-162
-168
-175
-182
-191
-210
-211
-212
-213
-215
-216
-218
-220
-222
-224
-227
-230
-233
-236
-239
-243
-247
-251
-256
-262
-268
-275
-282
-291
-310
-311
-312
-313
-315
-316
-318
-320
-322
Note
• Further C-values upon request
Revision: 03-Feb-17
Document Number: 26016
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1830
www.vishay.com
RECOMMENDED PACKAGING
LETTER CODE
G
W
-
TYPE OF
PACKAGING
Ammo
Reel
Bulk
HEIGHT (H)
(mm)
18.5
18.5
-
REEL DIAMETER
(mm)
S
(1)
350
-
ORDERING CODE
EXAMPLE
KP1830-310-065-G
KP1830-310-065-W
KP1830-310-065
PITCH
5
X
X
X
Vishay Roederstein
Note
(1)
S = box size 55 mm x 210 mm x 340 mm (W x H x L)
EXAMPLE OF ORDERING CODE
TYPE
KP1830
CAPACITANCE CODE
210
VOLTAGE CODE
63
TOLERANCE CODE
1
PACKAGING CODE
G
Tolerance codes: 1 = 1 % (F); 2 = 2 % (G); 3 = 2.5 % (H); 4 = 5 % (J); 5 = 10 % (K)
Note
• For detailed tape specifications refer to “Packaging Information”
www.vishay.com/doc?28139
or end of catalog
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting on printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to “Packaging information”
www.vishay.com/doc?28139
or end of catalog
Specific Method of Mounting of Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board.
• For pitches
15 mm the capacitors shall be mechanically fixed by the leads
• For larger pitches the capacitors shall be mounted in the same way and the body clamped
Space Requirements on Printed-Circuit Board
The maximum length and width of film capacitors is shown in the drawing:
• Eccentricity as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product concerned
• Product height with seating plane as given by “IEC 60717” as reference: h
max.
h + 0.4 mm or h
max.
h’ + 0.4 mm
b
max.
= b + 0.3 mm
Eccentricity
I
max.
= I + 0.3 mm
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient free temperature of 23 °C ± 1 °C, an atmospheric pressure
of 86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 03-Feb-17
Document Number: 26016
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1830
www.vishay.com

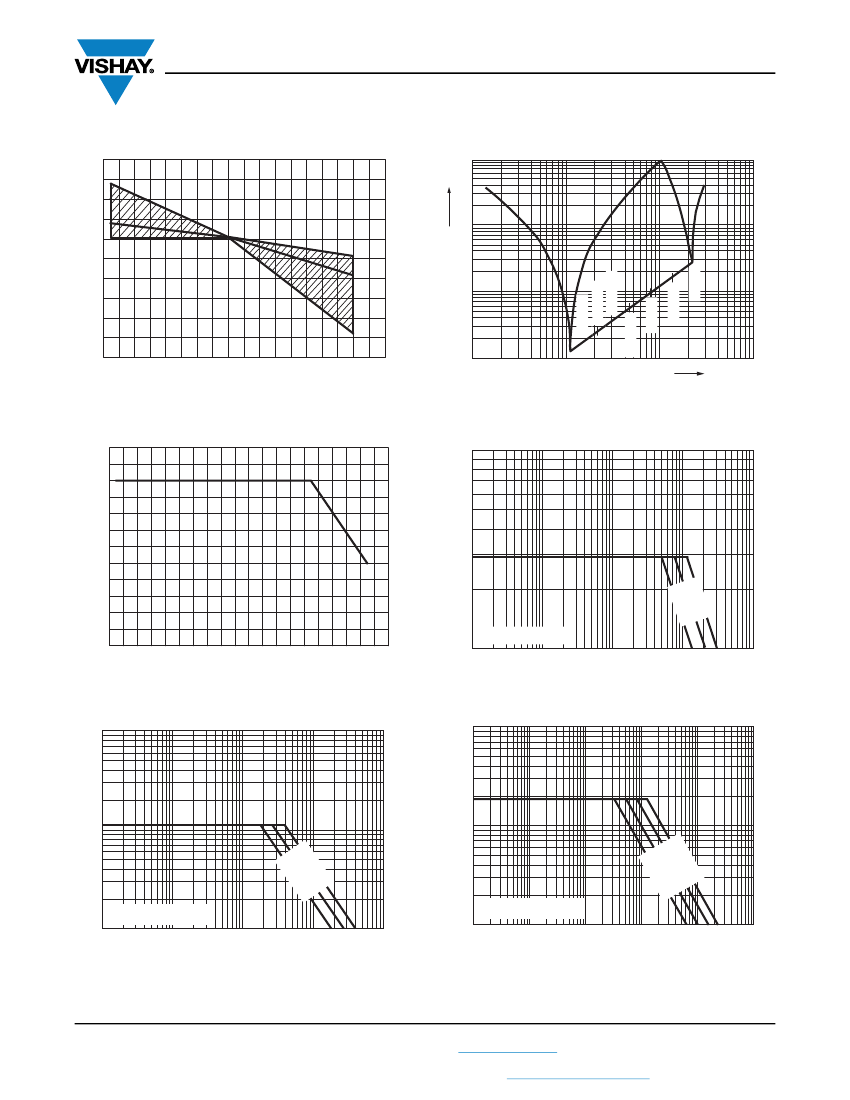

CHARACTERISTICS
ΔC/C
(%)
Z (Ω)
4
3
2
1
0
-1
0.001 µF
4700 pF
-2
0.1
0.033 µF
-3
-4
-5
-6
-60
-40
-20
0
20
40
60
80
100
120
T
amb
(°C)
0.01
1
f (MHz)
Impedance versus frequency Z = f (f) (lead length 2.0 mm)
10
100
1000
220 pF
100 pF
1
10
Vishay Roederstein
Capacitance as a function of ambient temperature (typical curve)
Impedance as a function of frequency (typical curve)
1.2
factor
1.0
0.8
0.6
0.4
10
2
AC Voltage
(V)
2200 pF
680 pF
0 pF
330 0 pF
680 5 µF
0.01
0.2
0.0
-60
-20
20
60
100 T
amb
(°C)
T
amb
≤
100 °C, 63 V
DC
10
1
10
2
10
3
10
4
10
5
f (Hz)
Maximum DC and AC voltage as a function of temperature
Maximum RMS voltage as a function of frequency
10
3
AC Voltage
(V)
10
3
AC Voltage
(V)
10
2
10
2
pF
00 F
22 00 p F
47 01 µ
0.
F
0p
10 0 pF
22 0 pF
47 00 pF
10
10
1
T
amb
≤
100 °C, 250 V
DC
10
3
10
4
10
5
f (Hz)
10
6
10
2
T
amb
≤
100 °C, 630 V
DC
10
1
10
2
10
3
10
4
10
5
10
6
f (Hz)
10
7
Maximum RMS voltage as a function of frequency
Maximum RMS voltage as a function of frequency
Revision: 03-Feb-17
Document Number: 26016
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
