4779720136410 Overview

Board Connector, 36 Contact(s), 1 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

TECHNICAL DATA

Electrical

Current Rating: 3A maxi

Dielectric voltage: 1000V AC for one minute

Insulation resistance: 1000M

Ωmini

Contact resistence: 20m

Ω

max

Soldering temperature: 260C / 5 sec

Mechanical

Temperature rating: -40 to +105C

general tolerance

.X 0.35mm

.XX 0.25mm

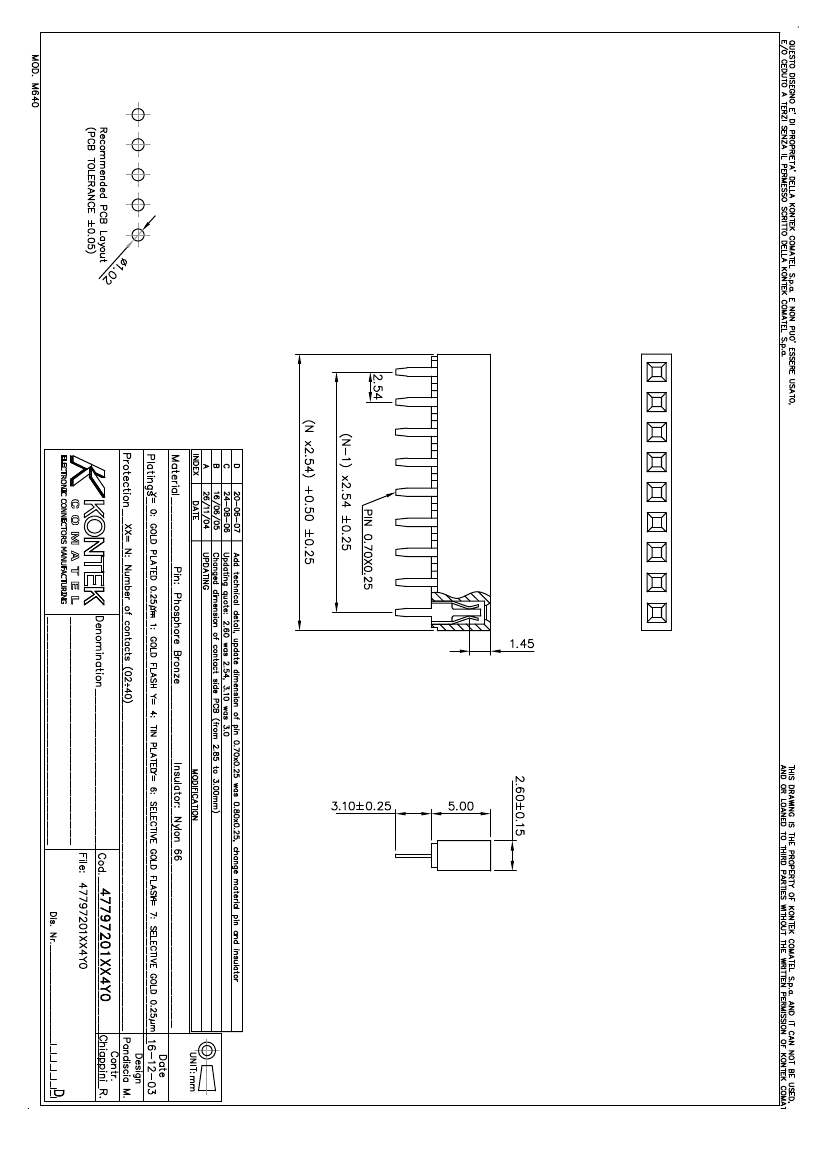

FEMALE HEADER 2.54 PLASTIC

HEIGHT 5.0mm STRAIGHT TYPE
