Spec Sheet
Multilayer Ceramic Capacitors for High Frequency Applications
TVS042CG1R6AC-W
Features
Item Summary
1.6pF±0.05pF, 25V,
C0G/CG, 01005/0402 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 40000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
1.6 pF ± 0.05pF
01005/0402
25 V
230 at 1GHz
C0G
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.4 ±0.02 mm
0.2 ±0.02 mm
0.2 ±0.02 mm
0.10 ±0.03 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

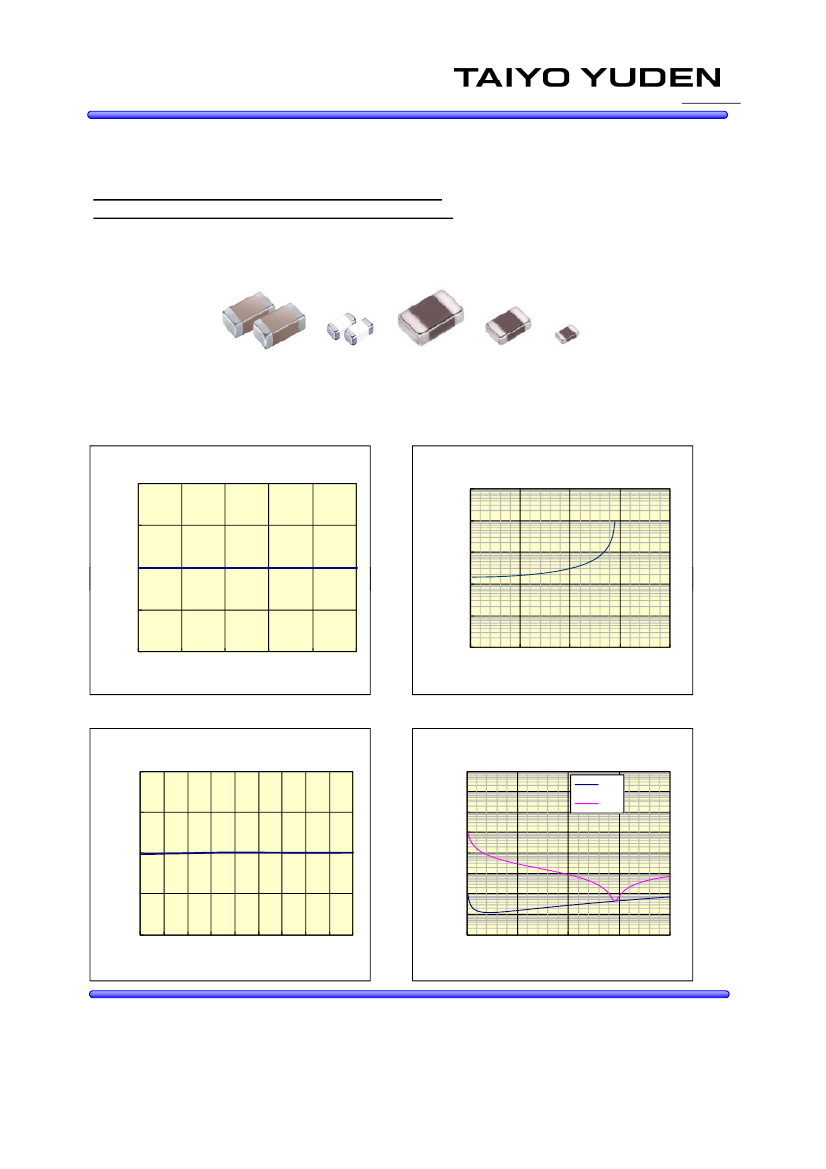

Multi Layer Ceramic Capacitor
○TVS042CG1R6AC
25V 0402 CG/C0G 1.6pF +/- 0.05pF t=0.22mmMAX
25V 01005 CG/C0G 1.6pF +/- 0.05pF t=0.009inchMAX
-Electrical Characteristics Data-
16CUD02
RoHS compliance product
10
TVS042CG1R6AC
DC Bias Char.
1000
100
TVS042CG1R6AC
Capa citance Freq.
5
Capa cita nce[pF]
apa
n
dC/C
dC/C[%]
10
1
0.1
0.01
0
-5
-10
0
5
10
15
20
DC Bias Voltage[V]
25
0
3000
6000
9000
12000
Frequency[MHz]
TVS042CG1R6AC
Capa citance Temp.
10
1000000
100000
5
10000
TVS042CG1R6AC
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-5
-10
0.01
0
3000
6000
9000
Frequency[MHz]
12000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
