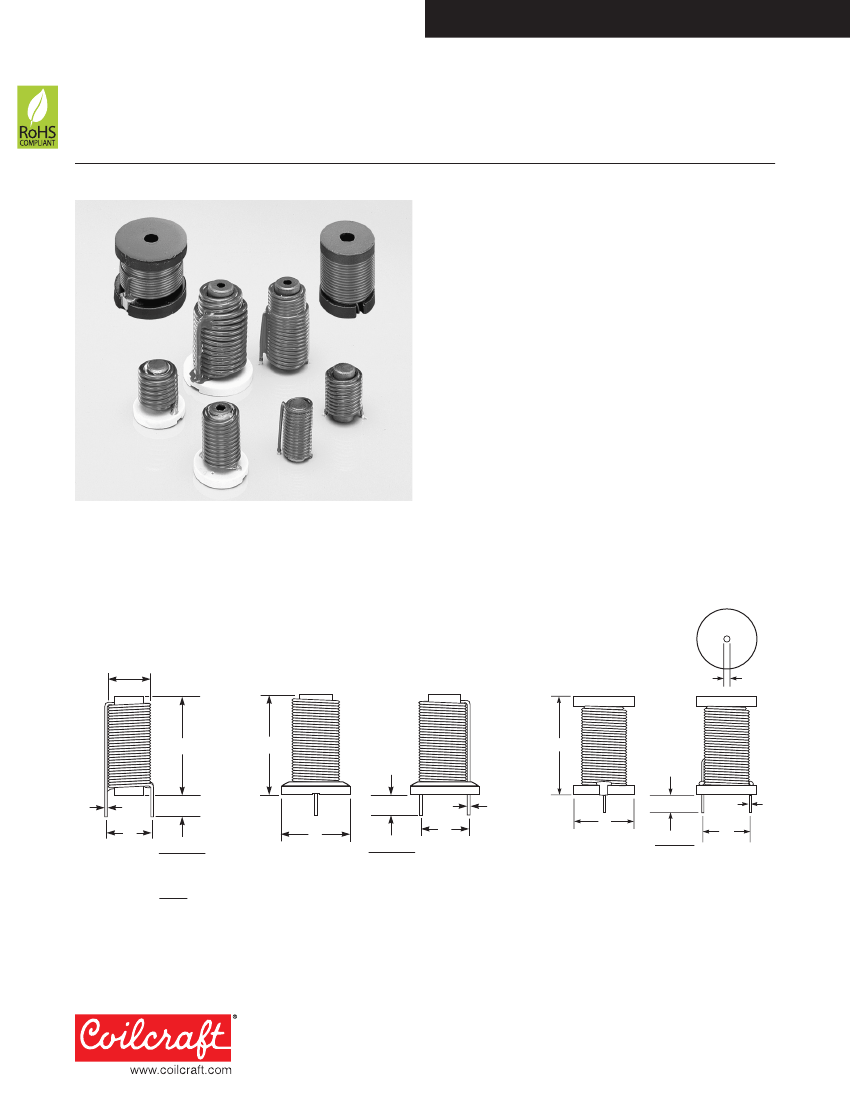

Document 135-1
Power Chokes – Vertical Mount
The Coilcraft PCV power chokes are low cost power in-
ductors whose simple design provides rugged reliability
and performance. They feature 130°C class insulation
and are available in a wide range of standard values.
The open core construction provides the highest satura-
tion current available in a low cost power choke. These
parts use a ferrite bobbin core to provide the highest
possible inductance at the lowest cost. The PCV-1 Series
incorporates a plastic mounting header for maximum lead
protection and consistency.
Coilcraft
Designer’s Kit P405
contains samples of the
part numbers shown in bold from the PCV-0 and PCV-2
series. Contact Coilcraft or visit
http://order.coilcraft.com
to purchase on-line.
PCV-0 Series
A
(winding dia)
PCV-1 Series
PCV-2 Series
E
B
B
B
D
C
0.22/0.28
5,6/7,1
Dimensions are in
inches
mm
D
A
C
0.22/0.28
5,6/7,1
A
0.22/0.28
5,6/7,1
C
D
Terminations:
Tin-silver (96.5/3.5) over copper
See last page for packaging information.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 135-1
Revised 06/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

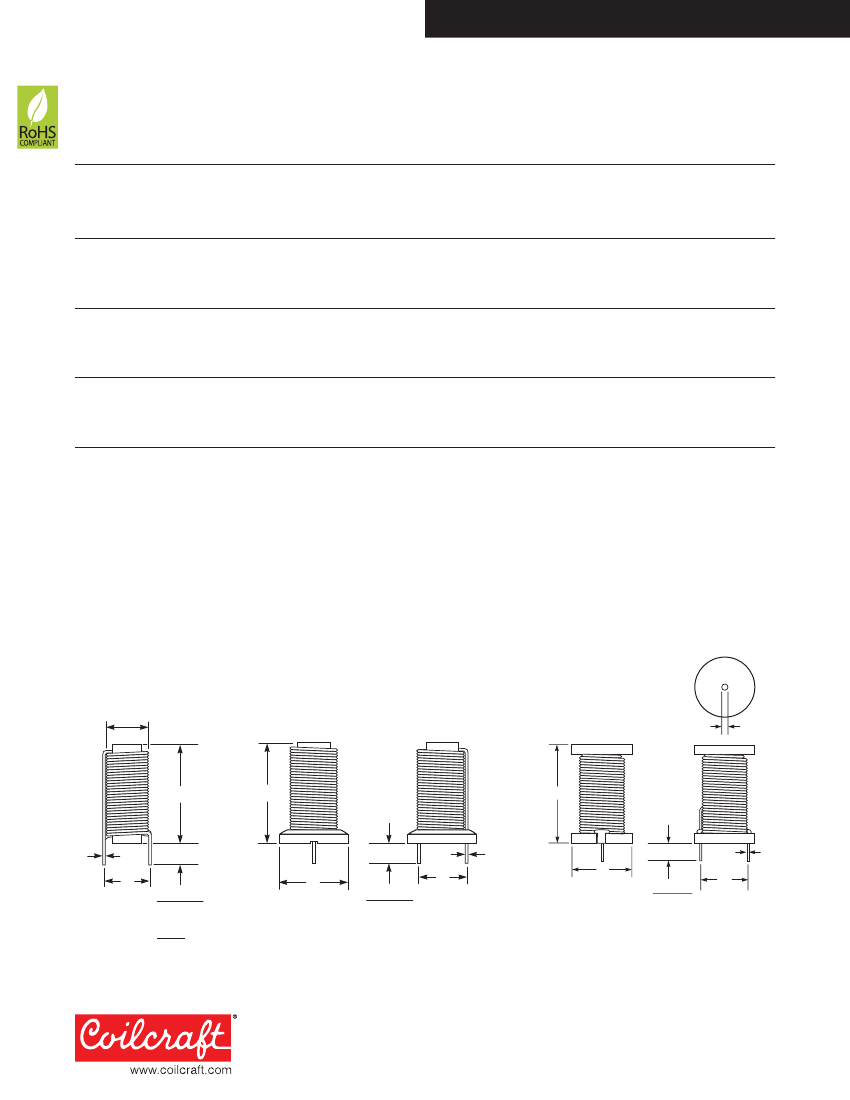

Document 135-2
Power Chokes – Vertical Mount
Part
number
PCV-0 Series
PCV-0-102-25L
PCV-0-102-10L
PCV-0-332-10L
PCV-0-472-03L
PCV-0-472-05L
PCV-0-472-10L
PCV-0-472-20L
PCV-0-103-03L
PCV-0-103-05L
PCV-0-103-10L
PCV-0-103-20L
PCV-0-153-03L
PCV-0-153-10L
PCV-0-223-03L
PCV-0-223-05L
PCV-0-223-10L
PCV-0-273-05L
PCV-0-333-12L
PCV-0-473-03L
PCV-0-473-05L
PCV-0-473-10L
PCV-0-823-03L
PCV-0-104-01L
PCV-0-104-03L
PCV-0-104-05L
PCV-0-154-03L
PCV-0-154-05L
PCV-0-184-05L
PCV-0-224-03L
PCV-0-274-04L
PCV-0-274-10L
PCV-0-394-03L
PCV-0-394-05L
PCV-1 Series
PCV-1-152-15L
PCV-1-182-10L
PCV-1-182-15L
PCV-1-472-03L
PCV-1-472-05L
PCV-1-472-10L
PCV-1-103-03L
PCV-1-103-05L
PCV-1-103-10L
PCV-1-153-10L
PCV-1-223-03L
PCV-1-223-05L
PCV-1-223-10L
PCV-1-473-03L
PCV-1-473-05L
PCV-1-473-10L
PCV-1-104-03L
PCV-1-104-05L
PCV-1-184-03L
PCV-1-304-05L
PCV-1-394-05L
Inductance
1
(µH)
1.0 ±15%
1.0 ±15%
3.3 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
10 ±10%
10 ±10%
10 ±10%
10 ±10%
15 ±10%
15 ±10%
22 ±10%
22 ±10%
22 ±10%
27 ±10%
33 ±10%
47 ±10%
47 ±10%
47 ±10%
82 ±10%
100 ±10%
100 ±10%
100 ±10%
150 ±10%
150 ±10%
180 ±10%
220 ±10%
270 ±10%
270 ±10%
390 ±10%
390 ±10%
1.5 ±15%
1.8 ±15%
1.8 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
10 ±10%
10 ±10%
10 ±10%
15 ±10%
22 ±10%
22 ±10%
22 ±10%
47 ±10%
47 ±10%
47 ±10%
100 ±10%
100 ±10%
180 ±10%
300 ±10%
390 ±10%
Irms
2
(A)
21.8
16.7
12.7
7.4
8.9
11.9
16.4
5.9
7.1
11.8
17.0
6.8
9.8
7.4
8.9
13.0
7.1
11.0
4.3
6.0
8.7
2.8
1.8
3.8
5.5
2.8
5.2
3.3
2.1
2.1
3.6
3.0
3.1
18.2
18.2
19.3
7.5
9.1
11.8
6.0
7.1
10.9
11.8
5.5
6.9
10.4
5.3
6.3
8.2
3.4
4.9
2.8
3.4
3.0
DCR max
(Ohms)
0.002
0.003
0.005
0.021
0.012
0.012
0.004
0.023
0.017
0.015
0.006
0.025
0.020
0.035
0.023
0.015
0.024
0.017
0.050
0.035
0.022
0.110
0.190
0.072
0.055
0.140
0.065
0.110
0.210
0.250
0.160
0.250
0.190
0.003
0.006
0.003
0.021
0.012
0.012
0.026
0.020
0.013
0.020
0.035
0.023
0.018
0.050
0.033
0.022
0.072
0.055
0.150
0.160
0.190
A max
(in/mm)
0.60/15,2
0.50/12,7
0.50/12,7
0.51/13,0
0.50/12,7
0.50/12,7
0.53/13,5
0.50/12,7
0.50/12,7
0.52/13,2
0.75/19,1
0.50/12,7
0.52/13,2
0.50/12,7
0.50/12,7
0.66/16,8
0.50/12,7
0.70/17,8
0.55/14,0
0.65/16,5
0.85/21,6
0.50/12,7
0.40/10,2
0.55/14,0
0.65/16,5
0.60/15,2
0.68/17,3
0.60/15,2
0.55/14,0
0.95/24,0
1.1/28,0
1.1/28,0
1.1/28,0
0.65/16,5
0.65/16,5
0.65/16,5
0.62/15,7
0.62/15,7
0.62/15,7
0.63/16,0
0.62/15,7
0.63/16,0
0.70/17,8
0.62/15,7
0.62/15,7
0.70/17,8
0.65/16,5
0.90/22,9
0.90/22,9
0.90/22,9
0.90/22,9
0.63/16,0
1.1/27,9
1.1/27,9
B max
(in/mm)
0.68/17,3
0.75/19,1
1.0/25,4
0.75/19,1
0.75/19,1
1.0/25,4
1.2/30,5
0.75/19,1
0.75/19,1
1.0/25,4
1.8/45,7
1.0/25,4
1.0/25,4
1.0/25,4
1.0/25,4
1.3/33,0
1.0/25,4
1.3/33,0
1.0/25,4
1.1/28,0
1.3/33,0
0.65/16,5
0.90/22,9
1.2/30,5
1.3/33,0
1.2/30,5
1.3/33,0
1.2/30,5
1.2/30,5
0.72/18,3
1.0/25,4
1.0/25,4
1.0/25,4
0.90/22,9
1.1/27,9
1.1/27,9
0.85/21,6
0.85/21,6
1.1/27,9
0.85/21,6
0.85/21,6
1.1/27,9
1.4/35,6
1.1/27,9
1.1/27,9
1.4/35,6
1.1/27,9
1.2/30,5
1.4/35,6
1.3/33,1
1.4/35,6
1.2/30,5
1.0/25,4
1.0/25,4
C ±0.015/0,38
(in/mm)
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.60/15,2
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.49/12,5
0.55/14,0
0.42/10,7
0.70/17,8
0.70/17,8
0.375/9,5
0.30/7,6
0.70/17,8
0.70/17,8
0.43/10,9
0.70/17,8
0.43/10,9
0.42/10,7
0.71/18,0
0.72/18,3
0.72/18,3
0.72/18,3
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.70/17,8
0.70/17,8
0.70/17,8
0.70/17,8
0.42/10,7
0.70/17,8
0.70/17,8
D ±0.004/0,10
(in/mm)
0.068/1,73
0.054/1,37
0.054/1,37
0.035/0,89
0.042/1,07
0.054/1,37
0.068/1,73
0.035/0,89
0.042/1,07
0.054/1,37
0.075/1,91
0.035/0,89
0.054/1,37
0.035/0,89
0.042/1,07
0.060/1,52
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.028/0,71
0.020/0,51
0.035/0,89
0.042/1,07
0.028/0,71
0.042/1,07
0.035/0,89
0.025/0,64
0.030/0,76
0.038/0,97
0.035/0,89
0.038/0,97
0.068/1,73
0.054/1,37
0.068/1,73
0.035/0,89
0.042/1,07
0.054/1,37
0.035/0,89
0.042/1,07
0.054/1,37
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.028/0,71
0.038/0,97
0.038/0,97
Weight
(g)
5.6
4.2
6.7
3.7
5.0
7.5
11.9
4.4
6.4
9.5
28.6
5.9
11.3
6.4
9.3
21.0
10.3
29.3
8.5
13.1
31.4
7.0
5.0
11.6
21.3
11.8
26.4
17.9
8.9
26.8
38.8
37.1
45.4
8.0
6.2
8.5
5.2
5.6
8.5
4.4
7.5
5.2
18.4
7.4
10.2
21.8
9.6
14.9
32.9
13.3
22.9
10.7
41.1
47.3
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 135-2
Revised 06/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 135-3
Power Chokes – Vertical Mount
Part
number
PCV-2 Series
PCV-2-103-05L
PCV-2-103-10L
PCV-2-223-05L
PCV-2-223-10L
PCV-2-473-05L
PCV-2-473-10L
PCV-2-104-03L
PCV-2-104-05L
PCV-2-104-10L
PCV-2-184-05L
PCV-2-184-10L
PCV-2-224-05L
PCV-2-274-03L
PCV-2-274-05L
PCV-2-274-10L
PCV-2-394-05L
PCV-2-564-02L
PCV-2-564-06L
PCV-2-564-08L
PCV-2-684-01L
PCV-2-105-02L
1.
2.
3.
4.
Inductance
1
±10% (µH)
10
10
22
22
47
47
100
100
100
180
180
220
270
270
270
390
560
560
560
680
1000
Irms
2
(A)
10.5
11.8
7.6
10.3
5.0
9.6
4.4
5.6
10.1
4.0
8.0
6.6
4.3
5.2
7.2
3.9
2.6
4.0
7.0
1.3
2.3
DCR max
(Ohms)
0.015
0.010
0.020
0.015
0.035
0.020
0.080
0.048
0.032
0.092
0.048
0.075
0.130
0.080
0.060
0.130
0.270
0.170
0.090
0.700
0.370
A max
(in/mm)
0.61/15,49
0.61/15,49
0.61/15,49
0.86/21,84
0.70/17,78
1.00/25,40
0.84/21,34
0.84/21,34
1.05/26,67
0.80/20,32
1.44/36,58
1.05/26,67
1.00/25,40
1.05/26,67
1.50/38,10
1.10/29,34
0.80/20,32
1.21/30,73
1.50/38,10
0.70/17,78
1.00/25,40
B max
(in/mm)
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
1.00/25,40
0.90/22,86
1.05/26,67
1.00/25,40
0.83/21,08
1.00/25,40
1.05/26,67
0.83/21,08
0.90/22,86
1.05/26,67
1.43/36,32
0.83/21,08
0.83/21,08
C ±0.015/0,38
(in/mm)
0.42/10,67
0.50/12,70
0.42/10,67
0.58/14,73
0.48/12,19
0.70/17,78
0.58/14,73
0.70/17,78
0.88/22,35
0.58/14,73
1.05/26,67
0.75/19,05
0.75/19,05
0.80/20,32
1.08/27,43
0.85/21,59
0.57/14,48
0.90/22,86
1.08/27,43
0.50/12,70
0.72/18,29
D ±0.004/0,10
(in/mm)
0.042/1,07
0.054/1,37
0.042/1,07
0.054/1,37
0.038/0,97
0.054/1,37
0.031/0,79
0.042/1,07
0.054/1,37
0.035/0,89
0.054/1,37
0.042/1,07
0.035/0,89
0.042/1,07
0.054/1,37
0.038/0,97
0.028/0,71
0.038/0,97
0.054/1,37
0.018/0,46
0.028/0,71
E min
(in/mm)
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.116/2,95
0.175/4,45
0.116/2,95
0.116/2,95
0.116/2,95
0.175/4,45
0.116/2,95
0.116/2,95
0.116/2,95
0.175/4,45
0.116/2,95
0.116/2,95
Weight
(g)
11.8
11.8
13.7
23.3
14.8
36.9
19.2
19.0
46.6
25.1
93.8
40.0
35.7
47.8
103.0
42.3
26.8
66.4
135.6
12.5
39.2
Tested at 15.75 kHz, 0.1 Vrms, with DC bias applied up to the
Irms
current.
Current that causes a 40°C temperature rise from 25°C ambient.
Ambient temperature range:
–40°C to +85°C with
Irms
current
Storage temperature range:
Component: –40°C to +125°C
Tray packaging: –40°C to +80°C
5. Electrical specifications at 25°C.
6. Parts in bold type are included in Coilcraft Designer’s Kit P405.
PCV-0 Series
A
(winding dia)
PCV-1 Series
PCV-2 Series
E
B
B
B
D
C
0.22/0.28
5,6/7,1
Dimensions are in
inches
mm
D
A
C
0.22/0.28
5,6/7,1
A
0.22/0.28
5,6/7,1
C
D
Terminations:
Tin-silver over copper
See last page for packaging information.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 135-3
Revised 06/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 135-4
Power Chokes – Vertical Mount
Tray and carton packaging
Part number
PCV-0-102-10L
PCV-0-102-25L
PCV-0-103-03L
PCV-0-103-05L
PCV-0-103-10L
PCV-0-103-20L
PCV-0-104-01L
PCV-0-104-03L
PCV-0-104-05L
PCV-0-153-03L
PCV-0-153-10L
PCV-0-154-03L
PCV-0-154-05L
PCV-0-184-05L
PCV-0-223-03L
PCV-0-223-05L
PCV-0-223-10L
PCV-0-224-03L
PCV-0-273-05L
PCV-0-274-04L
PCV-0-274-10L
PCV-0-332-10L
PCV-0-333-12L
PCV-0-394-03L
PCV-0-394-05L
PCV-0-472-03L
PCV-0-472-05L
PCV-0-472-10L
PCV-0-472-20L
PCV-0-473-03L
PCV-0-473-05L
PCV-0-473-10L
PCV-0-823-03L
Parts Maximum parts
per tray
per carton
49
245
49
294
49
245
49
245
49
196
49
196
49
245
49
294
98
392
49
196
49
196
49
196
49
245
49
196
49
196
49
196
49
147
49
196
49
196
49
245
49
245
49
196
49
245
49
245
49
245
49
245
49
245
49
196
49
196
49
196
98
392
49
245
49
294
Part number
PCV-1-103-03L
PCV-1-103-05L
PCV-1-103-10L
PCV-1-104-03L
PCV-1-104-05L
PCV-1-152-15L
PCV-1-153-10L
PCV-1-182-10L
PCV-1-182-15L
PCV-1-184-03L
PCV-1-223-03L
PCV-1-223-05L
PCV-1-223-10L
PCV-1-304-05L
PCV-1-394-05L
PCV-1-472-03L
PCV-1-472-05L
PCV-1-472-10L
PCV-1-473-03L
PCV-1-473-05L
PCV-1-473-10L
Parts Maximum parts
per tray
per carton
49
245
49
245
49
196
49
245
100
200
49
245
49
147
49
196
49
196
49
196
49
196
49
196
49
147
49
245
49
245
49
245
49
245
49
196
49
196
49
245
49
245
Part number
PCV-2-103-05L
PCV-2-103-10L
PCV-2-104-03L
PCV-2-104-05L
PCV-2-104-10L
PCV-2-105-02L
PCV-2-184-05L
PCV-2-184-10L
PCV-2-223-05L
PCV-2-223-10L
PCV-2-224-05L
PCV-2-274-03L
PCV-2-274-05L
PCV-2-274-10L
PCV-2-394-05L
PCV-2-473-05L
PCV-2-473-10L
PCV-2-564-02L
PCV-2-564-06L
PCV-2-564-08L
PCV-2-684-01L
Parts Maximum parts
per tray
per carton
49
245
49
245
49
245
49
245
49
245
49
245
49
245
25
100
49
245
49
245
49
245
49
245
49
245
25
100
25
125
49
245
49
245
49
245
25
100
25
100
49
245
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 135-4
Revised 06/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
京公网安备 11010802033920号
EEWORLD
