013897

Description
D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, M3, Socket,
CategoryThe connector    The connector
File Size75KB,2 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Download Datasheet Parametric View All

013897 Overview

D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, M3, Socket,

013897 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSTANDARDS: MIL-C-24308; DIN 41652; IEC 807-3
body width0.606 inch
subject depth0.216 inch
body length2.638 inch
Body/casing typeSOCKET
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN/LEAD
Contact point genderFEMALE
contact modeSTAGGERED
Contact styleRND PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1M3
Installation option 2RIVET
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number3
Number of rows loaded2
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size5/D
Termination typeSOLDER
Total number of contacts50
UL Flammability Code94V-0
Base Number Matches1

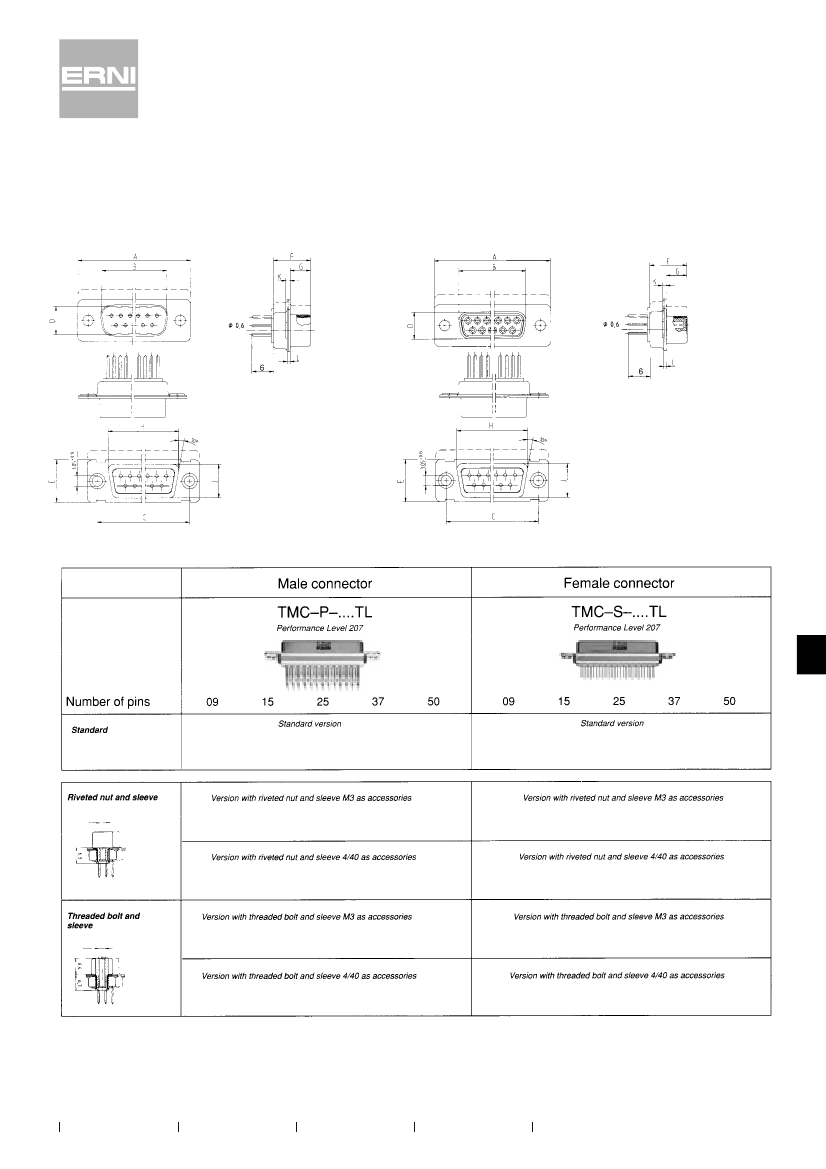

TMC with straight dip-solder termination

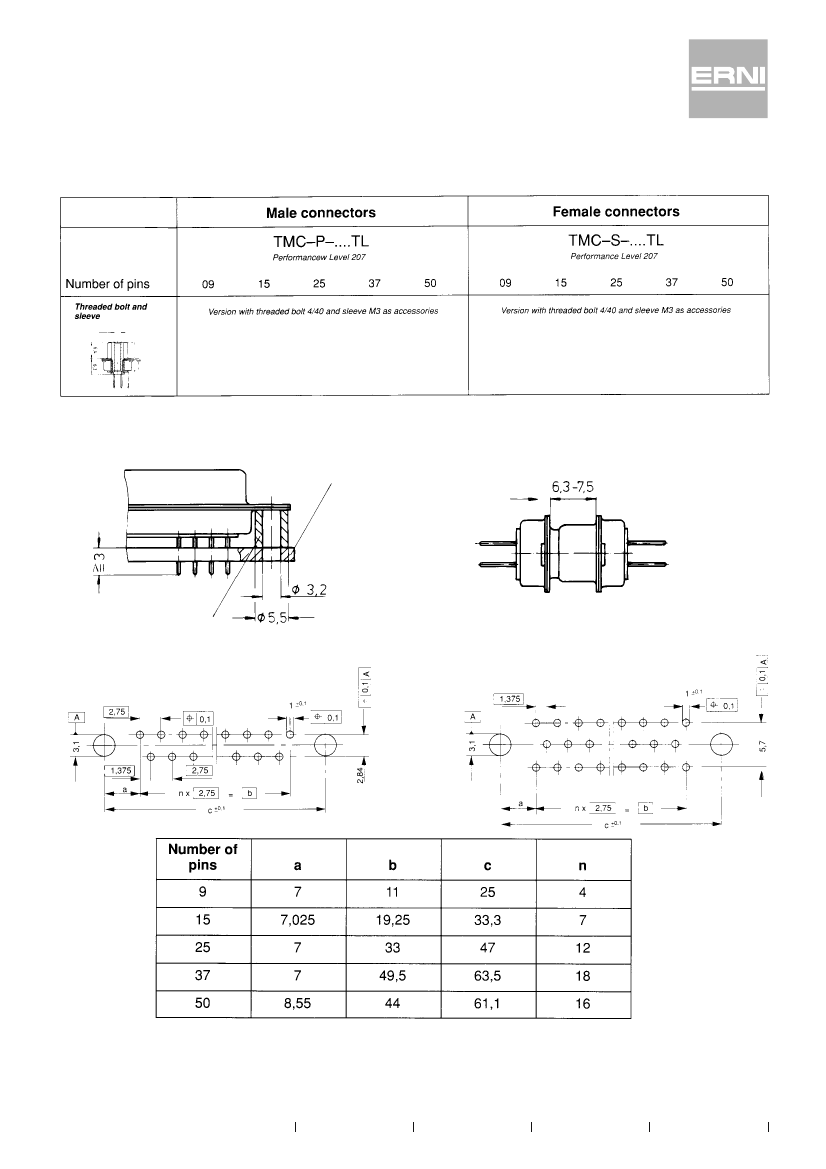

Dimensional drawings
Male connector
Female connector
Dimensional drawings
D-Sub
023132
023133
023019
023134 023135*
003552
003553
003554
003555
013920
023136
023137
023138
023139 023140*
003634
013052
003625
013702
013897
023141
023142
023143
023144 023145*
003633
013551
003626
013701
013898
023146
023147
023148
023149 023150*
003635
013550
003628
013700
013892
023151
023152
023153
023154 023155*
003636
013549
003627
013699
013893
Catalog E 074484
