1267AY-3R3N=P3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 1267AY-3R3N=P3

1267AY-3R3N=P3: DescriptionFixed Inductors 3.3uH 15.6mOhms6.1A +/-30% 8.3x8.3x4.0mm; CategoryPassive components inductor; File Size991KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

1267AY-3R3N=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1267AY-3R3N=P3	-	-	View	Buy Now

1267AY-3R3N=P3 Overview

Fixed Inductors 3.3uH 15.6mOhms6.1A +/-30% 8.3x8.3x4.0mm

1267AY-3R3N=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Samacsys Confidence	2
Samacsys Status	Released
Samacsys PartID	1685620
Samacsys Pin Count	2
Samacsys Part Category	Inductor
Samacsys Package Category	Other
Samacsys Footprint Name	3131 (8080) T=4.0mm
Samacsys Released Date	2018-12-22 12:48:08
Is Samacsys	N
core material	FERRITE
DC Resistance	0.0156 Ω
Nominal inductance(L)	3.3 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	6.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

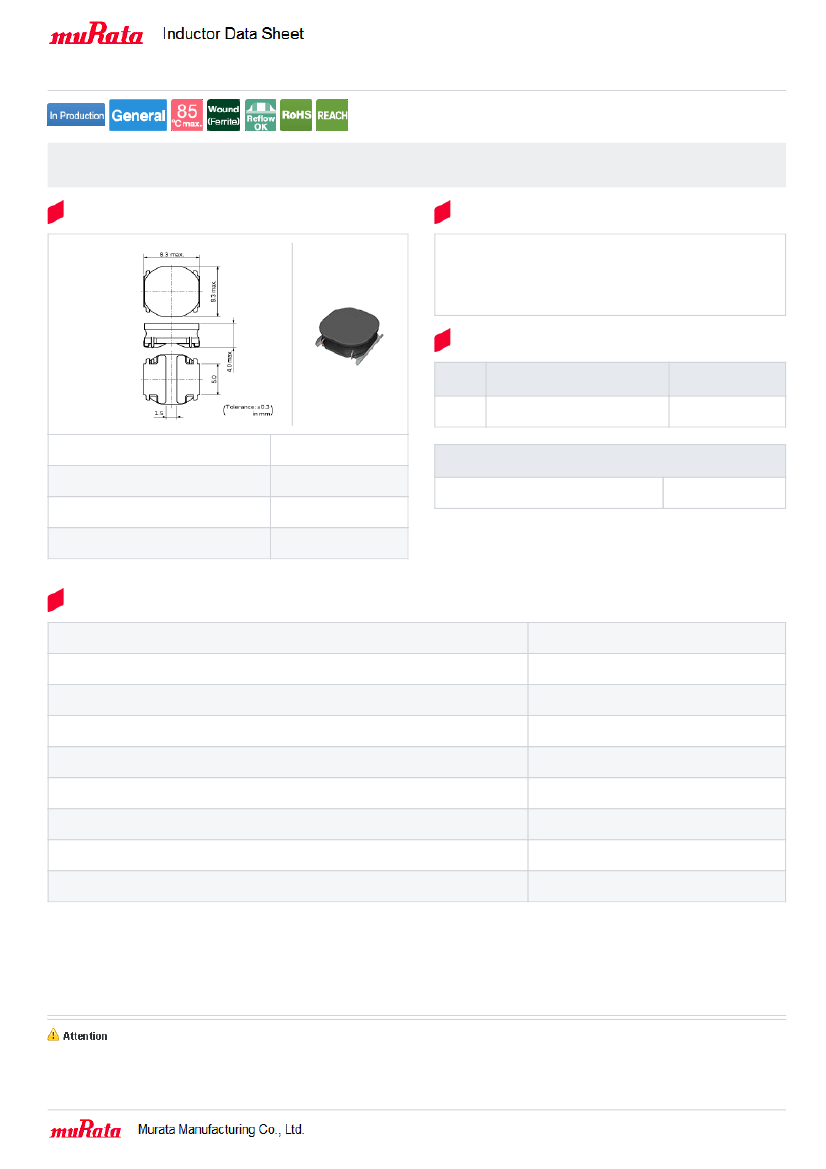

Preview

Download Datasheet

View All

1267AY-3R3N#

< List of part numbers with package codes >

“#” indicates a package specification code.

1267AY-3R3N=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 30%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

1000

L size

W size

T size

Size code in inch (mm)

8.0 ±0.3mm

4.0 mm

3131 (8080)

Mass (Typ.)

1 piece

0.8337g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

3.3µH ±30%

0.1MHz

6100mA

0.0156Ω

0.013Ω ±20%

-40〜85℃

Magnetic Resin

DG8040C

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/05/19
