Metal Core SMD Power Inductors (MCOIL™, MD series)
MDKK1616TR47MM
Features
Item Summary
0.47uH±20%, 1.5A, 1.64x1.64x1.0mm
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2500pcs
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Saturation Current (typ)
Temperature Rise Current (max)
Temperature Rise Current (typ)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
0.47 uH ± 20 %
1.64x1.64
1.5 A
3.3 A
4.1 A
1.5 A
1.78 A
95 mΩ
80 mΩ
1 MHz
-40 to +125 ℃
(Including-self-generated heat)
± 10 %
External Dimensions
Dimension L
Dimension W
Dimension H
Dimension e
Dimension f
1.64 ±0.1 mm
1.64 ±0.1 mm
Max 1.0 mm
0.4 +0.2/-0.1 mm
1.0 ±0.2 mm
Recommended Land Patterns
2018.06.01
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor

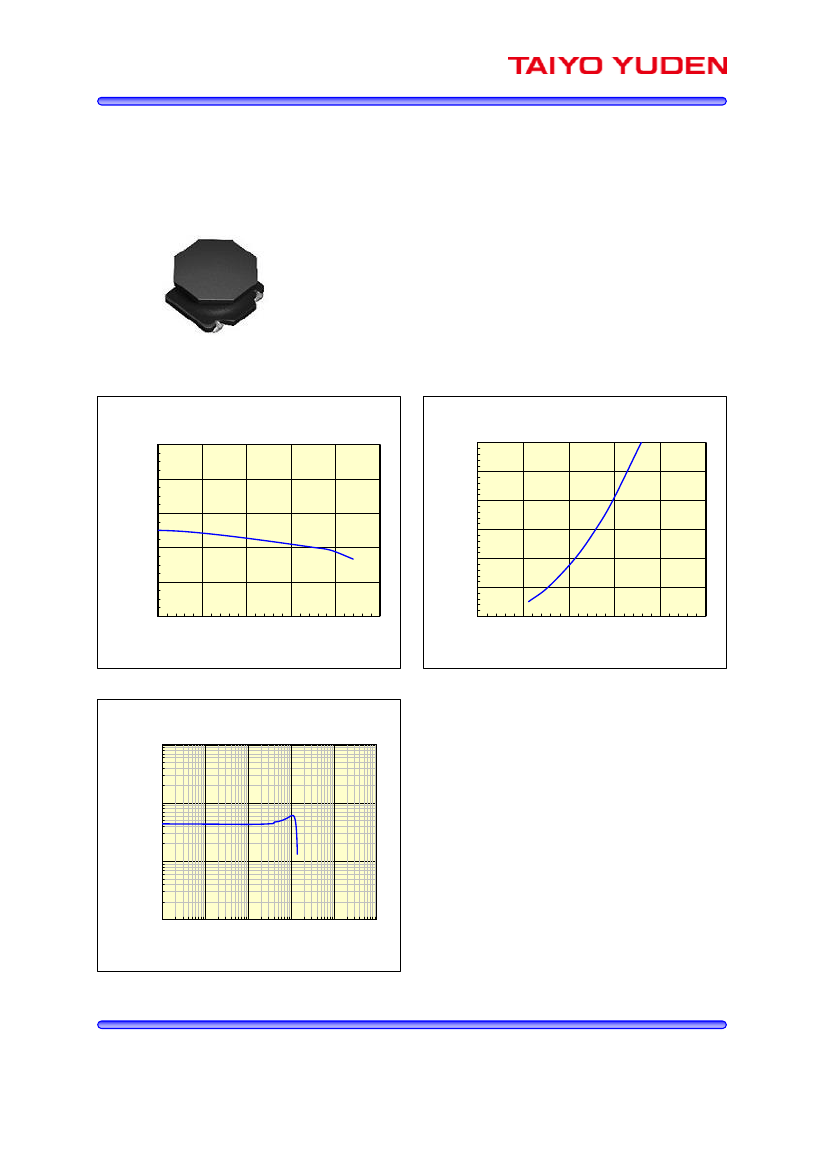

-Electrical Characteristics Data-
2014/10/1
Metal Core SMD Power Inductors (MCOIL™, MD series)
MCOIL
TM
Dimension
Length :
Width :
Height :
unit : mm
1.64 + / - 0.1
1.64 + / - 0.1
1.0
max.
uH
0.095
3,300
1,500
unit : inch
( 0.065 + / - 0.004 )
( 0.065 + / - 0.004 )
( 0.039
max. )
MDKK1616TR47MM
Inductance : 0.47
DC Resistance : 0.080
Saturation Current : 4,100
Temp. rise Current : 1,780
( test freq at 1MHz )
ohm ( typ / max )
mA ( typ / max )
mA ( typ / max )
/
/
/
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
Maximum rated voltage : DC 25 V
DC Bias vs Inductance
1
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
1000
2000
3000
4000
5000
0.8
50
40
30
20
10
0
0
600
1200
1800
2400
3000
Inductance [uH]
0.6
0.4
0.2
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
10
Inductance [uH]
1
0.1
0.01
0.1
1
10
100
1000
10000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
