MCX Reverse Polarity
Straight Crimp Type Plug -
Solder or Crimp Contact
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE TYPE
RG-316 DS, 188DS
GOLD PLATED
133-5404-001
NICKEL PLATED
133-5404-006
CAPTIVATED CONTACT
Yes
CABLE
GROUP
RG-316DS, 188DS
PART
NUMBER
133-5404-001/006
CRIMP
HEX
.151 (3.83)
1.

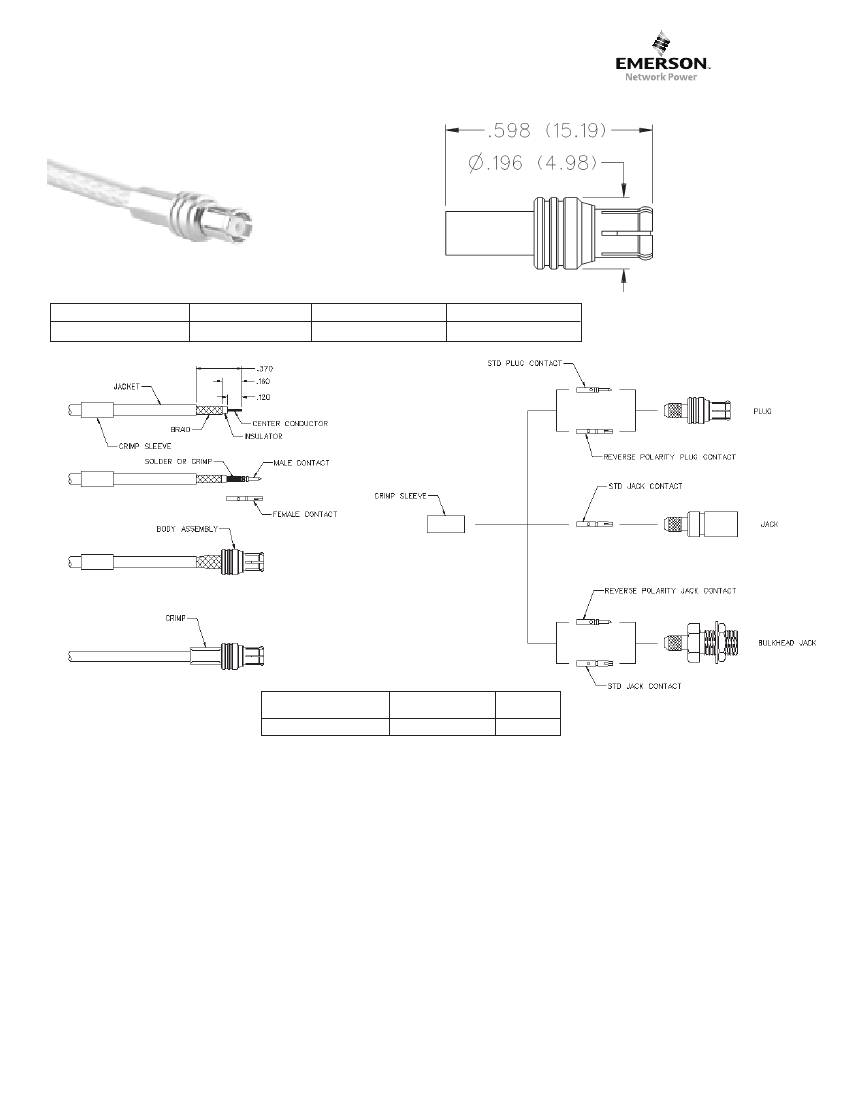

Identify connector parts. (3 piece parts except bulkhead)
2.
Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center conductor if
contact is to be solder attached. Do not tin center conductor if contact is to be crimp attached. Slide
heat shrink (as applicable) and crimp sleeve onto jacket of cable.
3.
Assemble contact onto cable as shown.
Solder attachment.
Solder contact to center conductor through solder hole using .020 (0.51)
diameter solder. Use a minimum of solder for a good joint.
Crimp attachment.
Crimp contact to center conductor using Johnson Components
TM
hand tool
140-0000-952 and die set 140-0000-953. Crimp location should be centered between end of con-
tact and cross hole. Crimp attachment to solid center conductor cable is not recommended.
4.
Flair braid and slide body assembly over contact and under braid. Then seat body assembly firmly
onto contact. The cable may have to be held in a clamping fixture. Arrange braid uniformly around
crimp stem. Slide crimp sleeve forward and crimp using recommended crimp tool. Slide heat
shrink forward and shrink (as applicable).
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
MCX Reverse Polarity - 50 Ohm
Specifications
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
Straight Cabled
Right Angle
Connectors
Cabled Connectors
RG-178 cable ............................... 1.17 + .04f
1.07 + .06f
RG-316 cable .............................. 1.13 + .04f
1.07 + .04f
Uncabled receptacles .................................................................... N/A
Working Voltage:
(Vrms maximum)
Connectors for Cable Type
Sea Level
70K Feet
RG-178 ................................................... 250
65
RG-316 uncabled receptacles ................ 335
85
Dielectric Withstanding Voltage:
(VRMS minimum at sea level)
Connectors for RG-178 .............................................................. 750
Connectors for RG-316 uncabled receptacles ......................... 1000
Corona Level:
(Volts minimum at 70,000 feet)
Connectors for RG-178 .............................................................. 190
Connectors for RG-316 uncabled receptacles ........................... 250
Insertion Loss:
(dB maximum, tested at 1 GHz)
Straight cable connectors ....................................................... 0.1 dB
Right angle cable connectors ................................................. 0.2 dB
Uncabled receptacles ................................................................. N/A
Insulation Resistance:
10000 megohms minimum
After
Contact Resistance:
(milliohms maximum)
Initial Environmental
Center contact (straight cabled connectors,
uncabled receptacles) ....................................... 5.0
8.0
Center contact (right angle cabled connectors) .... 5.0
15.0
Outer contact ........................................................ 1.0
1.5
Braid to body (gold plated connectors) ................. 1.0
N/A
Braid to body (nickel plated connectors) ............... 2.5
N/A
RF Leakage:
(dB typical tested at 2.5 GHz)
Cable connectors .................................................................. -55 dB
Uncabled receptacles ................................................................. N/A
RF High Potential Withstanding Voltage:
(Vrms minimum, tested at
4 and 7 MHz)
Connectors for RG-178 .............................................................. 500
Connectors for RG-316 .............................................................. 700
Uncabled receptacles ................................................................. 600
ELECTRICAL RATINGS
Impedance:
50 Ohms
Frequency Range:
0-6 GHz
VSWR:
(f = GHz)
MECHANICAL RATINGS
Engagement Force:
5.6 pounds maximum axial force
Disengagement Force:
8 pounds maximum axial force, 1.0 pound min.
Contact Retention:
2.3 lbs. min. axial force (captivated contacts)
1 inch-ounce min. torque (uncabled receptacles)
Cable Retention:
Axial Force*
Torque
(pounds)
(in-oz)
Connectors for RG-178 ............................... 10
N/A
Connectors for RG-316 ............................... 20
N/A
Connectors for RG-316DS .......................... 25
N/A
* or cable breaking strength whichever is less.
ENVIRONMENTAL RATINGS
(Meets or exceed the applicable
paragraph of MIL-C-39012)
Durability:
500 cycles minimum
Temperature Range:
- 65°C to + 165°C
Thermal Shock:
MIL-STD-202, Method 107, Condition F
Corrosion:
MIL-STD-202, Method 101, Condition B
Shock:
MIL-STD-202, Method 213, Condition B
Vibration:
MIL-STD-202, Method 204, Condition B
Moisture Resistance:
MIL-STD-202, Method 106
MATERIAL SPECIFICATIONS
Bodies:
Brass per QQ-B-626 or zinc per ASTM B86-71, gold plated**
per MIL-G-45204 .00001” min or nickel plated per QQ-N-290
Contacts:
Male - brass per QQ-B-626, gold plated per MIL-G-45204
.00003" min.
Female - beryllium copper per QQ-C-530, gold plated per MIL-G-
45204 .00003" min.
Insulators:
PTFE fluorocarbon per ASTM D 1710 and ASTM D 1457
Expansion Caps:
Brass per QQ-B-613, gold plated per MIL-G-45204
.00001" min. or nickel plated per QQ-N-290
Crimp Sleeves:
Copper per WW-T-799, gold plated per MIL-G-45204
.00001" min. or nickel plated per QQ-N-290
Mounting Hardware:
Brass (nuts) per QQ-B-626 or phosphor bronze
(lockwashers) QQ-B-750, gold plated per MIL-G-45204 .00001" min.
or nickel plated per QQ-N-290

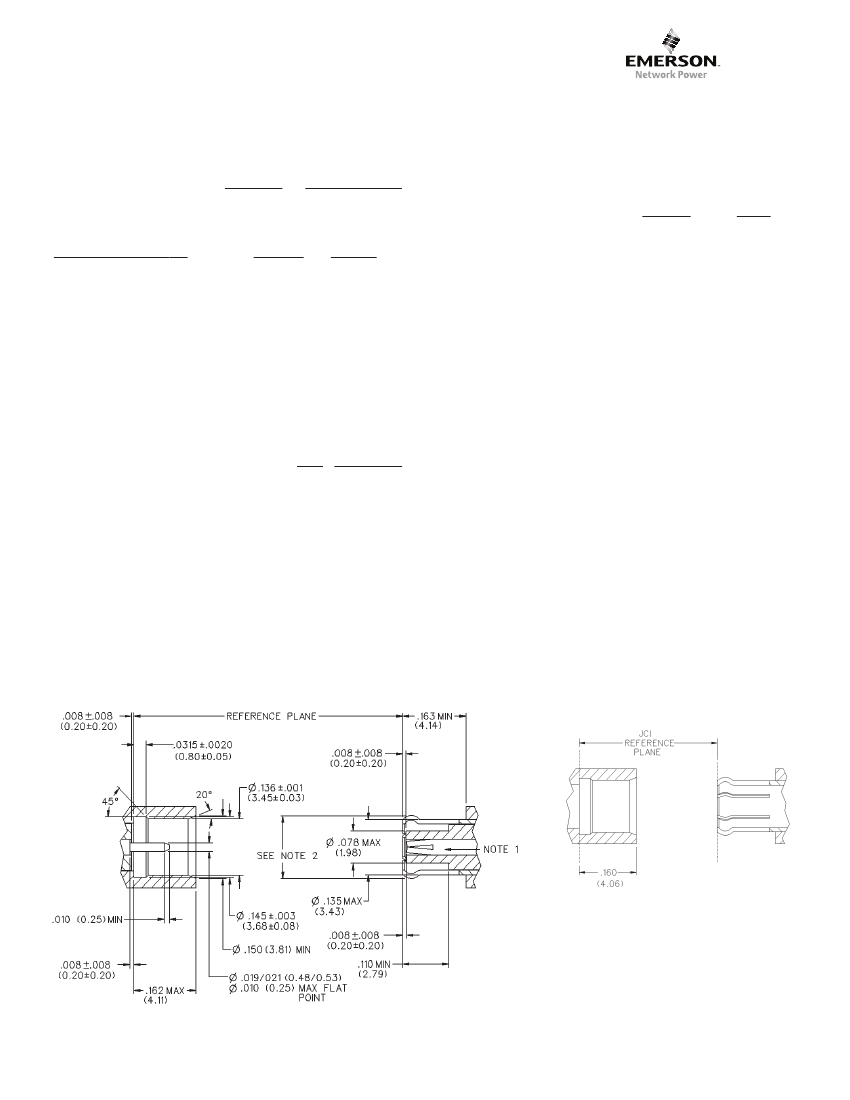

MATING ENGAGEMENT FOR MCX REVERSE POLARITY SERIES
PER FCC RULE 15 NON-STANDARD INTERFACE
JACK
PLUG
JACK
PLUG
†Avoid user injury due to misapplication.
See safety advisory definitions inside front cover.
** All gold plated parts include a .00005" min. nickel underplate barrier layer.
NOTES
1. ID of contact to meet VSWR mating characteristics and connector
durability when mated with a dia. .019-.021 (0.48-0.53) male contact.
2. Must meet the force to engage and disengage when mated with
mating part.
