AXOS
976 Series
Preliminary Datasheet

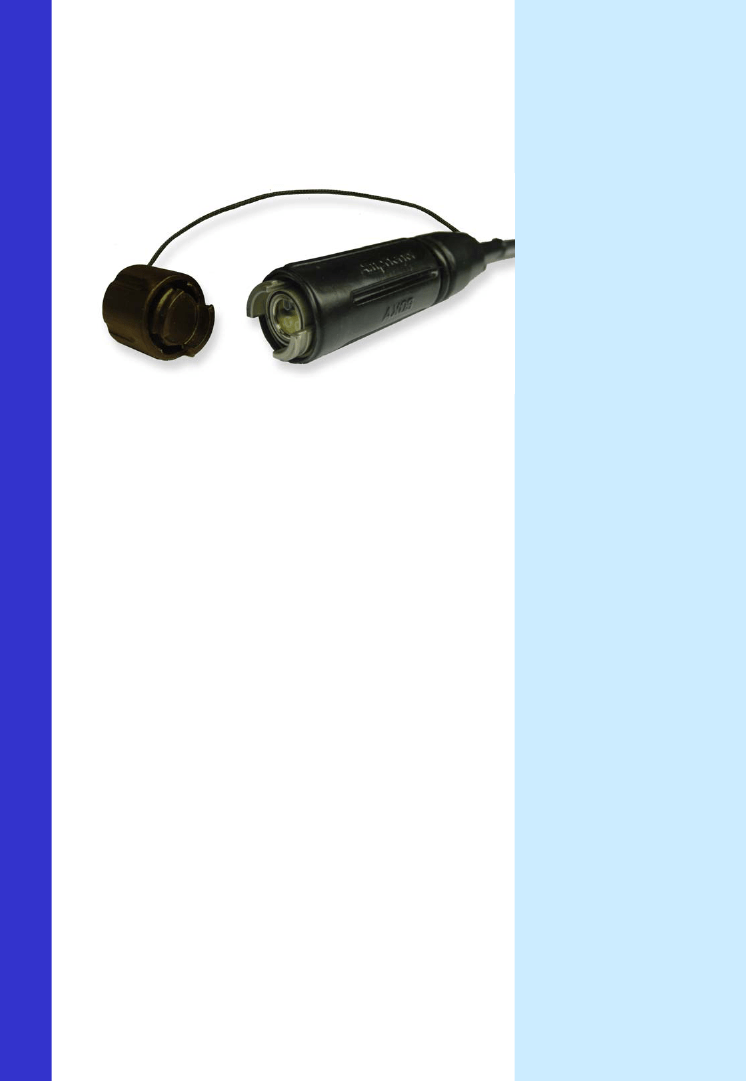

Features
The Amphenol AXOS fiber
optic expanded beam is a
miniature hermaphroditic
and a cost effective
connector .
Hermaphroditic Expanded Beam
Fiber Optic Connector
MAIN CHARACTERISTICS
This product offers a robust and protected optical
connection in a small size design (o.d. 27 mm) and allows
to establish a variable length daisy chain link in no time
outdoor as well as indoor.
The beam diameter makes the connection insensitive to
environmental contamination, temperature variations or
humidity.
The special design ensures an easy cleaning of the
mechanical and optical connector parts.
Technical description
• 1, 2 or 4 channel plugs and receptacles with protective caps
( plastic or metal).
• Hermaphroditic interface with rapid ramp coupling.
• Protective window to ensure an easy cleaning of the optical
device.
• Moving coupling nut allows cleaning the front mechanical parts.
• Anticorrosion metal body with ergonomic protective rubber
shell.
• Blind mateable by means of rubber shell guiding
protuberances.
• Insertion Loss : 0,9 dB typically; 1,5 dB max 1300 nm.
• Operational wavelength: 850 and 1300 nm.
• Fibre size: 50/125 and 62,5/125 µm.
• Cable type: 5 to 7 mm OD Tactical tight structure.
• Durability : 1500 mating cycles.
• Operating Temperature : -40°C, +85°C.
• Termination and Maintenance tool kits available.
• Tactical drums and accessories available.
Applications
All, where hermaphroditic
interface are required.
• Army, Navy and Airforce
optical networks.
• Broadcasting.
• Civil security.
• Mining, geophysic.
• Temporary optical links.
• Industrial moving links.
Amphenol
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E506/A. Printed in France by Amphenol Socapex.
AXOS

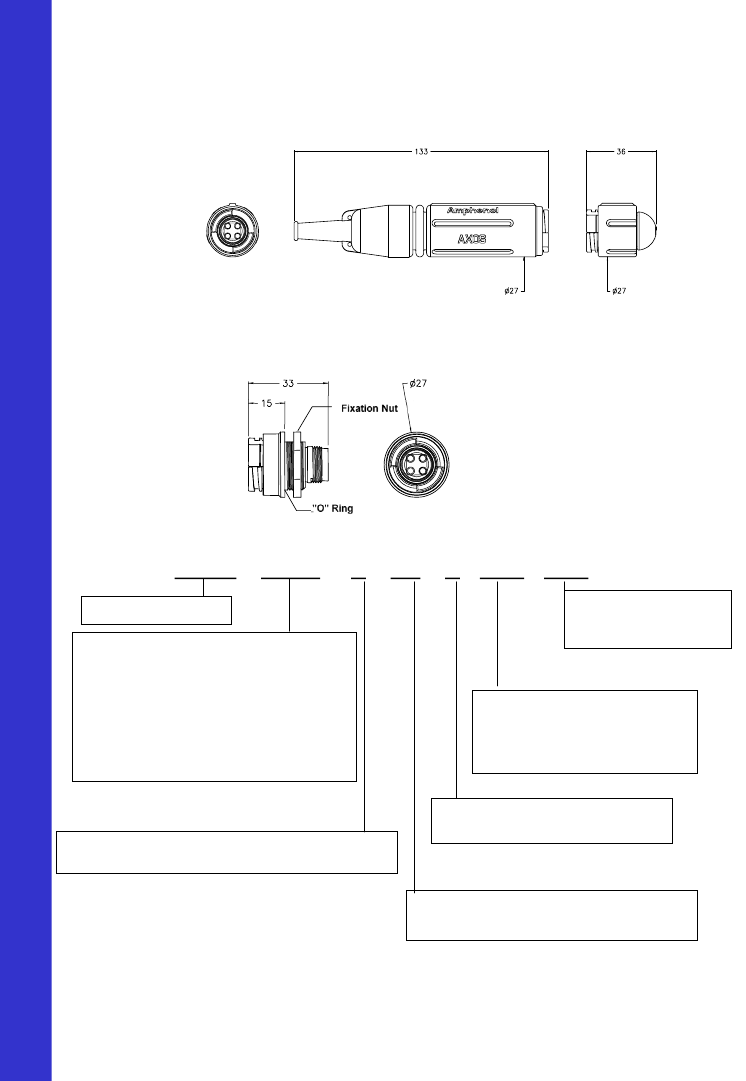

Line Drawings
(dimensions in mm)
AXOS plug with protective cap
976 Series
AXOS Front mount
receptacle
How to order :
AXOS – XXXX – X – XX – X - XXX - XXX
AXOS : 976 series
• Plug
for tactical cable
• Front mount receptacle
for pig-tails
•Shunt attenuating cap
• Protective shunt attenuating cap
: 06M
: 07P
: BSA
: BPSA
All cables are tight jacket.
16 : O.D. patchcord 1,6 mm
55 : O.D. tactical 5.5 mm
Other cables possible.
BPP : plastic Cap
BPM : metallic Cap
Y : Wavelength 1300 nm
Z : Wavelength 840 – 1300 nm
Number of channels
1 channel:1 2 channels : 2
4 channels : 4
01 : 50/125 µm
02 : 62.5/125 µm
