KC7050A75.0000C30E00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> KC7050A75.0000C30E00

Preview

KC7050A75.0000C30E00: DescriptionStandard Clock Oscillators 3.3volts 75.00MHz 7x5 mm; CategoryPassive components; File Size73KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

KC7050A75.0000C30E00 Overview

Standard Clock Oscillators 3.3volts 75.00MHz 7x5 mm

KC7050A75.0000C30E00 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	75 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.3 V
Supply Voltage - Min	2.97 V
Supply Voltage - Max	3.63 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	7 mm
Width	5 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Current Rating	35 mA
Type	Clock Oscillator
Duty Cycle - Max	55 %
Mounting Style	SMD/SMT
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

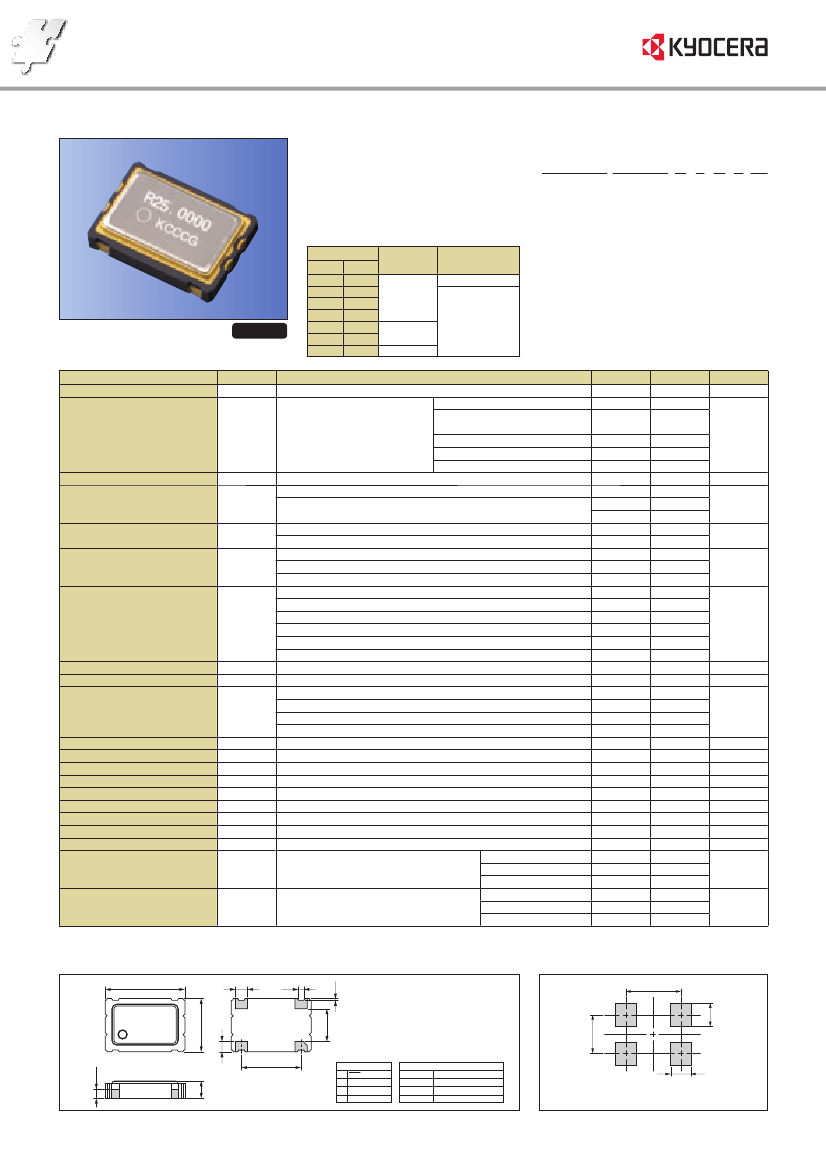

Clock Oscillators Surface Mount Type

KC7050A-C3 Series

CMOS/ 3.3V/ 7.0

×

5.0mm

Features

• Miniature ceramic package

• Highly reliable with seam welding

• CMOS output

• Supply voltage V

CC

=

3.3V

•

±

25

×

10

−

6

,

±

20

×

10

−

6

available

How to Order

KC7050A 25.0000 C 3

□

E 00

①

②

③④⑤⑥ ⑦

Table 1

Operating

Stability

−

6

Temperature

Code

×

10

Range (

°

C)

±

50

0

±

30

S

−

+

±

25 10 to 70

U

±

20

W

±

100

F

−

+

±

50 40 to 85

G

±

50

−

40 to

+

105

6

Note

Standard specifications

Please contact

us for available

frequencies.

①

Series

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

⑥

Symmetry/ INH Function

(45/ 55%, Stand-by)

Individual Specification

⑦

(STD Specification is “00”)

RoHS Compliant

Speciﬁcations

Item

Output Frequency Range

Symbol

fo

Packaging (Tape & Reel 1000 pcs./ reel)

Min.

1.8

−

100

−

50

−

30

−

25

−

20

−

55

−

10

−

40

−

40

−

0.5

−0.5

+

2.97

+

3.14

+

3.20

—

45

—

90% V

CC

—

0

—

70% V

CC

—

Max.

170

+

100

+

50

+

30

+

25

+

20

+

125

+

70

+

85

+

105

+

7.0

+

5.0

+

3.63

+

3.46

+

3.40

10

15

30

35

45

60

10

55

10

8

5

2.5

10% V

CC

—

15

V

CC

30% V

CC

—

150

5

10

8

5

4

80

40

30

Units

MHz

Conditions

Initial tolerance, Operating

temperature range, Rated

power supply voltage change,

Load change, Aging (1 year

@25

°

C), Shock and vibration

Standard Specifications

Op. Temp.:

−

40 to

+

85

°

C

Op. Temp.:

−

10 to

+

70

°

C/

−

40 to

+

85

°

C/

−

40 to

+

105

°

C

Op. Temp.:

−

10 to

+

70

°

C

Op. Temp.:

−

10 to

+

70

°

C

Op. Temp.:

−

10 to

+

70

°

C

Frequency Tolerance

f

_tol

×

10

−

6

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

T

_stg

T

_use

—

V

CC

Extend (Option)

fo

<

135MHz

fo

≥

135MHz

Freq. Tol.Code: 0, S, F

Freq. Tol.Code: U, G, 6

Freq. Tol.Code: W

1.8

≤

fo

≤

20MHz

20

<

fo

≤

40MHz

40

<

fo

≤

60MHz

60

<

fo

≤

100MHz

100

<

fo

≤

135MHz

135

<

fo

≤

170MHz

°

C

°

C

V

Current Consumption

(Maximum Loaded)

Stand-by Current

Symmetry

Rise/ Fall Time

(10% V

CC

to 90% V

CC

Maximum Loaded)

Low Level Output Voltage

High Level Output Voltage

CMOS Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

1 Sigma Jitter

Peak to Peak Jitter

I

CC

mA

@50% V

CC

1.8

≤

fo

≤

26MHz

26

<

fo

≤

45MHz

tr/ tf

45

<

fo

≤

100MHz

100

<

fo

≤

170MHz

I

OL

=

8mA

V

OL

I

OH

=−

8mA

V

OH

L_CMOS CMOS Output

V

IN

V

IL

V

IH

t

_dis

t

_ena

@Minimum operating voltage to be 0 sec.

t

_str

1.8

≤

fo

<

40MHz

Measured with Wavecrest SIA-3000

40

≤

fo

≤

100MHz

J

Sigma

100

<

fo

≤

170MHz

1.8

≤

fo

<

40MHz

Measured with Wavecrest SIA-3000

J

PK-PK

40

≤

fo

≤

100MHz

100

<

fo

≤

170MHz

I

_std

SYM

μ

A

%

ns

V

pF

V

ns

ms

ps

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

0.1

7.0

1.4

0.8

(Unit: mm)

Recommended Land Pattern

5.08

(Unit: mm)

#3

5.0

#2

1.2

#4

2.6

#1

Plating: Ni Au

Tolerance: 0.2

4.2

5.08

0.76

Pad Connections

#1 INH

#2 Case GND

#3 Output

#4 V

CC

INH Function

Pad1

Pad3 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

1.8

Note: A capacitor of value 0.01 F between V

CC

and GND is recommended.

1.6

As of March 2018

2.0

KC7050A75.0000C30E00 Related Products

	KC7050A75.0000C30E00	KC7050A18.4320C3GE00	KC7050A40.0000C3GE00	KC7050A40.0000C30E00	KC7050A53.1250C30E00	KC7050A150.000C30E00
Description	Standard Clock Oscillators 3.3volts 75.00MHz 7x5 mm	Standard Clock Oscillators 18.43200MHZ 3.3V	Standard Clock Oscillators 40.0000MHZ 3.3V	Standard Clock Oscillators 40MHz 3.3Volts 50ppm -10C +70C	Standard Clock Oscillators 53.125MHz 3.3Volts 50ppm -10C +70C	Standard Clock Oscillators 3.3volts 150.00MHz 7x5 mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	AVX	AVX	AVX	AVX	AVX	AVX
Product Category	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators
RoHS	Details	Details	Details	Details	Details	Details
Frequency	75 MHz	18.432 MHz	40 MHz	40 MHz	53.12 MHz	150 MHz
Frequency Stability	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM
Load Capacitance	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
Operating Supply Voltage	3.3 V	3.46 V	3.46 V	3.3 V	3.3 V	3.3 V
Output Format	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm
Minimum Operating Temperature	- 10 C	- 40 C	- 40 C	- 10 C	- 10 C	- 10 C
Maximum Operating Temperature	+ 70 C	+ 85 C	+ 85 C	+ 70 C	+ 70 C	+ 70 C
Length	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
Width	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Type	Clock Oscillator	Clock Oscillator	Clock Oscillator	Clock Oscillator	Clock Oscillator	Clock Oscillator
Factory Pack Quantity	1000	1000	1000	1000	1000	1000
Supply Voltage - Min	2.97 V	3.14 V	3.14 V	-	-	2.97 V
Supply Voltage - Max	3.63 V	3.46 V	3.46 V	-	-	3.63 V
Packaging	Reel	Reel	Reel	Reel	Reel	Reel
Current Rating	35 mA	10 mA	15 mA	-	-	45 mA
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	-	-	SMD/SMT
Height	-	1.6 mm	1.6 mm	1.6 mm	1.6 mm	-
