17063081001 datasheet, PDF - EEWORLD Datasheet

17063081001: DescriptionBoard Connector, 308 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size756KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

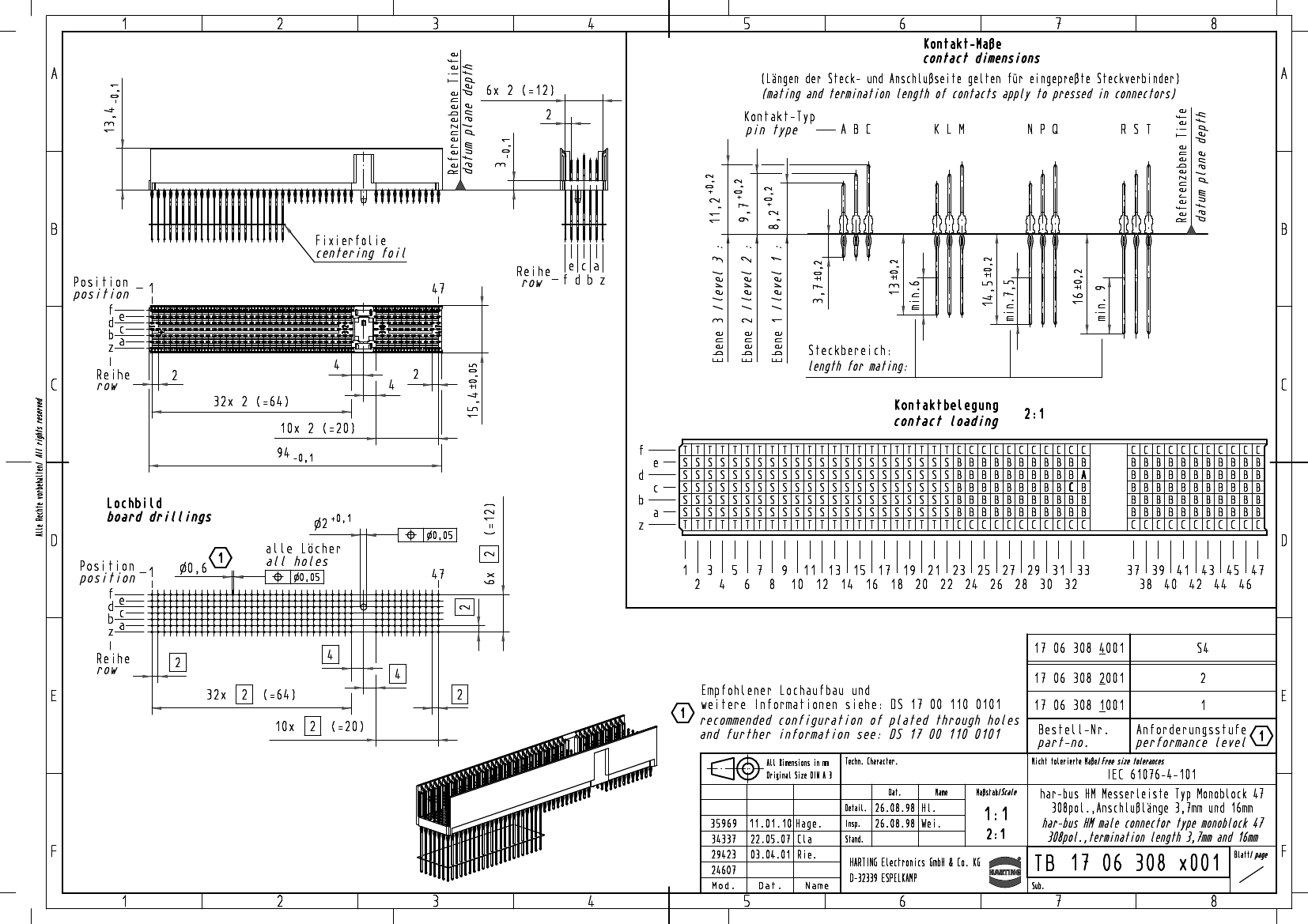

17063081001 Overview

Board Connector, 308 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER PALLADIUM NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1706
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	308
UL Flammability Code	94V-0
Base Number Matches	1

	17063081001	17063084001
Description	Board Connector, 308 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 220 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compli	unknow
Other features	PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	YES
MIL compliance	NO	NO
Manufacturer's serial number	1706	1706
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	7	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	308	220
Base Number Matches	1	1
