MCR3835-8 datasheet, PDF - EEWORLD Datasheet

MCR3835-8: DescriptionSILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR; CategoryAnalog mixed-signal IC Trigger device; File Size111KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCR3835-8 Overview

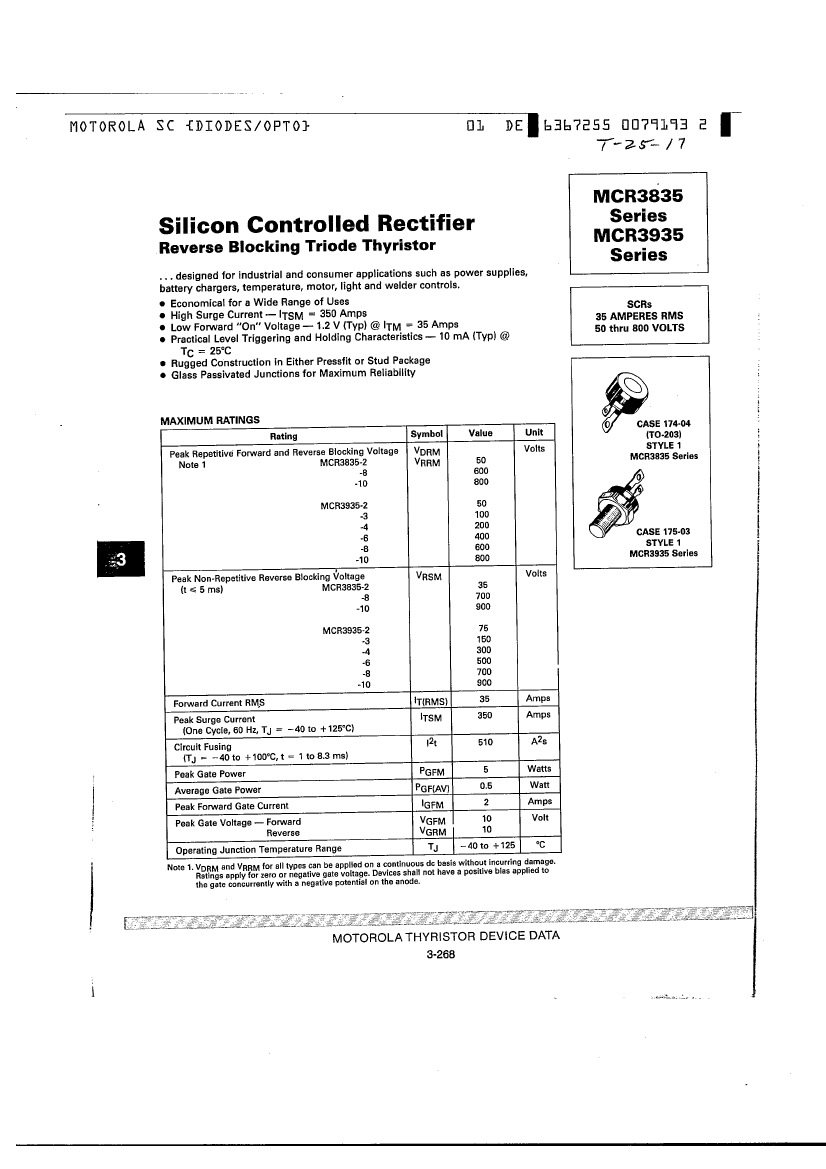

SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PRESS FIT, O-MUPF-D2
Contacts	2
Manufacturer packaging code	CASE 174-04
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ANODE

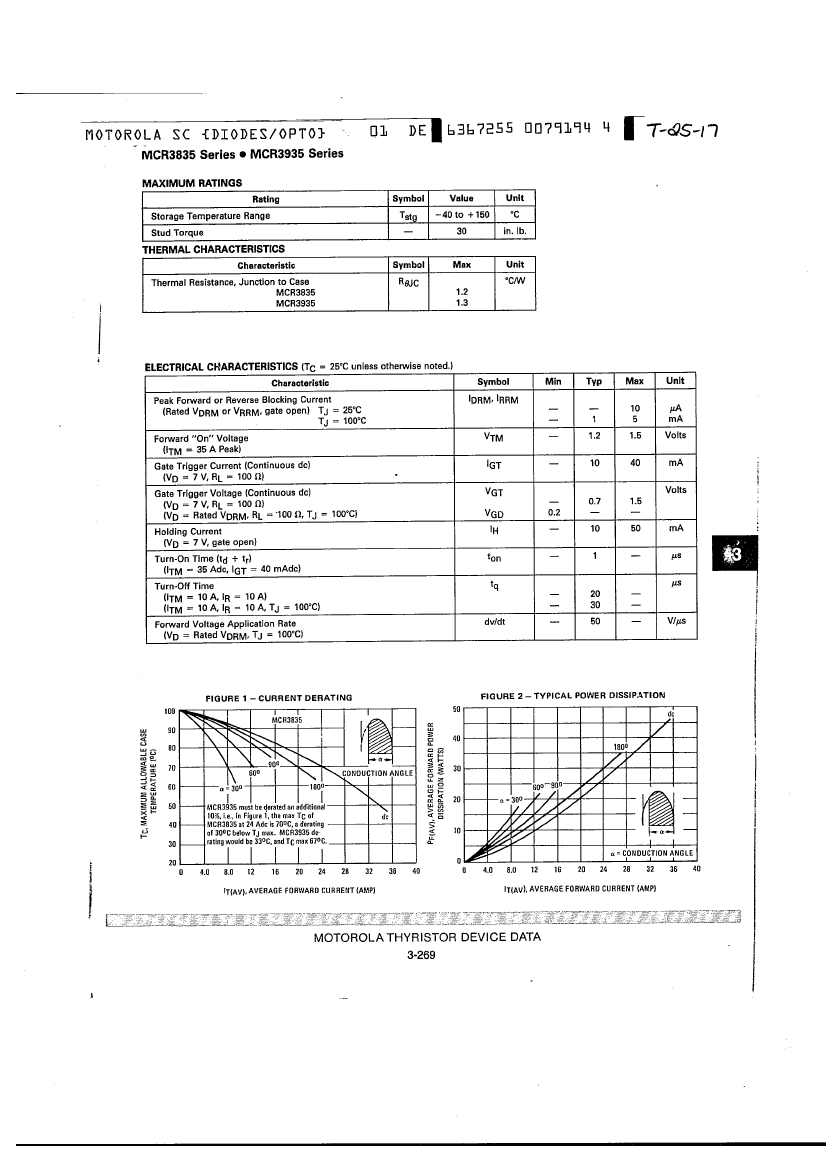

Nominal circuit commutation break time	20 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us

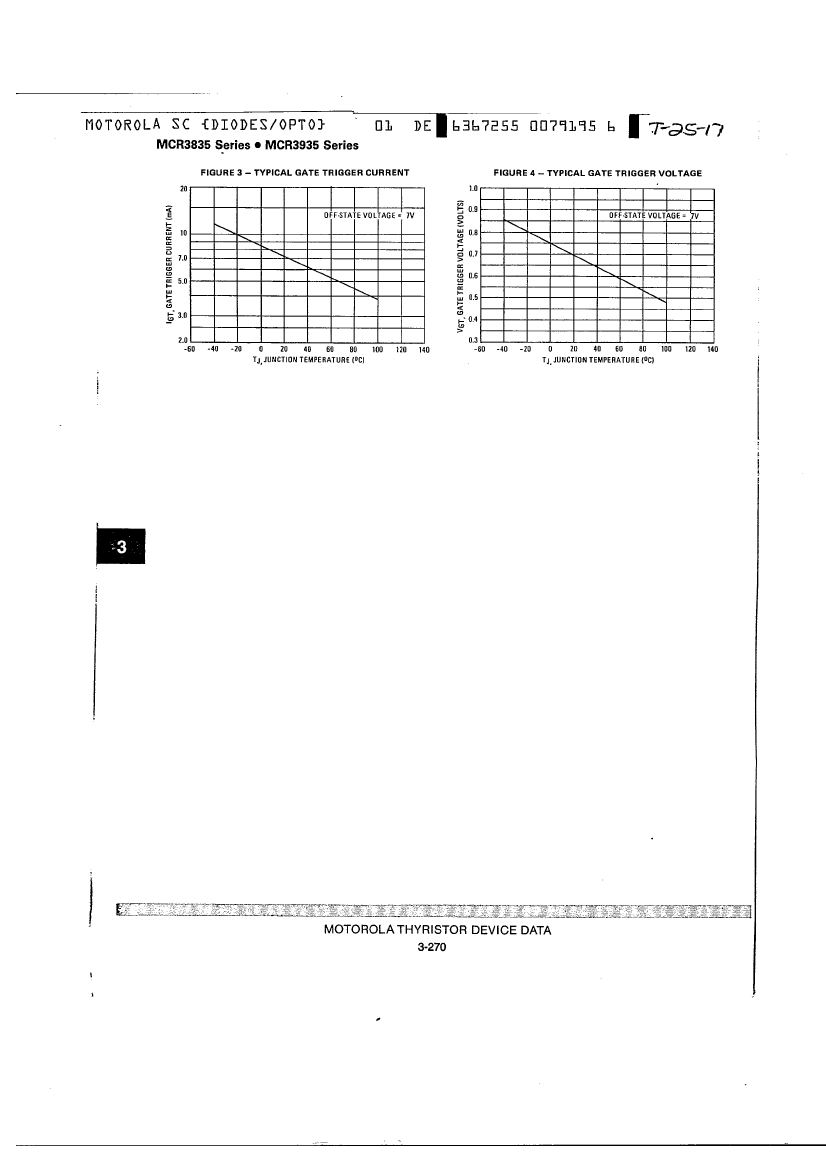

Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-203AA
JESD-30 code	O-MUPF-D2
JESD-609 code	e0
Maximum leakage current	5 mA
On-state non-repetitive peak current	350 A
Number of components	1
Number of terminals	2
Maximum on-state voltage	1.5 V
Maximum on-state current	35000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	35 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

	MCR3835-8	MCR3835	MCR3935
Description	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR
