SMD Power Inductor
0630CDMCC/DS
Description
• Metal compound molding type construction.
• Magnetically shielded.
• Low audible core noise.
• Suitable for large current.
• L×W×H: 7.3×6.8×3.0mm Max.
• Product weight:0.73g (Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
• Halogen Free available.
2.8±0.2
3.8
RoHS
Halogen
Free
Dimension - [mm]
2.9±0.2
7.0±0.3
6.6±0.2
Environmental Data
• Operating temperature range: -55℃½+125℃
(including coil’s self temperature rise)
• Storage temperature range: -55℃½+125℃
• Solder reflow temperature: 260
℃
peak.
Packaging
• Carrier tape and reel packaging.
• 1500pcs/Reel.
Applications
• Ideally used in notebook, ultrabook, tablet PC,
LCD display, Server application.
• High current, POL converters.
• Low profile, high current power supplies.
• Battery powered devices.
• DC/DC converters in distributed power
systems.
0½0.15
1.6±0.3
2.0±0.1
Land pattern and Schematics - [mm]
8.4
3.7
3.5
Page 1 of 5
3.6±0.2
Revised: 1-Sep-17
SMD Power Inductor
0630CDMCC/DS
Electrical Characteristics
Saturation
Current
(A)
Max.(Typ.)
(at 25℃)
※2
32.3(38.0)
31.0(36.6)
27.5(32.3)
20.6(24.2)
17.5(20.5)
17.0(20.0)
16.5(19.5)
14.0(16.5)
12.9(15.2)
10.5(12.3)
9.7(11.4)
5.8(6.8)
5.5(6.5)
5.3(6.3)
4.9(5.8)
4.6(5.5)
3.6(4.3)
3.4(4.0)
Temperature
rise current
(A)
(Typ.)
※3
24.0
23.0
21.0
20.0
18.8
16.5
14.8
14.4
10.2
9.3
8.4
6.3
5.2
5.0
4.3
4.0
3.3
2.3
Part No.
Stamp
Inductance
[Within]
(μH)
※1
0.22±20%
0.24±20%
0.33±20%
0.47±20%
0.56±20%
0.68±20%
0.82±20%
1.0±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
5.6±20%
6.8±20%
8.2±20%
10.0±20%
15.0±20%
22.0±20%
D.C.R
(mΩ)
Max.(Typ.)
at 25℃
3.0(2.5)
3.1(2.6)
3.5(3.0)
4.1(3.5)
4.5(3.9)
5.3(4.8)
6.0(5.4)
7.4(6.7)
12.1(10.6)
15.0(13.5)
22.0(18.0)
33.0(28.0)
43.0(37.0)
48.0(42.5)
60.0(54.0)
67.0(62.0)
115.0(104.0)
200.0(180.0)
0630CDMCCDS-R22MC
0630CDMCCDS-R24MC
0630CDMCCDS-R33MC
0630CDMCCDS-R47MC
0630CDMCCDS-R56MC
0630CDMCCDS-R68MC
0630CDMCCDS-R82MC
0630CDMCCDS-1R0MC
0630CDMCCDS-1R5MC
0630CDMCCDS-2R2MC
0630CDMCCDS-3R3MC
0630CDMCCDS-4R7MC
0630CDMCCDS-5R6MC
0630CDMCCDS-6R8MC
0630CDMCCDS-8R2MC
0630CDMCCDS-100MC
0630CDMCCDS-150MC
0630CDMCCDS-220MC
R22
R24
R33
R47
R56
R68
R82
1R0
1R5
2R2
3R3
4R7
5R6
6R8
8R2
100
150
220
※1
Measuring frequency Inductance at 100kHz ,1.0V
※2
Saturation current: The value of DC current when the inductance is over 70% of its initial value.
※3
Temperature rise current: The actual value of DC current when temperature of coil rise is
△T=40℃(Ta=25℃)
Board conditions: FR4, Copper=70μm,four-layer PWB, t=1.6mm.
Page 2 of 5
Revised: 1-Sep-17

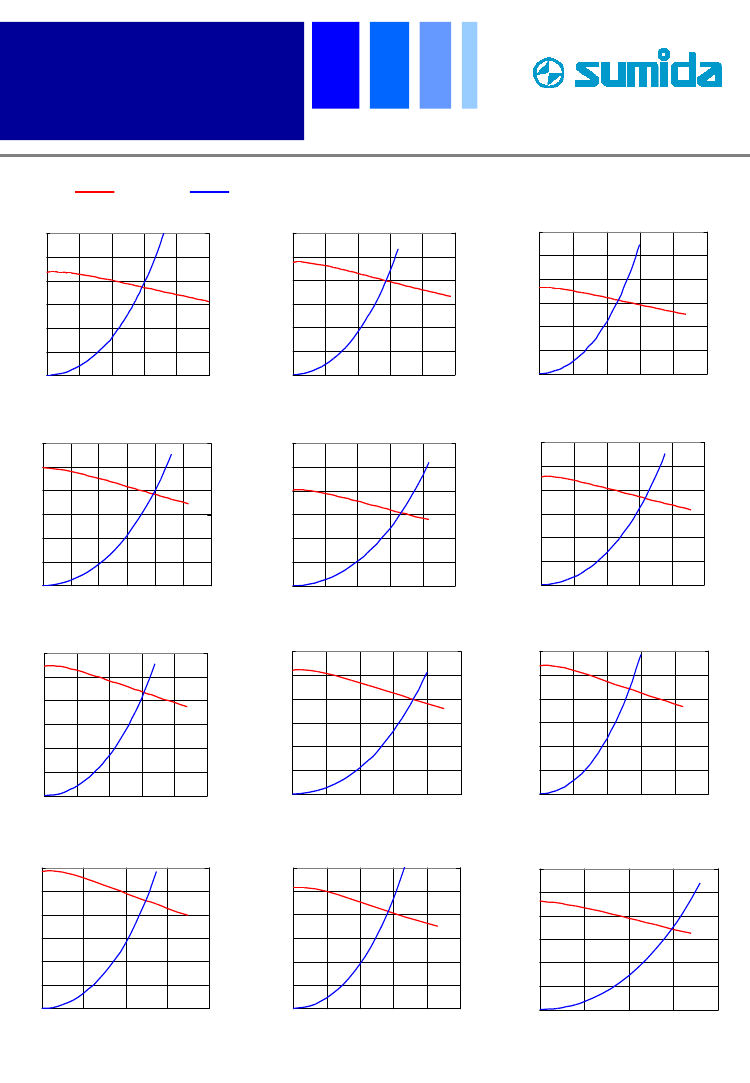

SMD Power Inductor
0630CDMCC/DS
Solder Reflow Condition
T (℃)
300
250
200
150
100
50
0
0
60
120
180
240
300
T (s)
Heat Endurance
260℃
230℃
10
60
T (℃)
300
250
200
150
100
50
0
0
60
120
180
240
300 T (s)
170±10
℃,60~120s
Temperature Chart
245℃ PEAK
230℃
40s
Please refer to the sales offices on our website -
http://www.sumida.com
Hong Kong
Tel.+852-2880-6781
FAX.+852-2565-9600
sales@hk.sumida.com
Shanghai
Tel.+86-21-5836-3299
FAX.+86-21-5836-3266
shanghai.sales@cn.sumida.com
Shenzhen
Tel.+86-755-8291-0228
FAX.+86-755-8291-0338
shenzhen.sales@cn.sumida.com
Taipei
Tel.+886-2-8751-2737
FAX.+886-2-8751-2738
sales@tw.sumida.com
Saitama(Japan)
Tel.+81-48-691-7300
FAX.+81-48-691-7340
sales@jp.sumida.com
Seoul
Tel.+82-2-6237-0777
FAX.+82-2-6237-0778
sales@kr.sumida.com
Singapore
Tel.+65-6296-3388
FAX.+65-6841-4426
sales@sg.sumida.com
San Jose
Tel.+1-408-321-9660
FAX.+1-408-321-9308
sales@us.sumida.com
Chicago
Tel.+1-847-545-6700
FAX. +1-847-545-6720
sales@us.sumida.com
Obernzell
Tel.+49-8591-937-0
FAX. +49-8591-937-103
contact@eu.sumida.com
Neumarkt
Tel.+49-9181-4509-110
FAX. +49-9181-4509-310
infocomp@eu.sumida.com
Page 5 of 5
Revised: 1-Sep-17
