PDMB300A6: DescriptionIGBT MODULE Dual 300A 600V; File Size103KB，3 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet View All

PDMB300A6 Overview

IGBT MODULE Dual 300A 600V

Preview

Download Datasheet

View All

IGBT

MODULE

CIRCUIT

Dual 300A 600V

PDMB300A6

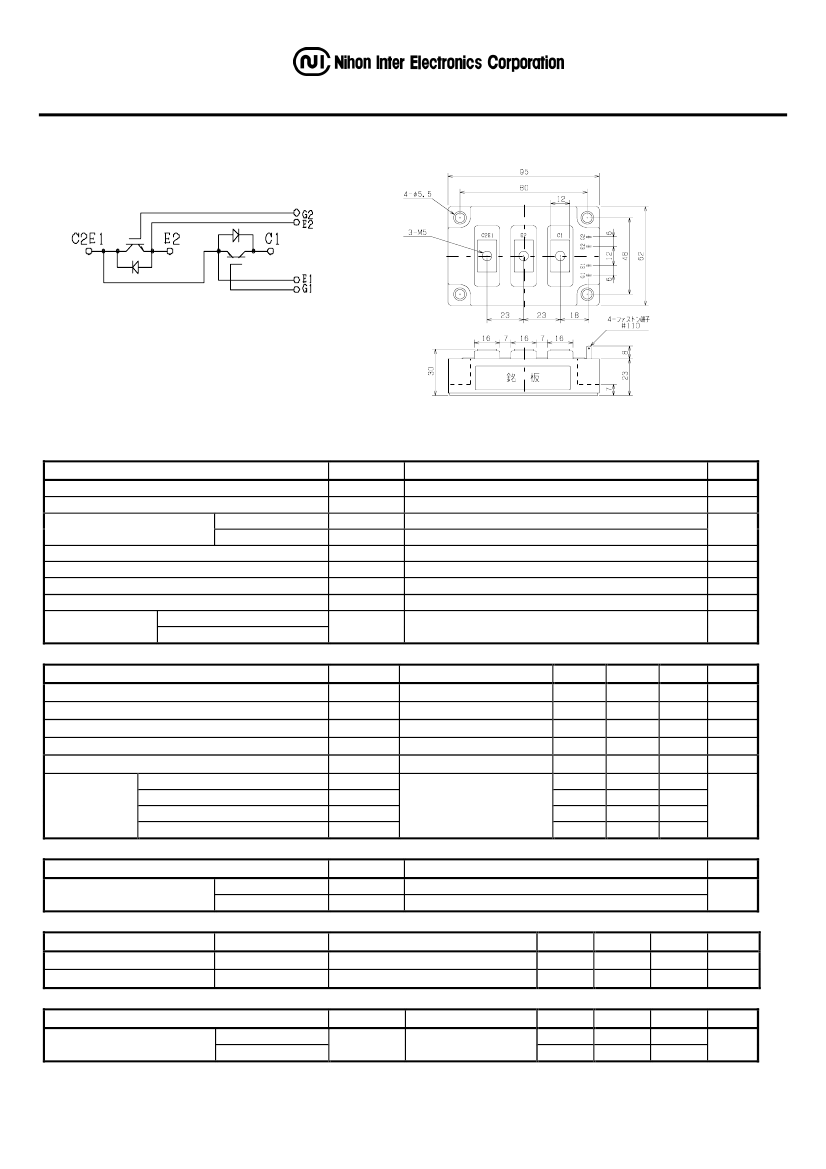

OUTLINE DRAWING

4- fasten- tab No 110

Dimension(mm)

Approximate Weight : 430g

MAXMUM RATINGS

(Tc=25°C)

Item

Collector-Emitter Voltage

Gate - Emitter Voltage

Collector Current

1 ms

Symbol

CES

GES

stg

ISO

TOR

PDMB300A6

600

+/ - 20

300

600

1040

-40 to +150

-40 to +125

2500

Unit

°C

N•m

Collector Power Dissipation

Junction Temperature Range

Storage Temperature Range

Isolation Voltage Terminal to Base AC, 1 min.)

Module Base to Heatsink

Mounting Torque

Bus Bar to Main Terminals

ELECTRICAL CHARACTERISTICS

(Tc=25°C)

Characteristic

Collector-Emitter Cut-Off Current

Gate-Emitter Leakage Current

Collector-Emitter Saturation Voltage

Gate-Emitter Threshold Voltage

Input Capacitance

Rise Time

Turn-on Time

Switching Time

Fall Time

Turn-off Time

Symbol

CES

GES

CE(sat)

GE(th)

Cies

off

Test Condition

=600V,V

=0V

=+/- 20V,V

=0V

=300A,V

=15V

=5V,I

=300mA

=10V,V

=0V,f=1MHz

= 300V

= 1 ohm

= 2 ohm

= +/- 15V

Min.

4.0

Typ.

2.1

30,000

0.2

0.4

0.2

0.6

Max.

3.0

1.0

2.6

8.0

0.4

0.75

0.35

0.8

Unit

µA

µs

FREE WHEELING DIODES RATINGS & CHARACTERISTICS

(Tc=25°C)

Item

Symbol

Rated Value

Forward Current

1 ms

300

600

Unit

Typ.

1.9

0.15

Characteristic

Peak Forward Voltage

Reverse Recovery Time

Symbol

Test Condition

=300A,V

=0V

=300A,V

=-10V,di/dt=300A/

µs

Min.

Max.

2.4

0.25

Unit

µs

Unit

°C/W

THERMAL CHARACTERISTICS

Characteristic

Thermal Impedance

IGBT

DIODE

Symbol

th(j-c)

Test Condition

Junction to Case

Min.

Typ.

Max.

0.12

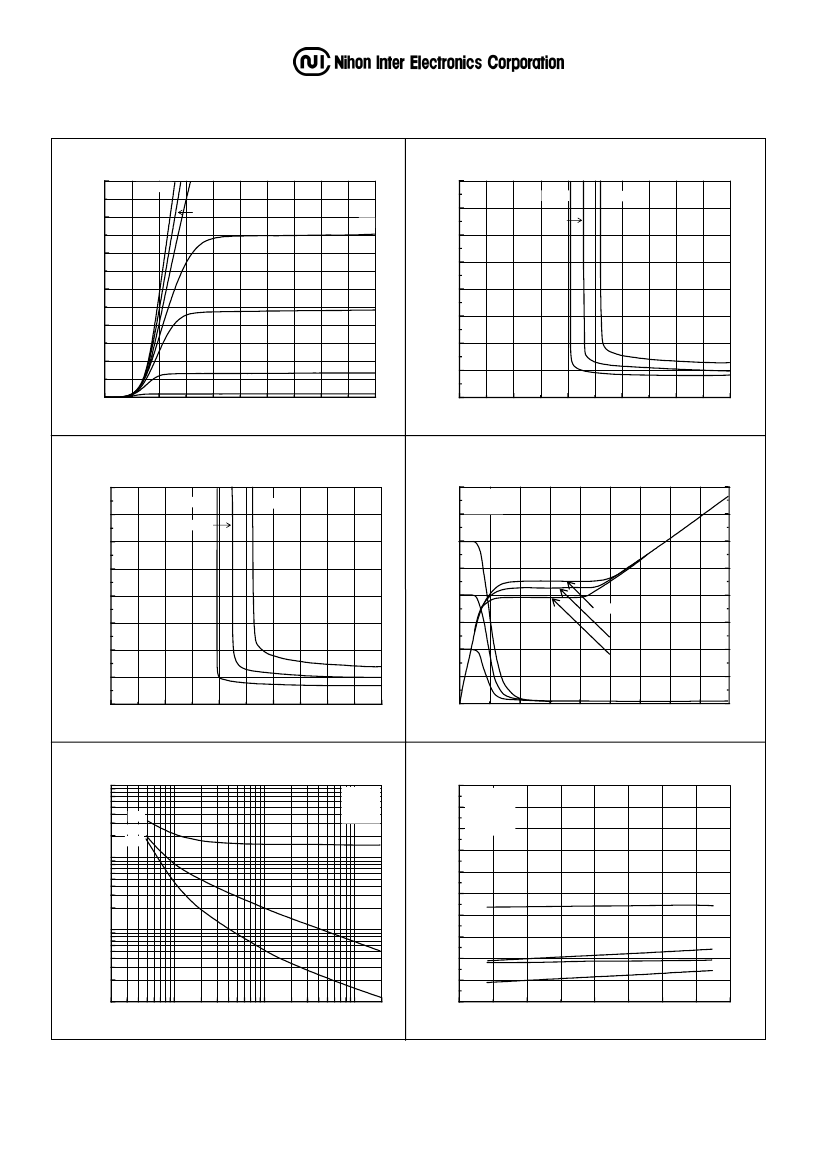

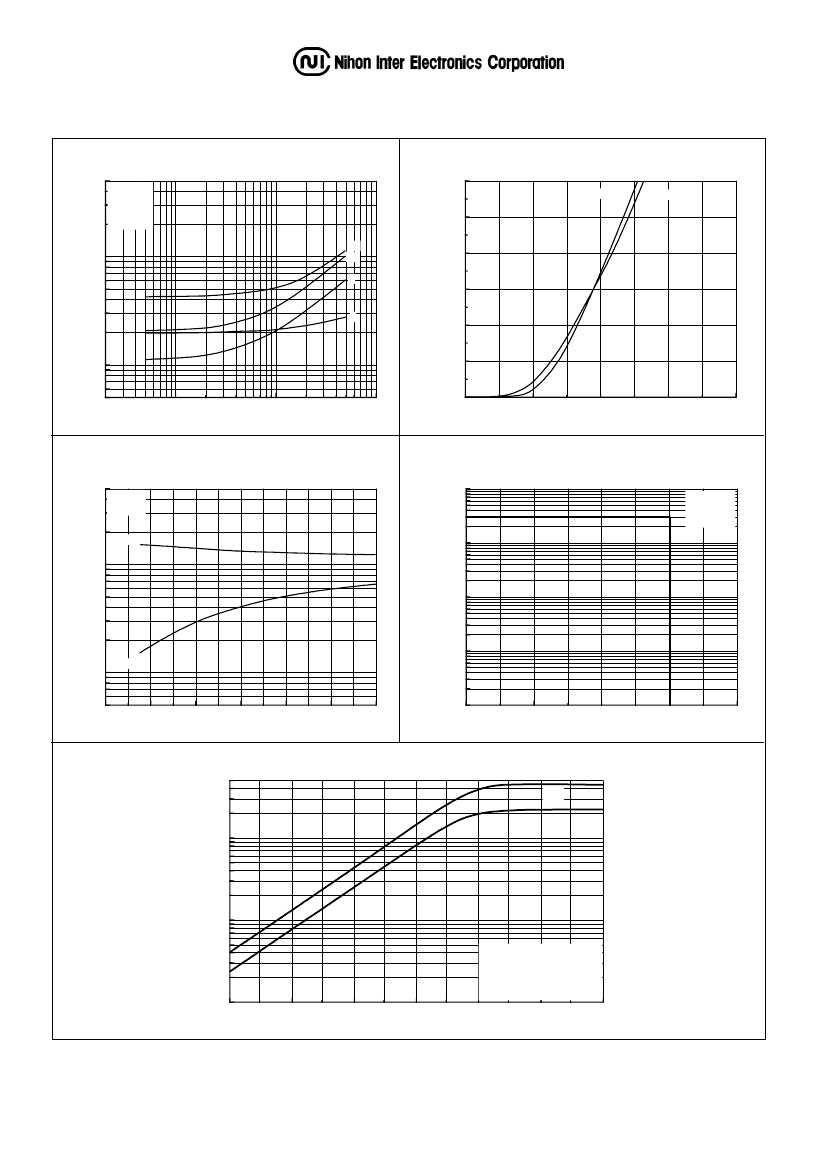

0.24
