ERJ-MP3MF8M0U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ERJ-MP3MF8M0U

ERJ-MP3MF8M0U: DescriptionCurrent Sense Resistors - SMD 2010 0.008ohm 1W 1% Current Sense; CategoryPassive components; File Size98KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ERJ-MP3MF8M0U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERJ-MP3MF8M0U	-	-	View	Buy Now

ERJ-MP3MF8M0U Overview

Current Sense Resistors - SMD 2010 0.008ohm 1W 1% Current Sense

ERJ-MP3MF8M0U Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Current Sense Resistors - SMD
RoHS	Details
Resistance	8 mOhms
Power Rating	1 W
Tolerance	1 %
Temperature Coefficient	75 PPM / C
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 170 C
Case Code - in	2010
Technology	Metal Element
Termination	2 Terminal
Packaging	Reel
Application	Current Sense
Length	5 mm
Operating Temperature Range	- 65 C to + 170 C
Package / Case	2010 (5025 metric)
Termination Style	SMD/SMT
Width	2.5 mm
Mounting Style	PCB Mount
Factory Pack Quantity	3000
Unit Weight	0.002469 oz

Preview

Download Datasheet

View All

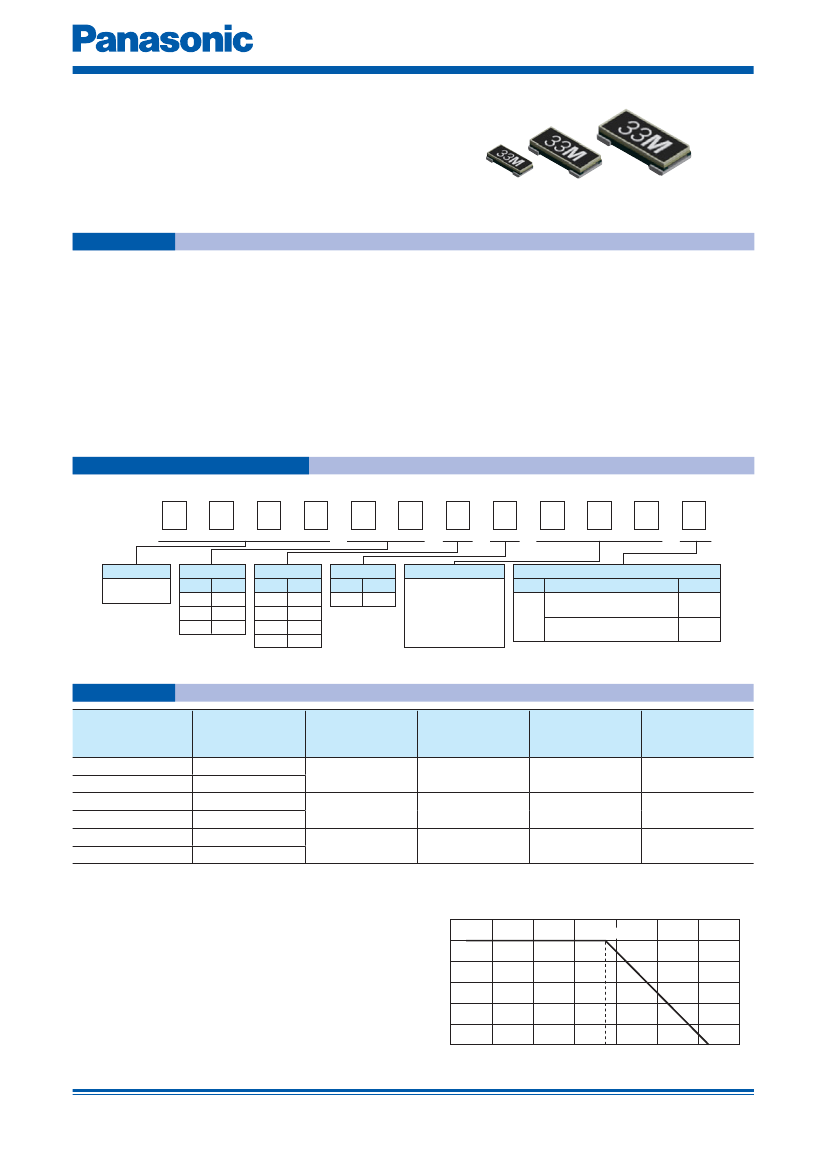

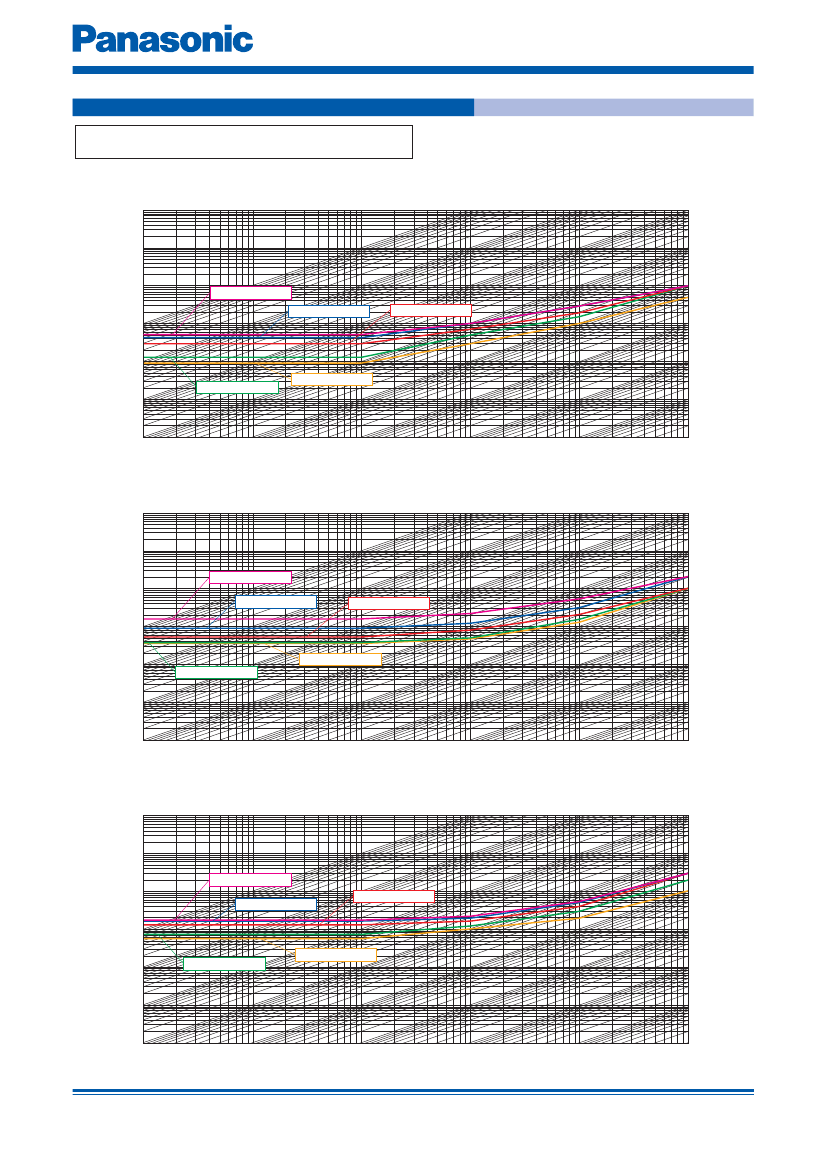

Current Sensing Resistors, Metal Plate Type

Current Sensing Resistors,

Metal Plate Type

Type:

ERJ MP2, MP3, MP4

Features

●

Ideal

for current sensing solution

●

Small case size with high power

●

Metal plate bonding technology. Excellent long term stability

●

Outer Resin with high heat dissipation. Wide temperature range (−65 °C to +170 °C)

●

AEC-Q200 qualiﬁed

●

RoHS compliant

●

ISO9001, ISO/TS16949 certiﬁed

■

As for Packaging Methods, Soldering Conditions and Safety Precautions,

Please see Data Files

Explanation of Part Numbers

Product Code

Metal Plate

Chip Resistors

Type Code

Code Inch size

1206

2010

2512

Power Rating

Code Rating

G 0.25 W

0.5 W

Resistance Tolerance

Code Tolerance

±1 %

Resistance Value

Shown by 3 digits or

letters.Decimal point

is expressed by M as

2M0=2m

10M=10m

Code

Packaging Methods

Packaging

Embossed Carrier Taping

4 mm pitch, 3,000 pcs.

Embossed Carrier Taping

4 mm pitch, 2,000 pcs.

Part No.

ERJMP2

ERJMP3

ERJMP4

Ratings

Part No.

(inch size)

ERJMP2G

(1206)

ERJMP2K

(1206)

ERJMP3K

(2010)

ERJMP3M

(2010)

ERJMP4M

(2512)

ERJMP4P

(2512)

Power Rating

at 70 °C

(W)

0.25

0.5

Resistance

Range

(mΩ)

1 to 10

Resistance

Tolerance

(%)

F : ±1

T.C.R.

(×10

–6

/°C)

±75
