Type TDC
Solid Tantalum Capacitors

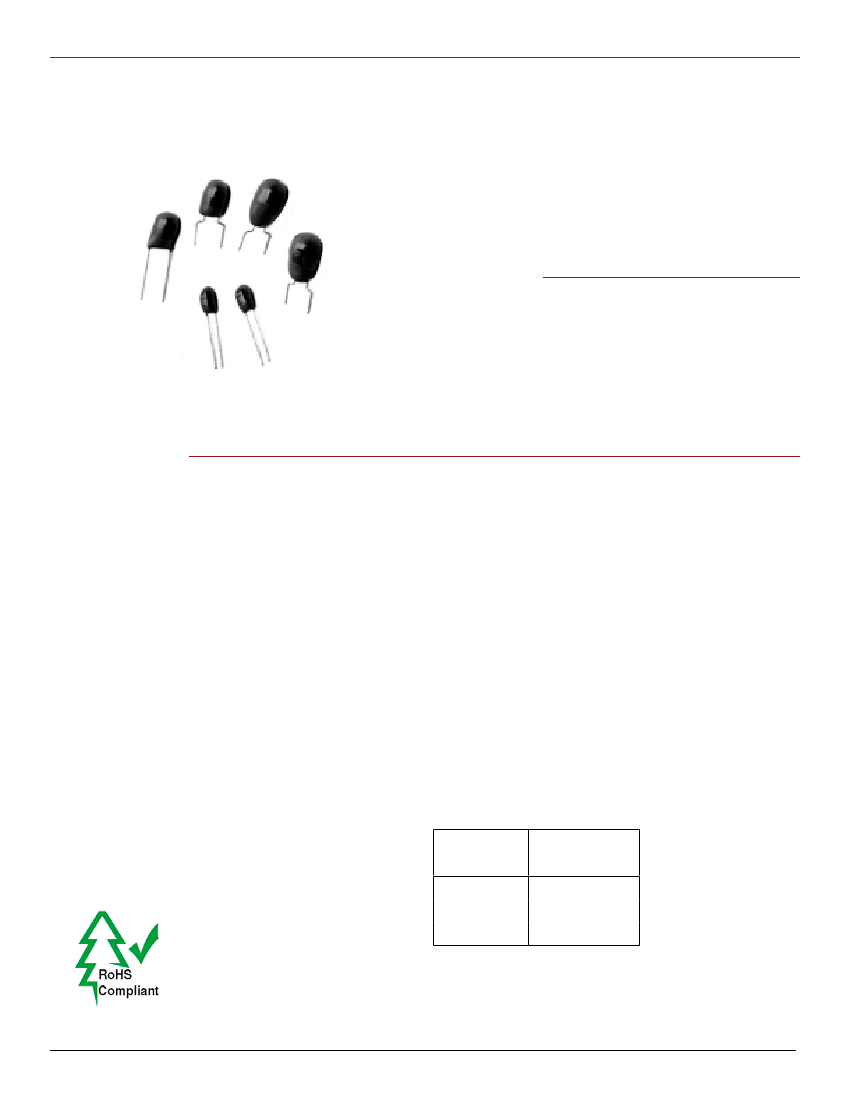

Dipped, Radial Leaded, Solid Tantalum Capacitors
As a low cost alternative to molded solid tantalum ca-
pacitors, the Type TDC, constructed in a tough, radial
dipped fame retardant plastic case, assures the user
that it is a top performer with such attributes as low
DCL, low ESR, low impedance and a great value with
low in-place cost. The Type TDC is high shock and
vibration resistant and is available in bulk or on radial
Highlights
♦
♦
♦
♦
♦
♦
♦
Tough plastic case
Low DCL
Low ESR and impedance
Low cost
Temperature stable
UL94VO fammability rating
Resistant to shock and vibration
Specifcations
Capacitance Range:
Voltage Range:
Tolerance:
Operating Temperature Range:
DC Leakage:
0.10 µF to 330 µF
6 WVdc to 50 WVdc at 85 ºC
±10%, ±20%
–55 ºC to +125 ºC (with proper derating)
+25 ºC - See ratings limit
+85 ºC - 10 x ratings limit
+125 ºC - 12.5 x ratings limit
–10% @ –55 ºC
+10% @ +85 ºC
+12% @ +125 ºC
15% of rated voltage @ 25 ºC
5% of rated voltage @ 85 ºC
1% of rated voltage @ 125 ºC
Case
Code
E
F
G
Quantity
per Reel
1,000
1,000
1,000
Capacitance Change Maximum:
Reverse Voltage (Non-continuous):
Reel Packaging:
Complies with the EU Directive 2002/95/EC
requirement restricting the use of Lead (Pb), Mercury
(Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)),
PolyBrominated Biphenyls (PBB) and PolyBrominated
Diphenyl Ethers (PBDE).
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type TDC
Solid Tantalum Capacitors

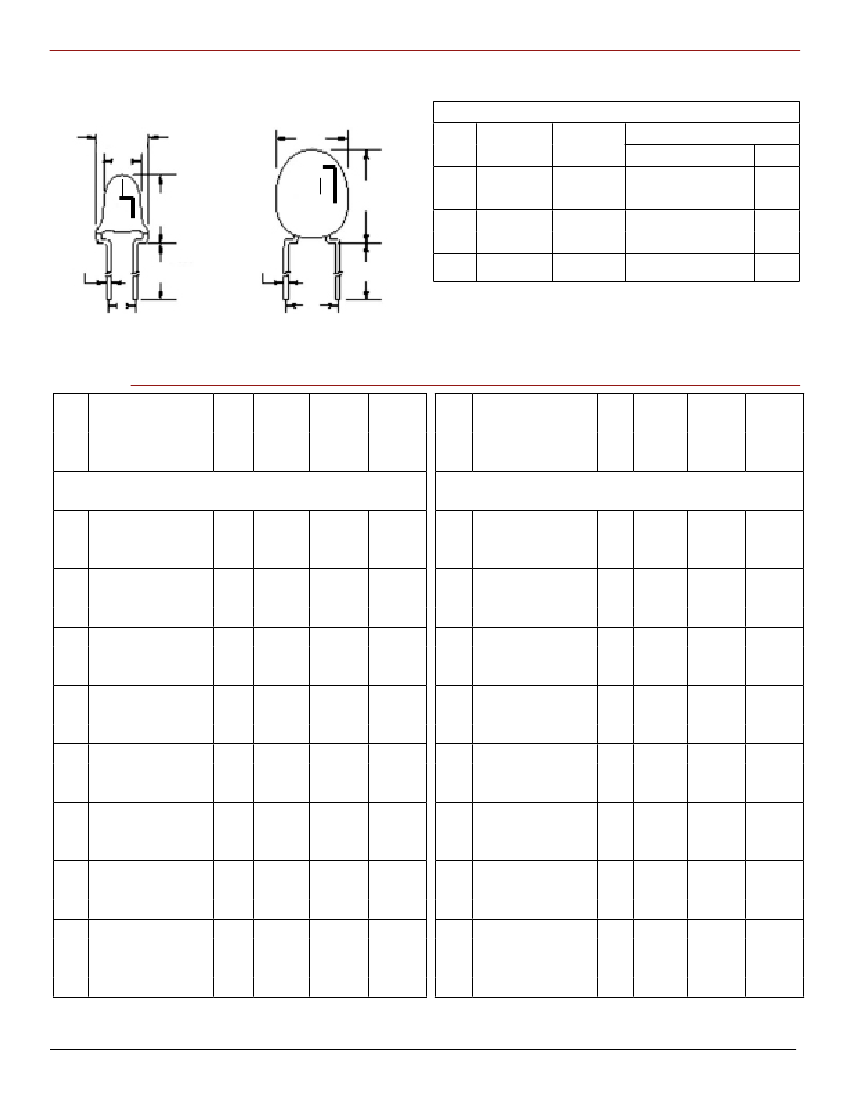

Capacitor Outline Drawing
.250 ±.025
(6.35 ±.64
D
Max
D
Max
H
Max
Dimensions - Inches (Millimeters)
Case
Code
E
F
.
187 ±.032
(4.75 ±.81)
Leads
D (Max.)
H (Max.)
S
.250 (6.35) (Special)
.250 (6.35) .500 (12.7) .125 (3.17) (Standard)
.250 (6.35) (Special)
.350 (8.89) .650 (16.51) .250 (6.35) (Special)
Code
N
W
N
W
W
.175 (4.45) .350 (8.89) .125 (3.17) (Standard)
M
+
H
Max
.
187 ±.032
106
10
107
10
M
.020
(.51)
S
+
.020
(.51)
(4.75 ±.81)
S
G
Ratings
Cap
(µF)
E and F Case Codes:
Lead Spacing =
.125 ±.025
(3.17 ±.64)
G Case Code:
Lead Spacing =
.250 ±.025
(6.34 ±.64)
Max.
Max. DF
@ +25 ºC
120 Hz
(%)
Cap
(µF)
Catalog
Part Number
Case
Lead
(S)
Max.
DCL
(µA)
Code Spacing @ +25 ºC
Max. DF
@ +25 ºC
120 Hz
(%)
Catalog
Part Number
Case
Lead
(S)
DCL
(µA)
Code Spacing @ +25 ºC
6 WVdc; 8 Vdc Surge @ 85 ºC
4 WVdc; 5 Vdc Surge @ 125 ºC
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
TDC335*006NSE-F
TDC395*006NSE-F
TDC475*006NSE-F
TDC565*006NSE-F
TDC685*006NSE-F
TDC825*006NSE-F
TDC106*006NSE-F
TDC126*006NSE-F
TDC156*006NSF-F
TDC186*006NSF-F
TDC226*006NSF-F
TDC276*006NSF-F
TDC336*006NSF-F
TDC396*006NSF-F
TDC476*006NSF-F
TDC566*006NSF-F
TDC686*006NSF-F
TDC826*006NSF-F
TDC107*006NSF-F
TDC127*006WSG-F
TDC157*006WSG-F
TDC187*006WSG-F
TDC227*006WSG-F
TDC277*006WSG-F
TDC337*006WSG-F
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
F
F
F
F
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.1
1.3
1.6
1.9
2.3
2.7
3.3
3.9
4.8
5.8
7.2
8.6
10
10
10
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
8
8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
10 WVdc; 13 Vdc Surge @ 85 ºC
7 WVdc; 9 Vdc Surge @ 125 ºC
TDC225*010NSE-F
TDC275*010NSE-F
TDC335*010NSE-F
TDC395*010NSE-F
TDC475*010NSE-F
TDC565*010NSE-F
TDC685*010NSE-F
TDC825*010NSE-F
TDC106*010NSF-F
TDC126*010NSF-F
TDC156*010NSF-F
TDC186*010NSF-F
TDC226*010NSF-F
TDC276*010NSF-F
TDC336*010NSF-F
TDC396*010NSF-F
TDC476*010NSF-F
TDC566*010NSF-F
TDC686*010NSF-F
TDC826*010WSG-F
TDC107*010WSG-F
TDC127*010WSG-F
TDC157*010WSG-F
TDC187*010WSG-F
TDC227*010WSG-F
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
F
F
F
F
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.7
0.8
1.0
1.2
1.4
1.8
2.2
2.6
3.1
3.8
4.5
5.4
6.6
8.0
9.6
10.0
10.0
10.0
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE reserves the right to substitute a tighter tolerance, higher voltage capacitor within the same case size.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type TDC
Solid Tantalum Capacitors
Ratings
Max.
Catalog
Cap
(µF)
Part Number
Case
Lead
(S)
DCL
(µA)
Code Spacing @ +25 ºC
Max. DF
@ +25 ºC
120 Hz
(%)
Cap
(µF)
Catalog
Part Number
Case
Lead
(S)
Max.
DCL
(µA)
Code Spacing @ +25 ºC
Max. DF
@ +25 ºC
120 Hz
(%)
16 WVdc; 20 Vdc Surge @ 85 ºC
10 WVdc; 12 Vdc Surge @ 125 ºC
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
TDC155*016NSE-F
TDC185*016NSE-F
TDC225*016NSE-F
TDC275*016NSE-F
TDC335*016NSE-F
TDC395*016NSE-F
TDC475*016NSE-F
TDC565*016NSE-F
TDC685*016NSE-F
TDC825*016NSE-F
TDC106*016NSF-F
TDC126*016NSF-F
TDC156*016NSF-F
TDC186*016NSF-F
TDC226*016NSF-F
TDC276*016NSF-F
TDC336*016NSF-F
TDC396*016WSG-F
TDC476*016WSG-F
TDC566*016WSG-F
TDC686*016WSG-F
TDC826*016WSG-F
TDC107*016WSG-F
TDC127*016WSG-F
TDC157*016WSG-F
E
E
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
G
G
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.0
1.3
1.5
1.8
2.2
2.6
3.2
4.0
4.7
5.6
6.8
8.2
9.8
10.0
10.0
10.0
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
3
5
5
5
5
5
5
5
5
5
5
10
12
15
18
22
27
33
39
47
56
68
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.8
0.9
1.1
8.2
10
12
15
18
22
33
39
47
56
68
82
100
20 WVdc; 26 Vdc Surge @ 85 ºC
13 WVdc; 16 Vdc Surge @ 125 ºC
TDC825*020NSF-F
TDC106*020NSF-F
TDC126*020NSF-F
TDC156*020NSF-F
TDC186*020NSF-F
TDC226*020NSF-F
TDC336*020WSG-F
TDC396*020WSG-F
TDC476*020WSG-F
TDC566*020WSG-F
TDC686*020WSG-F
TDC826*020WSG-F
TDC107*020WSG-F
F
F
F
F
F
F
G
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1.3
1.6
1.9
2.4
2.9
3.5
5.3
6.2
7.5
9.0
10.0
10.0
10.0
6
6
6
6
6
6
6
6
6
6
6
8
8
25 WVdc; 32 Vdc Surge @ 85 ºC
17 WVdc; 22 Vdc Surge @ 125 ºC
TDC105*025NSE-F
TDC125*025NSE-F
TDC155*025NSE-F
TDC185*025NSE-F
TDC225*025NSE-F
TDC275*025NSE-F
TDC335*025NSE-F
TDC395*025NSE-F
TDC475*025NSF-F
TDC565*025NSF-F
TDC685*025NSF-F
TDC825*025NSF-F
TDC106*025NSF--F
TDC126*025NSF-F
TDC156*025NSF-F
TDC186*025NSF-F
TDC226*025NSF-F
TDC276*025WSG-F
TDC336*025WSG-F
TDC396*025WSG-F
TDC476*025WSG-F
TDC566*025WSG-F
TDC686*025WSG-F
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
F
F
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.250
0.250
0.250
0.250
0.250
0.250
0.50
0.50
0.50
0.50
0.50
0.50
0.70
0.80
0.90
1.10
1.40
1.60
2.0
2.4
3.0
3.6
4.4
5.4
6.6
7.8
9.4
10.0
10.0
3
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
20 WVdc; 26 Vdc Surge @ 85 ºC
13 WVdc; 16 Vdc Surge @ 125 ºC
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
TDC105*020NSE-F
TDC125*020NSE-F
TDC155*020NSE-F
TDC185*020NSE-F
TDC225*020NSE-F
TDC275*020NSE-F
TDC335*020NSE-F
TDC395*020NSE-F
TDC475*020NSE-F
TDC565*020NSF-F
TDC685*020NSF-F
E
E
E
E
E
E
E
E
E
F
F
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE reserves the right to substitute a tighter tolerance, higher voltage capacitor within the same case size.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type TDC
Solid Tantalum Capacitors
Ratings
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
35 WVdc; 46 Vdc Surge @ 85 ºC
23 WVdc; 28 Vdc Surge @ 125 ºC
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
TDC104*035NSE-F
TDC124*035NSE-F
TDC154*035NSE-F
TDC184*035NSE-F
TDC224*035NSE-F
TDC274*035NSE-F
TDC334*035NSE-F
TDC394*035NSE-F
TDC474*035NSE-F
TDC564*035NSE-F
TDC684*035NSE-F
TDC824*035NSE-F
TDC105*035NSE-F
TDC125*035NSE-F
TDC155*035NSE-F
TDC185*035NSE--F
TDC225*035NSE-F
TDC275*035NSF-F
TDC335*035NSF-F
TDC339*035NSF-F
TDC475*035NSF-F
TDC565*035NSF-F
TDC685*035NSF-F
TDC825*035NSF-F
TDC106*035NSF-F
TDC126*035WSG-F
TDC156*035WSG-F
TDC186*035WSG-F
TDC226*035WSG-F
TDC276*035WSG-F
TDC336*035WSG-F
TDC396*035WSG-F
TDC476*035WSG-F
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
F
G
G
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.0
1.3
1.6
1.9
2.3
2.8
3.4
4.2
5.0
6.2
7.6
9.2
10
10
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
DCL
(µA)
Spacing @ +25 ºC
Max. DF
@ +25 ºC
120 Hz
(%)
Cap
(µF)
Catalog
Part Number
Case
Lead
(S)
Max.
DCL
(µA)
Code Spacing @ +25 ºC
Max. DF
@ +25 ºC
120 Hz
(%)
50 WVdc; 65 Vdc Surge @ 85 ºC
33 WVdc; 40 Vdc Surge @ 125 ºC
TDC104*050NSE-F
TDC124*050NSE-F
TDC154*050NSE-F
TDC184*050NSE-F
TDC224*050NSE-F
TDC274*050NSE-F
TDC334*050NSE-F
TDC394*050NSE-F
TDC474*050NSE-F
TDC564*050NSE-F
TDC684*050NSE-F
TDC824*050NSE-F
TDC105*050NSE-F
TDC125*050NSE-F
TDC155*050NSE-F
TDC185*050NSF-F
TDC225*050NSF-F
TDC275*050NSF-F
TDC335*050NSF-F
TDC395*050NSF-F
TDC475*050NSF-F
TDC565*050NSF-F
TDC685*050WSG-F
TDC825*050WSG-F
TDC106*050WSG-F
TDC126*050WSG-F
TDC156*050WSG-F
TDC186*050WSG-F
TDC226*050WSG-F
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
G
G
G
G
G
G
G
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.1
1.3
1.6
1.9
2.2
2.7
3.3
4.0
4.8
6.0
7.2
8.8
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE reserves the right to substitute a tighter tolerance, higher voltage capacitor within the same case size.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type TDC
Solid Tantalum Capacitors
Part Numbering System
TDC
107
K
Tolerance
J
= ±5%
K
= ±10%
M
= ±20%
016
Voltage
006
= 6 Vdc
010
= 10 Vdc
016
= 16 Vdc
020
= 20 Vdc
025
= 25 Vdc
035
= 35 Vdc
050
= 50 Vdc
W
S
G
–F
Series Capacitance
TDC 394
= 0.39 µF
105
= 1.0 µF
225
= 2.2 µF
186
= 18 µF
107
= 100 µF
Lead
Lead Case
RoHS
Spacing Length Code
Compliant
N
= .125
S
= .187
E –F
= Compliant
W
= .250
T
= Tape
F Blank
= Not
& Reel
G
Compliant
Notice and Disclaimer:
All product drawings, descriptions, specifcations, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confrming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifcally and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specifc customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specifed by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
京公网安备 11010802033920号
EEWORLD
