133-3404-001

Description
RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size601KB,2 Pages
ManufacturerVertiv
Download Datasheet Parametric View All

133-3404-001 Online Shopping

Suppliers Part Number Price MOQ In stock
133-3404-001 - - View Buy Now

133-3404-001 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug

133-3404-001 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresAPPLICABLE CABLES: RG 316 DS; RG 188 DS, CAPTIVE CONTACT, INSERTION LOSS MAX AT 1 GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedGOLD (30)
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberMCX
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.37
Base Number Matches1

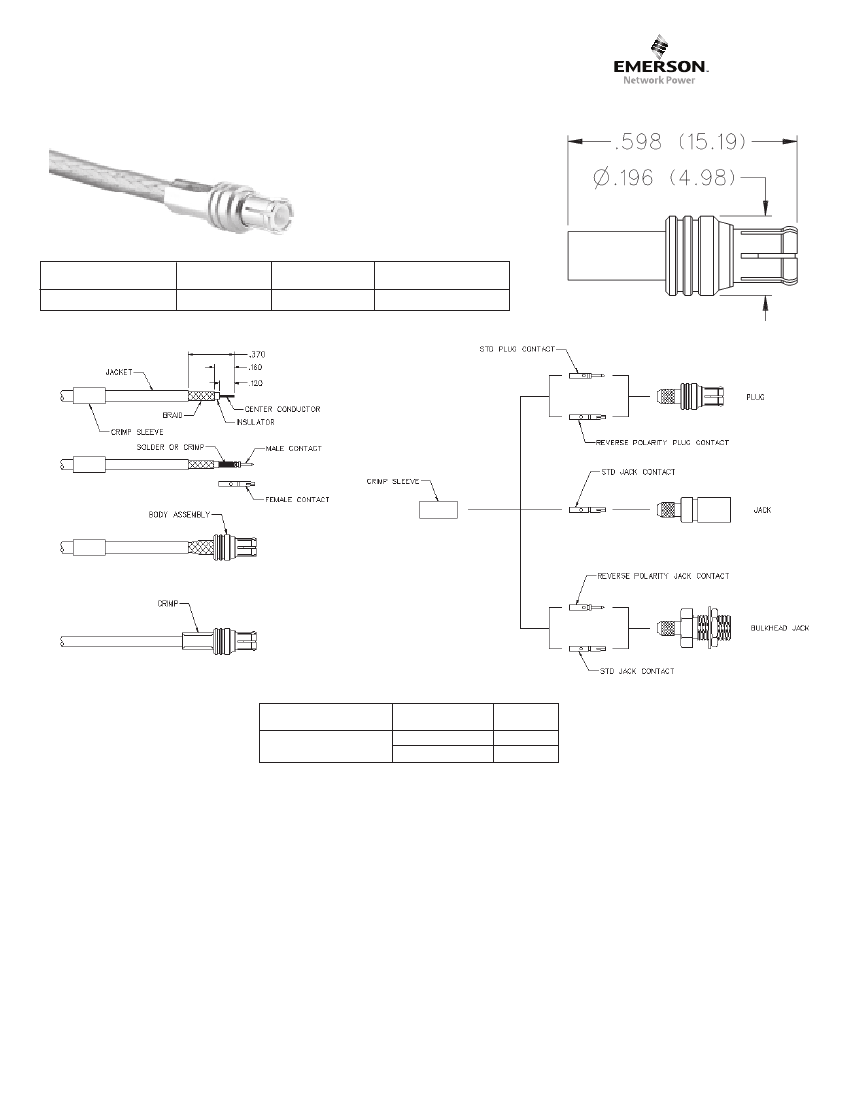

MCX 50 Ohm
Straight Crimp Type Plug -
Solder or Crimp Contact
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE TYPE
RG-188 DS, RG-316 DS
GOLD PLATED
133-3404-001
NICKEL PLATED
133-3404-006
CAPTIVATED CONTACT
YES
CABLE
GROUP
RG-316DS, 188DS
PART
NUMBER
133-3404-001
133-3404-006
CRIMP
HEX
.151 (3.83)
.151 (3.83)

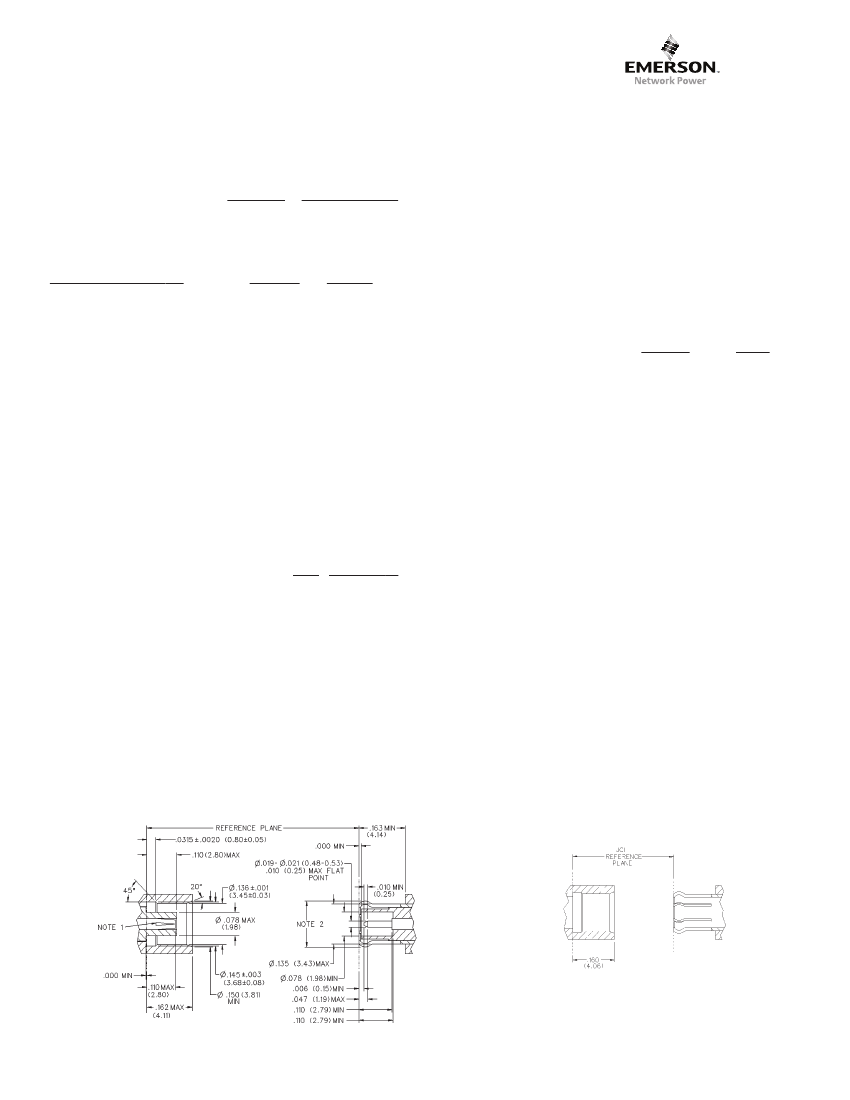

1.
Identify connector parts. (3 piece parts except bulkhead)
2.
Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center conductor if
contact is to be solder attached. Do not tin center conductor if contact is to be crimp attached. Slide
heat shrink (as applicable) and crimp sleeve onto jacket of cable.
3.
Assemble contact onto cable as shown.
Solder attachment.
Solder contact to center conductor through solder hole using .020 (0.51)
diameter solder. Use a minimum of solder for a good joint.
Crimp attachment.
Crimp contact to center conductor using Johnson Components
TM
hand tool
140-0000-952 and die set 140-0000-953. Crimp location should be centered between end of con-
tact and cross hole. Crimp attachment to solid center conductor cable is not recommended.
4.
Flair braid and slide body assembly over contact and under braid. Then seat body assembly firmly
onto contact. The cable may have to be held in a clamping fixture. Arrange braid uniformly around
crimp stem. Slide crimp sleeve forward and crimp using recommended crimp tool. Slide heat
shrink forward and shrink (as applicable).
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
