133-3404-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 133-3404-006

133-3404-006: DescriptionRF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerEF Johnson Technologies Inc.

Download Datasheet Parametric Compare View All

133-3404-006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	133-3404-006	-	-	View	Buy Now

133-3404-006 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug

133-3404-006 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	133
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.37
Base Number Matches	1

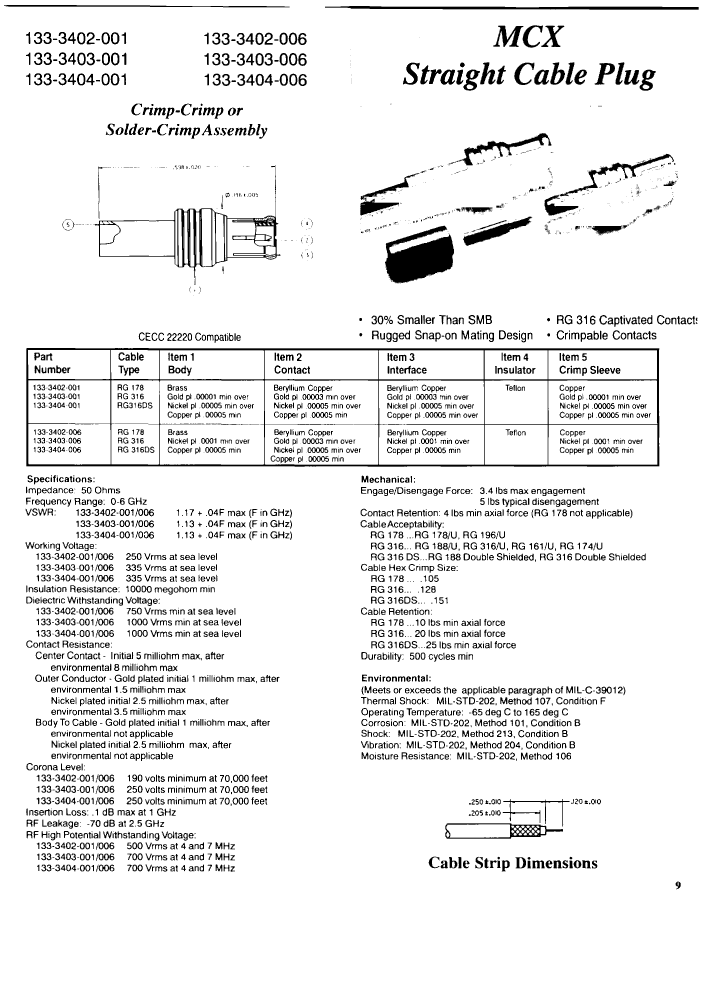

Preview

Download Datasheet

View All

133-3404-006 Related Products

	133-3404-006	133-3404-001	133-3402-001	133-3402-006	133-3403-001
Description	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown
Other features	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 178, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 178, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 316, INSERTION LOSS MAX AT 1GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	133	133	133	133	133
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.37	1.37	1.41	1.41	1.37
Base Number Matches	1	1	1	1	1
