HIGH CURRENT MULTILAYER CHIP BEAD

ACML-0603H

FEATURES:

• Multilayer monolithic structure yields high reliability

• Unique terminal electrode structure ensures permissable currents

• High impedence over a wide frequency range

Pb

RoHS

Compliant

APPLICATIONS:

• Audio & Video Equipment

• Automotive Electrical Equipment

• Communication Equipment

• OA Equipment

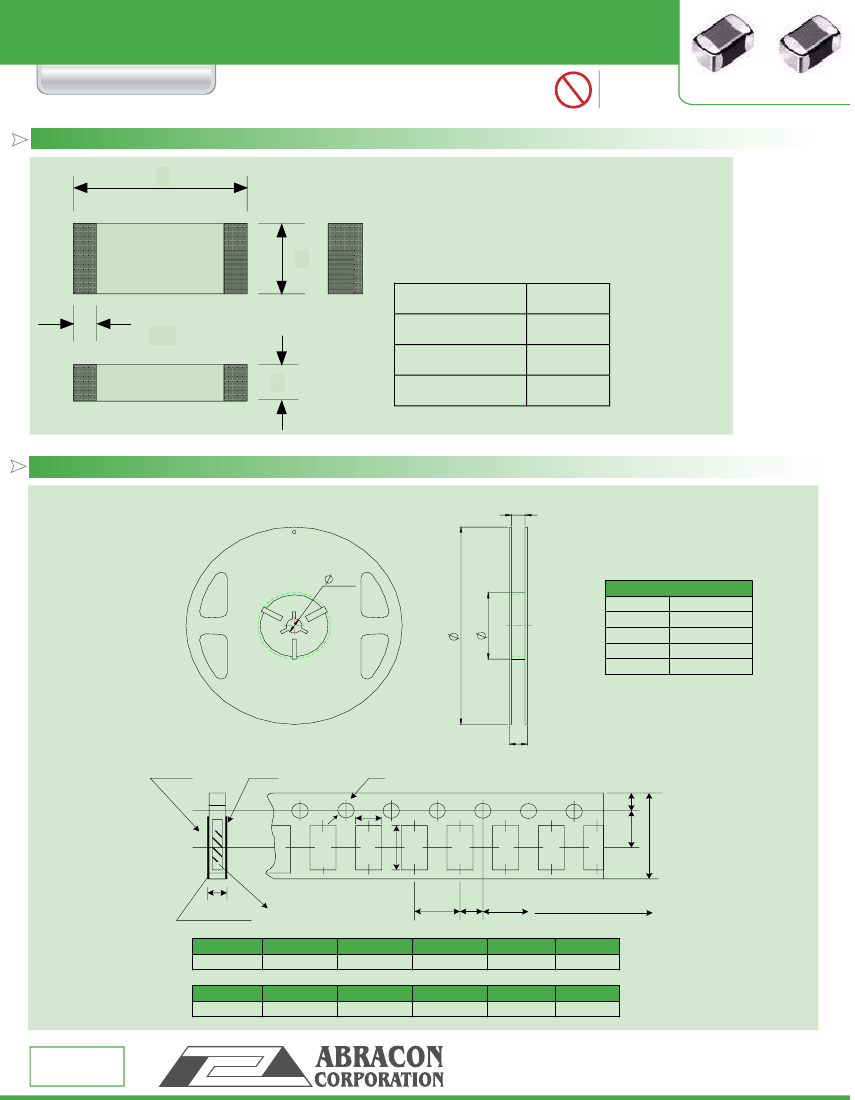

1.6 x 0.8 x 0.8mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

Part

Number

ACML-0603H-050

ACML-0603H-110

ACML-0603H-310

ACML-0603H-600

ACML-0603H-121

ACML-0603H-221

ACML-0603H-301

ACML-0603H-501

ACML-0603H-601

Z (Ω )

±25%

5

11

31

60

120

220

300

500

600

ACML-0603H-xxx Series

-55°C to + 125°C

Test Freq

MHz

100

Rdc

Ω

Max

0.03

0.05

0.08

0.1

0.15

0.2

0.28

0.35

Ir

mA Max

2000

1500

1200

1000

800

Ir: Rated current applied when the

chip surface temperature rise 20°C

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ACML - 0603H -

Impedance

Please refer to the tables

above.

-

Packaging

Tape and

T

Reel

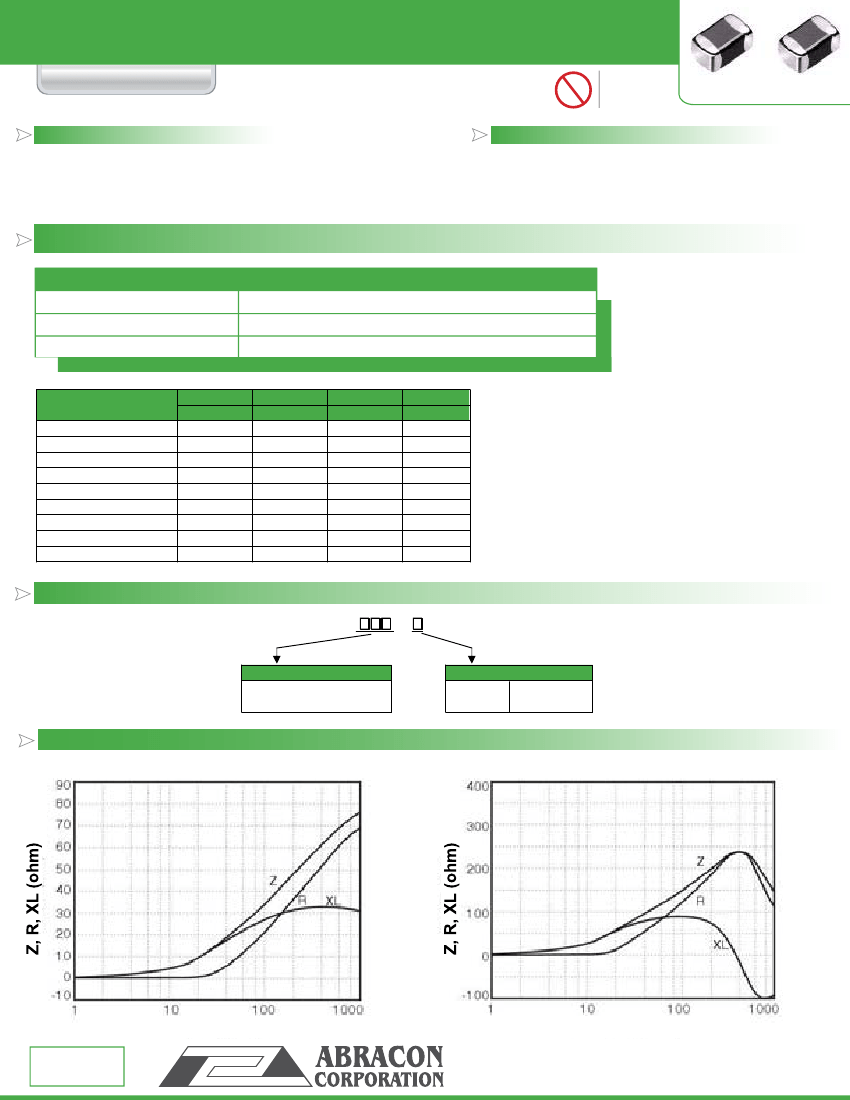

TYPICAL ELECTRICAL CHARACTERISTICS:

ACML-0603H-310

ACML-0603H-151

Frequency (MHz)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Frequency (MHz)

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 02.08.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
