Magnetics
Make Possible
Surface Mount
Common Mode Chokes
Model HM67 Series
Features
Operating Temperature Range -40°C to +125°C
Temperature Rise, Maximum 40°C
Dielectric Withstanding Voltage 300Vdc
RoHS Compliant
Schematics
Specification
Part Number
HM67-B5R0LF
HM67-B110LF
HM67-S250LF
HM67-B510LF
HM67-S510LF
HM67-B471LF
HM67-B102
(3)
LF
HM67-B222
(3)
LF
HM67-B472
(3)
LF
HM67-10510LF
Terminals
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
1-4, 2-3
Common Mode Inductance
@100 kHz - 0.1 V
(1-4 or 2-3) μH
5.0 ± 30%
11.0 ± 30%
25.0 ± 30%
51.0 ± 30%
51.0 ± 30%
470.0 ± 30%
1000.0 +50%, -30%
2200.0 +50%, -30%
4700.0 +50%, -30%
51.0 ± 30%
(4)
Inductance Leakage
@100 kHz - 0.1 Vrms
(1-4)
(1)
Typ. μH
0.08
0.10
1.60
1.90
2.80
0.80
0.16
0.16
0.24
2.40
(4)
Rated
Current
mA
1000
500
500
500
500
500
500
400
200
200
DCR
(2)
Max Ω
0.12
0.15
0.18
0.10
0.25
0.28
0.30
0.42
0.67
0.403
Marking
Code
A
B
C
D
E
F
G
H
I
0510
Figure
1
1
1
1
1
1
1
1
1
2
Notes:
(1) Leakage inductance is measured with pin 2 & 3 shorted.
(2) DC resistance is measured at 25°C.
(3) Maximum operating temperature is +85°C.
(4) Common mode inductance & leakage inductance of HM67-10510LF are measured at 100 kHz, 0.05V
Packaging
Embossed Tape and Reel
Diameter:
Standard:
Reel:
Figure 1 & 2
Capacity:
Figure 1
Figure 2
=
=
=
13” (330.2mm)
400 Units
2000 Units
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
Surface Mount
Common Mode Chokes
Model HM67 Series
Make Possible
Ordering Information
HM67 - B 110 LF TR13
Model Series
Winding Type:
B = Bifilar
S /10= Sector
Inductance Code:
First 2 digits are significant.
Last digit denotes the number of trailing zeros.
For values below 10μH, “R” denotes the decimal point.
TR - Tape & Reel Packing
13 - 13” reel
Lead Free

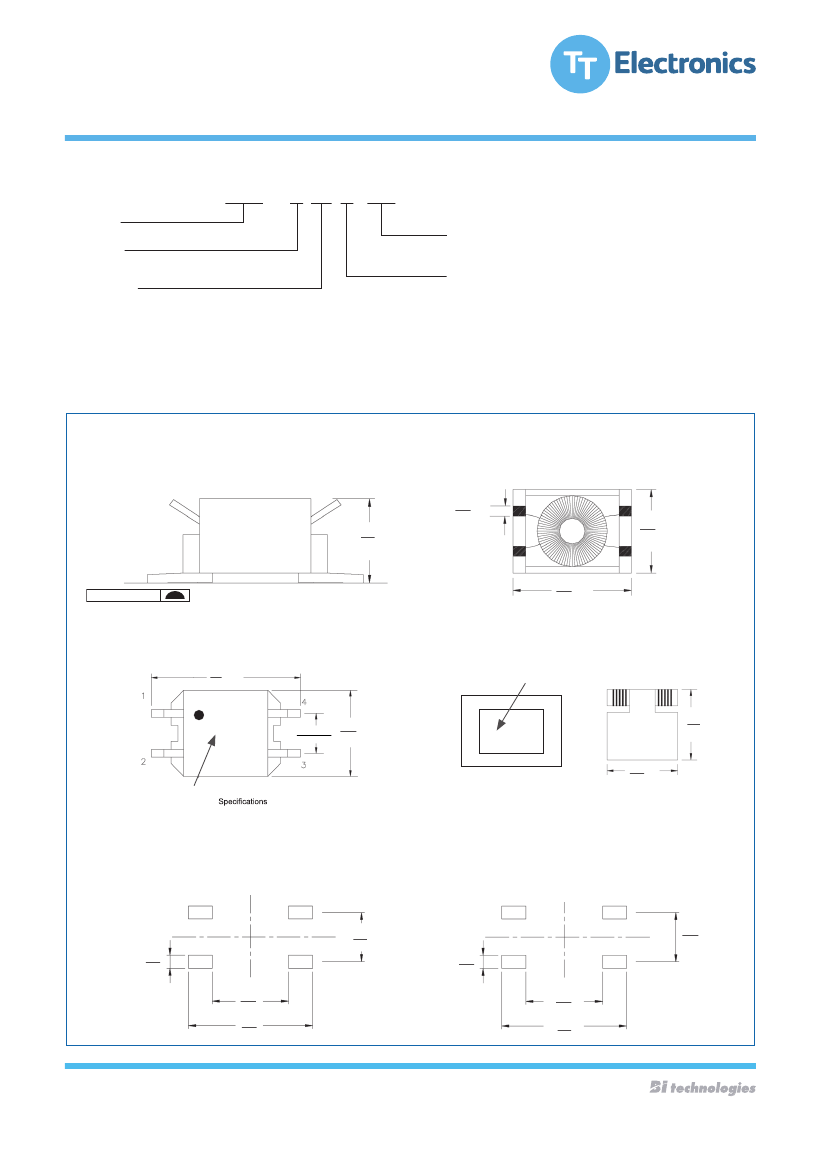

Outline Dimensions (Inch/mm)
Figure 1
Side View
.024
0.60 Typ.
.155
3.9 Max.
Figure 2
Bottom View
.138
3.50 Max.
.004/0.10 Max.
Seating Plane
.197
5.00 Max.
Top View
.37
Max.
9.4
Top View
Marking Location
Side View
1
4
.10 ± .004
.236 Max.
6.0
2.5 ± 0.1
2
3
.140 Max.
3.55
.138
3.5
Max.
Marking
(Refer to
Table)
Recommended Solder Pad Layout
Recommended Solder Pad Layout
.098
2.5
.047
1.2
.177
4.5
.40
10.2
.067
1.7
.087
2.2
.232
5.9
.090
2.3
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
Surface Mount
Common Mode Chokes
Model HM67 Series
Make Possible
Electrical Characteristics @ 25°C

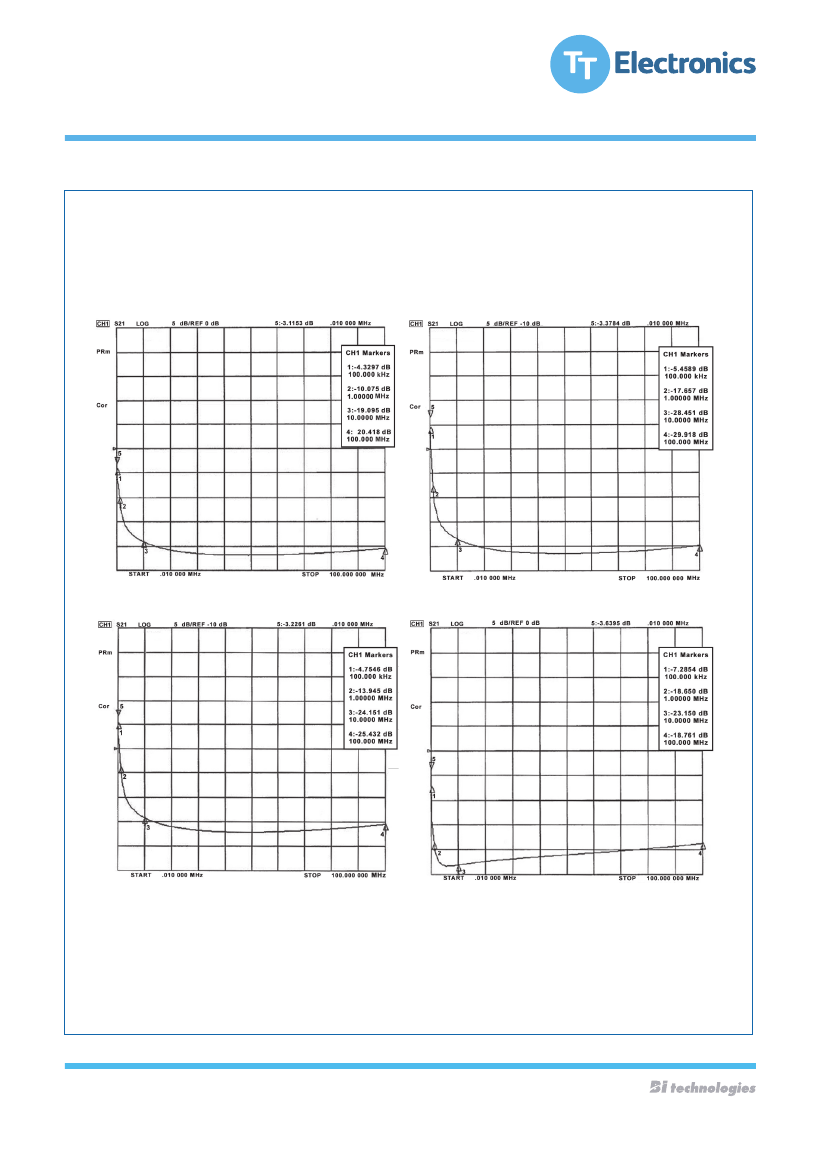

(A) Attenuation vs. Frequency Graphs
HM67-B5R0LF
HM67-S250LF
HM67-B110LF
HM67-B510LF
HM67-B110
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
Surface Mount
Common Mode Chokes
Model HM67 Series
Make Possible

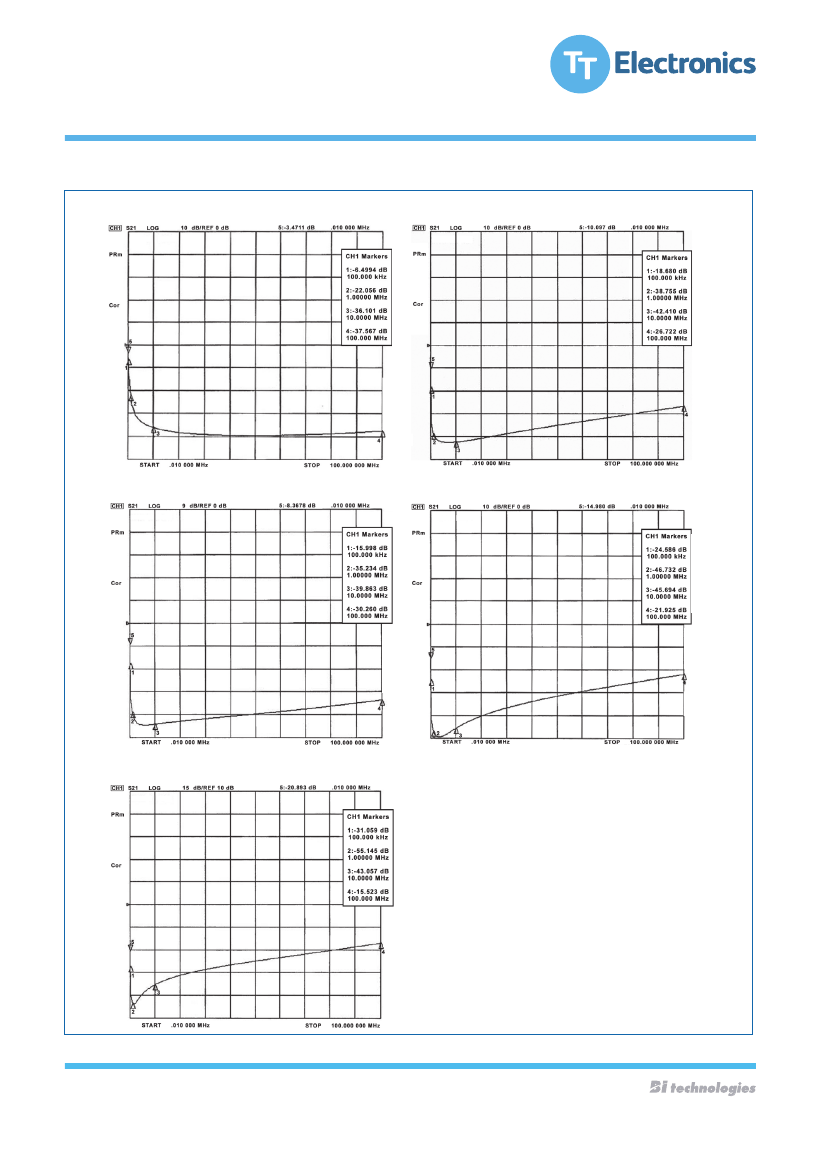

Electrical Characteristics @ 25°C (Continued)
HM67-S510LF
HM67-B102LF
HM67-B471LF
HM67-B222LF
HM67-B222
HM67-B472LF
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
Surface Mount
Common Mode Chokes
Model HM67 Series
Make Possible
Electrical Characteristics @ 25°C (Continued)

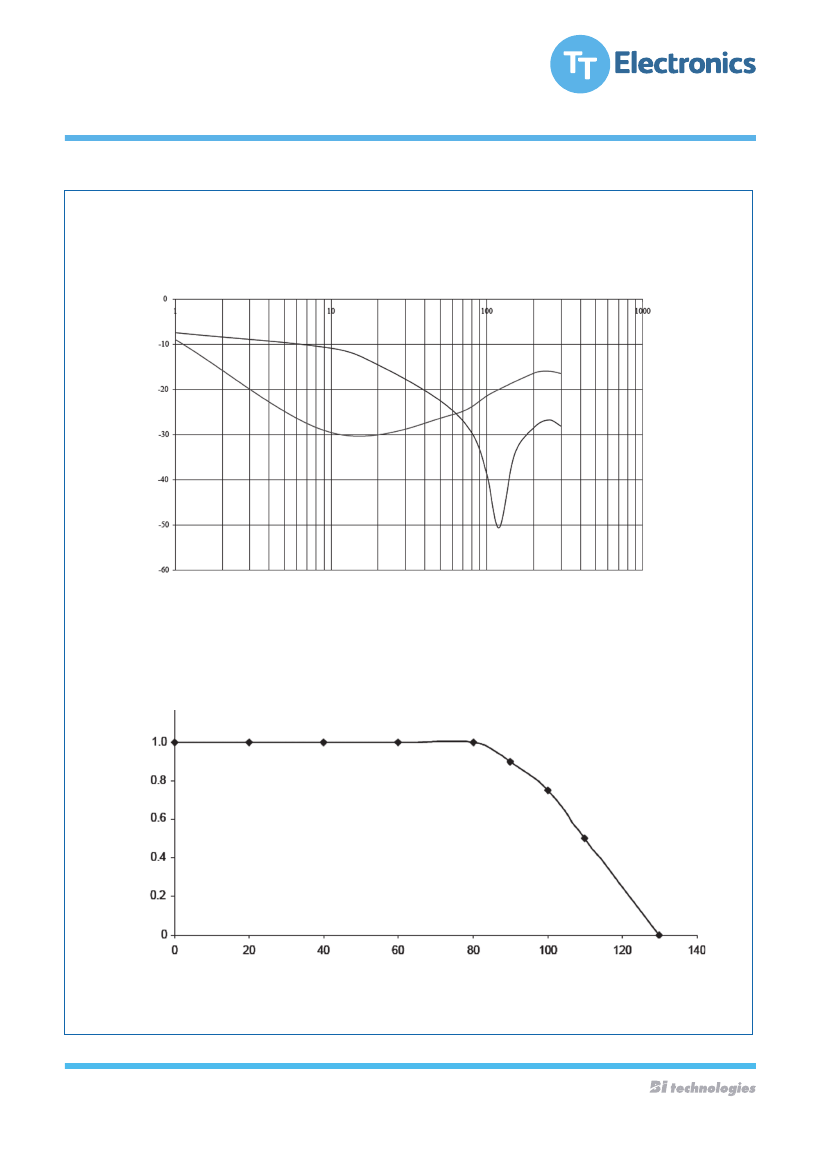

(B) Insertion Loss vs. Frequency Graph
HM67-10510LF
Common Mode
Insertion Loss (dB)
Common Mode
Differential Mode
Differential Mode
Frequency (MH
z
)
(C) Current Derating Curve
HM67-10510LF
I
o/p
/
I
Rated
Ambient Temperature (
0
C)
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsmagnetics.com
© TT Electronics plc
Rev. 01
