EEC-F5R5U474N: DescriptionSupercapacitors / Ultracapacitors FACTORY NOT ACCEPTING ORDERS; CategoryPassive components; File Size46KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

EEC-F5R5U474N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EEC-F5R5U474N	-	-	View	Buy Now

EEC-F5R5U474N Overview

Supercapacitors / Ultracapacitors FACTORY NOT ACCEPTING ORDERS

EEC-F5R5U474N Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Supercapacitors / Ultracapacitors
RoHS	Details
Termination Style	Radial
Capacitance	470000 uF
Voltage Rating DC	5.5 VDC
Tolerance	- 20 %, + 80 %
Operating Temperature Range	- 40 C to + 70 C
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 70 C
Length	8 mm
Diameter	21.5 mm
Orientation	Horizontal
Product	Supercapacitors
Voltage Rating	5.5 V
Capacitance - uF	470000 uF
Lead Spacing	5 mm
Factory Pack Quantity	100
Unit Weight	0.278664 oz

Preview

Download Datasheet

View All

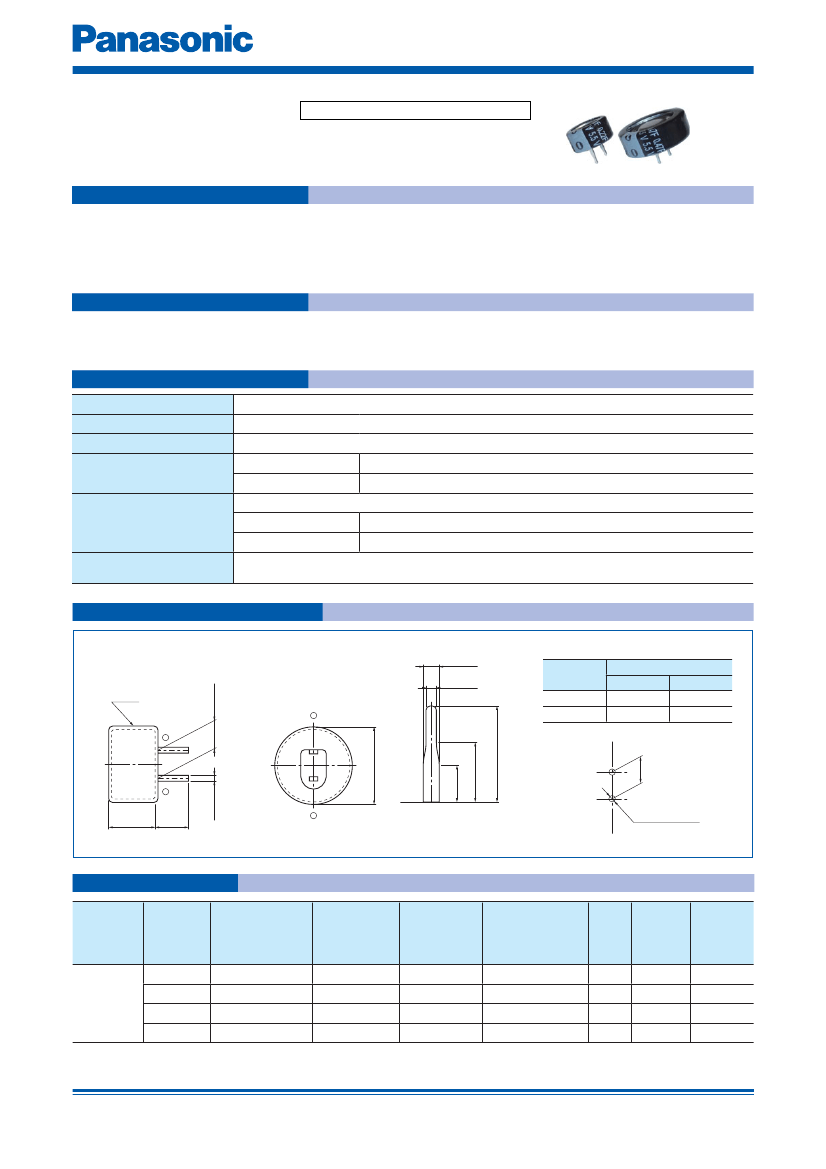

Electric Double Layer Capacitors (Gold Capacitor)

Stacked Coin Type

Series :

Not recommended for new design

NF

Low temperature assured product

Features

●

Endurance

: +70 °C 1000 h

●

Category temperature range : –40 °C to +70 °C

●

RoHS compliant

Recommended applications

●

Memory

back-up for video and audio equipment, cameras, telephones, printers, data terminals,

rice cookers and intelligent remote controls.

Specifications

Category temp. range

Maximum operating voltage

Nominal cap.range

Characteristics at

low temperature

Endurance

Internal resistance

–40 °C to +70 °C

5.5 V.DC

0.22 F to 1.5 F

Capacitance change ±30 % of initial measured value at +20 °C (at –40 °C)

<

7 times of initial measured value at +20 °C (at –40 °C)

After 1000 hours application of 5.5 V.DC at +70 °C, the capacitor shall meet the following limits.

Capacitance change ±30 % of initial measured value

Internal resistance

<

4 times of initial speciﬁed value

After 1000 hours storage at +70 °C without load, the capacitor shall meet the speciﬁed

limits for Endurance.

Shelf life

Dimensions in mm(not to scale)

1.2±0.1

Sleeve

5.0±0.3

0.8±0.1

–

Case

code

A

B

6±1

(Unit : mm)

Size

D

L

13.5

7.5

21.5

8.0

–

0D

max.

3.5±0.5

0.5±0.1

2.5±0.5

+

L max.

6±1

+

Characteristics list

Maximum

operating

voltage

(V.DC)

Capacitance

(F)

0.22

5.5

0.47

1.0

1.5

Capacitance

tolerance

(F)

0.176 to 0.396

0.376 to 1.41

0.80

1.20

to 1.80

to 2.70

Internal resistance

Recommended

(Initial speciﬁed value)

discharge current

(Ω) at 1 kHz

<

75

<

30

<

30

<

30

Min.

Mass

Case

packaging

Parts number

(Reference value)

code

q’ty

(g)

(pcs)

300 µA or less

EECF5R5U224N

A

2.6

200

1 mA or less

EECF5R5U474N

EECF5R5U105N

EECF5R5U155N

B

7.9

8.1

100

Note : Do not use reﬂow soldering. (IR, Atmosphere heating methods, etc.)

Please refer to the page of “Application guidelines”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01

5.0

01.1±0.05

(Recommended)

Jan. 2016
