36KR1KLF: DescriptionTrimmer Resistors - Through Hole 1K 6MM ST SIDE ADJ; CategoryPassive components; File Size467KB，3 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric View All

36KR1KLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36KR1KLF	-	-	View	Buy Now

36KR1KLF Overview

Trimmer Resistors - Through Hole 1K 6MM ST SIDE ADJ

36KR1KLF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TT Electronics
Product Category	Trimmer Resistors - Through Hole
RoHS	Details
Termination Style	Radial
Product	Single Turn
Number of Turns	1
Resistance	1 kOhms
Adjustment	Side Crossed
Power Rating	300 mW
Voltage Rating	100 V
Tolerance	20 %
Temperature Coefficient	250 PPM / C
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 100 C
Packaging	Bulk
Height	7.7 mm
Length	6.8 mm
Mounting	Through Hole
Operating Temperature Range	- 30 C to + 100 C
Type	Open Type Trimmer
Width	6.2 mm
Element Type	Cermet
Factory Pack Quantity	1000
Taper	Linear

Preview

Download Datasheet

View All

Open Type Trimmer

Model 36

Features:



6 mm single turn



Open frame



Cermet



RoHS compliant

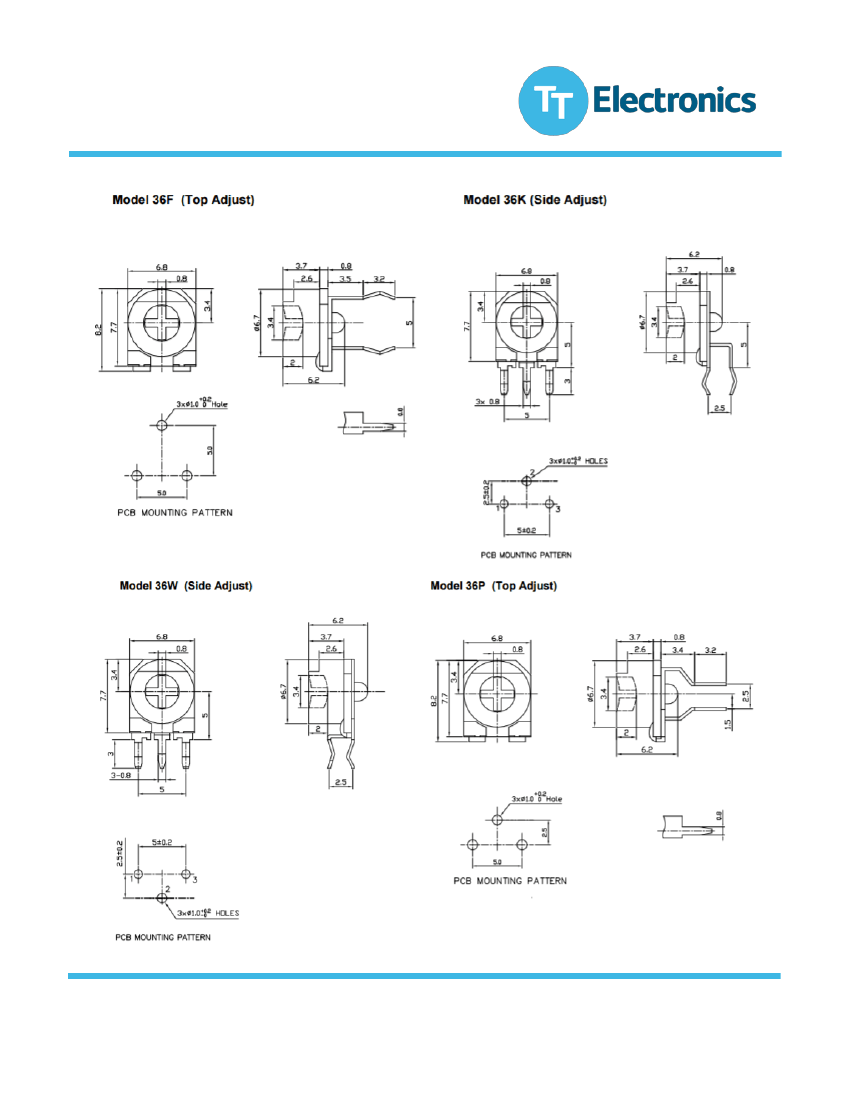

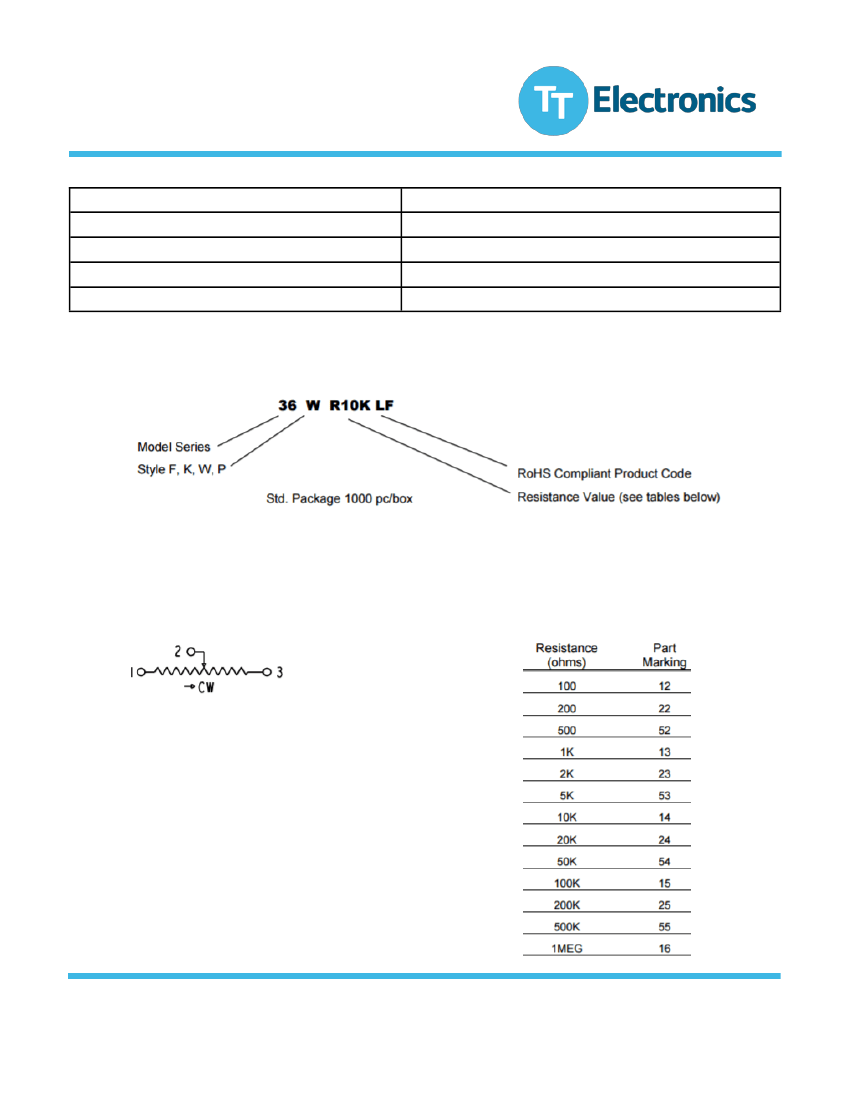

Model Styles Available

Top Adjust

Side Adjust

Top Adjust (2.5 mm pin spacing)

36F

36K

36W

36P

Electrical

Resistance Range

Standard Resistance Tolerance

Input Voltage, Maximum

Power rating, Watts

End Resistance, Maximum

Actual Electrical Travel

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation

Temperature Coefficient of Resistance

100 to 1 MEG Ohms

± 20%

100 V

0.3 @ 70°C

<500 ohms: 10 Ohms Max; > 500 ohms: 2% Max.

215° ±5°

100 Megohms

Essentially infinite

5% Max.

±250 ppm/°C

Mechanical

Mechanical Travel

Rotational Torque

Weight, Approx.

Wiper Position

Mechanical Stop Strength

240° ±20°

30 to 300 gf.cm

0.01 oz.

Approx. 50%

0.5K gf.cm Min.

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue C 04/2017

Page 1
