Mica Capacitors 3300pF 500V +/-5%

CD18FD332JO3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Mica Capacitors
RoHS	N
Termination Style	Radial
Capacitance	3300 pF
Voltage Rating	500 V
Tolerance	5 %
Length	17.3 mm
Width	7.4 mm
Height	14 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Packaging	Bulk
Operating Temperature Range	- 55 C to + 150 C
Product	Mica High Frequency Capacitors
Capacitance - nF	3.3 nF
Capacitance - uF	0.0033 uF
Dissipation Factor DF	0.05
Factory Pack Quantity	50

Preview

Download Datasheet

View All

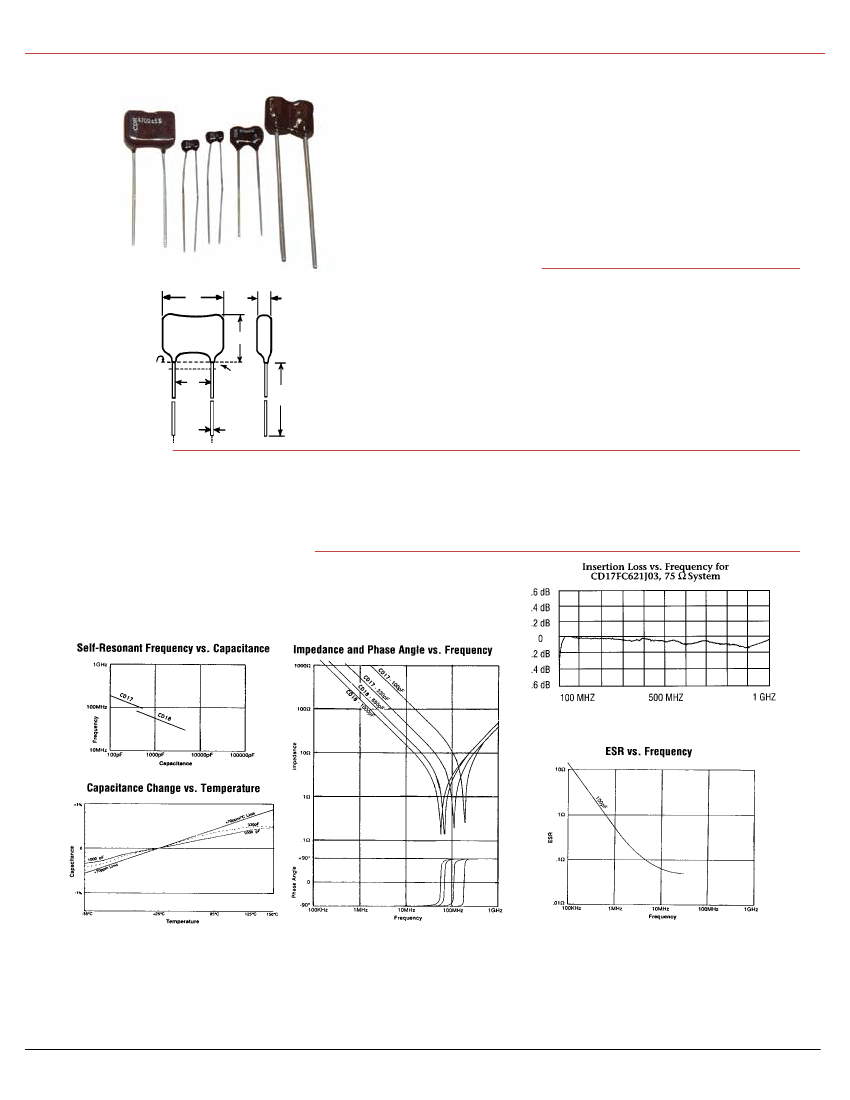

High-Frequency Capacitors for CATV and RF Applications

Types CD17, CD18 & CDV18,

High-Frequency, Mica Capacitors

Types CD17 and CD18 assure controlled, resonance-

free performance through 1 GHz. Insertion loss

data is typically flat within ±0.1 dB over the entire

frequency range, and is specified to be flat within

±0.2 dB. Interchangeable with the most popular,

common mica capacitors, Type CD17 is available in

the same case sizes and lead spacing as CD15; CD18,

in the same case sizes and lead spacing as CD19,

and CDV18, in the same as CDV19.

Highlights

• Shockproof and delamination free

• Near zero capacitance change with (t), (V) and (f )

• Very high Q at UHF/VHF frequencies

• 0.0005 typical dissipation factor

• 100,000 V/μs dV/dt capability minimum

• Low, notch-free impedance to beyond 1 GHz

• Ultra low ESR for cool operation

100 Vdc to 1,000 Vdc

1 pF to 5,100 pF

±1⁄2 pF (D), ±1 pF (C), ±1⁄2% (E), ±1% (F), ±2% (G), ±5% (J)

–55 °C to +150 °C

H Max.

Measured at

point where

phenolic cone

becomes a

cylinder

.031.

.078. Max.

no solder

Min.

Specifications

Voltage Range:

Capacitance Range:

Capacitance Tolerance:

Temperature Range:

Typical Perfomance Curves

RoHS-5 Compliant

Has more than 1000 ppm lead in some homogenous material but otherwise complies with the EU Directive 2002/95/EC

requirement restricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBromi-

nated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).
