SBD MODULE
FEATURES
160A/40V
PQ160QH04N

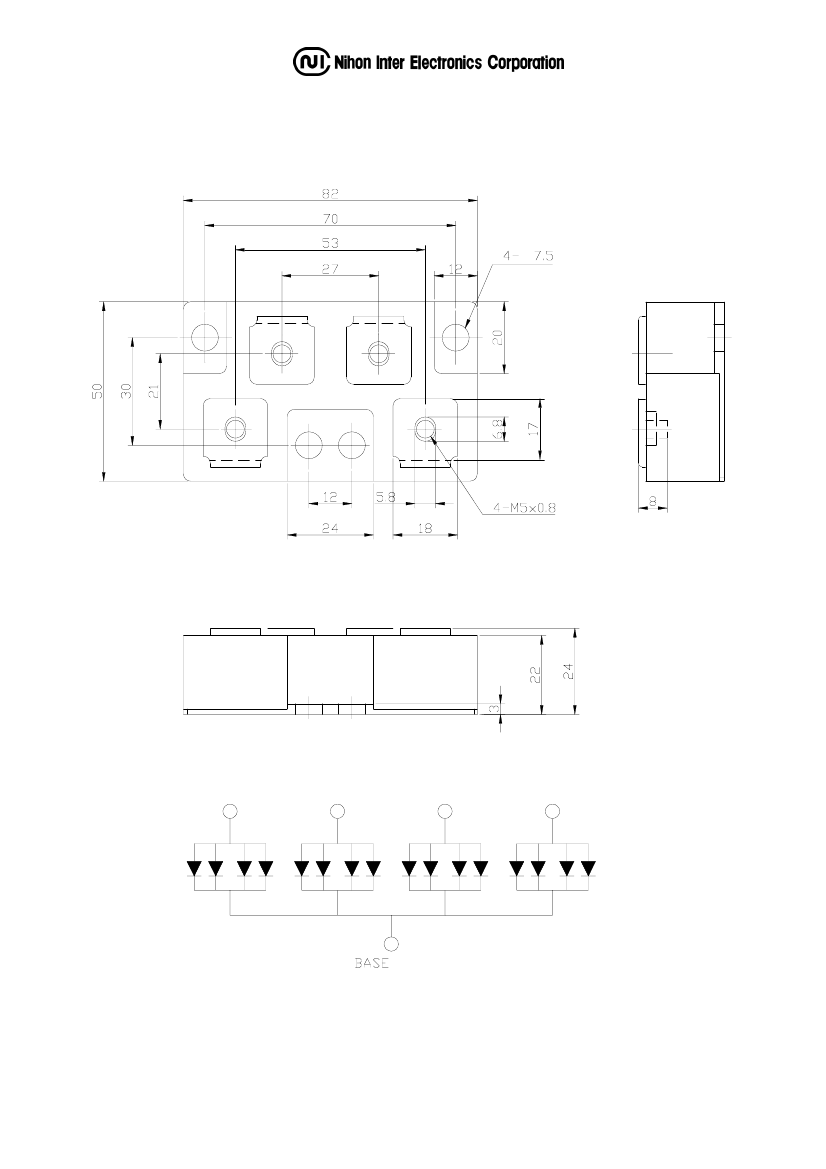

OUTLINE DRAWING
φ
* Four-Arms, Cathode Common to Base Plate
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* UL Recognized, File No. E187184
TYPICAL APPLICATIONS
* High Frequency Rectification
Maximum Ratings
Voltage Rating
Repetitive Peak Reverse Voltage
Repetitive Peak Surge Reverse Voltage
Symbol
V
RRM
V
RRSM
Approx Net Weight:250g
PQ160QH04N
40
45 (Pulse Width
≤ 1 µsec,
Duty
≤1/50)
Unit
V
V
Electrical Rating
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
Ftor
Condition
Rating
160
226
2800
A
A
A
50Hz Half Sine Wave, per Arm
Tc=Tl=102°C
(Tl=Terminal Temperature)
Per Arm
50 Hz Half Sine Wave,1cycle
Non-repetitive, per Arm
Case mounting(recommended)
Terminal Screw(recommended)
-40 to +150
°C
-40 to +125
°C
3.0
N
•
m
2.6
Electrical
•
Thermal Characteristics
Characteristics
Peak Forward Voltage
Peak Reverse Current
Symbol
Test Conditions
Max. Unit
0.58
1000
0.34
0.03
V
mA
°C/W
V
FM
I
FM
= 120A, Tj=25°C, per Arm
I
RM
V
RM
= V
RRM,
Tj= 150°C, per Arm
Rth(j-c) Junction to Case, per Arm
Thermal Resistance
Base Plate to Heat Sink with Thermal
Rth(c-f)
Compound
We recommend the use of the electrical conductive grease.
In case of parallel use, consider in balance of the current of each arms.
Terminal Temperature must be less than Tc. (ex. Cooled by air blow)
