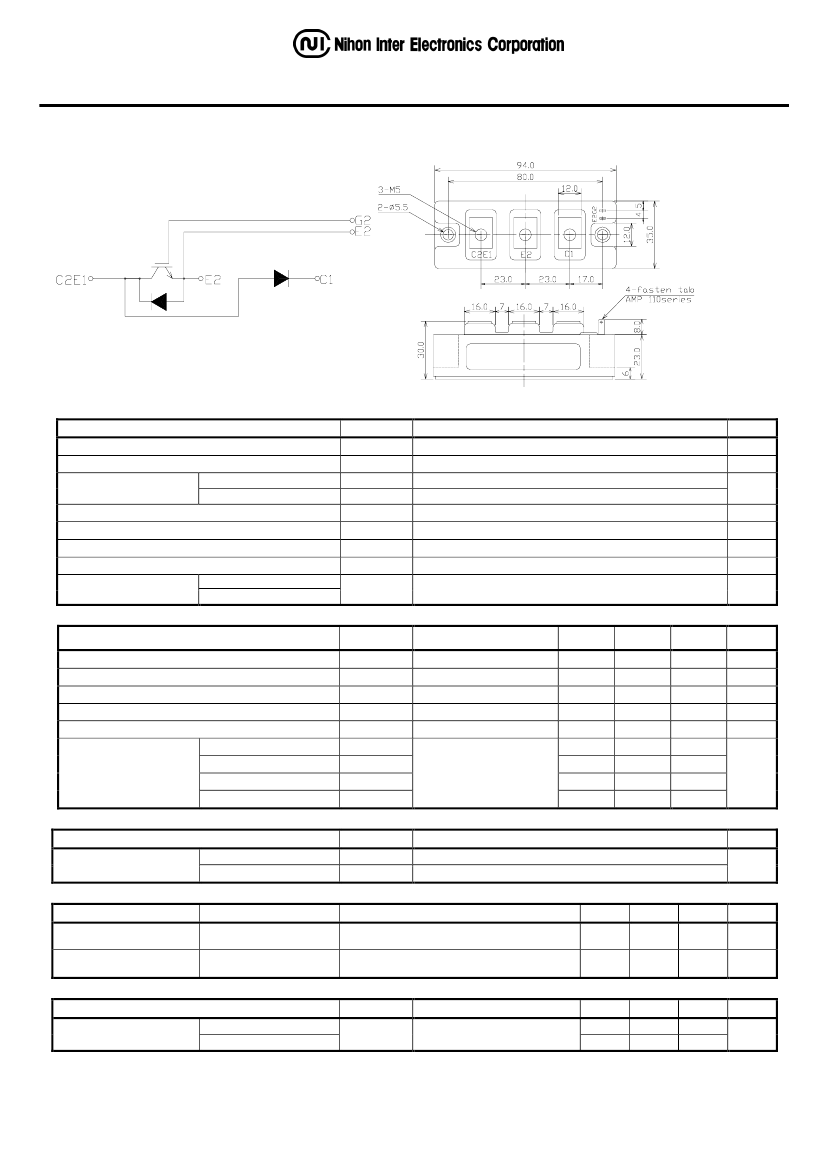

IGBT
MODULE
Chopper 50A 600V
CIRCUIT
PRHMB50A6A
OUTLINE DRAWING
2- fasten- tab No 110
Dimension(mm)
Approximate Weight : 220g
MAXMUM RATINGS
(Tc=25°C)
Item
Collector-Emitter Voltage
Gate - Emitter Voltage
Collector Current
DC
1 ms
Symbol
V
CES
V
GES
I
C
I
C
P
C
T
j
T
stg
V
ISO
F
TOR
PRHMB50A6A
600
+/ - 20
50
100
250
-40 to +150
-40 to +125
2500
2.04
Unit
V
V
A
W
°C
°C
V
N•m
Typ.
-
-
2.0
-
5000
0.15
0.25
0.2
0.45
Collector Power Dissipation
Junction Temperature Range
Storage Temperature Range
Isolation Voltage Terminal to Base AC, 1 min.)
Mounting Torque
Module Base to Heat sink
Bus Bar to Main Terminals
ELECTRICAL CHARACTERISTICS
(Tc=25°C)
Characteristic
Collector-Emitter Cut-Off Current
Gate-Emitter Leakage Current
Collector-Emitter Saturation Voltage
Gate-Emitter Threshold Voltage
Input Capacitance
Rise Time
Switching Time
Turn-on Time
Fall Time
Turn-off Time
Symbol
I
CES
I
GES
V
CE(sat)
V
GE(th)
C ies
½
r
½
on
½
f
½
off
Test Condition
V
CE
=600V,V
GE
=0V
V
GE
=+/- 20V,V
CE
=0V
I
C
=50A,V
GE
=15V
V
CE
=5V,I
C
=50mA
V
CE
=10V,V
GE
=0V,f=1MHz
V
CC
= 300V
R
L
= 6 ohm
R
G
= 15 ohm
V
GE
= +/- 15V
Min.
-
-
-
4.0
-
−
−
−
−
Max.
1.0
1.0
2.5
8.0
-
0.3
0.4
0.35
0.7
Unit
mA
µA
V
V
pF
µs
FREE WHEELING DIODES RATINGS & CHARACTERISTICS
(Tc=25°C)
Item
Symbol
Rated Value
Forward Current
DC
1 ms
I
F
I
FM
50
100
Unit
A
Characteristic
Peak Forward Voltage
Reverse Recovery Time
Symbol
V
F
t
rr
I
F
=50A,V
GE
=0V
Test Condition
I
F
=50A,V
GE
=-10V,di/dt=50A/
µs
Min.
-
-
Typ.
1.9
0.15
Max.
2.4
0.25
Unit
V
µs
Unit
°C/W
THERMAL CHARACTERISTICS
Characteristic
Thermal Impedance
IGBT
DIODE
Symbol
R
th(j-c)
Test Condition
Junction to Case
Min.
-
-
Typ.
-
-
Max.
0.5
1.0
IGBT
MODULE Chopper 50A 600V

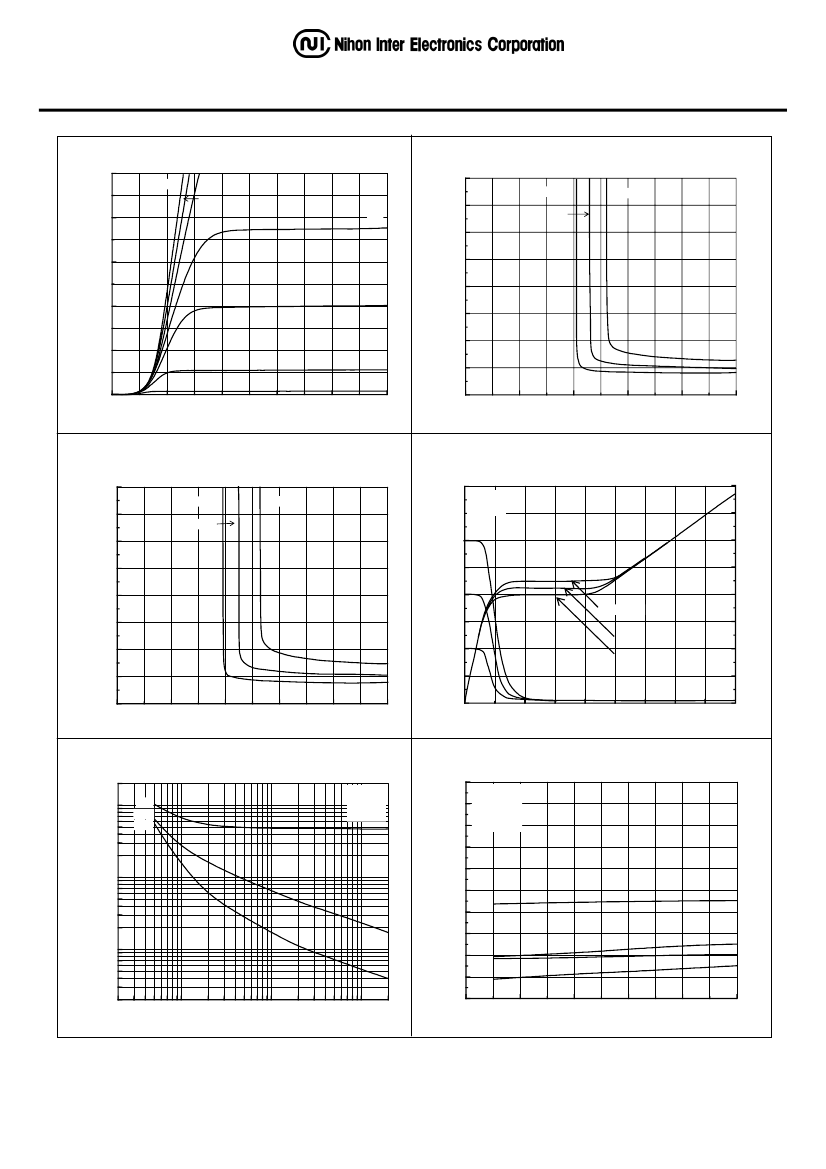

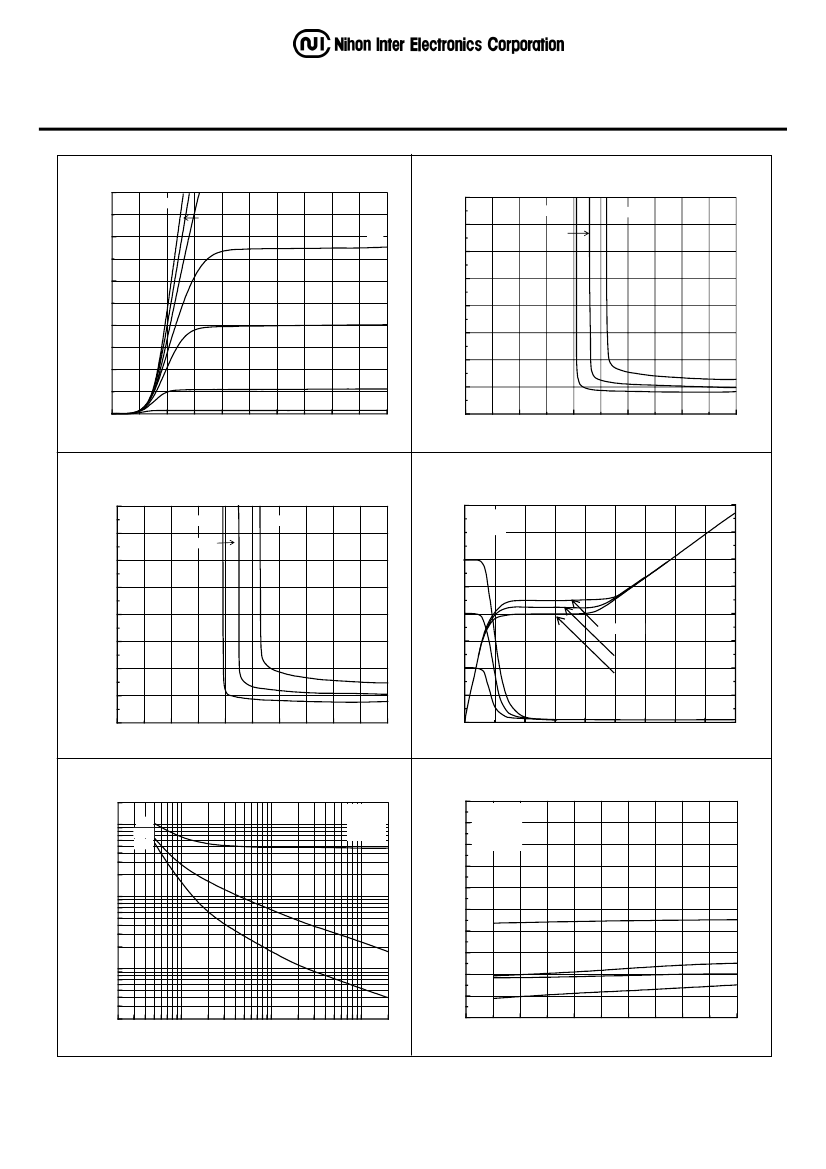

Fig.1- Output Characteristics
(Typical)
100
PRHMB50A6A
Fig.2- Collector to Emitter On Voltage
vs. Gate to Emitter Voltage
(Typical)
16
T
C
=25℃
V
GE
=20V
12V
15V
T
C
=25℃
I
C
=20A
100A
Collector to Emitter Voltage V
CE
(V)
14
80
10V
50A
12
10
8
6
4
2
0
Collector Current I
C
(A)
60
9V
40
20
8V
7V
0
0
2
4
6
8
10
0
4
8
12
16
20
Collector to Emitter Voltage V
CE
(V)
Gate to Emitter Voltage V
GE
(V)
Fig.3- Collector to Emitter On Voltage
vs. Gate to Emitter Voltage
(Typical)
16
Fig.4- Gate Charge vs. Collector to Emitter Voltage
(Typical)
400
350
16
T
C
=125℃
I
C
=20A
100A
Collector to Emitter Voltage V
CE
(V)
14
R
L
=5Ω
T
C
=25℃
14
Collector to Emitter Voltage V
CE
(V)
50A
12
10
8
6
4
2
0
Gate to Emitter Voltage V
GE
(V)
300
250
200
12
10
8
V
CE
=300V
150
6
200V
100
50
0
100V
4
2
0
0
4
8
12
16
20
0
50
100
150
200
Gate to Emitter Voltage V
GE
(V)
Total Gate Charge Qg
(nC)
Fig.5- Capacitance vs. Collector to Emitter Voltage
(Typical)
20000
10000
5000
Fig.6- Collector Current vs. Switching Time
(Typical)
1
0.9
0.8
Cies
Coes
Cres
V
GE
=0V
f=1MH
Z
T
C
=25℃
V
CC
=300V
R
G
=15Ω
V
GE
=±15V
T
C
=25℃
Switching Time t
(μs)
Capacitance C
(pF)
2000
1000
500
200
100
50
20
0.7
0.6
0.5
0.4
0.3
0.2
0.1
toff
ton
tf
tr
0
20
40
60
80
100
0.2
0.5
1
2
5
10
20
50
100
200
0
Collector to Emitter Voltage V
CE
(V)
Collector Current I
C
(A)
IGBT
MODULE Chopper 50A 600V
Fig.1- Output Characteristics
(Typical)
100
PRHMB50A6A
Fig.2- Collector to Emitter On Voltage
vs. Gate to Emitter Voltage
(Typical)
16
T
C
=25℃
V
GE
=20V
12V
15V
T
C
=25℃
I
C
=20A
100A
Collector to Emitter Voltage V
CE
(V)
14
80
10V
50A
12
10
8
6
4
2
0
Collector Current I
C
(A)
60
9V
40
20
8V
7V
0
0
2
4
6
8
10
0
4
8
12
16
20
Collector to Emitter Voltage V
CE
(V)
Gate to Emitter Voltage V
GE
(V)
Fig.3- Collector to Emitter On Voltage
vs. Gate to Emitter Voltage
(Typical)
16
Fig.4- Gate Charge vs. Collector to Emitter Voltage
(Typical)
400
350
16
T
C
=125℃
I
C
=20A
100A
Collector to Emitter Voltage V
CE
(V)
14
R
L
=5Ω
T
C
=25℃
14
Collector to Emitter Voltage V
CE
(V)
50A
12
10
8
6
4
2
0
Gate to Emitter Voltage V
GE
(V)
300
250
200
12
10
8
V
CE
=300V
150
6
200V
100
50
0
100V
4
2
0
0
4
8
12
16
20
0
50
100
150
200
Gate to Emitter Voltage V
GE
(V)
Total Gate Charge Qg
(nC)
Fig.5- Capacitance vs. Collector to Emitter Voltage
(Typical)
20000
10000
5000
1
Fig.6- Collector Current vs. Switching Time
(Typical)
0.9
0.8
Cies
Coes
Cres
V
GE
=0V
f=1MH
Z
T
C
=25℃
V
CC
=300V
R
G
=15Ω
V
GE
=±15V
T
C
=25℃
Switching Time t
(μs)
Capacitance C
(pF)
2000
1000
500
200
100
50
20
0.7
0.6
0.5
0.4
0.3
0.2
0.1
toff
ton
tf
tr
0
20
40
60
80
100
0.2
0.5
1
2
5
10
20
50
100
200
0
Collector to Emitter Voltage V
CE
(V)
Collector Current I
C
(A)
