DIODE MODULE
FEATURES
* Isolated Base
* 3 Phase Bridge Circuit
* Designed for Power Circuit Board
* High Surge Capability
* UL Recognized, File No. E187184
30A/800V
PT30S8

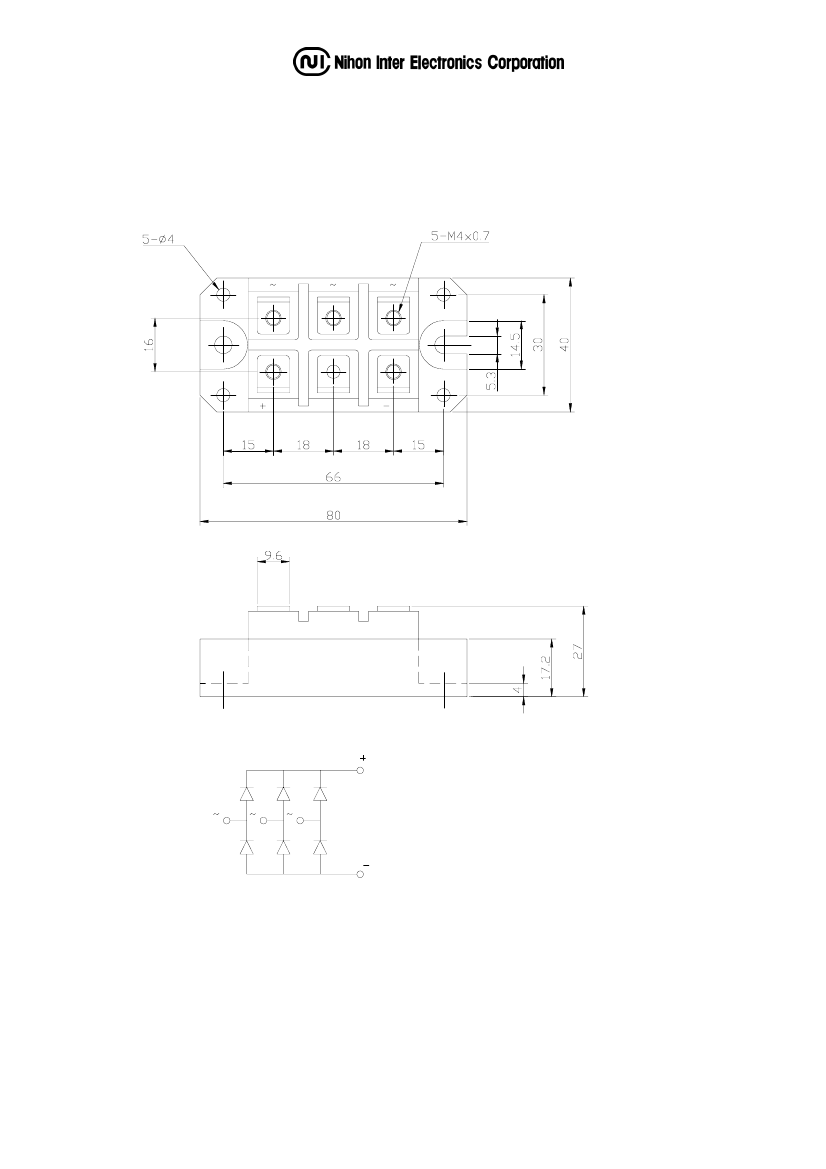

OUTLINE DRAWING
TYPICAL APPLICATIONS
* Rectified For General Use
Maximum Ratings
Parameter
Repetitive Peak Reverse Voltage *1
Non Repetitive Peak Reverse Voltage *1
Approx Net Weight:105g
Symbol
V
RRM
V
RSM
Type / Grade
PT30S8
800
1000
Unit
V
Max Rated
Value
Parameter
Average Rectified Output Current
Surge Forward Current *1
I Squared t *1
Operating JunctionTemperature Range
Storage Temperature Range
Isoration Voltage
Case mounting
Mounting torque
Terminals
I
O(AV)
I
FSM
I
2
t
Tjw
Tstg
Viso
Ftor
Conditions
3-Phase Full Wave Rectified
Tc=123°C
50 Hz Half Sine Wave,1Pulse
Non-repetitive
2msec to 10msec
Unit
A
A
30
450
1000
A
2
s
-40 to +150
°C
-40 to +125
°C
Base Plate to Terminals, AC1min
2000
V
Greased
M5 Screw
2.4 to 2.8
N
•
m
M4
1.2 to 1.6

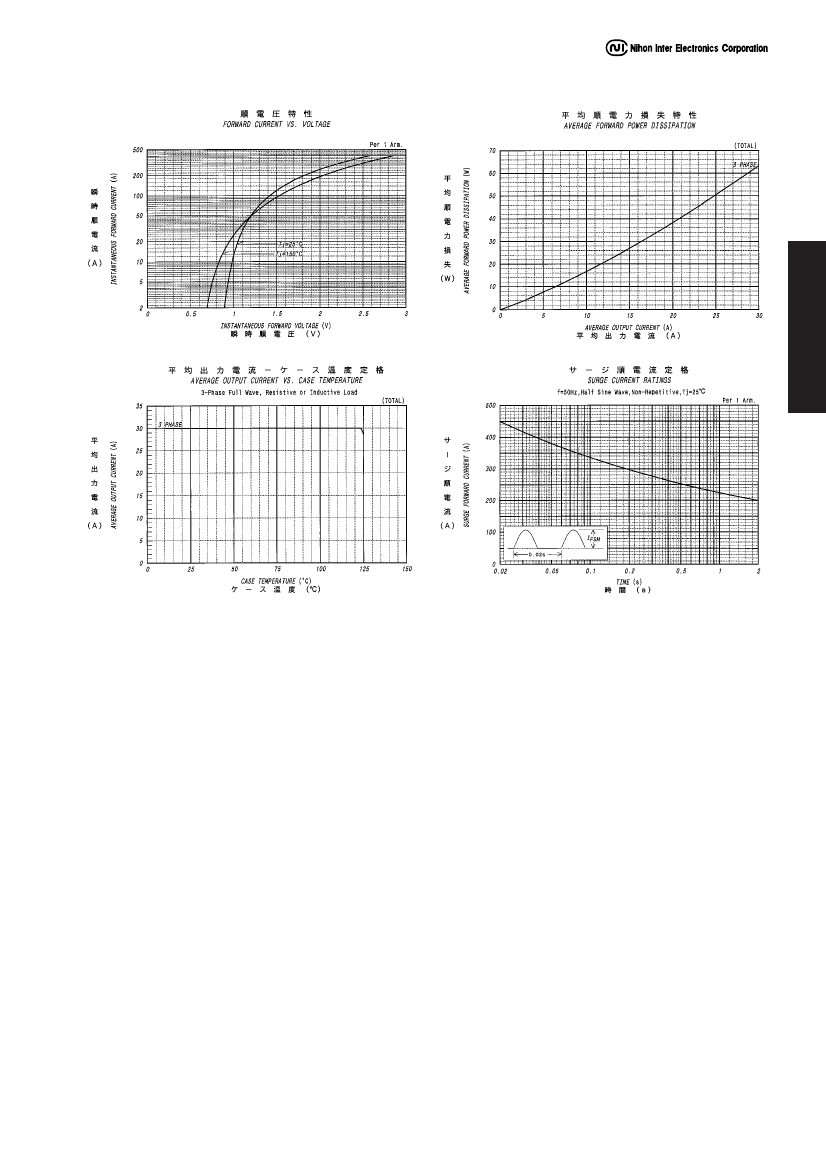

Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current *1
Peak Forward Voltage *1
Thermal Resistance
*1: Value Per 1Arm
Symbol
Test Conditions
Max. Unit
5
1.1
0.42
0.1
mA
V
°C/W
I
RM
V
RM
= V
RRM,
Tj= 150°C
V
FM
I
FM
= 30A, Tj=25°C
Rth(j-c) Junction to Case (Total)
Base Plate to Heat Sink with Thermal
Rth(c-f)
Compound (Total)
