PT5112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PT5112

PT5112: Description3 PHASE, 50 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size134KB，3 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric View All

PT5112 Overview

3 PHASE, 50 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE

PT5112 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-XUFM-X5
Reach Compliance Code	unknow
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-XUFM-X5
Maximum non-repetitive peak forward current	600 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

DIODE MODULE

FEATURES

* Isolated Base

* 3 Phase Bridge Circuit

* High Surge Capability

* UL Recognized, File No. E187184

50A/1200V/1600V

PT5112 PT5116

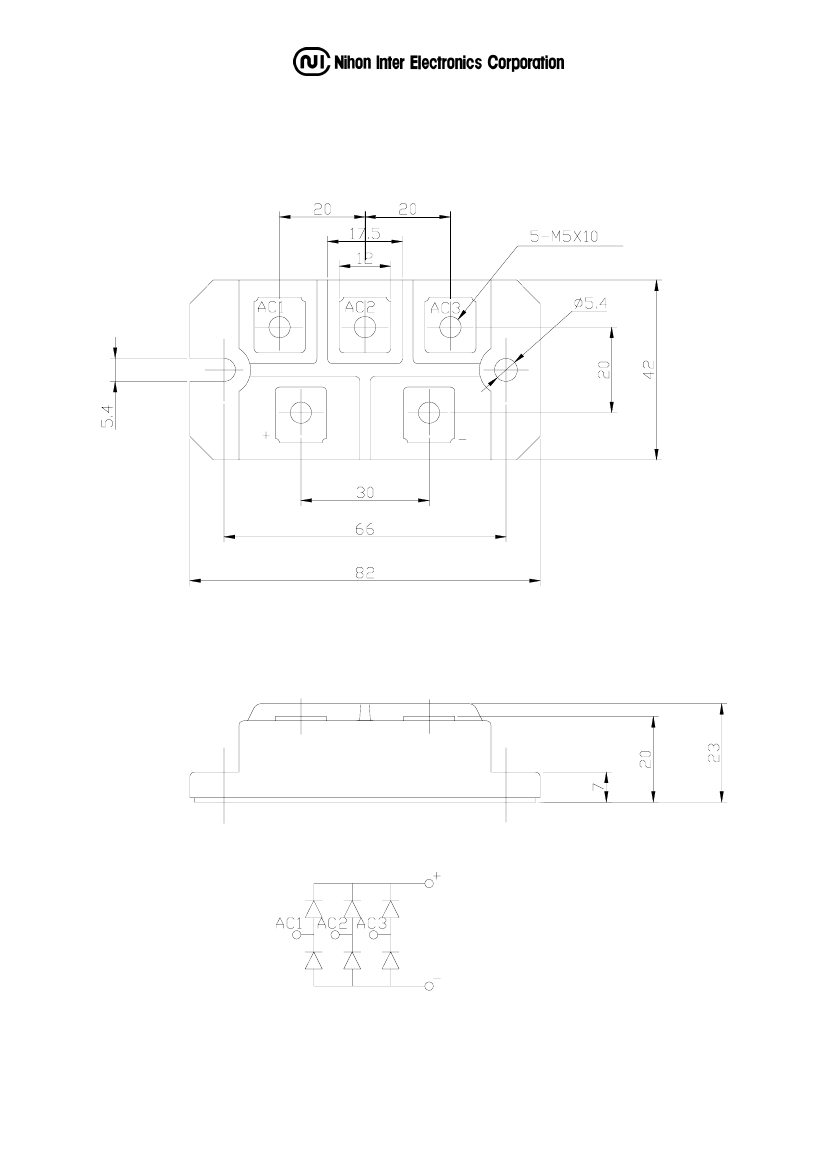

OUTLINE DRAWING

ﾈ½ﾞ

TYPICAL APPLICATIONS

* Rectified For General Use

Maximum Ratings

Parameter

Repetitive Peak Reverse Voltage *1

Non Repetitive Peak Reverse Voltage *1

Approx Net Weight:180g

Symbol

RRM

RSM

Type / Grade

PT5112

1200

1300

PT5116

1600

1700

Max Rated

Value

Unit

Parameter

Average Rectified Output Current

Surge Forward Current *1

I Squared t *1

Operating JunctionTemperature Range

Storage Temperature Range

Isoration Voltage

Case mounting

Mounting torque

Terminals

O(AV)

FSM

Tjw

Tstg

Viso

Ftor

Conditions

3-Phase Full Wave Rectified

Tc=91°C

50 Hz Half Sine Wave,1Pulse

Non-repetitive

2msec to 10msec

Unit

600

1800

-40 to +125

°C

-40 to +125

°C

Base Plate to Terminals, AC1min

2500

Greased

M5 Screw

2.4 to 2.8

•

2.4 to 2.8

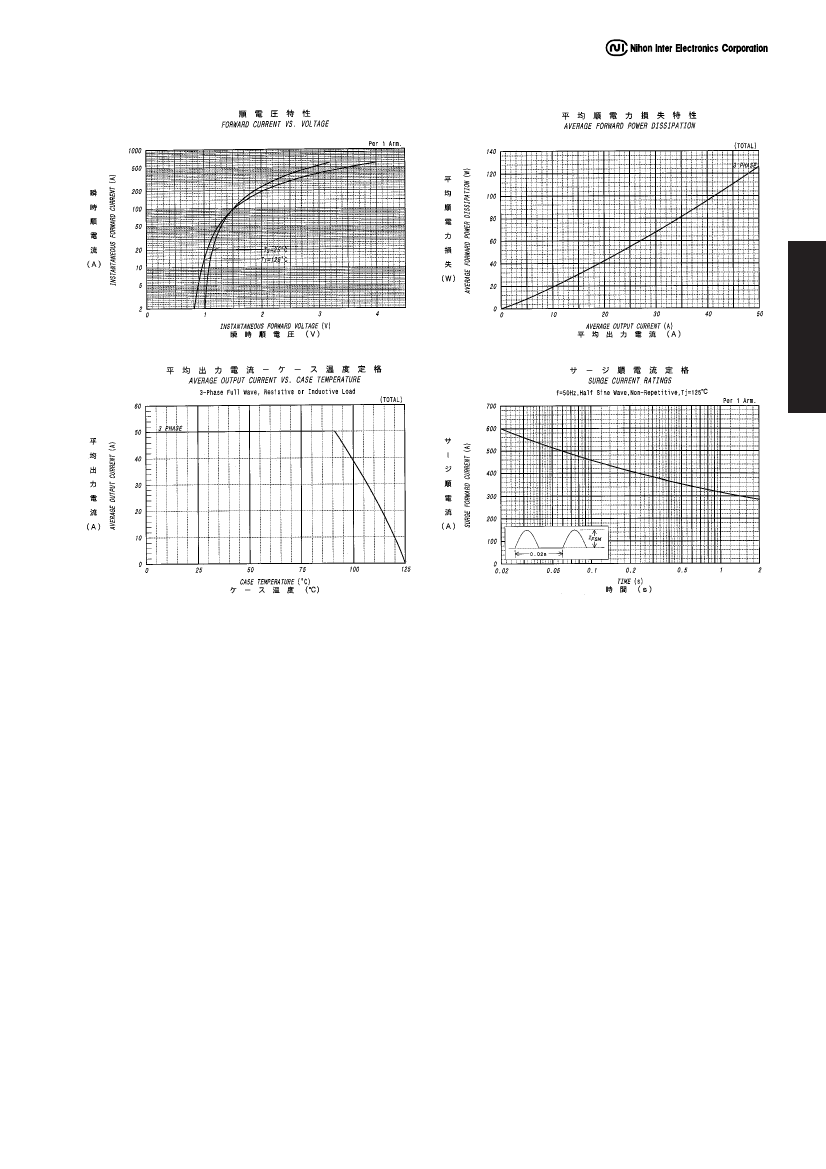

Electrical

•

Thermal Characteristics

Characteristics

Peak Reverse Current *1

Peak Forward Voltage *1

Thermal Resistance

*1: Value Per 1Arm

Symbol

Test Conditions

Max. Unit

1.3

0.27

0.06

°C/W

= V

RRM,

Tj= 125°C

= 50A, Tj=25°C

Rth(j-c) Junction to Case (Total)

Base Plate to Heat Sink with Thermal

Rth(c-f)

Compound (Total)
