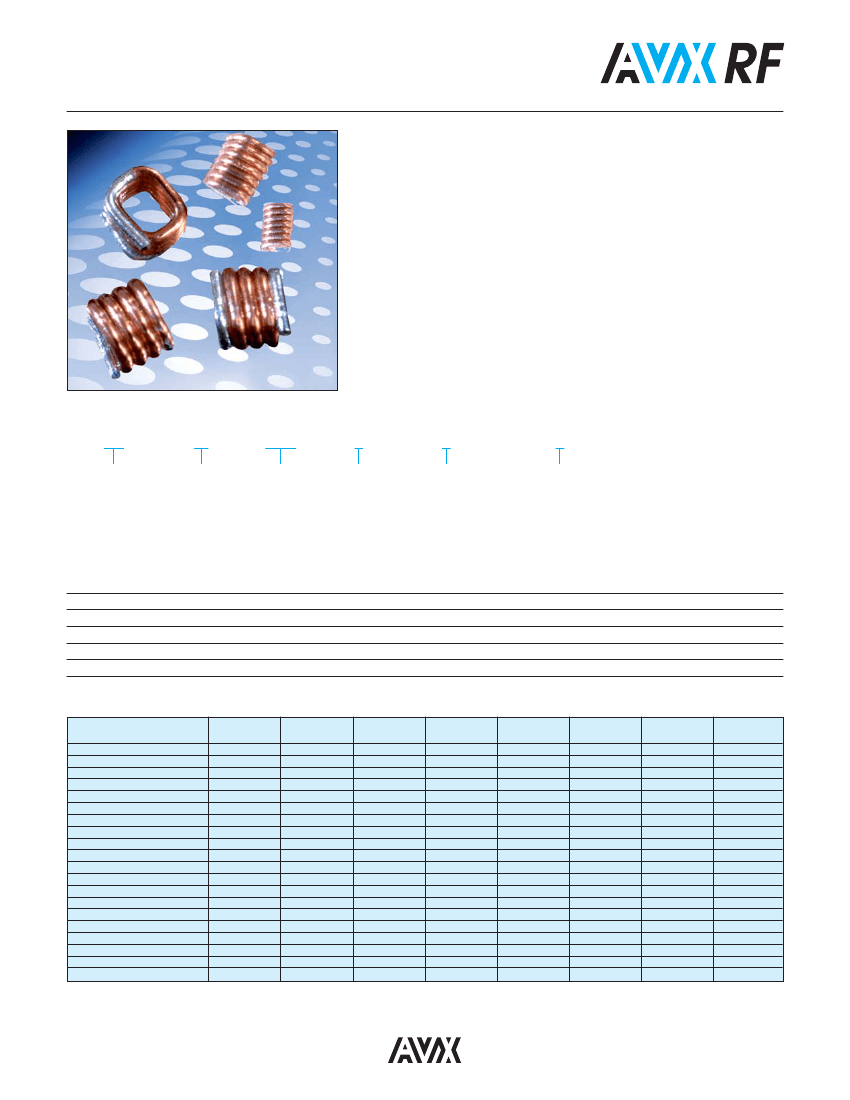

Square Air Core RF Inductors
AS Series
GENERAL DESCRIPTION
AVX Square Air Core RF Inductors, part of the wound air core inductor
family, are ideal for RF circuits, broadband I/O filtering, frequency selection,
or impedance matching. The unique square cross section of the air core
inductor provides better performance, and offers manufacturing
advantages over toroidal coils.
FEATURES
• Square cross section construction
• Available in 0806, 0807, and 0908 sizes
• 20 Inducance values ranging
from 5.5nH to 27.3nH
• High Q
• High Current
• Excellent SRF
APPLICATIONS
•
•
•
•
RF Applications
RF Circuits
Broadband I/O Filtering
Impedance Matching
HOW TO ORDER
AS
Air Core Inductor
(Square Cross
Section)
06
Size
Size
06 = 0806
07 = 0807
08 = 0908
05N5
Inductance
05N5 =5.5nH
06N0 = 6.0nH
12N3 = 12.3nH
J
Tolerance
G = 2%
J = 5%
K = 10%
T
Termination
T = Sn/Ag over Cu
(96.5% Sn, 3% Ag,
0.5% Cu)
R
Packaging
R = 7 inch reel
(2000 pieces per reel)
ELECTRICAL SPECIFICATIONS
Technical Data
Inductance Range
Inductance Tolerance
Rated Current
Operating Temperature
Termination
All technical data related to an ambient temperature of +25˚C
5.5nH to 27.3nH
2%, 5%, 10%
2.7A, 2.9A, 4.4A
-40˚C to +125˚C
96.5% Tin/3% Silver over 0.5% Copper
ELECTRICAL SPECIFICATIONS
AVX P/N
AS0605N5*TR
AS0606N0*TR
AS0608N9*TR
AS0612N3*TR
AS0615N7*TR
AS0619N4*TR
AS0706N9*TR
AS0710N2*TR
AS0711N2*TR
AS0713N7*TR
AS0717N0*TR
AS0722N0*TR
AS0808N1*TR
AS0812N1*TR
AS0814N7*TR
AS0816N6*TR
AS0821N5*TR
AS0823N0*TR
AS0825N0*TR
AS0827N3*TR
Note:
Turns
3
3
4
5
6
7
3
4
4
5
6
7
3
4
4
5
6
6
7
7
Inductance
(nH)
5.5
6
8.9
12.3
15.7
19.4
6.9
10.2
11.2
13.7
17
22
8.1
12.1
14.7
16.6
21.5
23
25
27.3
Tolerance
(%)
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
Q
min.
60
64
90
90
90
90
100
100
90
100
100
100
130
130
90
130
130
130
130
130
Test Freq.
(MHz)
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
DCR max
(mΩ)
3.4
6
7
8
9
10
6
7
6.3
8
9
10
6
7
7.2
8
9
10
10
10
SRF
(GHz)
4.9
5.2
4.3
4.8
4.4
4
4.6
4
3.6
4.3
4
3.5
5.2
4.3
3
3.4
3.7
2.6
2.5
3.2
Ir max
(A)
2.9
2.9
2.9
2.9
2.9
2.9
2.7
2.7
2.7
2.7
2.7
2.7
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
1. *Tolerance: G=±2%, J=±5%, K=±10%
2. Inductance & Q measured on the HP4291B. With HP16193A test fixture.
3. SRF measured using the HP8753E
4. Operating Temperature range: -40˚C to +125˚C
5. Electrical Specifications at 25˚C
6. MSL: Level 1
1
Square Air Core RF Inductors
AS Series

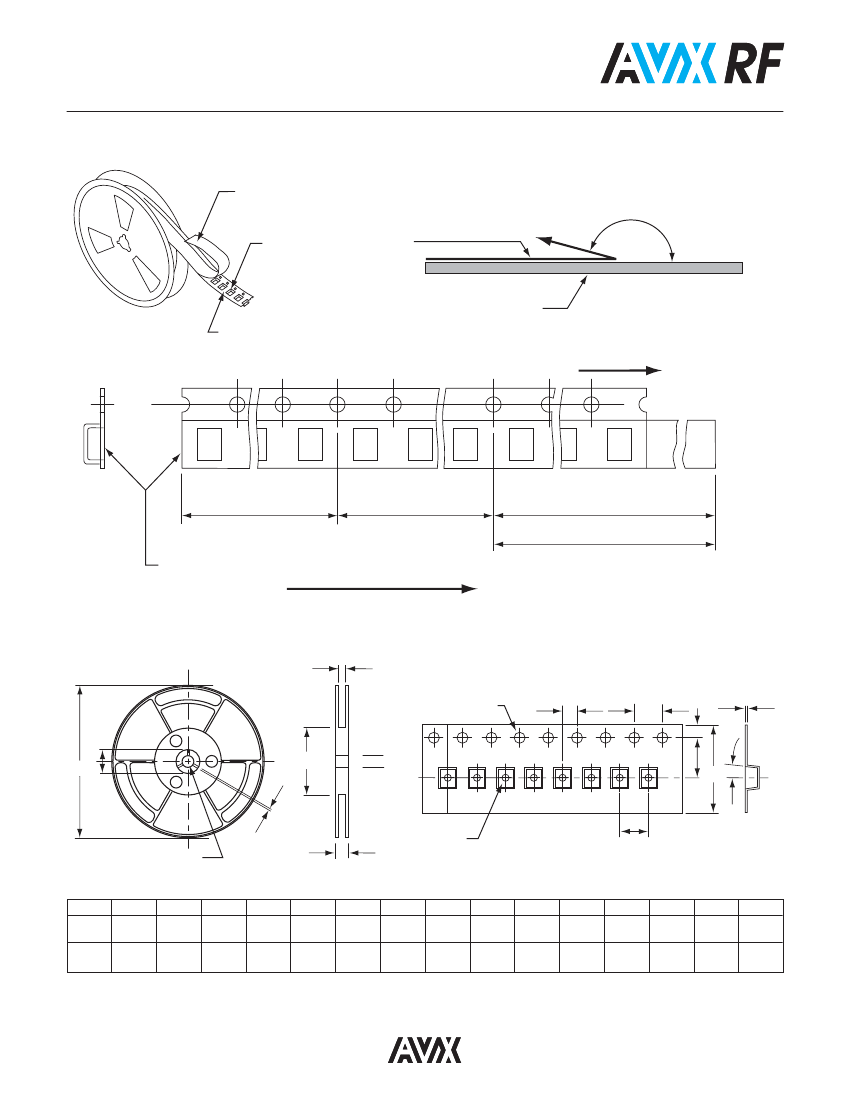

PACKAGING SPECIFICATIONS
Thickness (t)
0.10 (.004) max
Embossed Cavity
• The force for tearing off cover tape is
10 to 130 grams in the arrow direction
165° to 180°
Top Cover Tape
Base Tape
Embossed Carrier
End
Start
No Components
160 (6.299) min
Cover Tape
Components
No Components
390 (15.354) min
560 (22.047) max
User Direction of Feed
CARRIER TAPE REELS
G
DIMENSIONS OF CARRIER TAPE
D0
P2
P0
E
t
B
A
N
C
F
W
5°
E
D1
C
T
mm (inches)
ITEM
DIM.
TOL.
A
178
(7.008)
±2.0
(0.079)
B
25
(0.984)
±1.0
(0.039)
C
15
(0.591)
±0.5
(0.020)
G
12.5
(0.492)
+1.5
(0.059)
N
75
(2.953)
±2.0
(0.079)
T
16.4
(0.646)
+1.5
(0.059)
W
12.0
(0.472)
±0.2
(0.008)
E
1.75
(0.069)
±0.1
(0.004)
F
5.50
(0.217)
±0.1
(0.004)
P1
4.00
(0.157)
±0.1
(0.004)
P2
2.0
(0.079)
±0.1
(0.004)
P0
4.0
(0.157)
±0.1
(0.004)
D0
1.5
(0.059)
+0.1
(0.004)
D1
1.0
(0.039)
±0.1
(0.004)
t
0.23
(0.009)
±0.05
(0.020)
P1
5
