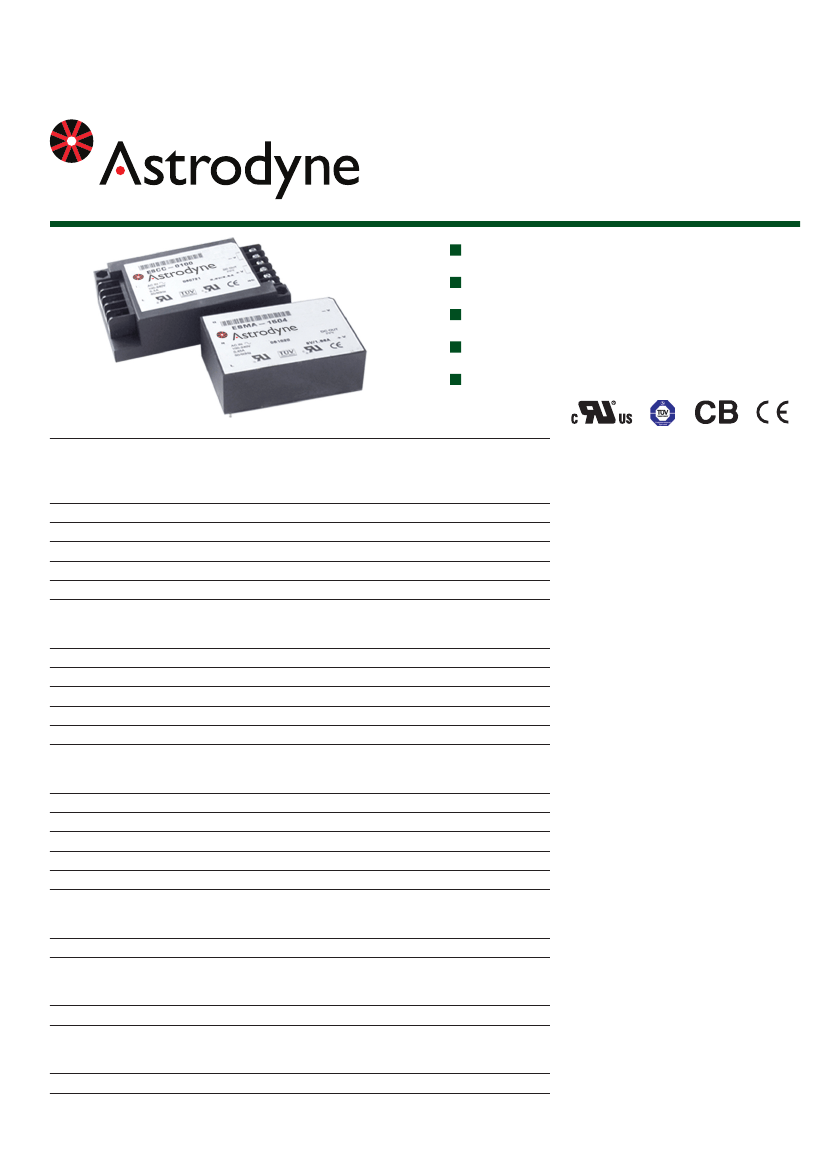

1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
ECA-10
series
Universal 85-265VAC Input
High Efficiency
Improved EMI Performance
3000V Isolation
Single and Dual Outputs
Model Number
Output Voltage
Output Amps(max)
(pk)
SINGLE OUTPUT - PCB Mount
ESCA-0100
3.3 VDC
ESCA-0101
5 VDC
ESCA-0122
9 VDC
ESCA-0102
12 VDC
ESCA-0103
15VDC
ESCA-0105
24VDC
SINGLE OUTPUT - Chassis Mount
ESCC-0100
3.3 VDC
ESCC-0101
5 VDC
ESCC-0122
9 VDC
ESCC-0102
12 VDC
ESCC-0103
15VDC
ESCC-0105
24VDC
SINGLE OUTPUT - DIN Rail Mount
ESCC-0100/DRL
3.3 VDC
ESCC-0101/DRL
5 VDC
ESCC-0122/DRL
9 VDC
ESCC-0102/DRL
12 VDC
ESCC-0103/DRL
15VDC
ESCC-0105/DRL
24VDC
DUAL OUTPUT - PCB Mount
EDCA-0106
+/-12VDC
EDCA-0107
+/-15VDC
DUAL OUTPUT - Chassis Mount
EDCC-0106
+/-12VDC
EDCC-0107
+/-15VDC
DUAL OUTPUT - DIN Rail Mount
EDCC-0106/DRL
+/-12VDC
EDCC-0107/DRL
+/-15VDC
2.5A
2A
1.1A
0.85A
0.67A
0.42A
2.5A
2A
1.1A
0.85A
0.67A
0.42A
2.5A
2A
1.1A
0.85A
0.67A
0.42A
+/-0.42A
+/-0.34A
+/-0.42A
+/-0.34A
+/-0.42A
+/-0.34A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
+/-0.6A
+/-0.45A
+/-0.6A
+/-0.45A
+/-0.6A
+/-0.45A
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE EUROPE: 353 51 561060

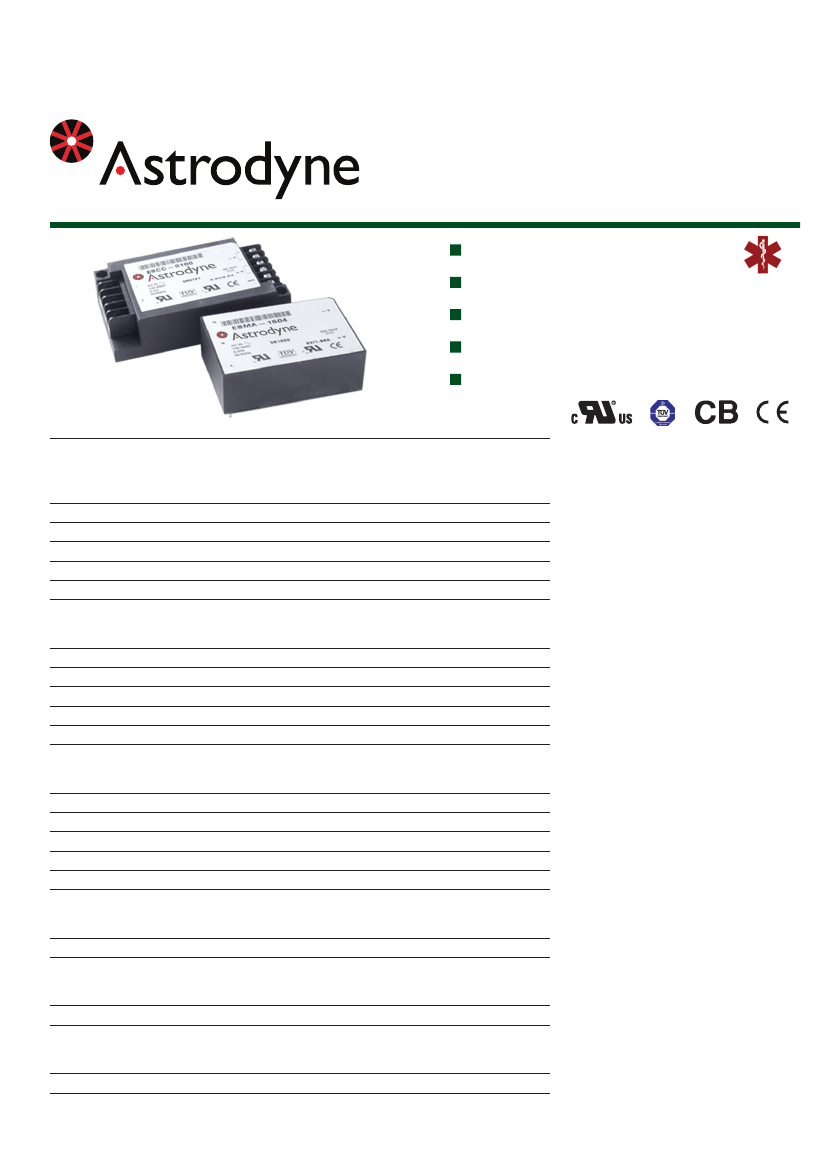

1 0 W U l t r a mi ni ature Med ical G rad e Enca ps ul ated S wi tc hers
EMA-10
series
Universal 85-265VAC Input
High Efficiency
Improved EMI Performance
4000V Isolation
Single and Dual Outputs
Model Number
Output Voltage
Output Amps(max)
(pk)
SINGLE OUTPUT - PCB Mount
ESMA-0100
3.3 VDC
ESMA-0101
5 VDC
ESMA-0122
9 VDC
ESMA-0102
12 VDC
ESMA-0103
15VDC
ESMA-0105
24VDC
SINGLE OUTPUT - Chassis Mount
ESMC-0100
3.3 VDC
ESMC-0101
5 VDC
ESMC-0122
9 VDC
ESMC-0102
12 VDC
ESMC-0103
15VDC
ESMC-0105
24VDC
SINGLE OUTPUT - DIN Rail Mount
ESMC-0100/DRL
3.3 VDC
ESMC-0101/DRL
5 VDC
ESMC-0122/DRL
9 VDC
ESMC-0102/DRL
12 VDC
ESMC-0103/DRL
15VDC
ESMC-0105/DRL
24VDC
DUAL OUTPUT - PCB Mount
EDMA-0106
+/-12VDC
EDMA-0107
+/-15VDC
DUAL OUTPUT - Chassis Mount
EDMC-0106
+/-12VDC
EDMC-0107
+/-15VDC
DUAL OUTPUT - DIN Rail Mount
EDMC-0106/DRL
+/-12VDC
EDMC-0107/DRL
+/-15VDC
2.5A
2A
1.1A
0.85A
0.67A
0.42A
2.5A
2A
1.1A
0.85A
0.67A
0.42A
2.5A
2A
1.1A
0.85A
0.67A
0.42A
+/-0.42A
+/-0.34A
+/-0.42A
+/-0.34A
+/-0.42A
+/-0.34A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
3.3A
2.6A
1.5A
1.2A
0.9A
0.6A
+/-0.6A
+/-0.45A
+/-0.6A
+/-0.45A
+/-0.6A
+/-0.45A
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE EUROPE: 353 51 561060
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
INPUT SPECIFICATIONS
Input Voltage Range
Frequency Range
Inrush Current, typ:
90-264 VAC
47-63 Hz
20A@100V, 40A@200V Input
*
ECA-10
3KVAC, (4KVAC Medical)
2500VAC
1000VAC
75%~78%, typ
100Khz, (fixed, typical)
series
GENERAL SPECIFICATIONS
Input-Out Isolation
I/P-Ground
O/P-Ground
Efficiency
Switching Frequency
OUTPUT SPECIFICATIONS
Voltage and Current
Load Regulation (20%-FL)
Line Regulation
Cross Regulation (Duals)
Preset Accuracy
DC Voltage Adjust (typ)
Temperature Coefficient
Ripple/Noise
Over Voltage Protection
Over Temp. Protection
Short Circuit Protection
Hold Up Time
See Selection Chart
Singles: +/- 3%, Duals: +/- 3%
Singles +/- 0.1~1%, typ
Duals +/- 0.3~1%, typ
2%
1%
+/- 10% of FS (Primary)
+/-0.03%/°C
100mV Pk-Pk, typ
Clamp, 130-150%
*
Latching, Cool and Repower
Continuous, self-recovering
20 mS, typ
PHYSICAL SPECIFICATIONS
PCB Mount
Chassis Mount
Case Material
Construction
Weight PCB / CHA
Size
2.56L” x 1.77W” x 0.83H”
3.77L” x 2.16W” x 1.0H”
Rynite, 94V-0 Rated
Encapsulated. Soft Pot
4.6 oz (128g) / 8.5 oz (238g)
ENVIRONMENTAL SPECIFICATIONS
Oper. Temperature
Storage Temperature
Relative Humidity
EMC / EMI
MTBF
0 to +70°C (See Derate)
-25 to +71°C
*
0 to + 95%, non-cond
*
FCC/A, VDE 0871/A , CISPRB
(Mil Std 217, 25°C)
575,000 Hrs
All specifications are typical at nominal input, full load, and 25°C unless other-
wise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE EUROPE: 353 51 561060
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
OUTPUT DERATING CURVE
100
90
80
70
Load, %
60
50
40
30
20
0
10
20
30
40
50
60
70
ECA-10
series
Ambient Temperature, °C
MECHANICAL DIMENSIONS
Model
Type / Pin#
0.040 [1.02] DIA. TYP.
Single
AC HI
AC LO
GND
+Vout
No Pin
-Vout
Dual
AC HI
AC LO
GND
+Vout
Out Com
-Vout
1.77 [45.0]
2.56 [65.0]
0.20 [5.1]
1
2
3
6
8
9
.XX ± 0.01 [0.25]
.XXX ± 0.005 [0.13]
0.83 [21.0]
Tolerance:
Dimensions shown in inch [mm]
0.22 [5.5]
2.126 [54.0]
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE EUROPE: 353 51 561060
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies

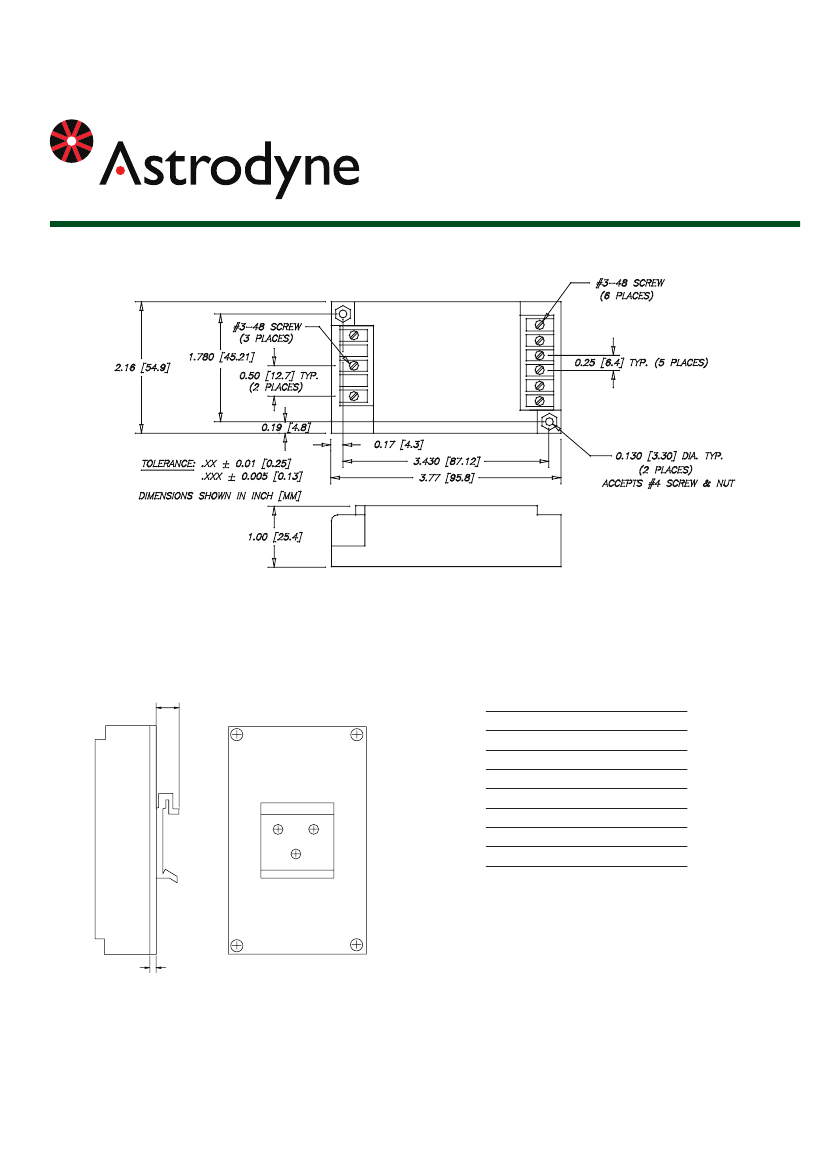

MECHANICAL DIMENSIONS - CHASSIS MOUNT
ECA-10
series
4
1
2
3
5
6
7
8
9
MECHANICAL DIMENSIONS - DIN RAIL
0.350 [8.89]
Model
Type / Pin#
1
2
3
4
5
6
7
8
9
Single
AC LO
GND
AC HI
N/C
-Vout
-Vout
+Vout
+Vout
N/C
Dual
AC LO
GND
AC HI
N/C
-Vout
Com
Com
+Vout
N/C
DIN Rail mounting kit available for Chassis-mount modules, specify part #
M-DRL-01. Kit includes mounting plate, DIN Rail cliip and assembly hardware.
0.100 [2.54]
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE EUROPE: 353 51 561060
