EC1008A-3R3: DescriptionCeramic / Ferrite Inductor; File Size59KB，3 Pages; ManufacturerECM [ECM Electronics Limited.]

Download Datasheet View All

EC1008A-3R3 Overview

Ceramic / Ferrite Inductor

Preview

Download Datasheet

View All

ECM 1008 Ceramic / Ferrite Inductor

EC1008 Series

Standard EIA 1008 package

Wire-wound Construction

Ceramic Core

High ‘Q’

High SRF

Typical Reel Size 2000pcs

The EC1008 range of chip coils remains the most popular type of 1008 coil . Available with either a

ceramic or ferrite core material and noted for its overall durability, this part is recommended for many

of the worlds leading communication projects.

The standard Gold laminated Tungsten-Nickel terminations allow excellent solderability as well as use

with many conductive adhesives.

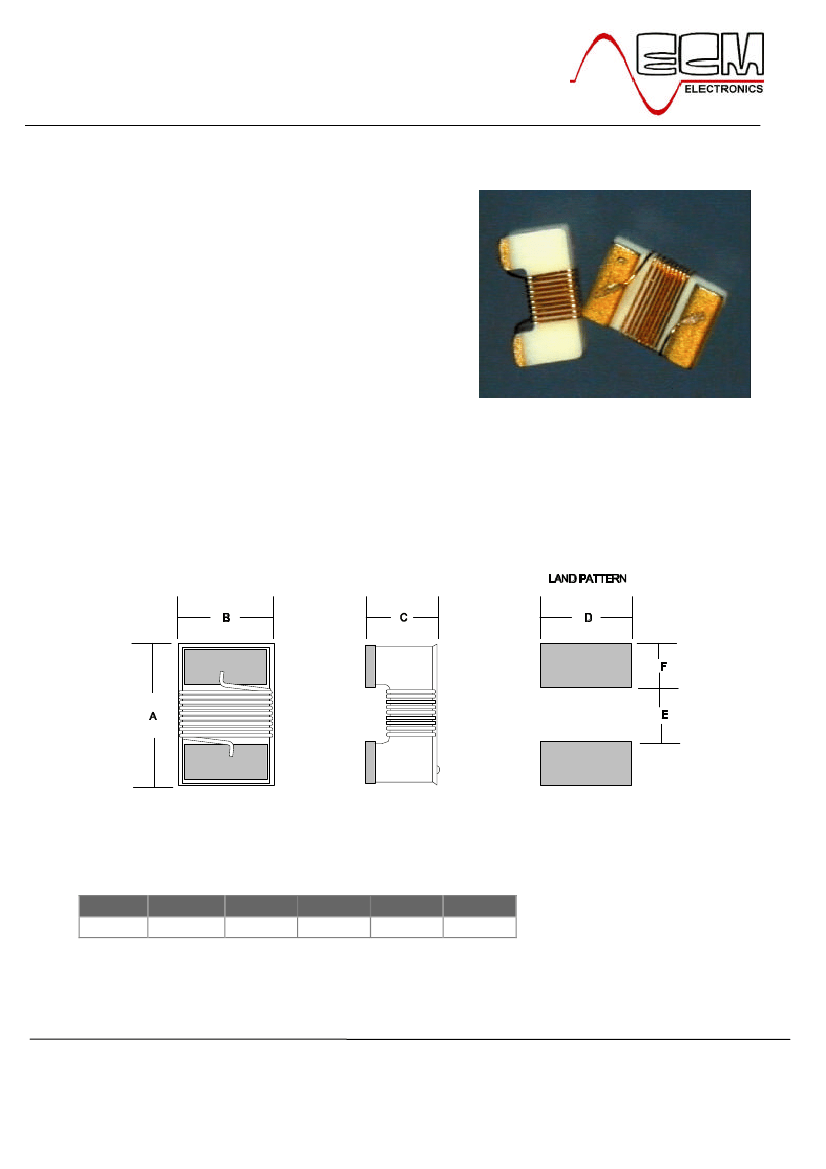

COMPONENT OUTLINE

DIMENSIONS (mm)

2.92

2.80

2.25

2.60

1.27

1.02

Specify terminal type :-

01 = W/Ni/Au - STANDARD 02 = Pd/Pt/Ag – SUPER SOLDERABILITY

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 3
