380GS104M2320A6 datasheet, PDF

Datasheet> All Categories > The connector> 380GS104M2320A6

380GS104M2320A6: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT MED DUTY; CategoryThe connector; File Size435KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

380GS104M2320A6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380GS104M2320A6	-	-	View	Buy Now

380GS104M2320A6 Overview

Circular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT MED DUTY

380GS104M2320A6 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
RoHS	Details
MIL Type	MIL-DTL-28840
Factory Pack Quantity	1

Preview

Download Datasheet

View All

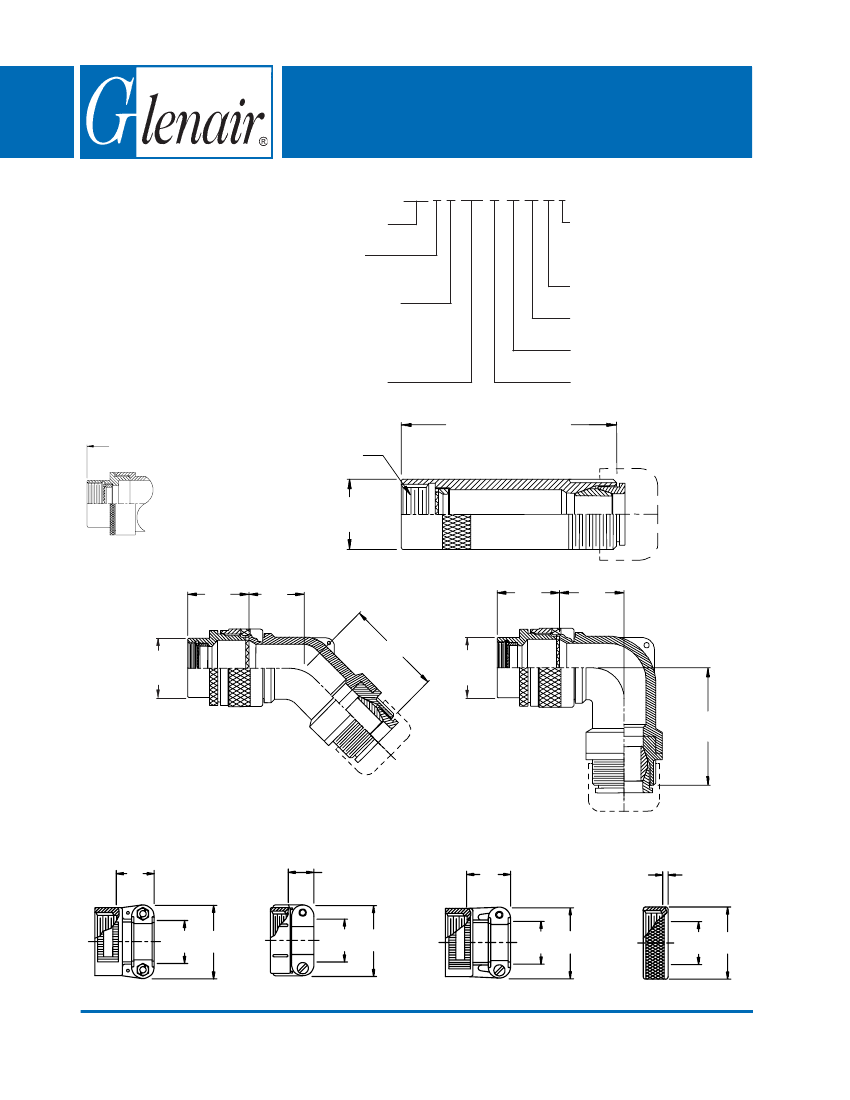

380-104

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type F - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

380 F S 104 M 16 08 A 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Cable Entry (Table X, XI)

Shell Size (Table I)

Finish (Table II)

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

DIRECT COUPLING

TYPE F INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

(Table III) (Table IV)

F (Table IV)

(Table I)

(Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 112
