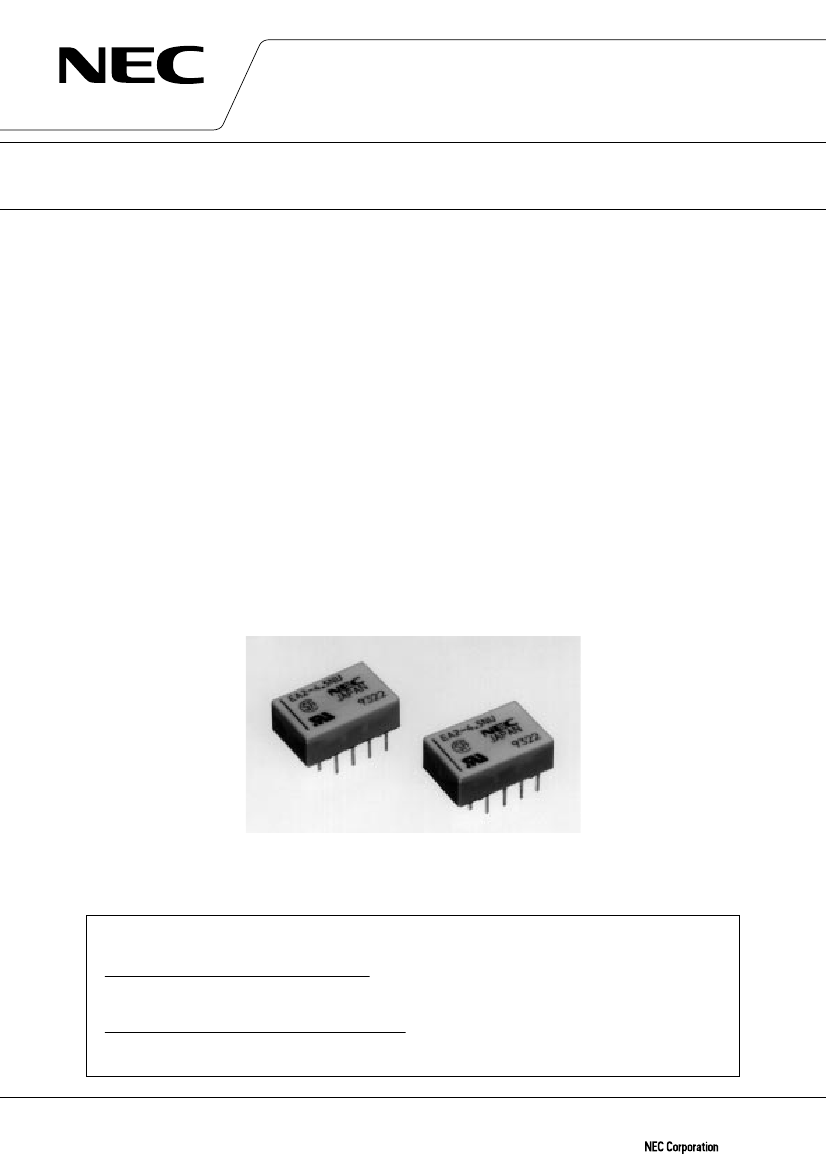

DATA S H E E T
MINIATURE SIGNAL RELAY
EA2 SERIES
COMPACT AND LIGHTWEIGHT
DESCRIPTION
The EA2 series has reduced package size and power consumption to other NEC Conventional relays.
Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the
efficient magnetic circuit
FEATURES
™
Low power consumption
™
Compact and light weight
™
2 form c contact arrangement
™
Low magnetic arrangement
™
Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant
™
Tube packaging
™
UL recognized (E73266), CAS certified (LR46266)
APPLICATIONS
Electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equip-
ment.
ATTENTION
DO NOT EXCEED MAXIMUM RATINGS.
Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over
current. Incorrect use could result in abnormal heating, damage to related parts or cause burning.
READ CAUTIONS IN THE SELECTION GUIDE.
Read the cautions described in NEC's "Miniature Relays" (ER0046EJ∗) when you choose relays for
your application.
Document No. ER0001EJ6V0DS00 (6th edition)
Date Published June 1999 M
Printed in Japan
©
1989 (1996)
EA2 SERIES

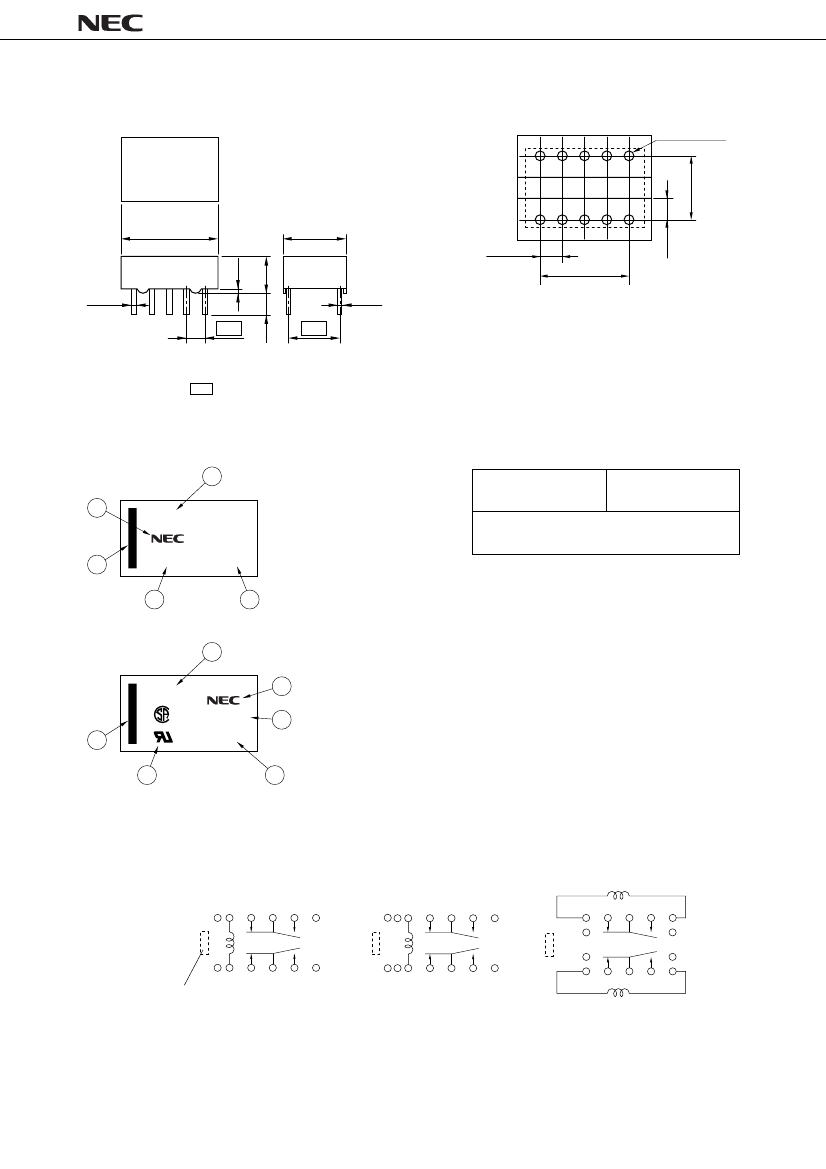

OUTLINE DRAWING AND DIMENSIONS
Unit : mm (inch)
PAD LAYOUT (bottom view)
10-
φ
0.8(0.03)
(0.56)
(0.36)
5.4 max.
(0.21)
2.54
(0.10)
10.16
(0.40)
0.5
(0.02)
(0.10)
3.5
0.25
(0.01)
2.54
7.62
(0.30)
Note. Tolerance + 0.1 ( + 0.004) unless othewise specified
–
–
Note. tolerance + 0.2 ( + 0.008) unless otherwise specified
–
–
Dimensions in
show basic size.
NJ type : Cover height-6.3 mm (0.248), Leads-2.8 mm (0.11)
MARKINGS
1
2
SAFETY STANDARD AND RATING
UL Recognized
(UL508)
∗
File No E73266
CSA Certificated
(CSA C22.2 No 14)
File No LR46266
30 Vdc, 1 A
(Resistive)
110 Vdc, 0.3 A (Resistive)
125 Vdc, 0.5 A (Resistive)
EA2-5
q
Part number
5
JAPAN
9106
w
Manufacturer
e
Country of origin
r
Date code
t
Index mark of relay direction
(pin No. 1, 10.)
y
UL, CSA Marking
2
∗
Spacing : UL114, UL478
3
Standard type
1
4
EA2-5NU
JAPAN
5
6
UL recognized,
CSA certified type
9106
3
4
PIN CONFIGURATIONS
S
1
+
2
3
4
5
– +
1
RS
2
3
4
5
1
+
+
2
3
4
–
+ –
10
Index mark of
relay direction
9
8
7
6
10
9
8
7
6
10
9
8
7
Non-latch type
(not energized position)
Single coil latch type
(reset position)
R
Double coil latch type
(reset position)
S : Coil polarity of set (operate)
R : Coil polarity of reset (release)
2
DATA SHEET ER0001EJ6V0DS00
2.54
(0.10)
14.2 max.
0.33 (0.013)
9.2 max.
5
–
–
6
7.62
(0.30)
EA2 SERIES
PART NUMBER SYSTEM
EA2 – 3 S NU
Nil : Standard type
NU : UL recognized, CSA certified type
NJ : Trimmed leads type
∗
NP : Silver-palladium alloy contact (with gold alloy overlay)
∗
∗
UL recognized, CAS certified type
Latch type
Nil : Non-latch type (standard type)
S : Single coil latch type
T : Double coil latch type
Nominal coil voltage
3, 4.5, 5, 6, 9, 12, 24 Volts
EA2 series
PERFORMANCE CHARACTERISTICS
Contact Form
Maximum switching power
Maximum switching voltage
Contact rating
Maximum switching current
Maximum carrying current
Minimum contact ratings
Initial contact resistance
Contact material
Nominal operating Power
Non-latch type and double coil latch type
2 form c
30 W (resistive)
220 Vdc
1A
2A
10 mVdc, 10
µ
A
∗
1
50 mΩ typ. (Initial)
Silver alloy with gold alloy overlay
140 mW (3 to 12 V)
200 mW (24 V)
100 mW (3 to 12 V)
150 mW (24 V)
79 mW (3 to 12 V)
113 mW (24 V)
56 mW (3 to 12 V)
85 mW (24 V)
Approximately 2 ms without diode
Approximately 1 ms without diode
1000 MΩ at 500 Vdc
Between open contacts
Breakdown voltage
Between adjacent contacts
Between coil and contact
Shock resistance
735 m / s
2
(75 G) (misoperating)
980 m / s
2
(100 G) (destructive failure)
10 to 55 Hz at double amplitude of 3 mm (20 G)
Vibration resistance
(misoperating)
10 to 55 Hz, at double amplitude of 5 mm (30 G)
(destructive failure)
–40°C to 85°C
18 degrees at nominal coil voltage
Noload
Running specifications
Load
1
×
10
8
operations (Non-latch type)
∗
3
1
×
10
7
operations (latch type)
50 Vdc 0.1 A (resistive), 1
×
10
6
operations at 85˚C, 2 Hz
10 Vdc 10 mA (resistive), 1
×
10
6
operations at 85˚C, 2 Hz
1000 Vac (for one minute)
1500 V surge (10
×
160
µ
s
∗
2
)
62.5 VA (resistive)
250 Vac
Single coil Latch type
Minimum operating Power
Non-latch type and double coil latch type
Single coil latch type
Operate time (excluding bounce)
Release time (excluding bounce)
Insulation resistance
Ambient temperature
Coil temperature rise
Weight
Approximately 1.5 grams
∗
1
This value is a reference value in the resistance load.
Minimum capacity changes depending on seitching frequency and environment temperature and the load.
∗
2
Rise time : 10
µ
s, fall time : 160
µ
s
∗
3
This shows a number of operation where it can be running by which a fatal defect is not caused, and a number of
operation by which a steady characteristic is maintained is 1
×
10
7
times.
DATA SHEET ER0001EJ6V0DS00
3
EA2 SERIES
PRODUCT LINEUP
Non-latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω)
±10
%
64.3
145
178
257
579
1028
2880
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
0.3
0.45
0.5
0.6
0.9
1.2
2.4
at 20˚C
Single-Coil Latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω)
±10
%
90
202.5
250
360
810
1440
3840
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
at 20˚C
Double-Coil Latch Type
∗∗
(Can not be driven by revese polarity for reverse operation.)
Nominal Coil
Voltage
(Vdc)
3
S
R
S
R
S
R
S
R
S
R
S
R
S
R
Coil
Resistance
(Ω)
±10
%
64.3
64.3
145
145
178
178
257
257
579
579
1028
1028
2880
2880
18
–
18
9
–
9
–
Must Operate
Voltage
(Vdc)
2.25
–
3.38
–
3.75
–
4.5
–
6.75
–
Must Release
Voltage
(Vdc)
–
2.25
–
3.38
–
3.75
–
4.5
–
6.75
–
at 20˚C
4.5
5
6
9
12
24
Note
∗
Test by pulse voltage
∗∗
S : Set coil (pin No.1... + , pin No.5... – ) R : Reset coil (pin No.10... + , pin No.6... – )
The latch type relays should be initalized at appointed position before using, and should be enegized to specific
polanity by a bone polabity to avoid wrong operation.
Any special coil requirement, please contact NEC for availability.
4
DATA SHEET ER0001EJ6V0DS00
EA2 SERIES
TYPICAL PERFORMANCE DATA
SWITCHING CAPACITY
COIL TEMPERATURE RISE
2.0
Switching Current (A)
1.0
0.5
0.4
0.3
0.2
Coil Temperature Rise (˚C)
DC Load (resistive)
AC Load (resistive)
80
60
0.25A
0.136A
40
20
30
100
200
Switching Voltage (V)
250 Vdc
220 Vdc
0
100
200
300
400
Applied Power (mW)
OPERATE TIME
Release Time or
Bounce Time at Release (ms)
Operate Time
2
Bounce Time at Operate
1
0
100
200
300
400
500
Applied Power (mW)
RELEASE TIME WITHOUT DIODE
Release Time or
Bounce Time at Release (ms)
RELEASE TIME WITH DIODE
Release Time or
Bounce Time at Release (ms)
Release Time
2
Release Time
2
1
Bounce Time at Release
1
Bounce Time at Release
0
100
200
300
400
500
0
100
200
300
400
500
Applied Power (mW)
Applied Power (mW)
RUNNING SPECIFICATIONS (Noload)
Sample : EA2-5 n = 10
Load : None
Contact Resistance (mΩ)
5
Operate Voltage or
Release Voltage (V)
4
3
2
1
0
1
5
10
2
3
6
Number of Operations (
×
10 operations)
Operate Voltage
Release Voltage
Temperature : 85˚C
Drive : 5 Vdc, 10 Hz 50% duty
1000
500
300
200
100
50
30
20
10
0
1
2
3
5
10
6
Number of Operations (
×
10 operations)
Make contact
Break contact
DATA SHEET ER0001EJ6V0DS00
5
