RJHSE
Product Specification S6032C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.

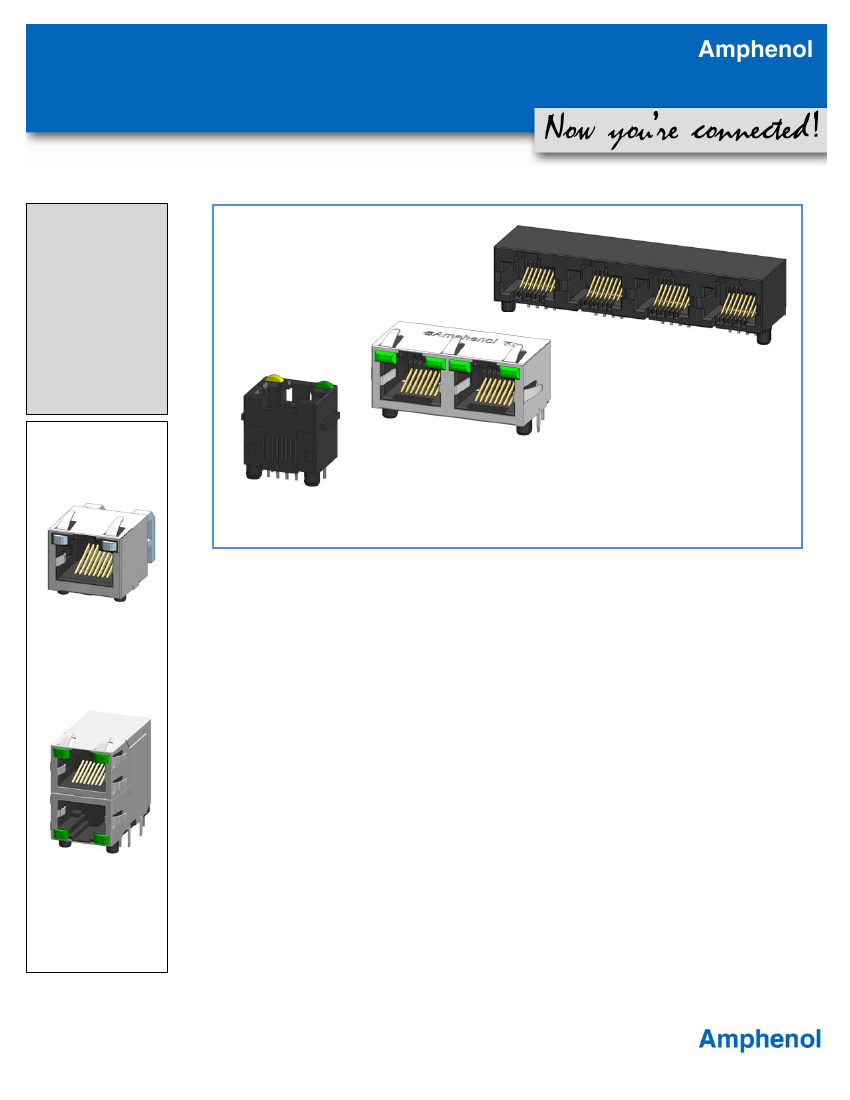

P/N RJHSE‐G080‐04 SHOWN
FOUR PORT REGULAR MOUNT,
NO SHIELD OR LEDs
Related Products
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
RJSSE
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
Overview
P/N RJSSE‐5081 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJHSE series of inverted modular jacks.
Availability: Single, multiport, vertical and right angle connectors with a wide variety of LED and
shielding options.
RJSAE
Usage
The RJHSE inverted modular jacks with superior EMI performance supports Ethernet Protocols.
Shielding available for increased EMI performance and LEDs for Link Activity and Network Speed
verification.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: Nov 21, 2012
Page 1 of 2

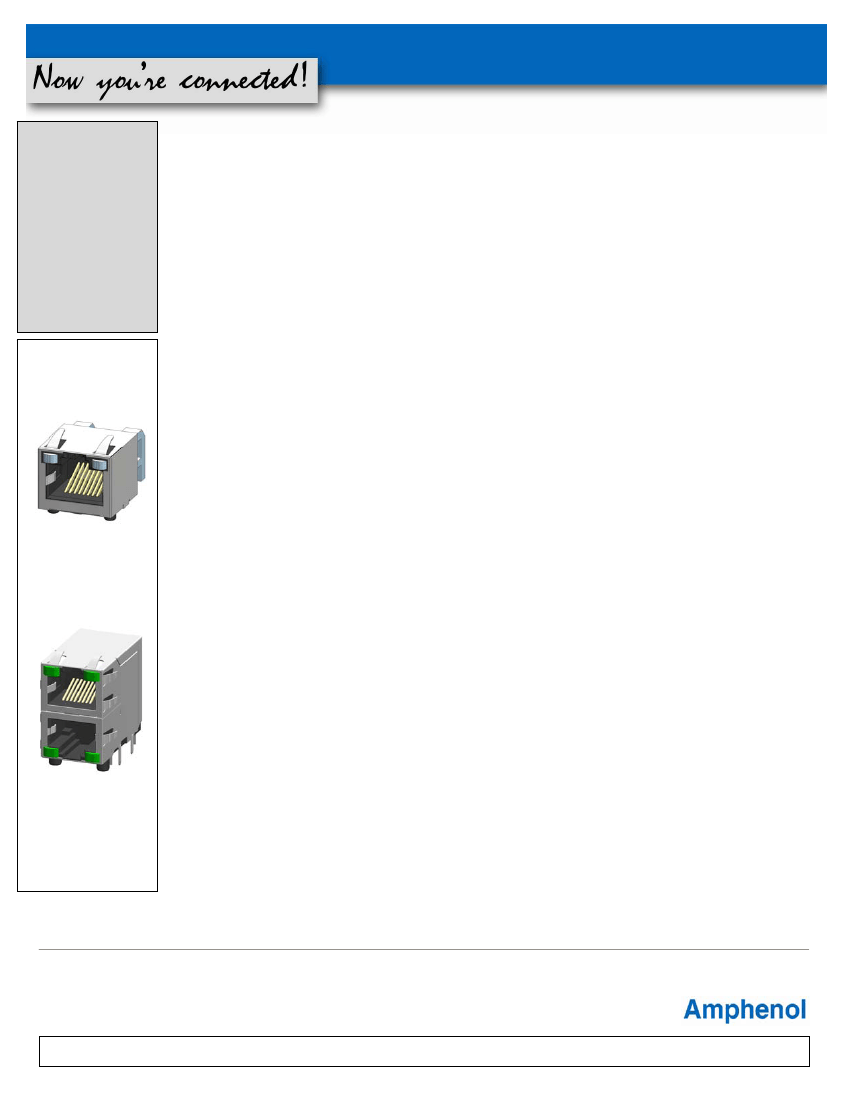

S6032C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
LED forward DC current:
LED forward Voltage:
LED reverse voltage:
LED light intensity:
LED wave length:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
20mA typical
1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red:
625± 5 nm measured @ 20mA
Related Products
RJSSE
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Connectors without LED’s are suitable for IR Reflow
P/N RJSSE‐5081 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
Operating temperature: -55° C to +85° C
Material Requirements
RJSAE
RJHSE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Stainless Steel with tin dipped tails
LED:
Tin plating on LED tails
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Available Documents
Drawing Numbers:
P-RJHSE-5XXX-XXX
8 Position Modular Jack, optional LEDs and Shielding, 1, 2, 4, 5, 6 and 8 port versions
P-RJHSE-7XXX-XXX
6 Position Modular Jack, Optional LEDs and Shielding, 1, 2 and 4 port versions
P-RJHSE-3XXX-XXX
Vertical Mount, Single Port Modular Jack, Optional LEDs and Shielding
P-RJHSE-LXXX-XXX
Low Profile Modular Jack, Optional LEDs and Shielding, 1 and 2 port versions
Contact factory or Authorized Amphenol representative for additional configurations
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
